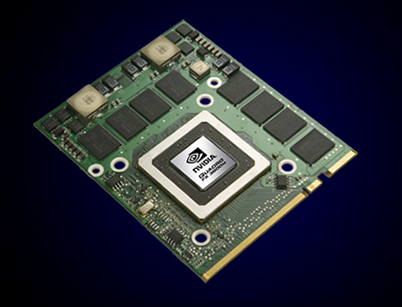

NVIDIA Quadro FX 3600M

NVIDIA Quadro FX 3600M

La tarjeta de vídeo profesional para aplicaciones CAD, DCC y visualización está basada en la 8800M GTX / GTS (GPU-Z). Por lo tanto, La tarjeta video ofrece valores de rendimientos elevados, pero con alto consumo de energía. Controladores dedicados garantizan una representación sin errores y más veloz con aplicaciones profesionales que con modelos GeForce.

Controladores certificados garantizan representación sin errores y más veloz con aplicaciones profesionales. La Nvidia Quadro FX 3600M está basada en el chip de desktop G92 y es el nuevo chip de video top de Nvidia para DirectX 10.

Una particularidad de la Quadro FX 3600M son los "Unified Shaders". Ya no existen shaders dedicados de pixel- y vertex, pero 64, así llamados, procesadores stream hacen el trabajo gráfico (que estuvo siendo hecho por shader de pixel y vertex en días pasados). Además, las unidades shader tienen una frecuencia más alta que el chip.



El rendimiento de la FX 3600M debe ser mayor que de la 1600M gracias al bus de memoria de 256 bit y la gran cantidad de Unified Shaders.

Quadro FX Serie

Quadro FX 3800M 128 @ 0.68 GHz256 Bit @ 1000 MHz
Quadro FX 3700M 128 @ 0.55 GHz256 Bit @ 800 MHz
Quadro FX 2800M 96 @ 0.6 GHz256 Bit @ 1000 MHz
Quadro FX 3600M 96 @ 0.5 GHz256 Bit @ 800 MHz
Quadro FX 1800M 72 @ 0.56 GHz128 Bit @ 1100 MHz
Quadro FX 2700M 48 @ 0.53 GHz256 Bit @ 800 MHz
Quadro FX 880M 48 @ 0.55 GHz128 Bit @ 790 MHz
Quadro FX 3500M 24/8 cores @ 0.58 GHz256 Bit @ 700 MHz
Quadro FX 2500M 24/8 cores @ 0.5 GHz256 Bit @ 600 MHz
Quadro FX 1700M 32 @ 0.63 GHz128 Bit @ 800 MHz
Quadro FX 1600M 32 @ 0.63 GHz128 Bit @ 800 MHz
Quadro FX 1500M 20/7 cores @ 0.38 GHz256 Bit @ 500 MHz
Quadro FX 770M 32 @ 0.5 GHz128 Bit @ 800 MHz
Quadro FX 570M 32 @ 0.48 GHz128 Bit @ 700 MHz
Quadro FX 380M 16 @ 0.63 GHz64 Bit @ 800 MHz
Quadro FX 370M 8 @ 0.58 GHz64 Bit @ 700 MHz
Quadro FX 360M 16 @ 0.4 GHz64 Bit @ 600 MHz
Quadro FX 350M 4/3 cores @ 0.45 GHz64 Bit @ 350 MHz
Nombre CódigoNB8E-GLM
ArquitecturaG9x
Pipelines96 - unificado
Velocidad del núcleo500 MHz
Velocidad de Shader1250 MHz
Velocidad de Memoria800 MHz
Ancho de Bus de Memoria256 Bit
Tipo de MemoriaGDDR3
Max. Cantidad de Memoria512 MB
Memoria Compartidano
APIDirectX 10, Shader 4.0
Consumo de corriente70 Watt
Conteo de Transistores754 Millón
tecnología65 nm
CaracterísticasPureVideo technology (H.264, VC-1, MPEG2, WMV9 decoding acceleration), HDCP-capable, PowerMizer 7.0 energy administration (dynamic switching between performance and energy saving), HDR (High Dynamic-Range Lighting), designed for Windows Vista, supports Dual-Link DVI-D exits for TFT resolutions up to 2560x1600, LVDS, VGA, HDTV, HDCP, HDMI, PCI-E 16x, OpenGL 2.1, Gigathread technology
Tamaño de la portátilgrande
Fecha de Anuncio23.02.2008
InformaciónMXM Factor III
Link a la Página del Fabricantewww.nvidia.com

Benchmarks

3DMark 2001SE - 3DMark 2001 - Standard
41502 Points (43%)
+ 1 mas detalles   + Mostrar tabla de comparación
3DMark 03 - 3DMark 03 - Standard
26705 Points (14%)
+ 1 mas detalles   + Mostrar tabla de comparación
3DMark 05 - 3DMark 05 - Standard
min: 13176     de promedio: 13950     mediana: 13949.5 (15%)     max: 14723 Points
+ 2 mas detalles   - Ocultar tabla de comparación
3DMark 06 3DMark 06 - Score Unknown Settings +
3DMark 06
7799 puntos (10%)
+ 1 mas detalles   + Mostrar tabla de comparación
3DMark 06 - Standard 1280x1024 +
3DMark 06
min: 8035     de promedio: 8136     mediana: 8135.5 (11%)     max: 8236 Points
+ 2 mas detalles   + Mostrar tabla de comparación
Cinebench R10 Cinebench R10 Shading (32bit) +
Cinebench R10 - Cinebench R10 Shading (32bit)
6193 puntos (4%)
+ 1 mas detalles   + Mostrar tabla de comparación
- Gama de valores de las pruebas para esta tarjeta gráfica
- Valores medios de las pruebas para esta tarjeta gráfica
* Smaller numbers mean a higher performance

Pruebas de juegos

Los siguientes benchmarks se derivan de nuestros benchmarks de los portátiles de análisis. El rendimiento depende de la memoria gráfica utilizada, velocidad de reloj, procesador, configuración del sistema, controladores y sistemas operativos. Así que los resultados no tienen que ser representativos de todos los portátiles con esta GPU. Para información más detallada sobre los resultados del benchmark, haga clic en el número de fps.

Crysis - GPU Benchmark

Crysis - GPU Benchmark

2007
bajo 1024x768
98.1  fps    + Comparar
medio 1024x768
59.5  fps    + Comparar
» Jugable con todos los portátiles probados en ajustes de detalle medio.
Additional Benchmarks
High 0xAF 0xAA 1280x1024
31.6
Crysis - CPU Benchmark

Crysis - CPU Benchmark

2007
bajo 1024x768
119.5  fps    + Comparar
medio 1024x768
53.2  fps    + Comparar
alto 1024x768
29  fps    + Comparar
» Jugable con todos los portátiles probados en ajustes de detalle medio.
World in Conflict - Benchmark

World in Conflict - Benchmark

2007
medio 1024x768
63  fps    + Comparar
alto 1024x768
41  fps    + Comparar
» Jugable con todos los portátiles probados en ajustes de detalle alto.
Additional Benchmarks
Medium 0xAF 0xAA 1280x800
58
High 2xAF 2xAA 1280x800
37
Medium 0xAF 0xAA 1440x900
52
High 2xAF 2xAA 1440x900
34
Medium 0xAF 0xAA 1680x1050
45
High 2xAF 2xAA 1680x1050
29
F.E.A.R.

F.E.A.R.

2005
bajo 640x480
503  fps    + Comparar
medio 800x600
230  fps    + Comparar
alto 1024x768
103  fps    + Comparar
» Jugable con todos los portátiles probados en ajustes de detalle alto.
Doom 3

Doom 3

2004
bajo 640x480
176.5  fps    + Comparar
medio 640x480
177.3  fps    + Comparar
alto 800x600
175.1  fps    + Comparar
ultra 1024x768
167.8  fps    + Comparar
» Jugable con todos los portátiles probados en ajustes de detalle ultra.
bajomedioaltoultraQHD4K
Crysis - GPU Benchmark98.159.5
Crysis - CPU Benchmark119.553.228.98
World in Conflict - Benchmark6341
F.E.A.R.503230103
Doom 3176.5177.3175.1167.8
< 30 fps
< 60 fps
< 120 fps
≥ 120 fps

2
2
2
1
2		1
1
1
1


1





Para ver más juegos jugables y una lista de todos los juegos y tarjetas gráficas visita nuestroListado de juegos
