Breve análisis del Fujitsu Lifebook S936 (6600U, 512 GB) PalmSecure
| SD Card Reader | |
| average JPG Copy Test (av. of 3 runs) | |
| Fujitsu Lifebook S936 6600U 512GB PalmSecure | |
| Dell XPS 13 9360 FHD i5 | |
| HP EliteBook 820 G4 Z2V72ET | |
| Lenovo ThinkPad T460s-20FA003GGE | |
| maximum AS SSD Seq Read Test (1GB) | |
| Dell XPS 13 9360 FHD i5 | |
| Fujitsu Lifebook S936 6600U 512GB PalmSecure | |
| HP EliteBook 820 G4 Z2V72ET | |
| Lenovo ThinkPad T460s-20FA003GGE | |
| Networking | |
| iperf3 transmit AX12 | |
| Dell XPS 13 9360 FHD i5 | |
| Lenovo ThinkPad T460s-20FA003GGE | |
| Fujitsu Lifebook S936 6600U 512GB PalmSecure | |
| HP EliteBook 820 G4 Z2V72ET (jseb) | |
| iperf3 receive AX12 | |
| Fujitsu Lifebook S936 6600U 512GB PalmSecure | |
| Lenovo ThinkPad T460s-20FA003GGE | |
| Dell XPS 13 9360 FHD i5 | |
| HP EliteBook 820 G4 Z2V72ET (jseb) | |
| |||||||||||||||||||||||||
iluminación: 91 %
Brillo con batería: 277 cd/m²
Contraste: 710:1 (Negro: 0.39 cd/m²)
ΔE Color 3.44 | 0.5-29.43 Ø4.91
ΔE Greyscale 4.31 | 0.5-98 Ø5.2
98% sRGB (Argyll 1.6.3 3D)
63% AdobeRGB 1998 (Argyll 1.6.3 3D)
70% AdobeRGB 1998 (Argyll 2.2.0 3D)
98.2% sRGB (Argyll 2.2.0 3D)
68% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.35
| Fujitsu Lifebook S936 6600U 512GB PalmSecure Sharp SHP141B / LQ133M1JW01, , 1920x1080, 13.3" | Dell XPS 13 9360 FHD i5 Sharp SHP1449 LQ133M1, , 1920x1080, 13.3" | HP EliteBook 820 G4 Z2V72ET Chi Mei, , 1920x1080, 12.5" | Lenovo ThinkPad T460s-20FA003GGE VVX14T058J02, , 2560x1440, 14" | |
|---|---|---|---|---|
| Display | -27% | -34% | 1% | |
| Display P3 Coverage | 68 | 48.94 -28% | 44.45 -35% | 68.7 1% |
| sRGB Coverage | 98.2 | 73.3 -25% | 65.5 -33% | 98.1 0% |
| AdobeRGB 1998 Coverage | 70 | 50.5 -28% | 46.04 -34% | 70.4 1% |
| Response Times | 11% | 20% | 11% | |
| Response Time Grey 50% / Grey 80% * | 44 ? | 32.8 ? 25% | 35 ? 20% | 35.6 ? 19% |
| Response Time Black / White * | 32 ? | 33.2 ? -4% | 26 ? 19% | 29.2 ? 9% |
| PWM Frequency | 211 ? | 220 ? 4% | ||
| Screen | -1% | -25% | -7% | |
| Brightness middle | 277 | 351.2 27% | 326 18% | 257 -7% |
| Brightness | 261 | 325 25% | 304 16% | 248 -5% |
| Brightness Distribution | 91 | 89 -2% | 81 -11% | 94 3% |
| Black Level * | 0.39 | 0.195 50% | 0.29 26% | 0.26 33% |
| Contrast | 710 | 1801 154% | 1124 58% | 988 39% |
| Colorchecker dE 2000 * | 3.44 | 7.4 -115% | 6.49 -89% | 4.59 -33% |
| Colorchecker dE 2000 max. * | 6.27 | 9.08 -45% | 15.95 -154% | 9.72 -55% |
| Greyscale dE 2000 * | 4.31 | 6.71 -56% | 6.16 -43% | 6.38 -48% |
| Gamma | 2.35 94% | 2.74 80% | 2.32 95% | 2.51 88% |
| CCT | 6737 96% | 7222 90% | 7575 86% | 6238 104% |
| Color Space (Percent of AdobeRGB 1998) | 63 | 50.48 -20% | 42 -33% | 65 3% |
| Color Space (Percent of sRGB) | 98 | 73.31 -25% | 65 -34% | 98 0% |
| Media total (Programa/Opciones) | -6% /
-4% | -13% /
-21% | 2% /
-2% |
* ... más pequeño es mejor

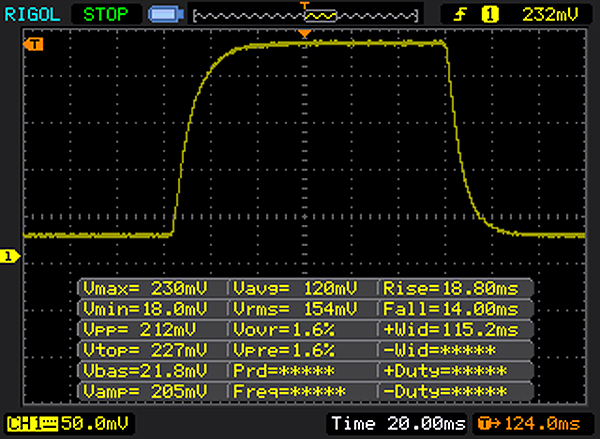

Tiempos de respuesta del display
| ↔ Tiempo de respuesta de Negro a Blanco | ||
|---|---|---|
| 32 ms ... subida ↗ y bajada ↘ combinada | ↗ 18 ms subida |  |
| ↘ 14 ms bajada | ||
| La pantalla mostró tiempos de respuesta lentos en nuestros tests y podría ser demasiado lenta para los jugones. En comparación, todos los dispositivos de prueba van de ##min### (mínimo) a 240 (máximo) ms. » 84 % de todos los dispositivos son mejores. Eso quiere decir que el tiempo de respuesta es peor que la media (20.9 ms) de todos los dispositivos testados. | ||

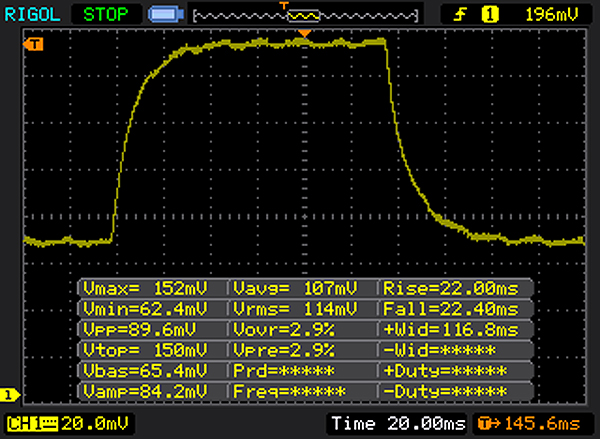

| ↔ Tiempo de respuesta 50% Gris a 80% Gris | ||
| 44 ms ... subida ↗ y bajada ↘ combinada | ↗ 22 ms subida |  |
| ↘ 22 ms bajada | ||
| La pantalla mostró tiempos de respuesta lentos en nuestros tests y podría ser demasiado lenta para los jugones. En comparación, todos los dispositivos de prueba van de ##min### (mínimo) a 636 (máximo) ms. » 71 % de todos los dispositivos son mejores. Eso quiere decir que el tiempo de respuesta es peor que la media (32.8 ms) de todos los dispositivos testados. | ||

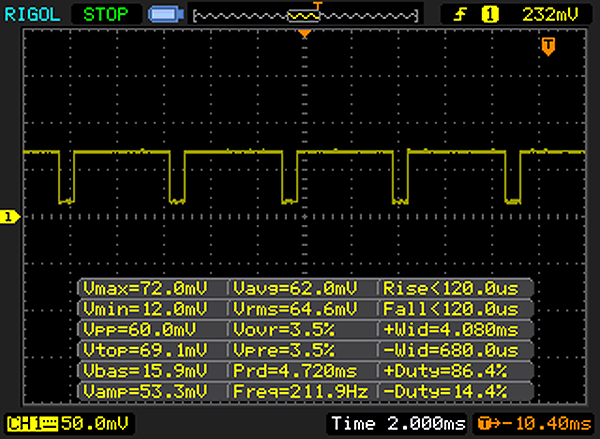

Parpadeo de Pantalla / PWM (Pulse-Width Modulation)
| Parpadeo de Pantalla / PWM detectado | 211 Hz | ≤ 30 % de brillo |  |
La retroiluminación del display parpadea a 211 Hz (seguramente usa PWM - Pulse-Width Modulation) a un brillo del 30 % e inferior. Sobre este nivel de brillo no debería darse parpadeo / PWM. La frecuencia de 211 Hz es relativamente baja, por lo que la gente sensible debería ver parpadeos y padecer fatiga visual por la pantalla (usado al brillo indicado a continuación). Comparación: 53 % de todos los dispositivos testados no usaron PWM para atenuar el display. Si se usó, medimos una media de 8715 (mínimo: 5 - máxmo: 343500) Hz. | |||
| PCMark 8 Home Score Accelerated v2 | 3551 puntos | |
| PCMark 8 Work Score Accelerated v2 | 4500 puntos | |
ayuda | ||
| Fujitsu Lifebook S936 6600U 512GB PalmSecure Samsung SSD PM871 MZNLN512HCJH | Dell XPS 13 9360 FHD i5 Toshiba NVMe THNSN5256GPUK | HP EliteBook 820 G4 Z2V72ET Samsung PM951 NVMe MZVLV512 | Lenovo ThinkPad T460s-20FA003GGE Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512) | |
|---|---|---|---|---|
| CrystalDiskMark 3.0 | 52% | 67% | 148% | |
| Read Seq | 495.8 | 1233 149% | 1315 165% | 1778 259% |
| Write Seq | 405.1 | 733 81% | 594 47% | 1530 278% |
| Read 512 | 409.4 | 1036 153% | 661 61% | 1339 227% |
| Write 512 | 419.8 | 439.9 5% | 594 41% | 1506 259% |
| Read 4k | 33.85 | 29.31 -13% | 42.87 27% | 51.3 52% |
| Write 4k | 96.8 | 116.9 21% | 151.6 57% | 139.3 44% |
| Read 4k QD32 | 330.4 | 479.2 45% | 568 72% | 561 70% |
| Write 4k QD32 | 296.3 | 218.3 -26% | 491.7 66% | 277 -7% |
| 3DMark 11 - 1280x720 Performance GPU | |
| Dell XPS 13 9360 FHD i5 | |
| HP EliteBook 820 G4 Z2V72ET | |
| Fujitsu Lifebook S936 6600U 512GB PalmSecure | |
| Lenovo ThinkPad T460s-20FA003GGE | |
| 3DMark - 1280x720 Cloud Gate Standard Graphics | |
| Dell XPS 13 9360 FHD i5 | |
| HP EliteBook 820 G4 Z2V72ET | |
| Lenovo ThinkPad T460s-20FA003GGE | |
| Fujitsu Lifebook S936 6600U 512GB PalmSecure | |
| 3DMark 11 Performance | 1580 puntos | |
| 3DMark Cloud Gate Standard Score | 5586 puntos | |
ayuda | ||
| bajo | medio | alto | ultra | |
|---|---|---|---|---|
| The Witcher 3 (2015) | 13.5 | |||
| Farming Simulator 17 (2016) | 54.5 | 39.7 | 20.1 | |
| For Honor (2017) | 20.1 |
Ruido
| Ocioso |
| 30.6 / 30.6 / 30.6 dB(A) |
| Carga |
| 32.8 / 36.8 dB(A) |
 | ||
30 dB silencioso 40 dB(A) audible 50 dB(A) ruidosamente alto |
||
min:  , med:  , max:  Audix TM1, Arta (15 cm de distancia) environment noise: 30.6 dB(A) | ||
(+) The maximum temperature on the upper side is 35.8 °C / 96 F, compared to the average of 35.9 °C / 97 F, ranging from 21.4 to 59 °C for the class Subnotebook.
(±) The bottom heats up to a maximum of 42.3 °C / 108 F, compared to the average of 39.4 °C / 103 F
(+) In idle usage, the average temperature for the upper side is 27 °C / 81 F, compared to the device average of 30.8 °C / 87 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 30.6 °C / 87.1 F and are therefore cool to the touch.
(-) The average temperature of the palmrest area of similar devices was 28.3 °C / 82.9 F (-2.3 °C / -4.2 F).
Fujitsu Lifebook S936 6600U 512GB PalmSecure audio analysis
(-) | not very loud speakers (71 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 36.1% lower than median
(+) | bass is linear (1.7% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | reduced mids - on average 11.5% lower than median
(±) | linearity of mids is average (11.9% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 6.9% higher than median
(+) | highs are linear (4.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(-) | overall sound is not linear (37.6% difference to median)
Compared to same class
» 97% of all tested devices in this class were better, 1% similar, 1% worse
» The best had a delta of 5%, average was 19%, worst was 53%
Compared to all devices tested
» 94% of all tested devices were better, 1% similar, 6% worse
» The best had a delta of 4%, average was 25%, worst was 134%
Dell XPS 13 9360 FHD i5 audio analysis
(-) | not very loud speakers (70.3 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 6.9% lower than median
(±) | linearity of bass is average (10.5% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.7% away from median
(+) | mids are linear (4% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2% away from median
(±) | linearity of highs is average (10.3% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (18.3% difference to median)
Compared to same class
» 51% of all tested devices in this class were better, 7% similar, 43% worse
» The best had a delta of 5%, average was 19%, worst was 53%
Compared to all devices tested
» 36% of all tested devices were better, 8% similar, 56% worse
» The best had a delta of 4%, average was 25%, worst was 134%
HP EliteBook 820 G4 Z2V72ET audio analysis
(-) | not very loud speakers (66 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 14.6% lower than median
(±) | linearity of bass is average (7.6% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 1.1% away from median
(+) | mids are linear (4.7% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 5.8% higher than median
(+) | highs are linear (5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (17.6% difference to median)
Compared to same class
» 45% of all tested devices in this class were better, 8% similar, 47% worse
» The best had a delta of 5%, average was 19%, worst was 53%
Compared to all devices tested
» 31% of all tested devices were better, 8% similar, 61% worse
» The best had a delta of 4%, average was 25%, worst was 134%
| Off / Standby | 0.19 / 0.85 Watt |
| Ocioso | 3.9 / 8.3 / 8.5 Watt |
| Carga |
29 / 30.5 Watt |

| |
Clave:
min: ,
med: ,
max: Metrahit Energy | |
| Fujitsu Lifebook S936 6600U 512GB PalmSecure 6600U, HD Graphics 520, Samsung SSD PM871 MZNLN512HCJH, IPS, 1920x1080, 13.3" | Dell XPS 13 9360 FHD i5 i5-7200U, HD Graphics 620, Toshiba NVMe THNSN5256GPUK, IPS, 1920x1080, 13.3" | HP EliteBook 820 G4 Z2V72ET i7-7500U, HD Graphics 620, Samsung PM951 NVMe MZVLV512, IPS, 1920x1080, 12.5" | Lenovo ThinkPad T460s-20FA003GGE 6600U, HD Graphics 520, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512), IPS-Panel, 2560x1440, 14" | |
|---|---|---|---|---|
| Power Consumption | 22% | 20% | -10% | |
| Idle Minimum * | 3.9 | 4.1 -5% | 2.7 31% | 3.8 3% |
| Idle Average * | 8.3 | 4.2 49% | 4.8 42% | 7.1 14% |
| Idle Maximum * | 8.5 | 5.1 40% | 6.6 22% | 7.8 8% |
| Load Average * | 29 | 22.1 24% | 28.5 2% | 36.3 -25% |
| Load Maximum * | 30.5 | 29.4 4% | 29 5% | 46 -51% |
* ... más pequeño es mejor
| Fujitsu Lifebook S936 6600U 512GB PalmSecure 6600U, HD Graphics 520, 76 Wh | Dell XPS 13 9360 FHD i5 i5-7200U, HD Graphics 620, 60 Wh | HP EliteBook 820 G4 Z2V72ET i7-7500U, HD Graphics 620, 49 Wh | Lenovo ThinkPad T460s-20FA003GGE 6600U, HD Graphics 520, 49 Wh | |
|---|---|---|---|---|
| Duración de Batería | 3% | 8% | -47% | |
| Reader / Idle | 1227 | 1295 6% | 1346 10% | 833 -32% |
| WiFi v1.3 | 613 | 677 10% | 566 -8% | 340 -45% |
| Load | 167 | 157 -6% | 205 23% | 62 -63% |
| H.264 | 532 | 397 |
Pro
Contra

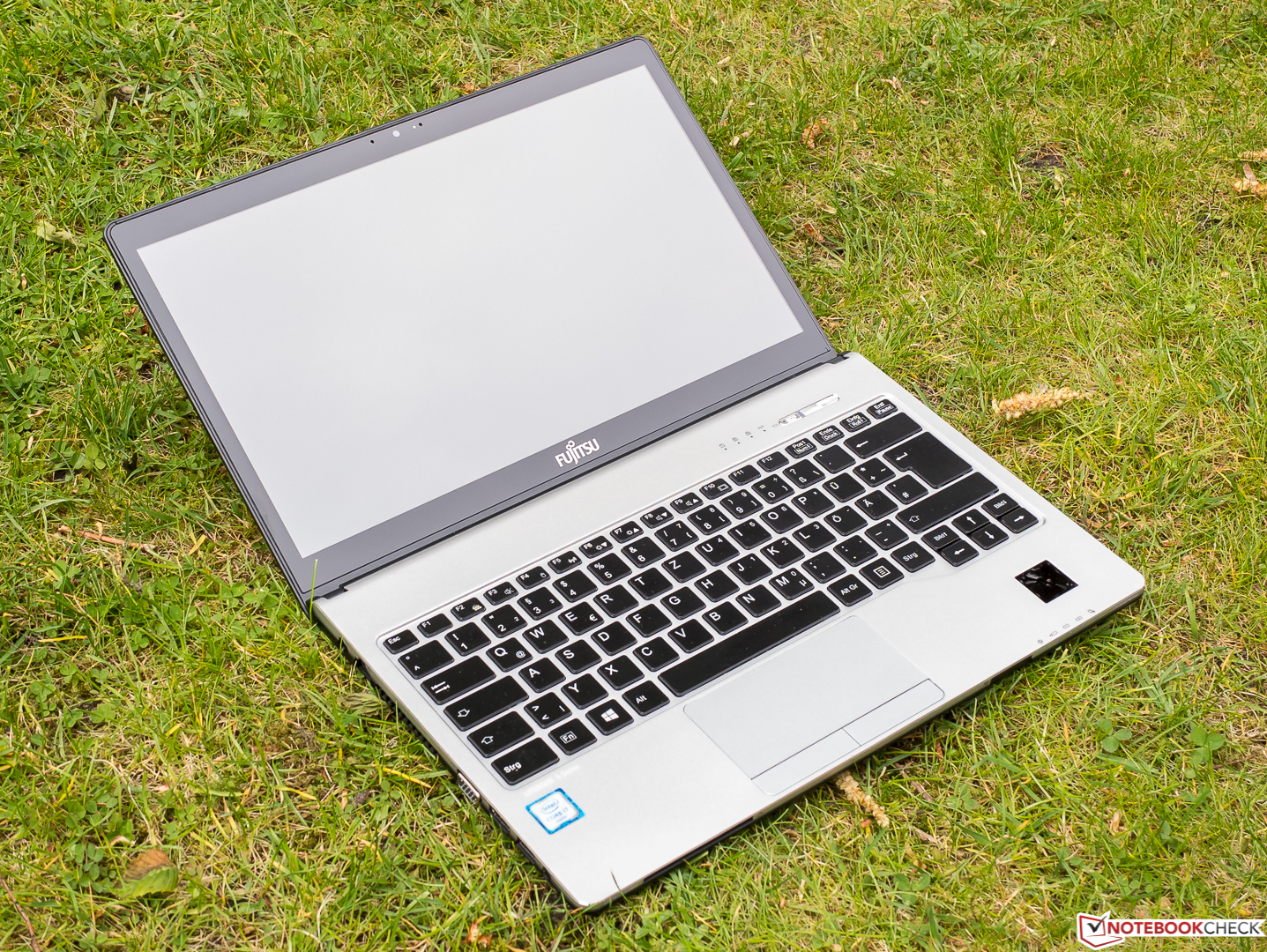

El nuevo Fujitsu Lifebook S936 fue diseñado para las necesidades particulares del viajero business y tiene el caro precio correspondiente, por el cual también ofrece las necesarias robustez, características, y flexibilidad. En términos de conectividad, seguridad, y ampliabilidad, el fabricante está derrochón - realmente no se puede dar mucho más. Aquí nuestra única queja es que se limita sólo a LTE Cat 3, y cualquiera que viaje mucho en USA debería pensarse un módulo LTE/UMTS alternativo.
Con la batería estándar, el Lifebook S936 ya ofrece un aguante excelente, que puede ampliarse aún más con más baterías. La carcasa no es bonita, pero sí sólida y funcional. El teclado también merece alguna alabanza; aunque con el touchpad, Fujitsu podía haberlo hecho mejor. Aunque el display táctil IPS es estable desde todos los ángulos de visión, su contraste es mejorable y resulta demasiado oscuro en particular para el uso en exteriores. Por lo demás está bien en su mayor parte.

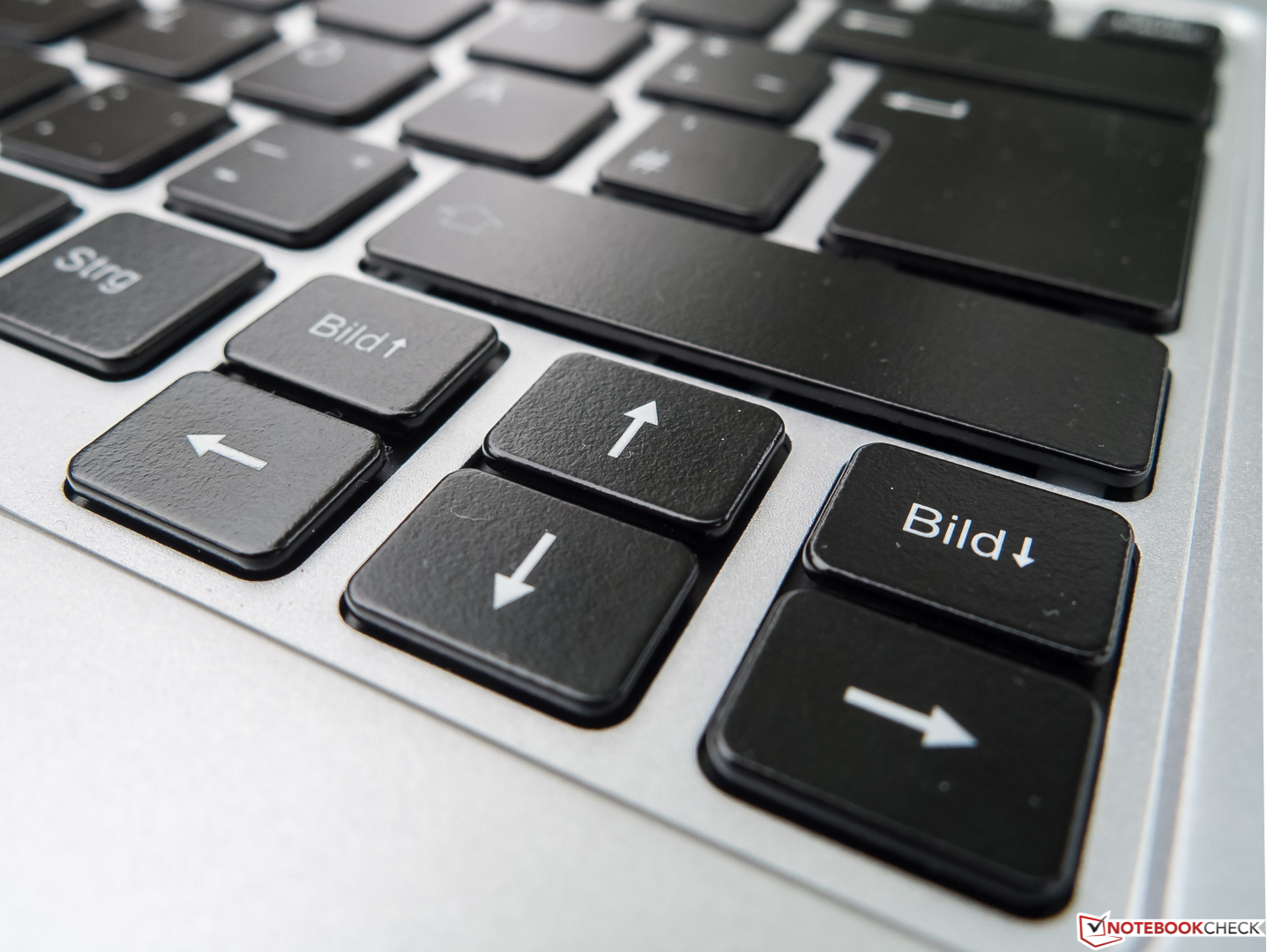

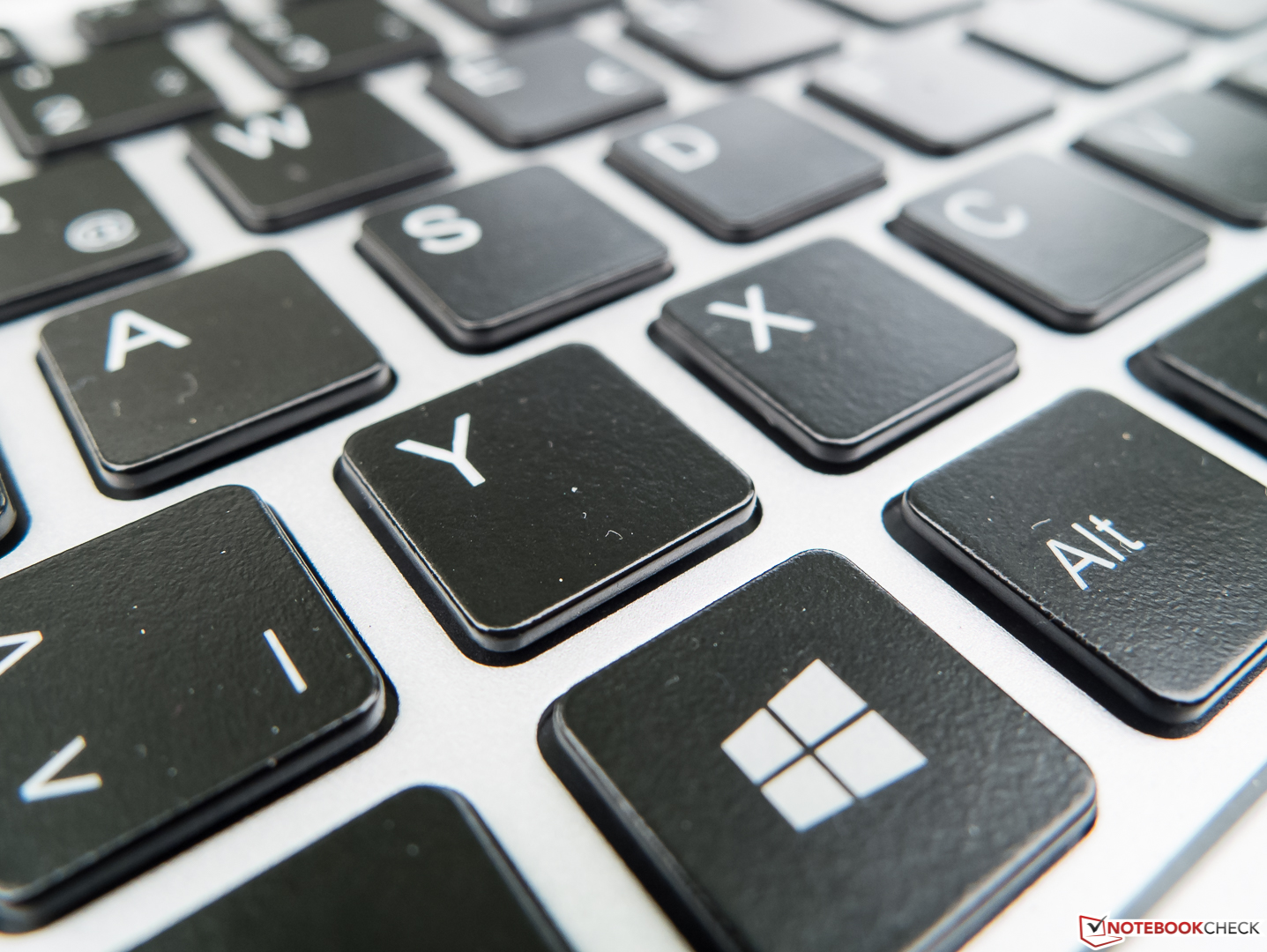

Nuestra crítica inequívoca se la merece el sistema de sonido, que es increíblemente malo, el innecesario ruido agudo bajo carga, y el teclado, que es demasiado ruidoso para las necesidades business (p. ej., en un avión con pasajeros durmiendo).
En general, nos gusta el Fujitsu Lifebook S936 en el programa obligatorio, pero en parte no cumple con nuestras (altas) expectativas durante el estilo libre. Sin embargo, seguimos ofreciendo una recomendación de compra, ya que el público objetivo de usuarios business móviles debería poder encontrar exactamente las cosas que les resultan más importantes.
Ésta es una versión acortada del análisis original. Puedes leer el análisis completo en inglés aquí.
Fujitsu Lifebook S936 6600U 512GB PalmSecure
- 05/11/2017 v6 (old)
Sven Kloevekorn
