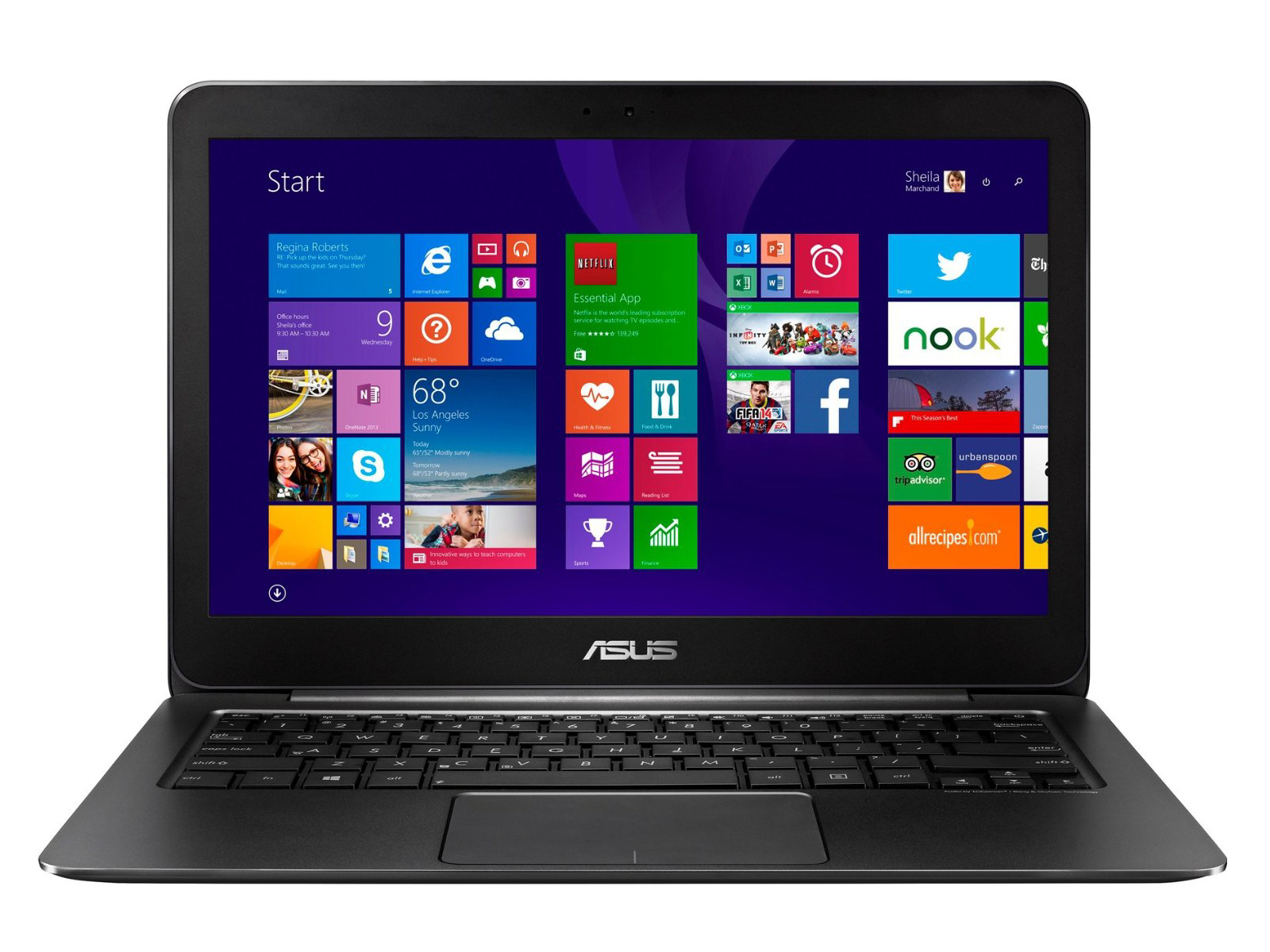

Breve análisis del subportátil Asus Zenbook UX305LA (Core i7)
Dispositivo de pruebas cortesía de notebooksbilliger.de
Asus Zenbook UX305LA-FC012H (UX Serie)
Procesador
Intel Core i7-5500U 2 x 2.4 - 3 GHz, Broadwell
Adaptador gráfico
Intel HD Graphics 5500, Núcleo: 950 MHz, Single-channel, 10.18.14.4112
Memoría
8 GB
, DDR3, Dual-Channel, soldada
pantalla
13.30 pulgadas 16:9, 1920 x 1080 pixels 166 PPI, AU Optronics B133HAN02.1, IPS, lustroso: no
Placa base
Intel Broadwell-U PCH-LP (Premium)
Disco duro
Micron M600 MTFDDAV256MBF M.2, 256 GB
, 200 GB libre
Peso
1.3 kg, Suministro de Electricidad: 174.5 g
Precio
1100 Euros
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.
| |||||||||||||||||||||||||
AU Optronics B133HAN02.1 tested with X-Rite i1Pro 2
Máximo: 366 cd/m² (Nits) Médio: 337.9 cd/m²iluminación: 87 %
Brillo con batería: 285 cd/m²
Contraste: 1396:1 (Negro: 0.25 cd/m²)
ΔE Color 5.49 | 0.5-29.43 Ø4.91
ΔE Greyscale 5.43 | 0.5-98 Ø5.2
92% sRGB (Argyll 1.6.3 3D)
60% AdobeRGB 1998 (Argyll 1.6.3 3D)
65% AdobeRGB 1998 (Argyll 2.2.0 3D)
91.6% sRGB (Argyll 2.2.0 3D)
63.9% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.17
| Asus Zenbook UX305LA-FC012H IPS, 1920x1080 | Asus Zenbook UX305FA-FC004H IPS, 1920x1080 | Asus ZenBook UX305FA-FB003H IPS, 3200x1800 | Apple MacBook Air 13 inch 2015-03 TN LED, 1440x900 | Apple MacBook 12 (Early 2015) 1.1 GHz IPS-Panel, 2304x1440 | Acer Aspire S7-393-75508G25EWS IPS, 2560x1440 | Toshiba KIRA-10D IPS, 1920x1080 | Dell XPS 13-9343 Non-Touch IPS, 1920x1080 | |
|---|---|---|---|---|---|---|---|---|
| Display | 0% | -9% | -36% | 5% | 9% | 8% | 1% | |
| Display P3 Coverage | 63.9 | 64.2 0% | 58.2 -9% | 40.1 -37% | 67.6 6% | 70.1 10% | 69.1 8% | 65.9 3% |
| sRGB Coverage | 91.6 | 91.9 0% | 83.3 -9% | 59.8 -35% | 95.6 4% | 98.3 7% | 98.2 7% | 89.6 -2% |
| AdobeRGB 1998 Coverage | 65 | 65.4 1% | 60.1 -8% | 41.51 -36% | 68.7 6% | 71.1 9% | 71 9% | 66.2 2% |
| Screen | -11% | -21% | -15% | 10% | 13% | 10% | -6% | |
| Brightness middle | 349 | 351 1% | 310 -11% | 329 -6% | 345 -1% | 360 3% | 334 -4% | 409.7 17% |
| Brightness | 338 | 341 1% | 309 -9% | 310 -8% | 325 -4% | 341 1% | 316 -7% | 405 20% |
| Brightness Distribution | 87 | 93 7% | 90 3% | 82 -6% | 90 3% | 90 3% | 92 6% | 93 7% |
| Black Level * | 0.25 | 0.33 -32% | 0.75 -200% | 0.405 -62% | 0.324 -30% | 0.23 8% | 0.29 -16% | 0.366 -46% |
| Contrast | 1396 | 1064 -24% | 413 -70% | 812 -42% | 1065 -24% | 1565 12% | 1152 -17% | 1119 -20% |
| Colorchecker dE 2000 * | 5.49 | 6.5 -18% | 2.49 55% | 3.96 28% | 1.62 70% | 3.35 39% | 2.27 59% | 7.67 -40% |
| Greyscale dE 2000 * | 5.43 | 7.19 -32% | 1.89 65% | 3.51 35% | 1.88 65% | 3.62 33% | 2.47 55% | 4.66 14% |
| Gamma | 2.17 101% | 2.07 106% | 2.36 93% | 3.83 57% | 2.55 86% | 2.51 88% | 2.36 93% | 1.65 133% |
| CCT | 7055 92% | 6692 97% | 6573 99% | 6711 97% | 6411 101% | 6805 96% | 6872 95% | 6502 100% |
| Color Space (Percent of AdobeRGB 1998) | 60 | 59.6 -1% | 54 -10% | 38.4 -36% | 61.8 3% | 65 8% | 64 7% | 59.65 -1% |
| Color Space (Percent of sRGB) | 92 | 91.8 0% | 83.1 -10% | 59.8 -35% | 95.5 4% | |||
| Colorchecker dE 2000 max. * | 7.51 | 2.51 | ||||||
| Media total (Programa/Opciones) | -6% /
-8% | -15% /
-18% | -26% /
-20% | 8% /
9% | 11% /
12% | 9% /
10% | -3% /
-4% |
* ... más pequeño es mejor
Cinebench R15 | Cinebench R11.5 | Cinebench R10 | Geekbench 3 | Sunspider | Mozilla Kraken 1.1 | Octane V2 | Peacekeeper
| Peacekeeper - --- (ordenar por valor) | |
| Asus Zenbook UX305LA-FC012H | |
| Asus Zenbook UX305FA-FC004H | |
| Dell XPS 13 9343 Core i7 | |
* ... más pequeño es mejor
| PCMark 7 Score | 5180 puntos | |
| PCMark 8 Home Score Accelerated v2 | 3167 puntos | |
| PCMark 8 Creative Score Accelerated v2 | 3755 puntos | |
| PCMark 8 Work Score Accelerated v2 | 4089 puntos | |
ayuda | ||
Micron M600 MTFDDAV256MBF M.2
Sequential Read:
518 MB/s
Sequential Write:
323.1 MB/s
512K Read:
463 MB/s
512K Write:
321.8 MB/s
4K Read:
31.79 MB/s
4K Write:
116.7 MB/s
4K QD32 Read:
323.9 MB/s
4K QD32 Write:
261.7 MB/s
| 3DMark 06 Standard Score | 7769 puntos | |
| 3DMark 11 Performance | 1198 puntos | |
| 3DMark Ice Storm Standard Score | 51649 puntos | |
| 3DMark Cloud Gate Standard Score | 5461 puntos | |
| 3DMark Fire Strike Score | 757 puntos | |
ayuda | ||
| 3DMark 06 - 1280x1024 Standard Score AA:0x AF:0x (ordenar por valor) | |
| Asus Zenbook UX305LA-FC012H | |
| Apple MacBook Air 13 inch 2015-03 | |
| Toshiba KIRA-10D | |
| Dell XPS 13-9343 Non-Touch | |
| bajo | medio | alto | ultra | |
|---|---|---|---|---|
| Tomb Raider (2013) | 60.8 | 31.1 | 20.3 | 9.7 |
| GRID: Autosport (2014) | 86.9 | 30.4 | 18.4 | 12.5 |
| Dirt Rally (2015) | 88 | 21.4 | 12.5 | 12.5 |
| Batman: Arkham Knight (2015) | 12 | 10 | 5 | |
| Metal Gear Solid V (2015) | 33.5 | 21.1 | 8.7 | |
| Mad Max (2015) | 16.2 | 7.9 | ||
| World of Warships (2015) | 48.6 | 37.3 | 17.9 | 13 |
| FIFA 16 (2015) | 42.4 | 33.8 | 17.2 |
Ruido
| Ocioso |
| 29.6 / 29.6 / 29.6 dB(A) |
| Carga |
| 39.3 / 36 dB(A) |
 | ||
30 dB silencioso 40 dB(A) audible 50 dB(A) ruidosamente alto |
||
min:  , med:  , max:  Voltcraft sl-320 (15 cm de distancia) | ||
| Asus Zenbook UX305LA-FC012H 5500U, HD Graphics 5500 | Apple MacBook Air 13 inch 2015-03 5650U, HD Graphics 6000 | Acer Aspire S7-393-75508G25EWS 5500U, HD Graphics 5500 | Toshiba KIRA-10D 5500U, HD Graphics 5500 | Dell XPS 13-9343 Non-Touch 5200U, HD Graphics 5500 | |
|---|---|---|---|---|---|
| Noise | -6% | 0% | -8% | 4% | |
| Idle Minimum * | 29.6 | 29.2 1% | 29.6 -0% | 29.6 -0% | 29 2% |
| Idle Average * | 29.6 | 29.2 1% | 29.6 -0% | 29.6 -0% | 29.1 2% |
| Idle Maximum * | 29.6 | 29.2 1% | 29.6 -0% | 30.7 -4% | 29.2 1% |
| Load Average * | 39.3 | 40.2 -2% | 37.5 5% | 43.9 -12% | 31.1 21% |
| Load Maximum * | 36 | 46.3 -29% | 37.2 -3% | 43.9 -22% | 38.4 -7% |
* ... más pequeño es mejor
(±) The average temperature for the upper side under maximal load is 33.8 °C / 93 F, compared to the average of 30.8 °C / 87 F for the devices in the class Subnotebook.
(-) The maximum temperature on the upper side is 45.9 °C / 115 F, compared to the average of 35.9 °C / 97 F, ranging from 21.4 to 59 °C for the class Subnotebook.
(±) The bottom heats up to a maximum of 45 °C / 113 F, compared to the average of 39.4 °C / 103 F
(+) In idle usage, the average temperature for the upper side is 24.5 °C / 76 F, compared to the device average of 30.8 °C / 87 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 28.5 °C / 83.3 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28.3 °C / 82.9 F (-0.2 °C / -0.4 F).
(-) The maximum temperature on the upper side is 45.9 °C / 115 F, compared to the average of 35.9 °C / 97 F, ranging from 21.4 to 59 °C for the class Subnotebook.
(±) The bottom heats up to a maximum of 45 °C / 113 F, compared to the average of 39.4 °C / 103 F
(+) In idle usage, the average temperature for the upper side is 24.5 °C / 76 F, compared to the device average of 30.8 °C / 87 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 28.5 °C / 83.3 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28.3 °C / 82.9 F (-0.2 °C / -0.4 F).
| Asus Zenbook UX305LA-FC012H 5500U, HD Graphics 5500 | Asus Zenbook UX305FA-FC004H 5Y10, HD Graphics 5300 | Asus ZenBook UX305FA-FB003H 5Y10, HD Graphics 5300 | Apple MacBook Air 13 inch 2015-03 5650U, HD Graphics 6000 | Apple MacBook 12 (Early 2015) 1.1 GHz 5Y31, HD Graphics 5300 | Acer Aspire S7-393-75508G25EWS 5500U, HD Graphics 5500 | Toshiba KIRA-10D 5500U, HD Graphics 5500 | Dell XPS 13-9343 Non-Touch 5200U, HD Graphics 5500 | |
|---|---|---|---|---|---|---|---|---|
| Heat | 5% | 2% | -4% | -17% | 4% | 4% | -6% | |
| Maximum Upper Side * | 45.9 | 44.9 2% | 43.1 6% | 43.8 5% | 45.7 -0% | 39.8 13% | 42.2 8% | 44.6 3% |
| Maximum Bottom * | 45 | 40.9 9% | 41.2 8% | 42.1 6% | 49.4 -10% | 38.4 15% | 34.4 24% | 44.8 -0% |
| Idle Upper Side * | 25.6 | 24.2 5% | 26.3 -3% | 28.5 -11% | 32.5 -27% | 26.7 -4% | 26.2 -2% | 28.8 -13% |
| Idle Bottom * | 25 | 24.6 2% | 26.2 -5% | 28.9 -16% | 33.1 -32% | 27.6 -10% | 28.5 -14% | 28.8 -15% |
* ... más pequeño es mejor
Consumo de corriente
| Off / Standby | 0.1 / 0.1 Watt |
| Ocioso | 2.6 / 6.2 / 6.5 Watt |
| Carga |
30.8 / 27 Watt |

| |
Clave:
min: ,
med: ,
max: Voltcraft VC 940 | |
| Asus Zenbook UX305LA-FC012H 5500U, HD Graphics 5500 | Asus Zenbook UX305FA-FC004H 5Y10, HD Graphics 5300 | Asus ZenBook UX305FA-FB003H 5Y10, HD Graphics 5300 | Apple MacBook Air 13 inch 2015-03 5650U, HD Graphics 6000 | Apple MacBook 12 (Early 2015) 1.1 GHz 5Y31, HD Graphics 5300 | Acer Aspire S7-393-75508G25EWS 5500U, HD Graphics 5500 | Toshiba KIRA-10D 5500U, HD Graphics 5500 | |
|---|---|---|---|---|---|---|---|
| Power Consumption | 18% | -13% | -5% | 18% | -10% | -3% | |
| Idle Minimum * | 2.6 | 2.6 -0% | 3.1 -19% | 2.7 -4% | 1.7 35% | 4 -54% | 2.6 -0% |
| Idle Average * | 6.2 | 6.4 -3% | 7.5 -21% | 5.7 8% | 5.3 15% | 5 19% | 6.3 -2% |
| Idle Maximum * | 6.5 | 6.5 -0% | 8.6 -32% | 6 8% | 6 8% | 6.5 -0% | 6.5 -0% |
| Load Average * | 30.8 | 15.1 51% | 25.2 18% | 32.1 -4% | 18.5 40% | 31.2 -1% | 30.9 -0% |
| Load Maximum * | 27 | 15.5 43% | 30.6 -13% | 36.2 -34% | 29.3 -9% | 30.6 -13% | 30.9 -14% |
* ... más pequeño es mejor
| Asus Zenbook UX305LA-FC012H 56 Wh | Asus Zenbook UX305FA-FC004H 45 Wh | Asus ZenBook UX305FA-FB003H 45 Wh | Apple MacBook Air 13 inch 2015-03 54 Wh | Apple MacBook 12 (Early 2015) 1.1 GHz 40 Wh | Acer Aspire S7-393-75508G25EWS 47 Wh | Toshiba KIRA-10D 52 Wh | Dell XPS 13-9343 Non-Touch 54 Wh | |
|---|---|---|---|---|---|---|---|---|
| Duración de Batería | -10% | -1% | 2% | -2% | -21% | 2% | 9% | |
| Reader / Idle | 1469 | 781 -47% | 1572 7% | 1407 -4% | 838 -43% | 1399 -5% | 1295 -12% | |
| H.264 | 582 | 396 -32% | 426 -27% | 570 -2% | ||||
| WiFi v1.3 | 569 | 514 -10% | 620 9% | 456 -20% | 464 -18% | 518 -9% | 598 5% | |
| Load | 108 | 189 75% | 97 -10% | 155 44% | 107 -1% | 135 25% | 145 34% | |
| WiFi | 408 |
Pro
+ Display mate IPS brillante de gran contraste
+ Estable carcasa de gran calidad
+ Muy buenos dispositivos de entrada
+ Buenísimo aguante de batería
+ Normalmente silencioso
+ Siempre fresco
+ Veloz SSD

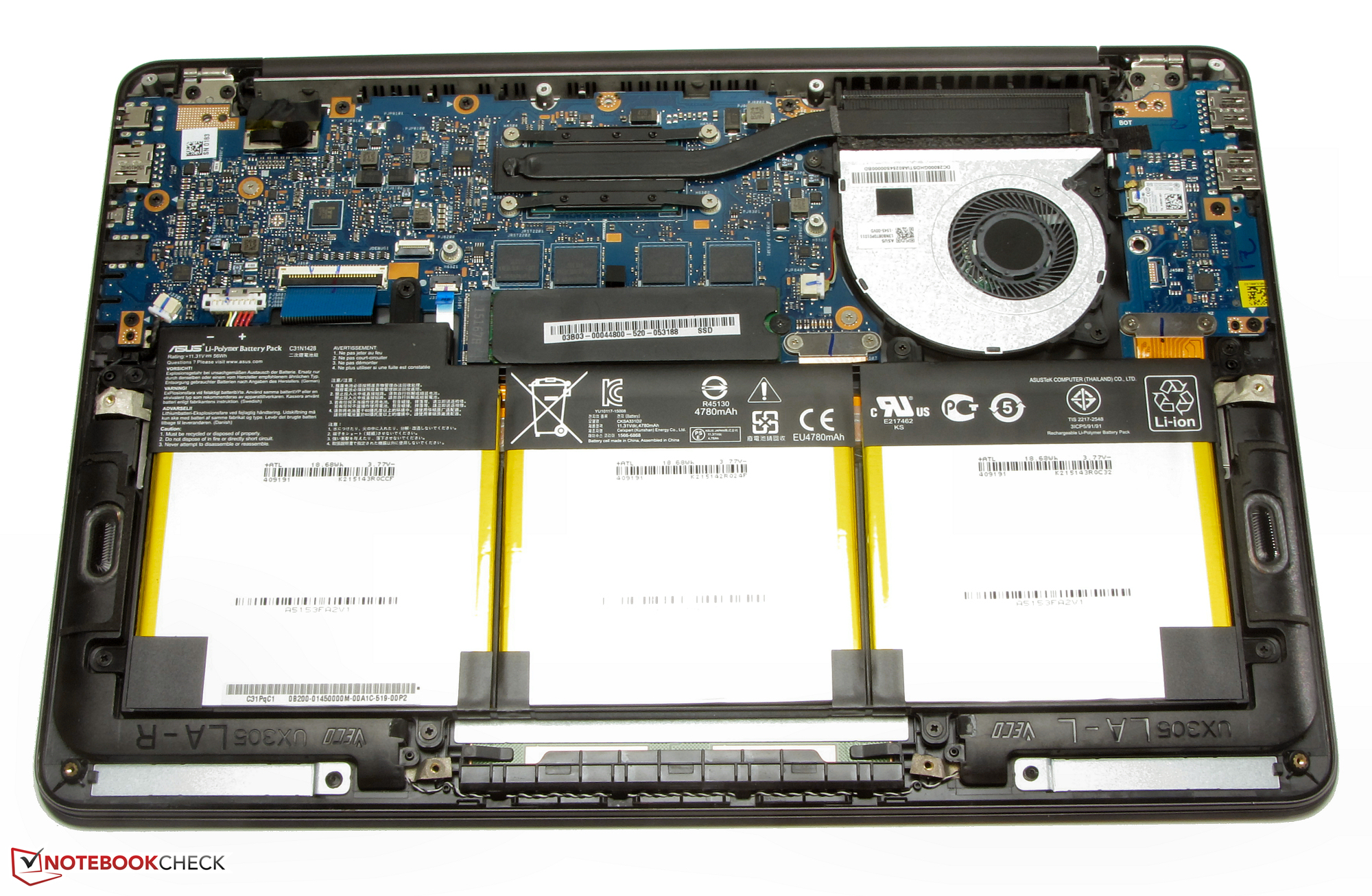

+ Mantenimiento posible
Contra
- Teclado no retroiluminado
El Asus Zenbook UX305 es un subportátil muy delgado, ligero y chic. El procesador Core i7 da un gran aumento de rendimiento al ordenador comaprado con sus contrapartidas Core M. En términos de ergonomía, el nuevo Core i7 sólo impone al fabricante una limitación menor: El procesador ya no se puede ventilar pasivamente. En el uso diario, empero, apenas se nota el ventilador. En general, permanece en silencio. En lo referente a la gestión térmica, el portátil Core i7 está a la par con los modelos Core M. Asus no sólo le dio un procesador más potente a nuestro actual modelo de pruebas -- también le instalaron una batería más grande. A resultas, el aguante de la batería del Zenbook es aún mejor que el de sus hermanos Core M. Por lo demás, el nuevo subportátil Core i7 demuestra tener las mismas características positivas que los modelos Core M. El veloz SSD permite que el sistema vaya rápido. El brillante panel mate IPS Full HD renderiza el contenido del display de forma brillante.
Un procesador más potente y una mayor batería convierten a un buen portátil en uno aún mejor. Los compradores potenciales pueden decidir ahora qué es más importante: Funcionamiento silencioso o tanto rendimiento como sea posible.
Ésta es una versión acortada del análisis original. Puedes leer el análisis completo en inglés aquí.
Asus Zenbook UX305LA-FC012H
- 02/16/2016 v5 (old)
Sascha Mölck
