Mini PC para juegos Ace Magician AM08 Pro con Radeon 680M y Ryzen 9 6900HX ¡en nuestra prueba exhaustiva!

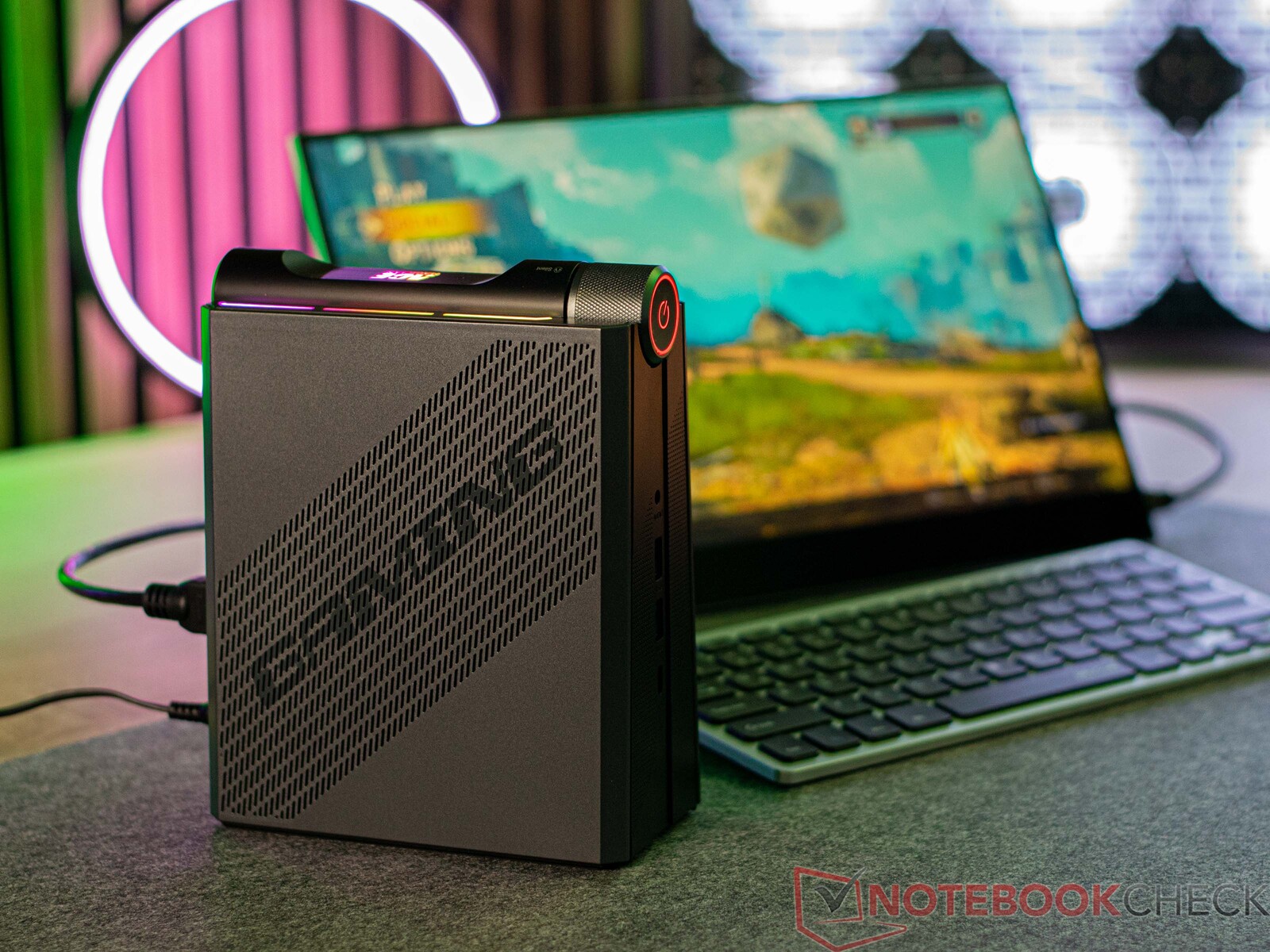

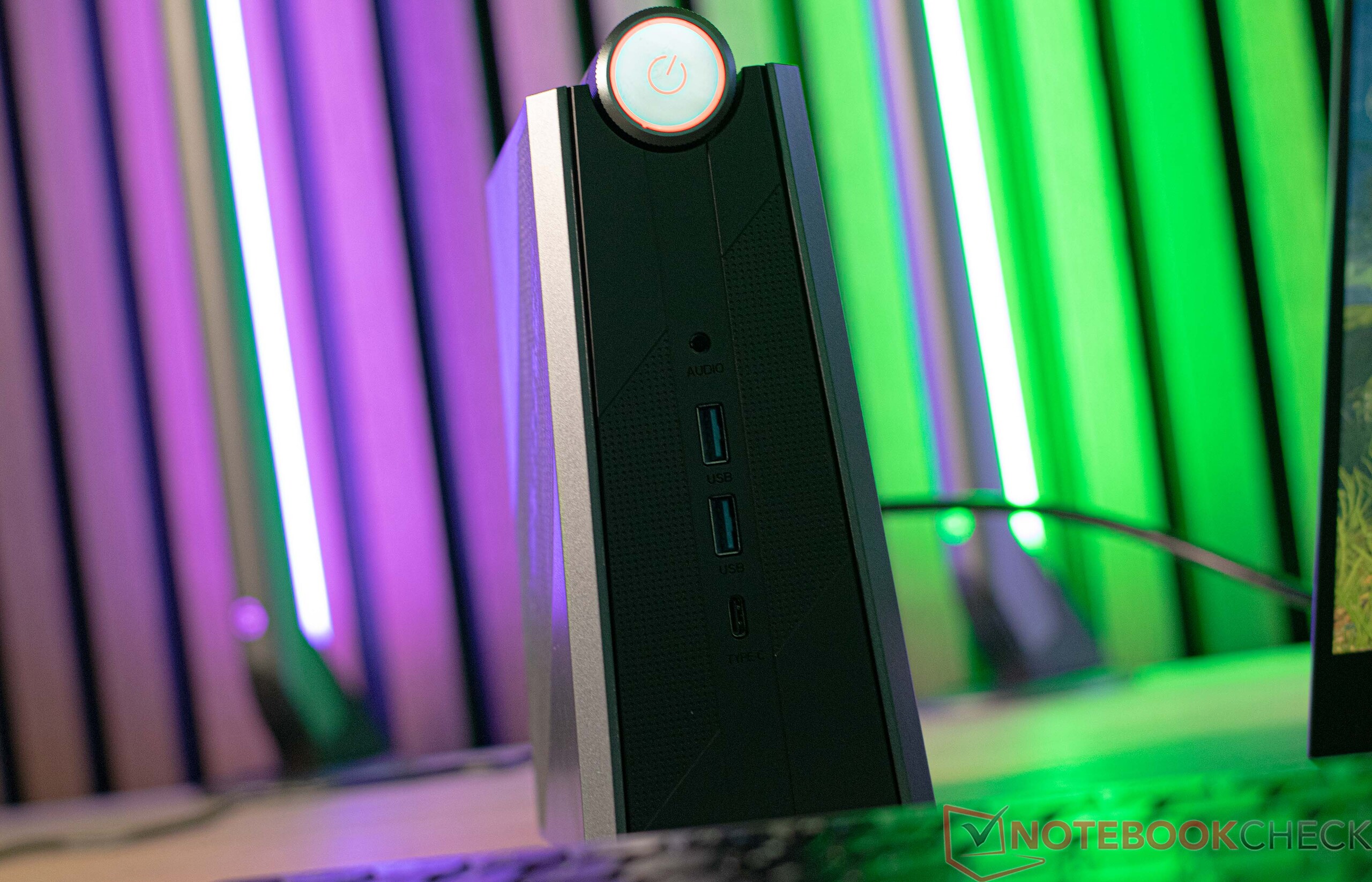

Visualmente atractivo

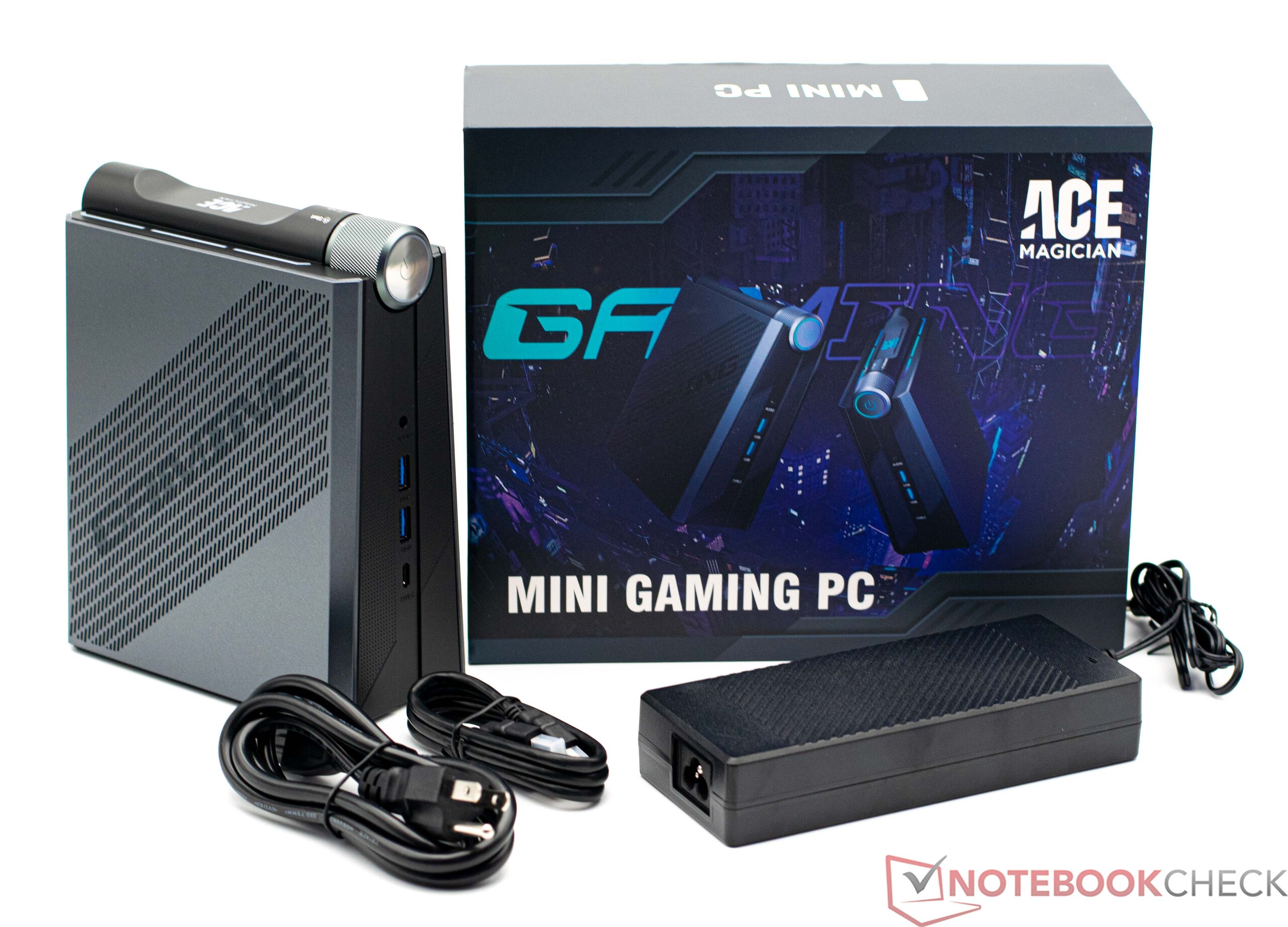

El Ace Magician AM08 Pro es el mini PC definitivo para gamers y todos aquellos que buscan el máximo rendimiento en una carcasa muy compacta. Con su moderno y potente procesador AMD Ryzen 9 6900HX y la AMD Radeon 680M, ofrece un gran rendimiento de juego, sin dejar de ser lo suficientemente pequeño como para caber en cualquier bolsa. Descubre en este extenso análisis con numerosos benchmarks qué más tiene que ofrecer el Ace Magician AM08 Pro.

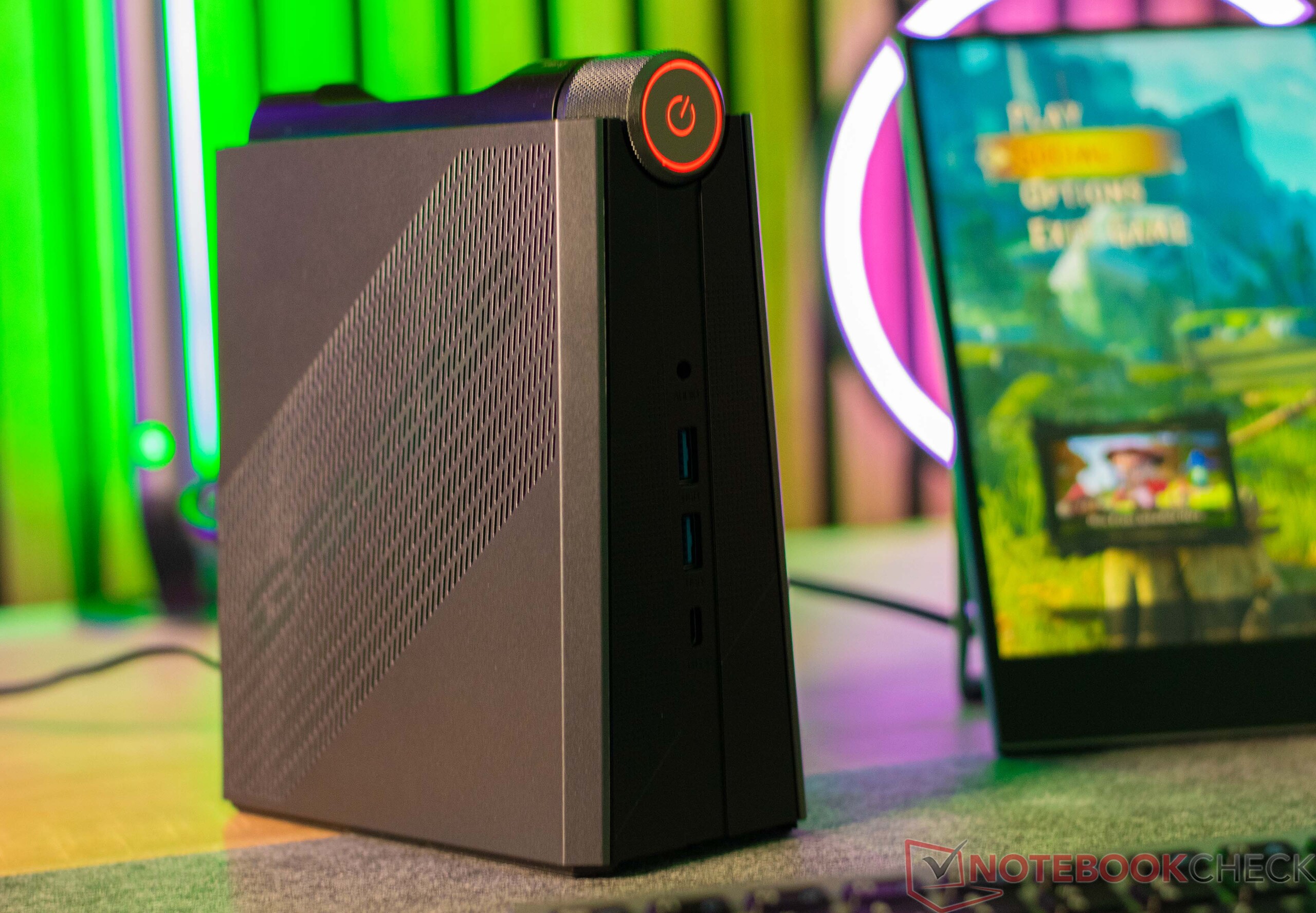

Mago Ace AM08 Pro
Mago Ace AM08 Pro

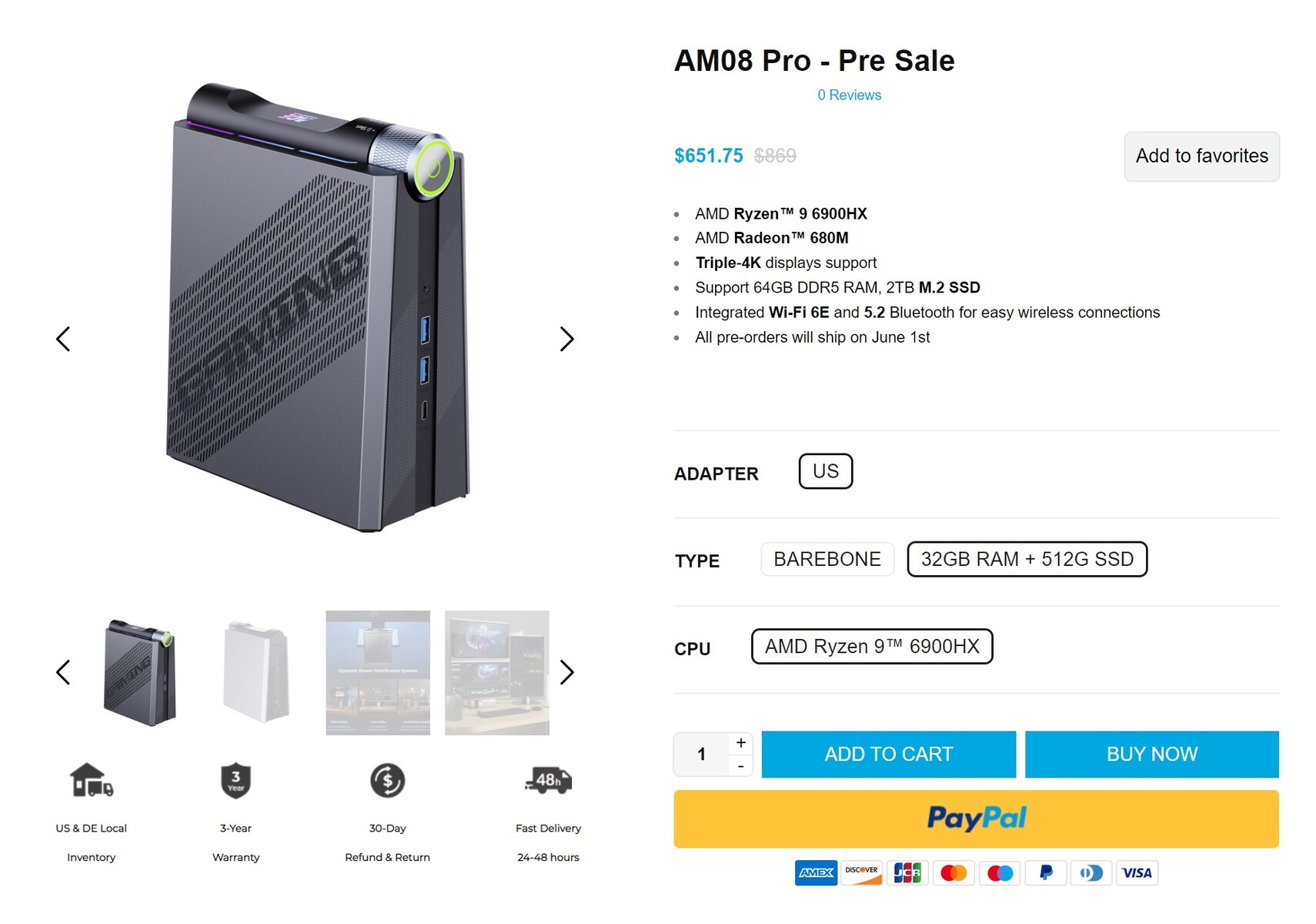

Configuraciones del Ace Magician AM08 Pro (Fuente: Ace Magician)
Configuraciones del Ace Magician AM08 Pro (Fuente: Ace Magician)

Como sucesor del Ace Magician AMR5el fabricante chino lanza el Ace Magician AM08 Pro a la categoría de "PC de juegos compactos" No solo se rediseñó visualmente, sino que también se actualizó la tecnología, y con el procesadorAMD Ryzen 9 6900HXahora está a la altura de la tecnología actual. Eso sí, no hay ningún equipo alternativo. Como indica la etiqueta de su lateral, se supone que el Ace Magician AM08 Pro sirve como PC de juegos compacto, al igual que el Ace Magician AMR5 anterior. El modelo más reciente también renuncia a una tarjeta gráfica dedicada y depende del rendimiento de la iGPU. Basándonos en nuestras numerosas pruebas anteriores, ya podemos decir que el rendimiento de la iGPU AMD Radeon 680Mpodría aumentar significativamente en comparación con la AMD Radeon RX Vega 7. Pero si esto es suficiente para permitir juegos, lo descubriremos más adelante en esta prueba. La opción de modificar el rendimiento del SoC resulta ser una característica útil. Usando un botón giratorio, puedes seleccionar entre los modos de energía "Silencioso", "Auto" y "Rendimiento" Veremos en detalle los efectos de cada uno de los modos en las secciones de pruebas correspondientes. En cuanto al precio, hay que esperar un MSRP de ~870 USD (actualmente ~$650 preventa en los EE.UU). Esto incluye 32 GB de RAM DDR5 y un SSD con 512 GB de almacenamiento. Una versión barebone del Ace Magician AM08 Pro también está disponible en un MSRP de ~ 700 USD (~$560 preventa en EE.UU.).

Otros PC de sobremesa muy compactos sirven como dispositivos de comparación en este análisis. La siguiente tabla ofrece una visión general.

AM08 Pro, 6900HX (Performance)
Procesador
AMD Ryzen 9 6900HX 8 x 3.3 - 4.9 GHz, 54 W PL2 / Short Burst, 40 W PL1 / Sustained, Rembrandt-H (Zen 3+)
Adaptador gráfico
AMD Radeon 680M, Adrenalin 23.4.1
Memoría
32 GB
, DDR5-4800, 2 of 2 used, max. 64 GB
Placa base
AMD Promontory/Bixby FCH

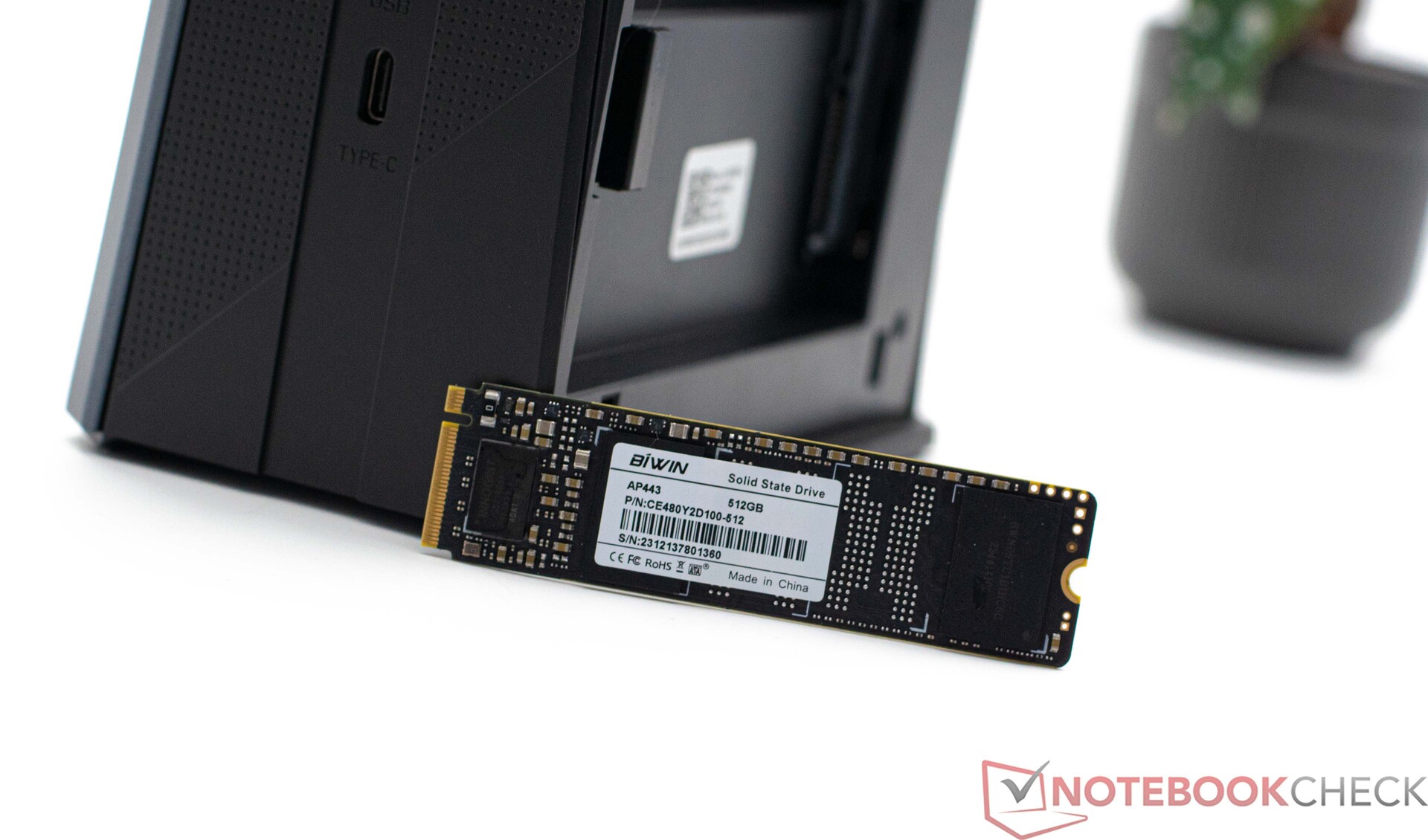

Disco duro
BiWin CE480Y2D100-512G, 512 GB
, M.2 2280, NVMe, 430 GB libre
Tarjeta de sonido
AMD Zen - Audio Processor - HD Audio Controller
Conexiones
4 USB 3.1 Gen2, 1 USB 4.0 40 Gbps, 1 Thunderbolt, 2 HDMI, 1 DisplayPort, 1 Kensington Lock
Equipamento de red
Realtek RTL8125 2.5GBe Family Ethernet Controller (10/100/1000/2500MBit/s), Realtek RTL8852BE (b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5.2
Tamaño
Alto x ancho x profundidad (en mm): 188.5 x 77.8 x 146.9
Sistema Operativo
Microsoft Windows 11 Pro
Características adicionales
36 Meses Garantía
Peso

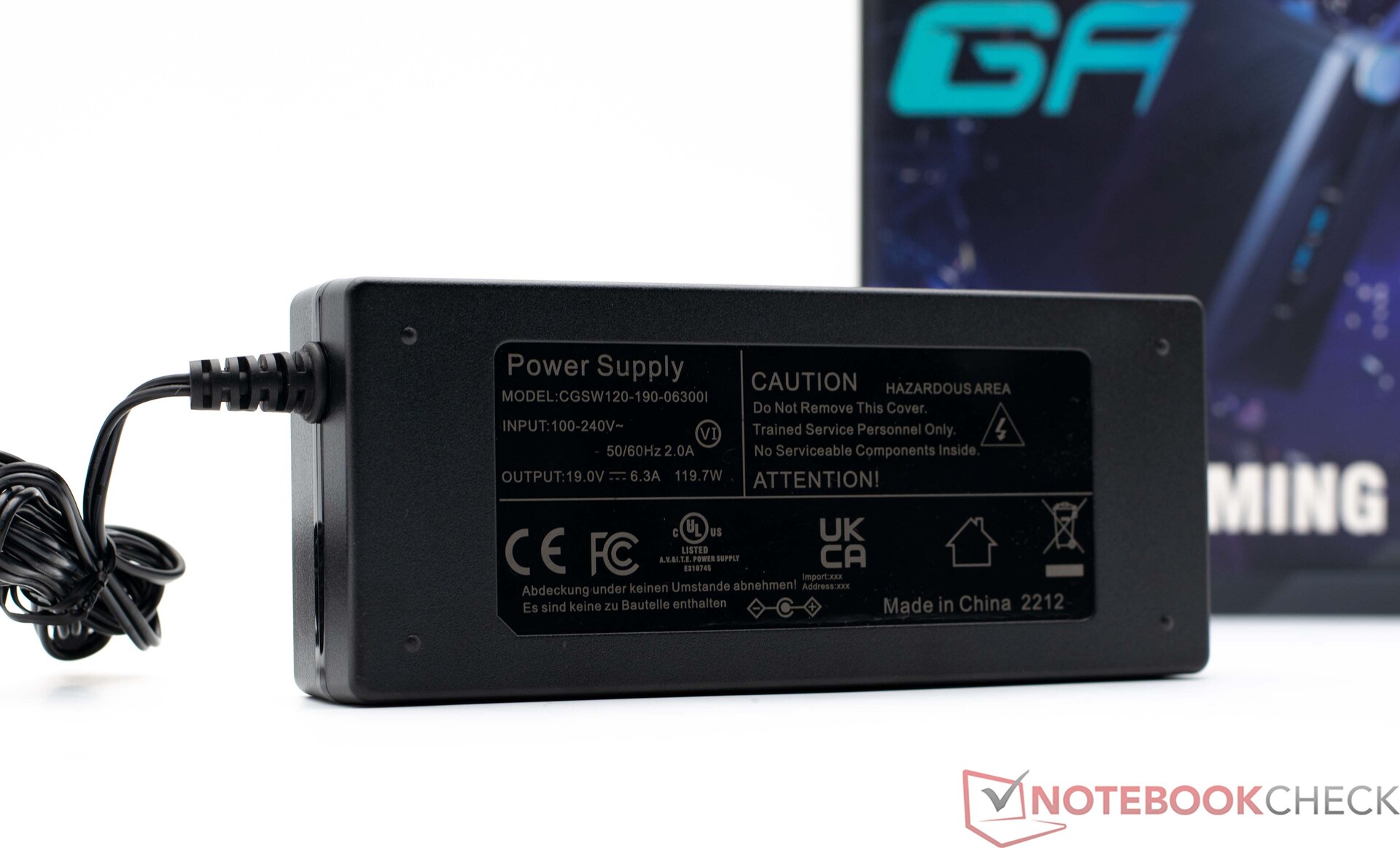

874 g, Suministro de Electricidad: 478 g
Precio
869 EUR
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Posibles contendientes en la comparación

Valoración
Fecha
Modelo
Peso
Memory
Price
82 %
v7 (old)
06/2023
ACEMagician Ace Magician AM08 Pro
R9 6900HX, Radeon 680M
874 g32768 MB

v (old)
09/2022
Minipc Union Ace Magician AMR5
R5 5600U, Vega 7
628 g16384 MB
85.5 %
v7 (old)
03/2023
Morefine M600, 6900HX
R9 6900HX, Radeon 680M
779 g32768 MB
86.1 %
v7 (old)
02/2023
Minisforum Venus Series UM690
R9 6900HX, Radeon 680M
621 g16384 MB
85.1 %
v7 (old)
01/2023
Minisforum Neptune Series NAD9
i9-12900H, Iris Xe G7 96EUs
1.2 kg16384 MB
82.3 %
v7 (old)
05/2023
Geekom Mini IT12
i7-1260P, Iris Xe G7 96EUs
572 g16384 MB
83.7 %
v7 (old)
05/2023
Morefine M600, 6600U
R5 6600U, Radeon 660M
768 g32768 MB

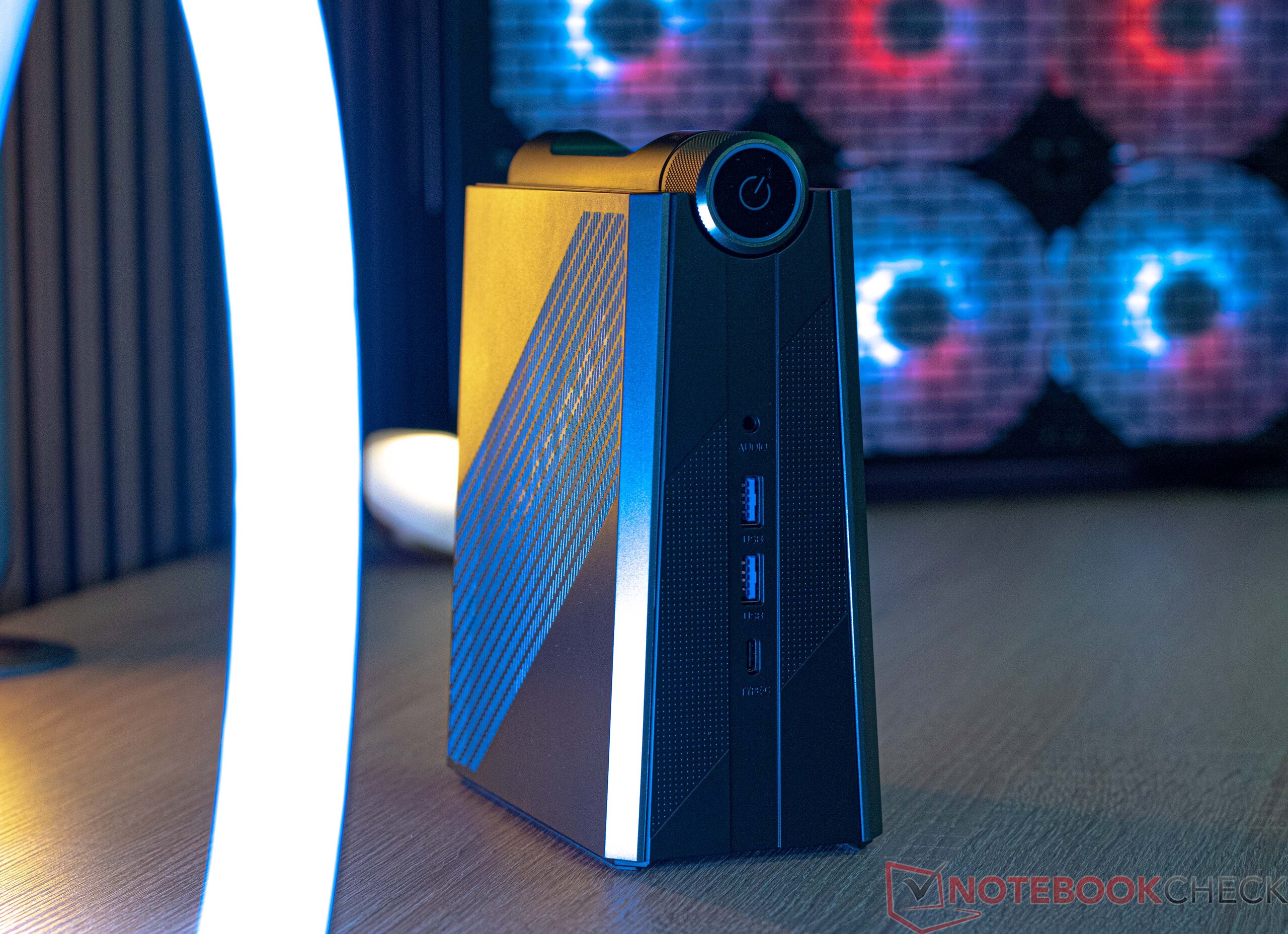

Ace Magician AM08 Pro en detalle

Mago Ace AM08 Pro
Mago Ace AM08 Pro
Mago Ace AM08 Pro
Mago Ace AM08 Pro
Mago Ace AM08 Pro
Mago Ace AM08 Pro
Mago Ace AM08 Pro
Mago Ace AM08 Pro
Mago Ace AM08 Pro
Mago Ace AM08 Pro
Mago Ace AM08 Pro
Mago Ace AM08 Pro
Mago Ace AM08 Pro
Mago Ace AM08 Pro
Mago Ace AM08 Pro
Mago Ace AM08 Pro
Mago Ace AM08 Pro
Mago Ace AM08 Pro
Mago Ace AM08 Pro
Mago Ace AM08 Pro
Mago Ace AM08 Pro
Mago Ace AM08 Pro

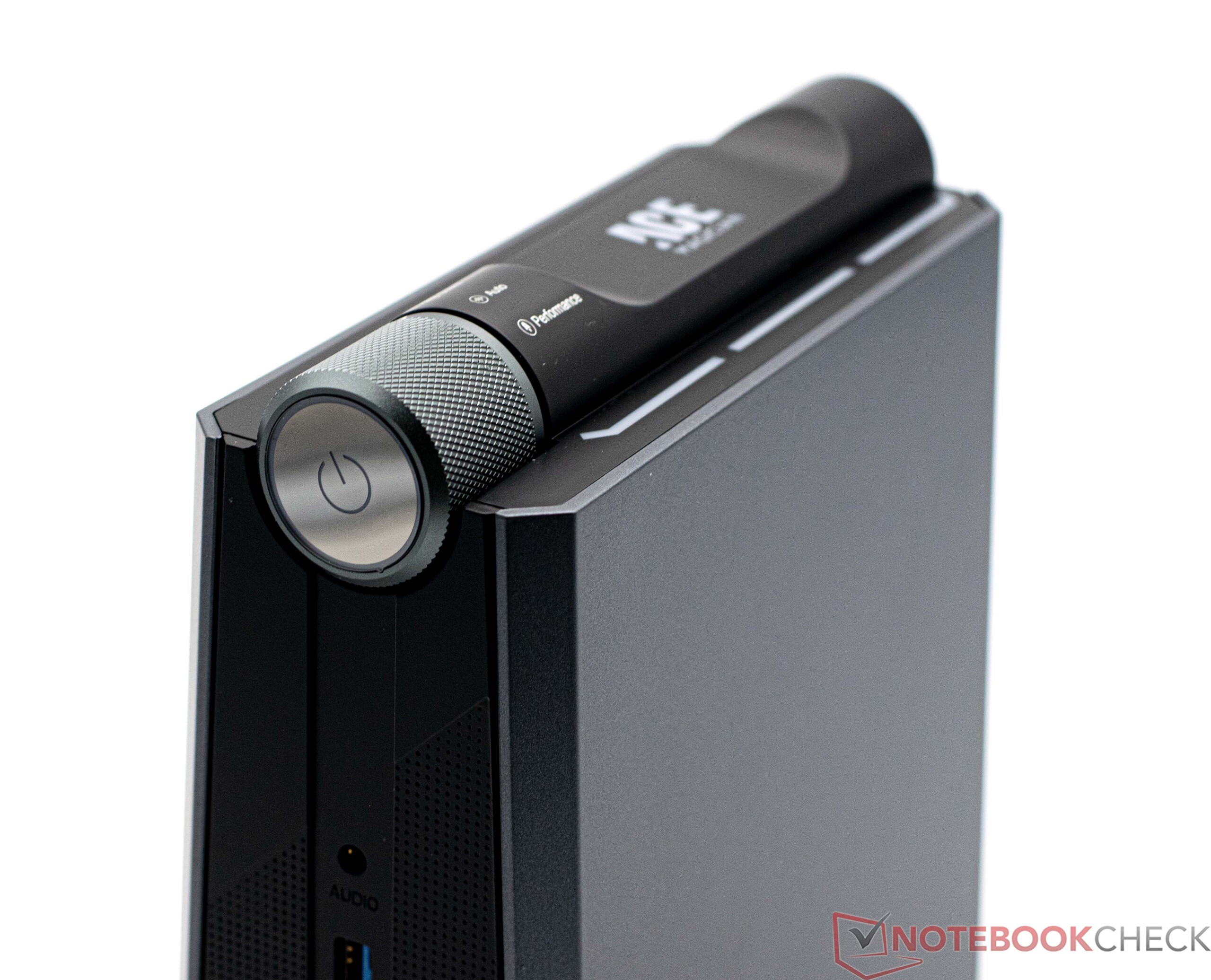

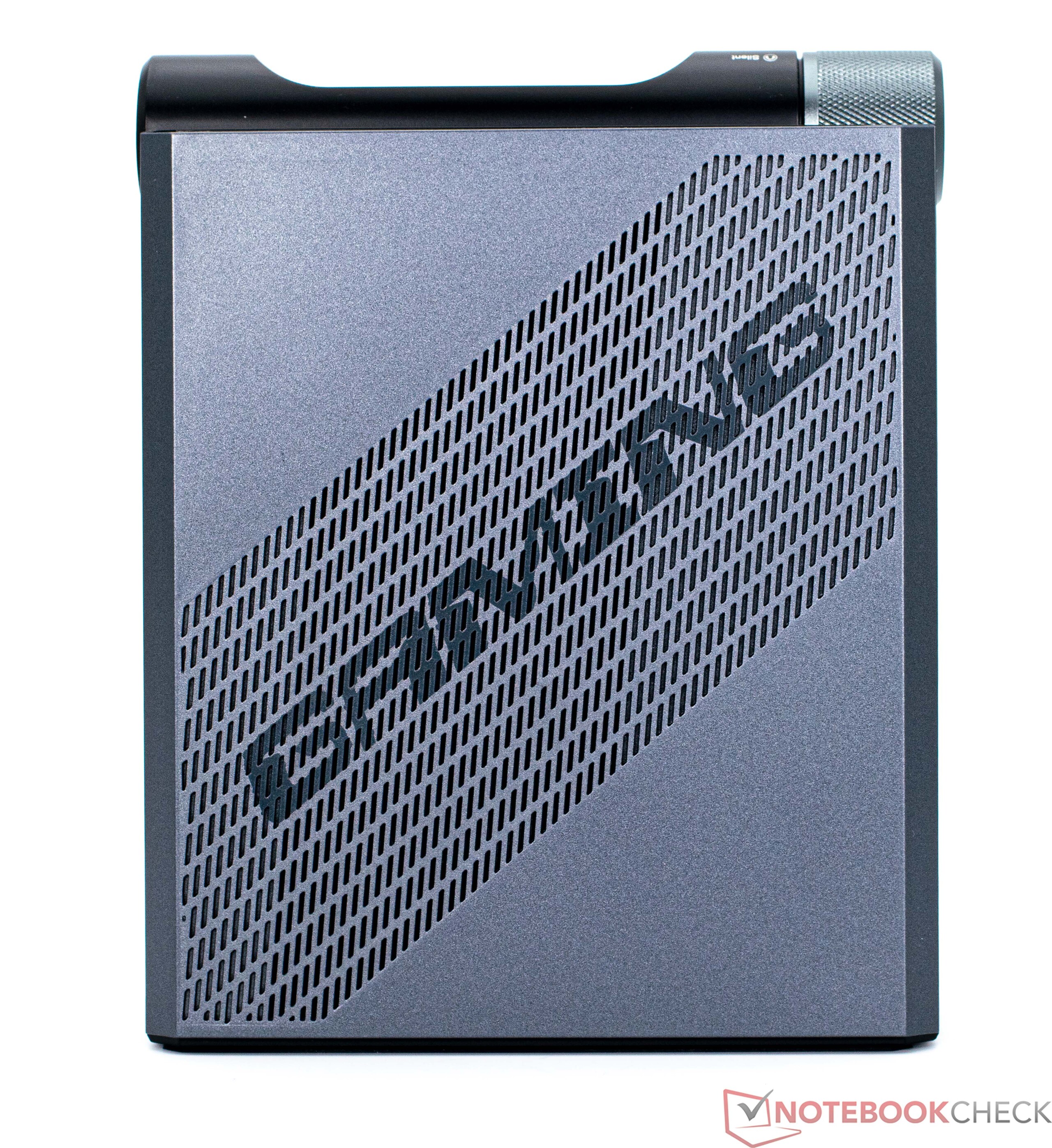

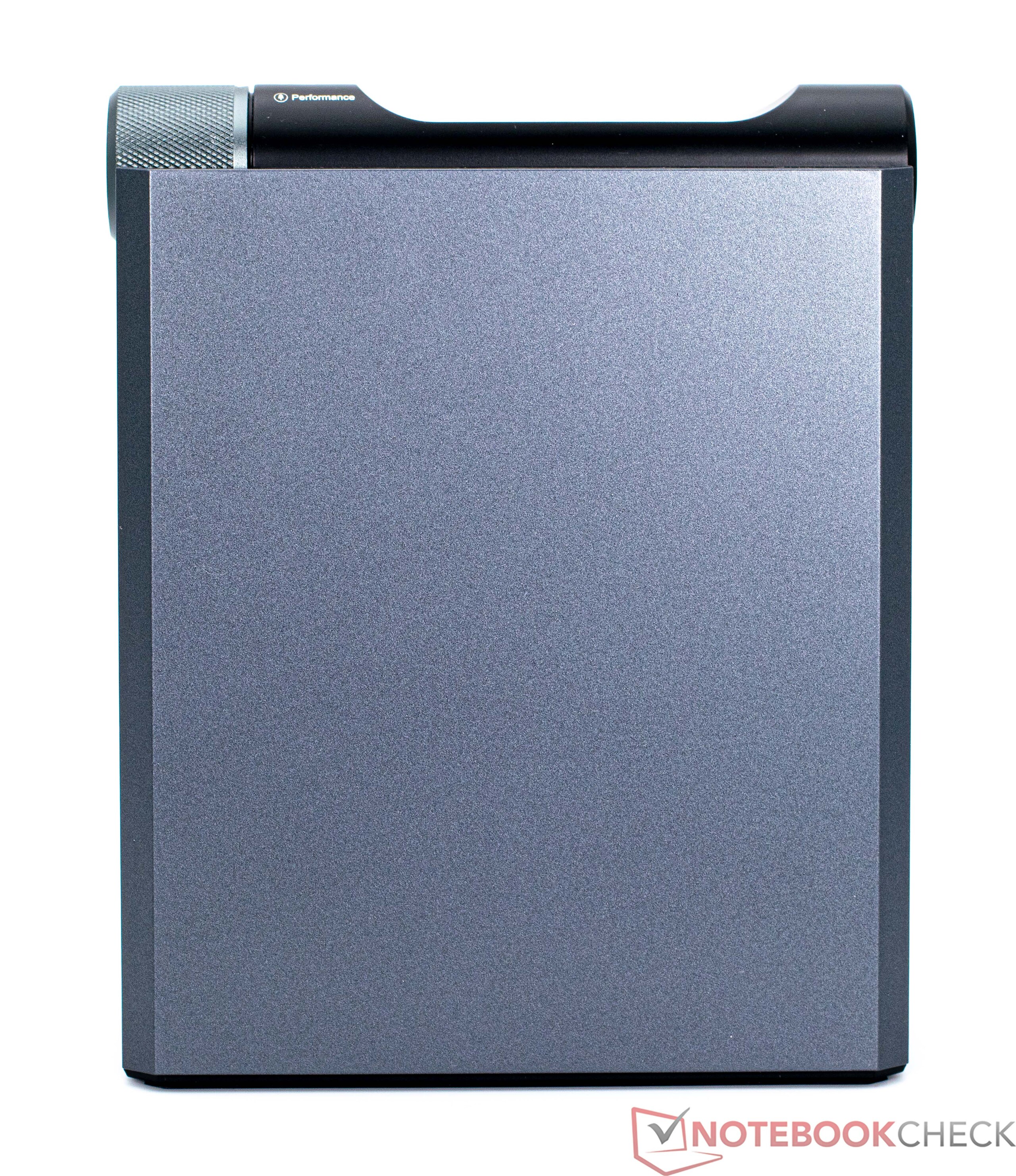

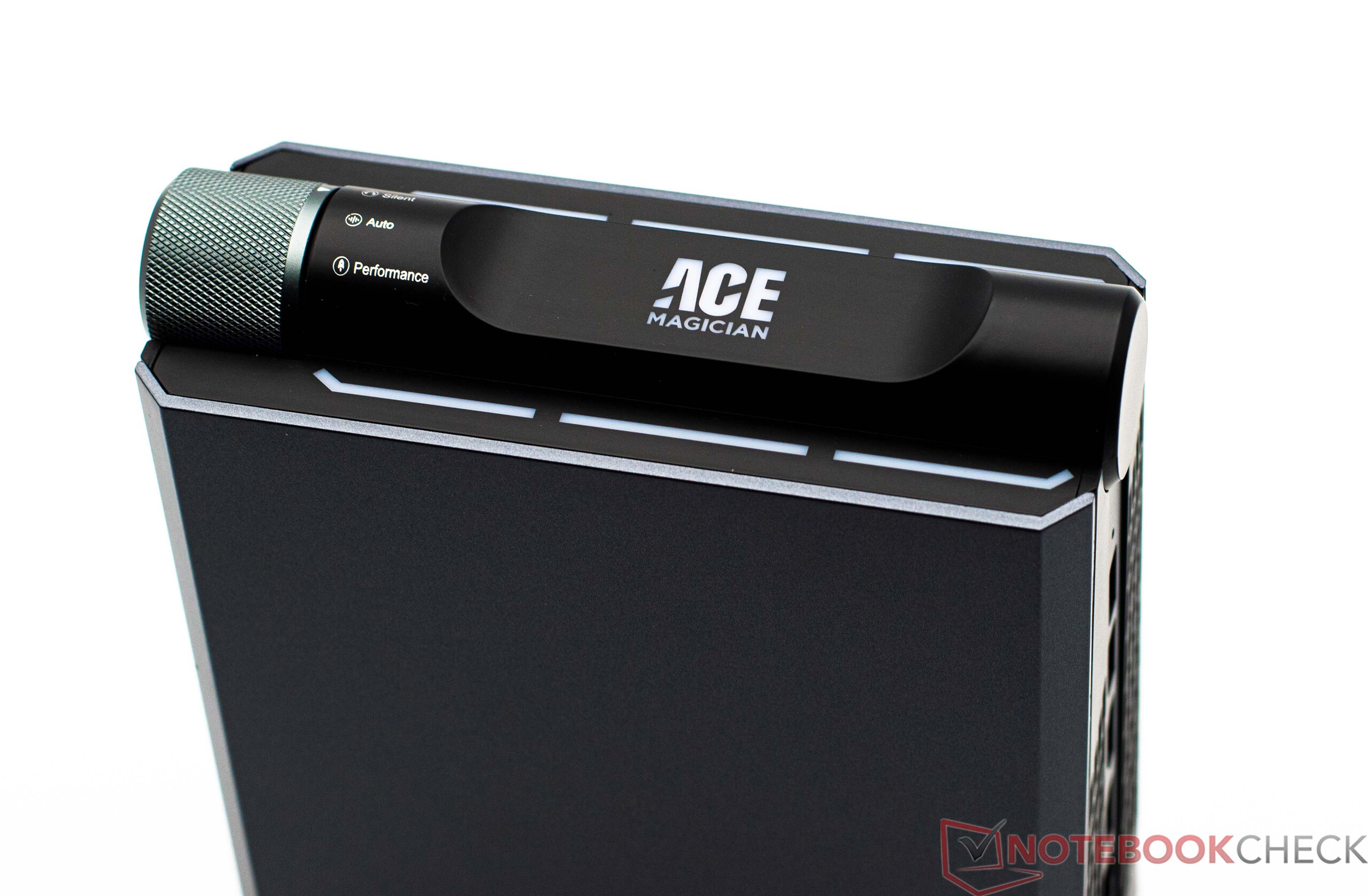

Caso

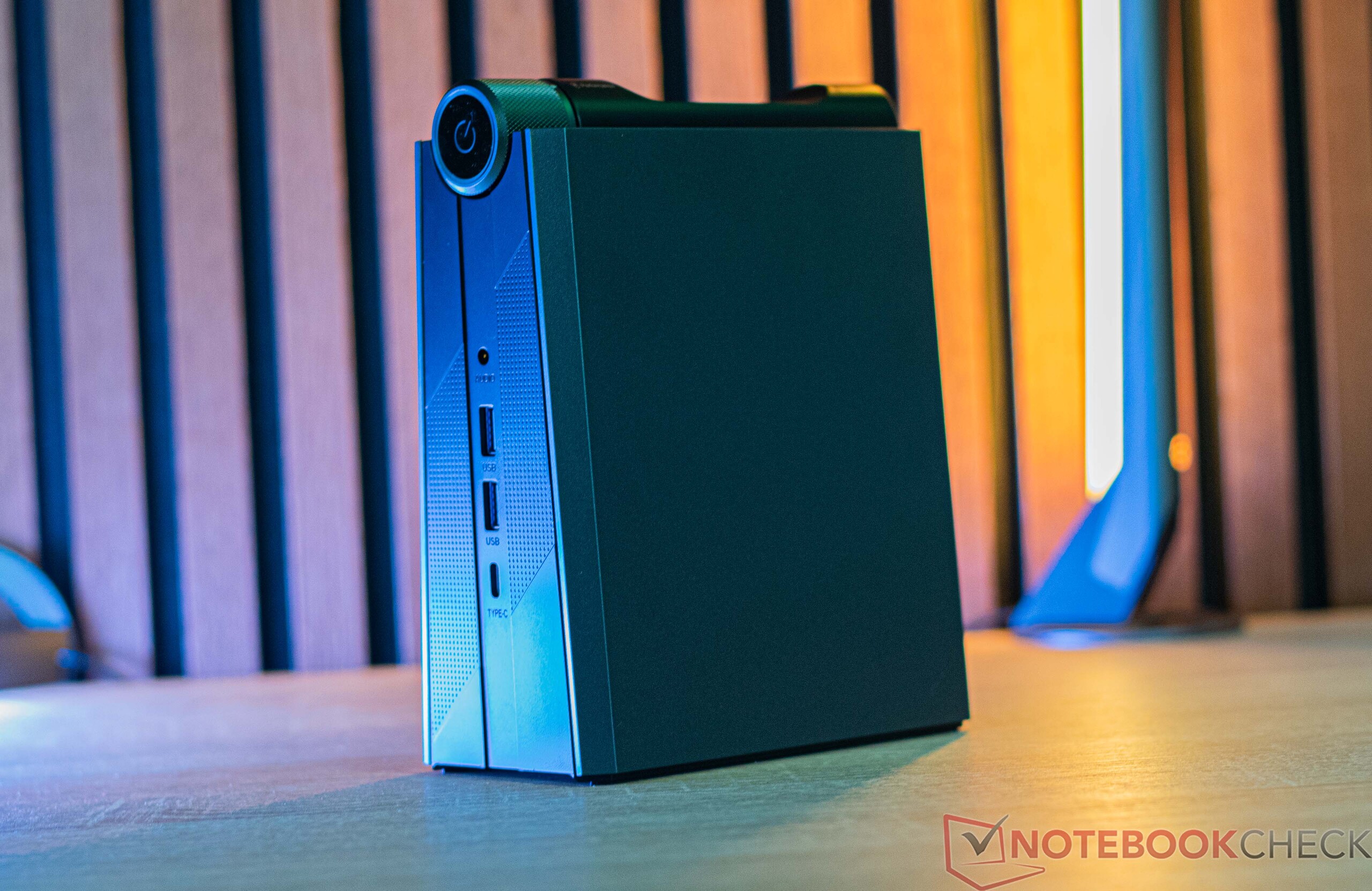

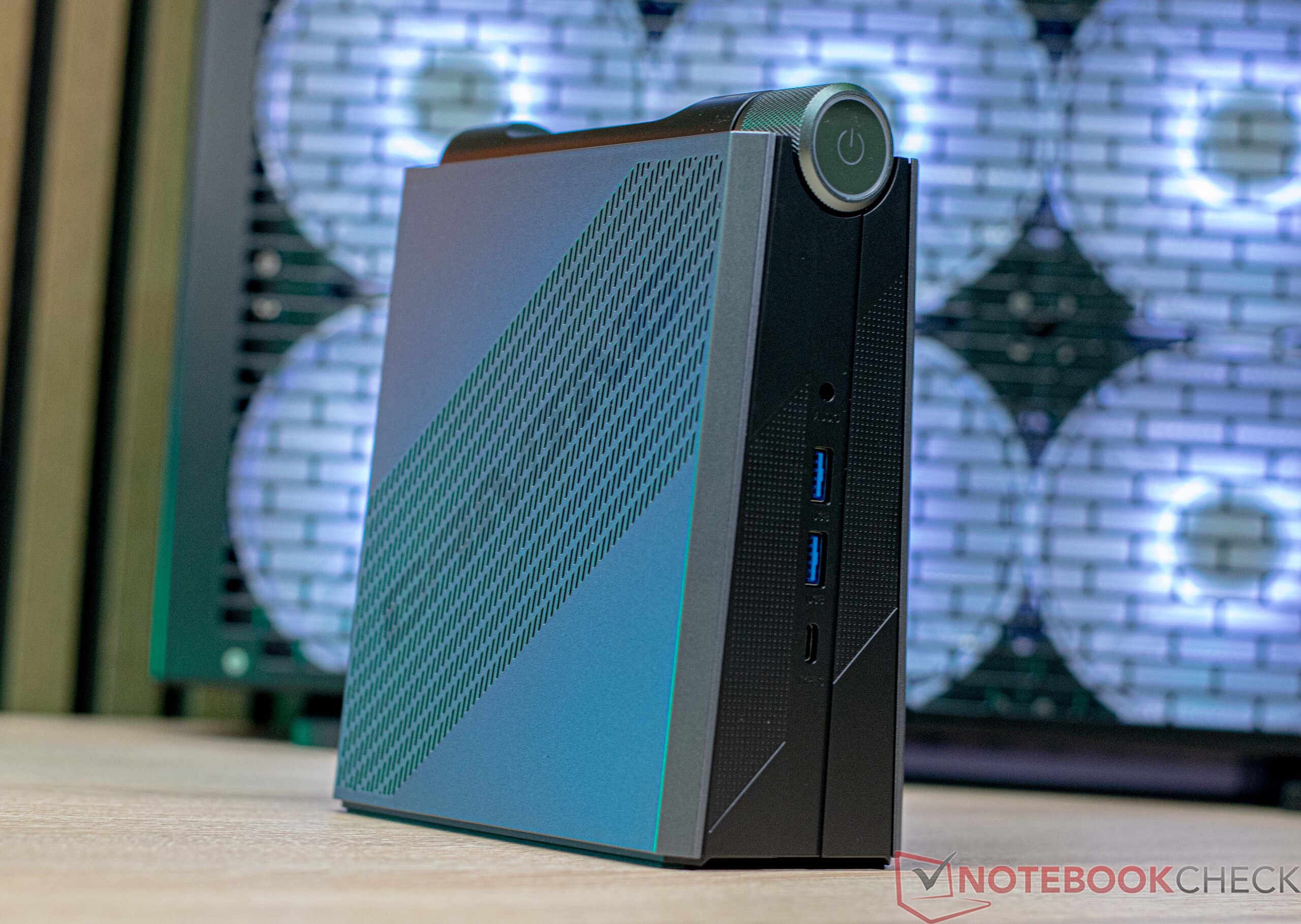

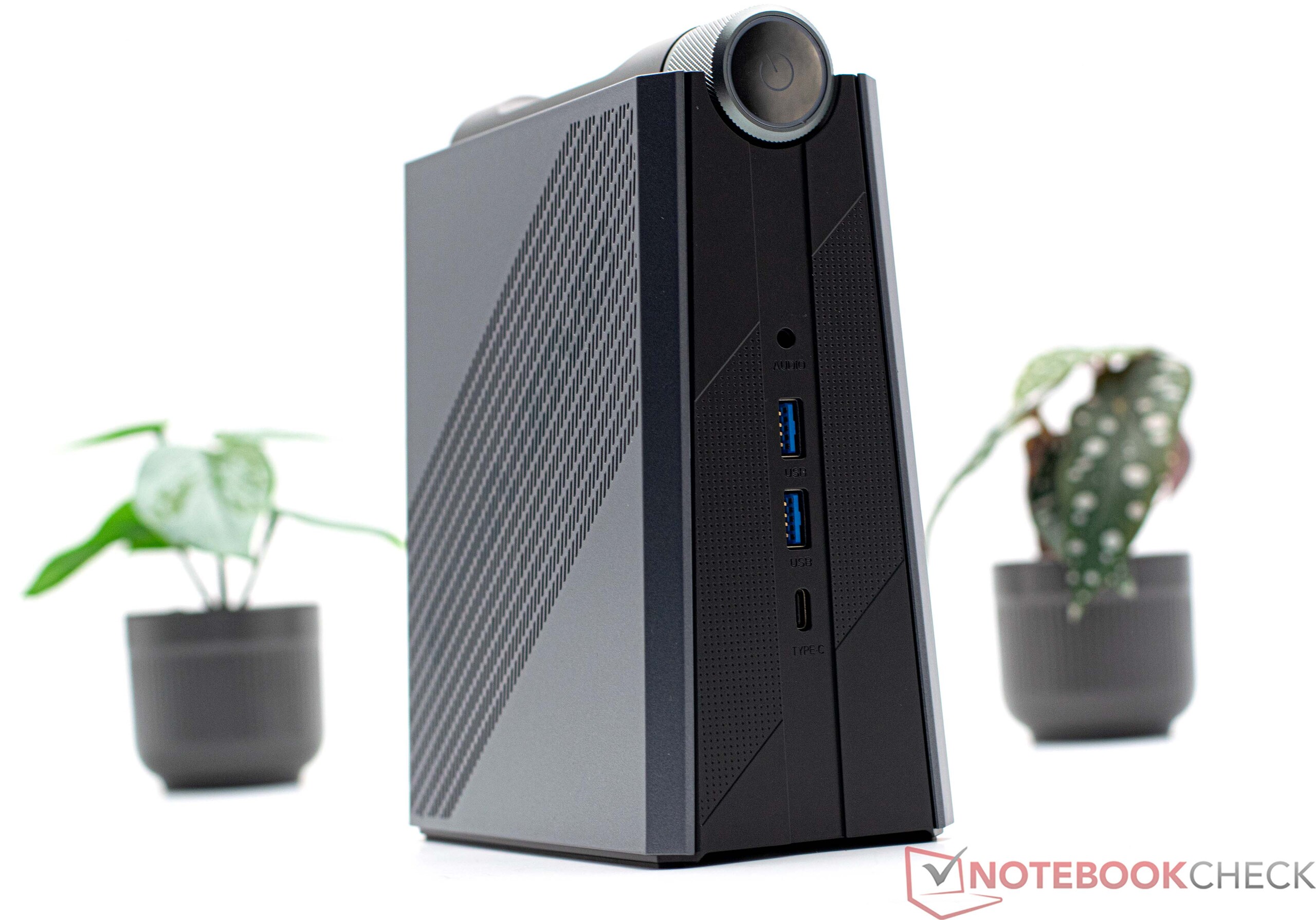

La versión mini de un PC torre de 19 cm (~7,5 pulgadas) de altura nos recuerda al Ace Magician AMR5, que está construido de forma similar. En comparación con el predecesor, el AM08 Pro ha crecido ligeramente, pero esto no ha tenido efecto en su compacidad. La iluminación discreta se ha trasladado a la parte superior de la caja.

En cuanto a la selección de materiales, vemos principalmente plástico. Aunque una carcasa de aluminio seguramente habría ofrecido mejor tacto, no tenemos quejas sobre la fabricación de nuestra unidad de pruebas. Como en el predecesor, el lado derecho de la carcasa se mantiene en su sitio magnéticamente, por lo que se puede quitar fácilmente sin usar herramientas, dando acceso a la memoria de trabajo y la solución de almacenamiento.

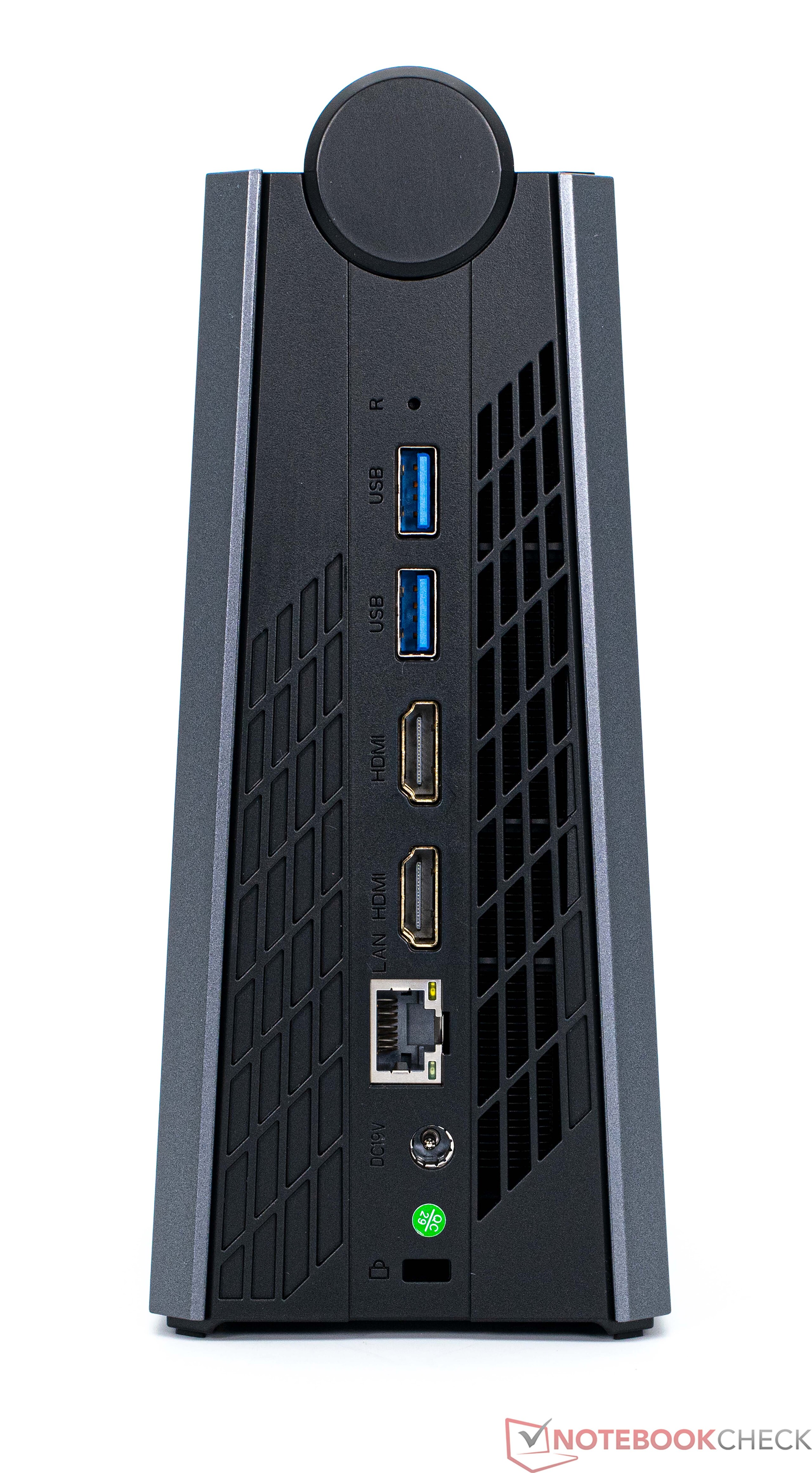

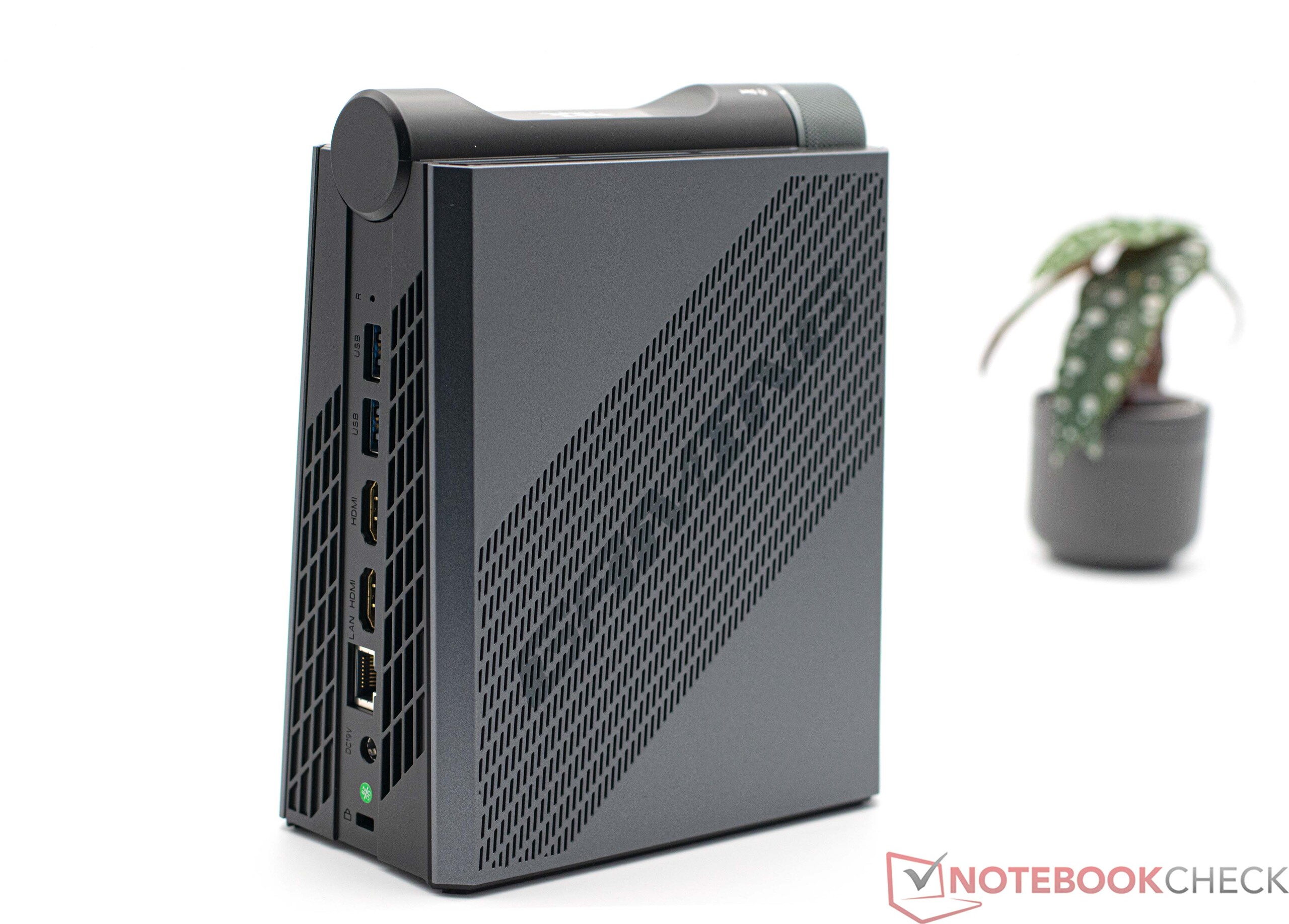

Equipo de conexión

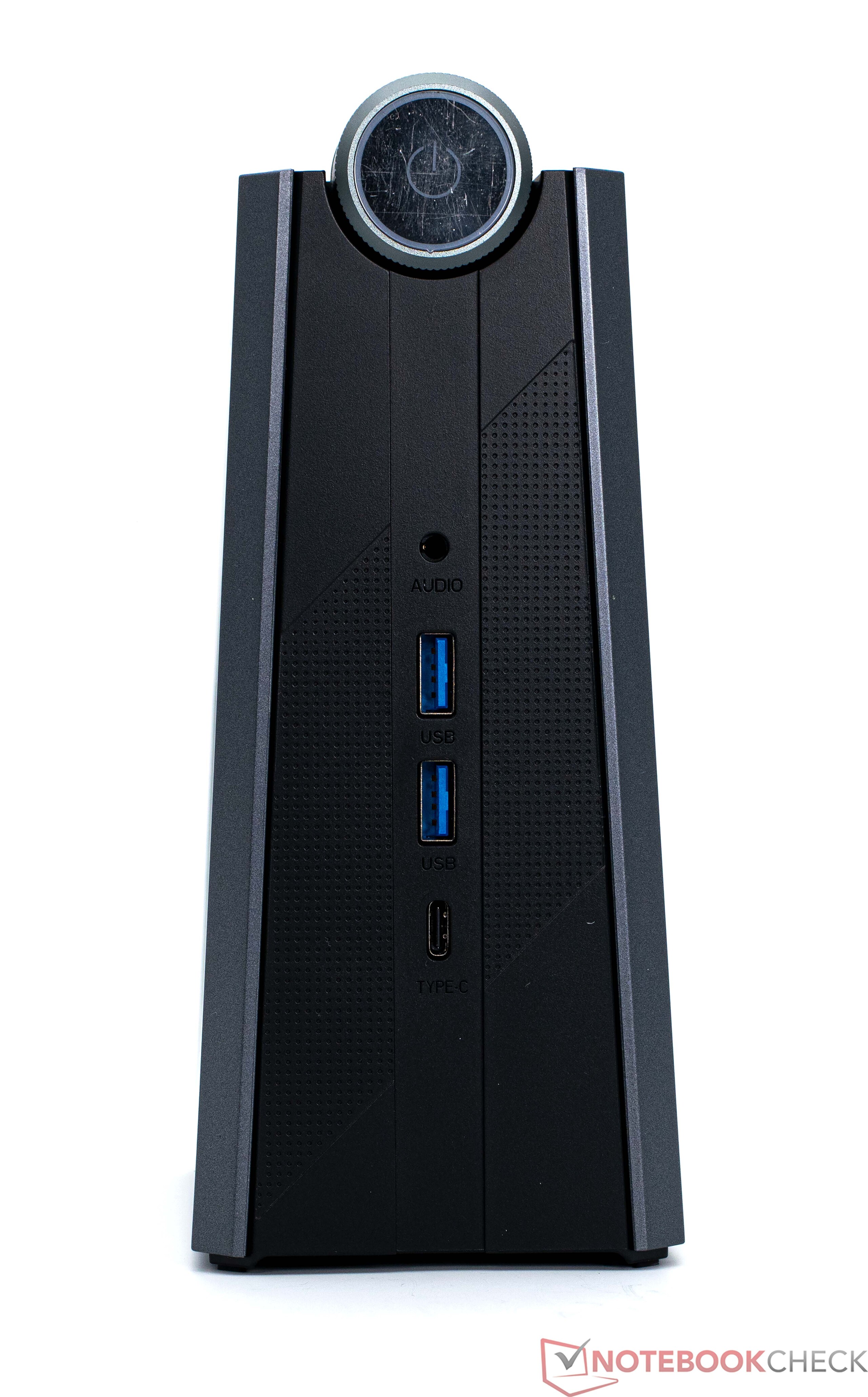

Ya tuvimos mini PC con más conexiones externas en nuestra prueba. Sin embargo, deberías poder arreglártelas con las conexiones disponibles cuando lo uses para su propósito diseñado como PC de juegos compacto. Al menos, hay cuatro puertos USB de tipo A repartidos por la parte delantera y trasera. Puedes conectar dos pantallas usando los dos puertos HDMI disponibles, o incluso tres, si también quieres usar el puerto USB Type-C frontal para la salida de pantalla. El puerto Type-C también soporta Thunderbolt, lo que permite ampliar enormemente las opciones de uso del dispositivo.

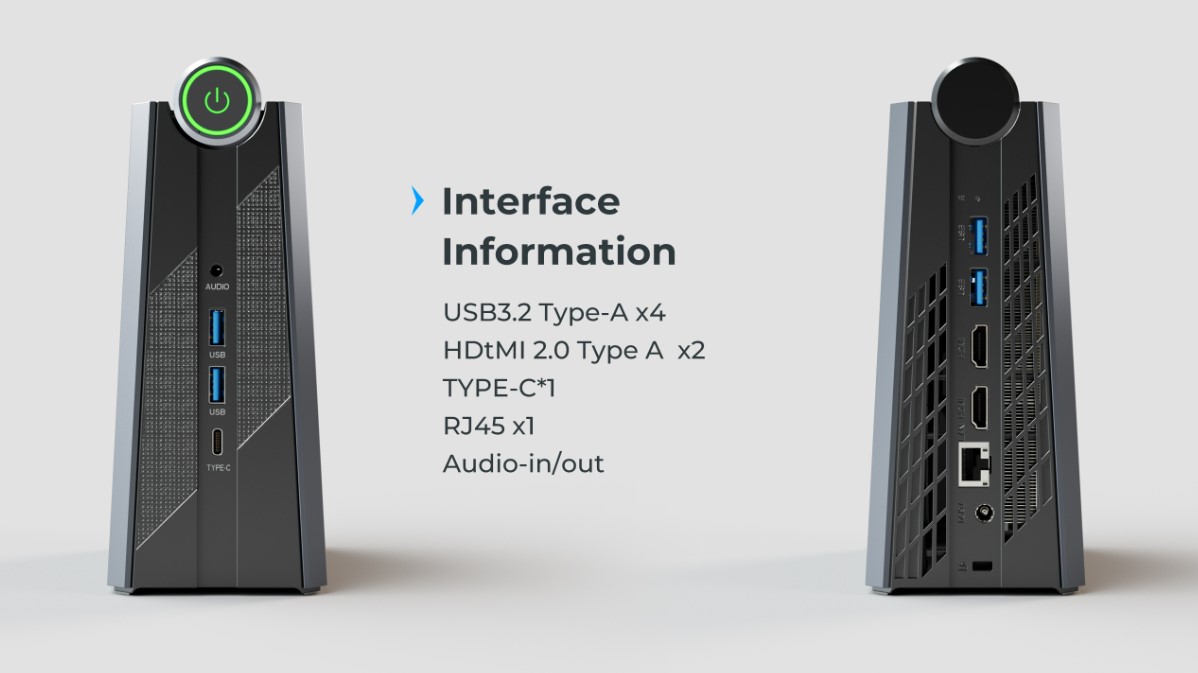

Puertos externos del Ace Magician AM08 Pro (Fuente: Ace Magician)
Puertos externos del Ace Magician AM08 Pro (Fuente: Ace Magician)

Comunicación

Ace Magician utiliza un módulo Wi-Fi 6E de Realtek en el AM08 Pro. En la prueba práctica, el módulo WLAN de nuestra unidad de prueba muestra un rendimiento más bien medio. En la recepción de datos, medimos valores mucho mejores que en la recepción, donde nuestra unidad de prueba tiene que contentarse con el último lugar. Sin embargo, el rendimiento alcanzado no debería calificarse de malo, ya que es más que suficiente para el funcionamiento diario. Para esta prueba utilizamos nuestro router de pruebas Asus Rapture GT-AXE11000. Para conexiones de datos más rápidas, también puedes usar el puerto LAN como alternativa, haciendo posible transferencias de datos de hasta un máximo de 2,5 Gbit/s.

Networking
iperf3 receive AXE11000
Minisforum Neptune Series NAD9
Intel Wi-Fi 6E AX210
1318 (663min - 1363max) MBit/s +39%
Minisforum Venus Series UM690
MediaTek RZ608
956 (944min - 963max) MBit/s +1%
Morefine M600, 6600U
MediaTek RZ608
948 (934min - 957max) MBit/s 0%
ACEMagician Ace Magician AM08 Pro
Realtek RTL8852BE
947 (787min - 981max) MBit/s
Geekom Mini IT12
Intel Wi-Fi 6E AX211
943 (923min - 960max) MBit/s 0%
Average of class Mini PC
  (192.9 - 1796, n=113, last 2 years)
932 MBit/s -2%
Morefine M600, 6900HX
MediaTek RZ608
929 (874min - 946max) MBit/s -2%
Minipc Union Ace Magician AMR5
MediaTek RZ608
903 MBit/s -5%
Average Realtek RTL8852BE
  (455 - 984, n=43)
847 MBit/s -11%
iperf3 transmit AXE11000
Minisforum Neptune Series NAD9
Intel Wi-Fi 6E AX210
1320 (1165min - 1353max) MBit/s +79%
Minipc Union Ace Magician AMR5
MediaTek RZ608
967 MBit/s +31%
Morefine M600, 6900HX
MediaTek RZ608
964 (924min - 990max) MBit/s +31%
Minisforum Venus Series UM690
MediaTek RZ608
943 (477min - 981max) MBit/s +28%
Geekom Mini IT12
Intel Wi-Fi 6E AX211
918 (892min - 938max) MBit/s +25%
Average of class Mini PC
  (184.1 - 1776, n=113, last 2 years)
864 MBit/s +17%
Average Realtek RTL8852BE
  (536 - 925, n=42)
792 MBit/s +7%
Morefine M600, 6600U
MediaTek RZ608
784 (381min - 874max) MBit/s +6%
ACEMagician Ace Magician AM08 Pro
Realtek RTL8852BE
737 (369min - 758max) MBit/s
050100150200250300350400450500550600650700750800850900950Tooltip
ACEMagician Ace Magician AM08 Pro; iperf3 receive AXE11000; iperf 3.1.3: Ø946 (787-981)
ACEMagician Ace Magician AM08 Pro; iperf3 transmit AXE11000; iperf 3.1.3: Ø725 (369-758)

Mantenimiento

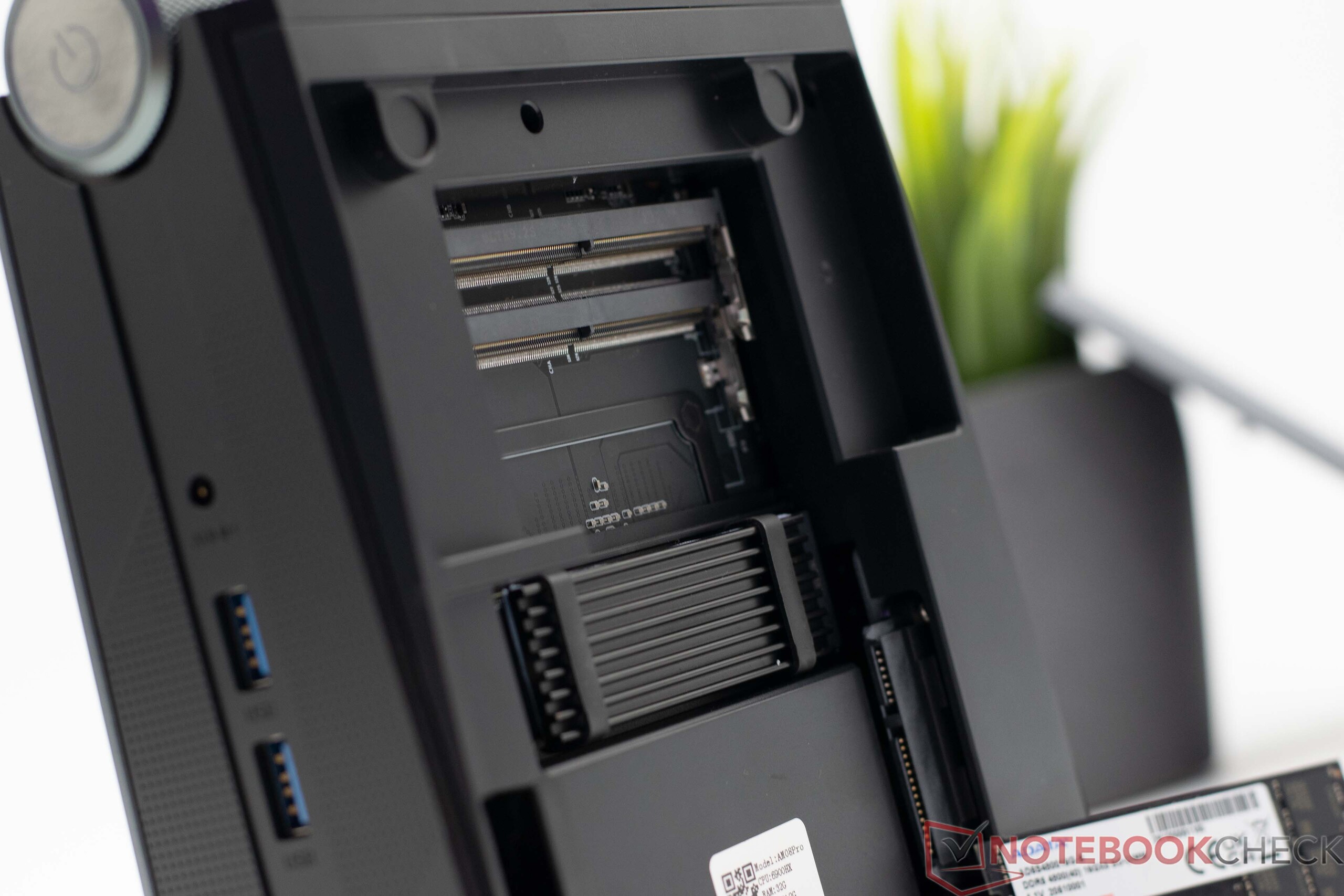

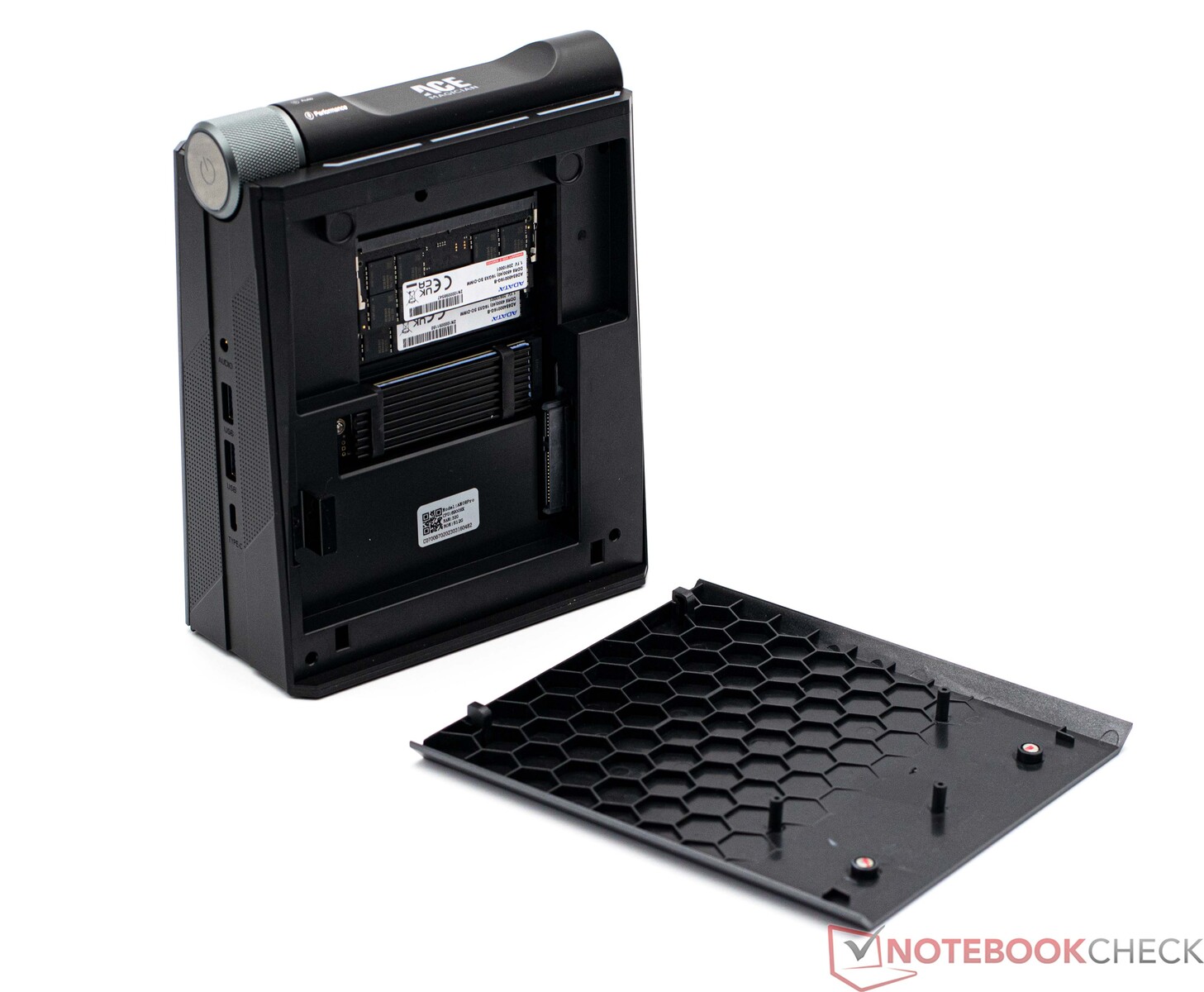

Ace Magician AM08 Pro con lado abierto
Ace Magician AM08 Pro con lado abierto

Abrir la carcasa del Ace Magician AM08 Pro es extremadamente fácil y se puede hacer sin tener que utilizar ninguna herramienta, lo que le permite instalar la memoria de trabajo y una solución de almacenamiento sin ningún problema. Por otro lado, tienes que desmontar el dispositivo si quieres limpiar la unidad de refrigeración. Desafortunadamente, sólo puedes abrir un lado del mini PC rápidamente. No nos habría importado que el fabricante fijara ambos lados de la carcasa magnéticamente, lo que también permitiría insertar un segundo SSD M.2. En el modelo actual, el Ace Magician AM08 Pro incluye una única ranura M.2-2280 y una conexión SATA SSD para una unidad de 2,5 pulgadas.

Rendimiento: 8 núcleos y 16 subprocesos ofrecen un buen rendimiento

ElAMD Ryzen 9 6900HXsirve como procesador del Ace Magician AM08 Pro. Debido a su escenario de uso objetivo, aplaudimos esta decisión, ya que con la AMD Radeon 680M, el SoC también trae una rápida iGPU.

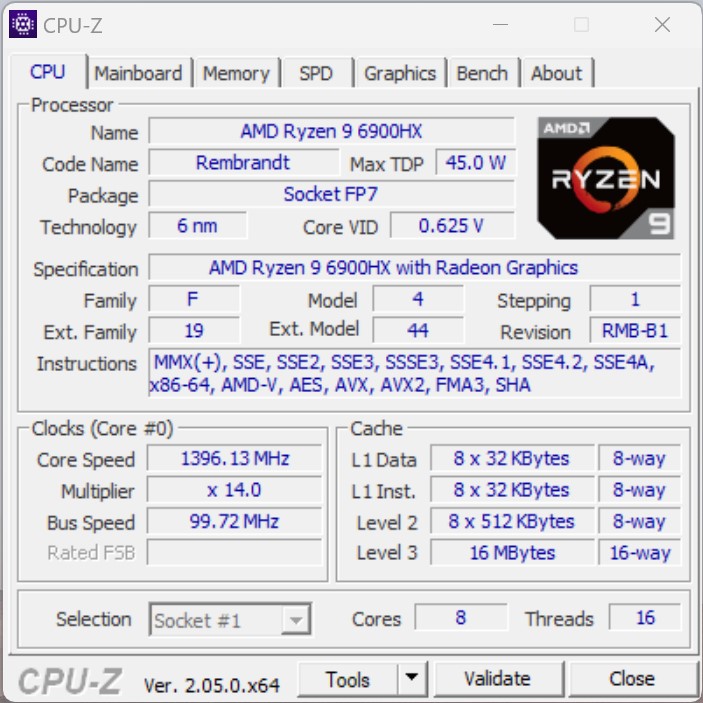

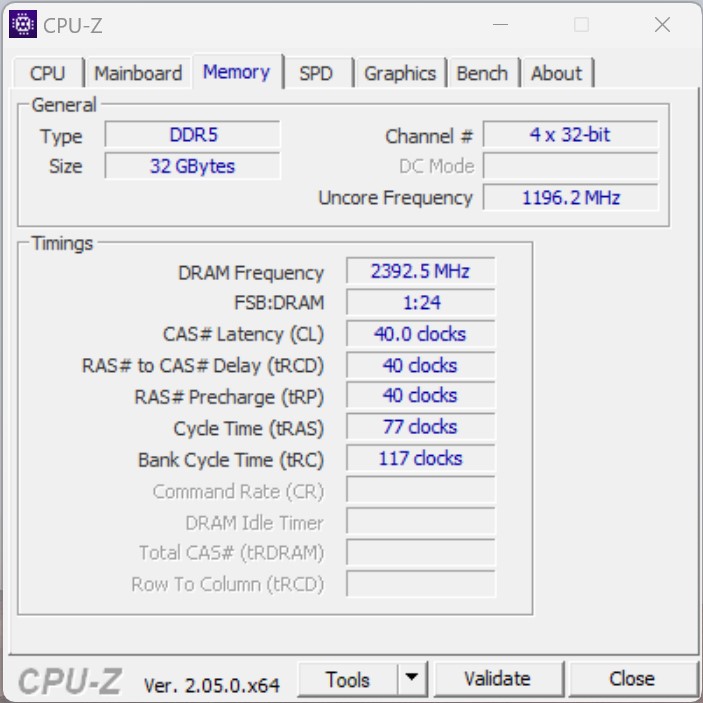

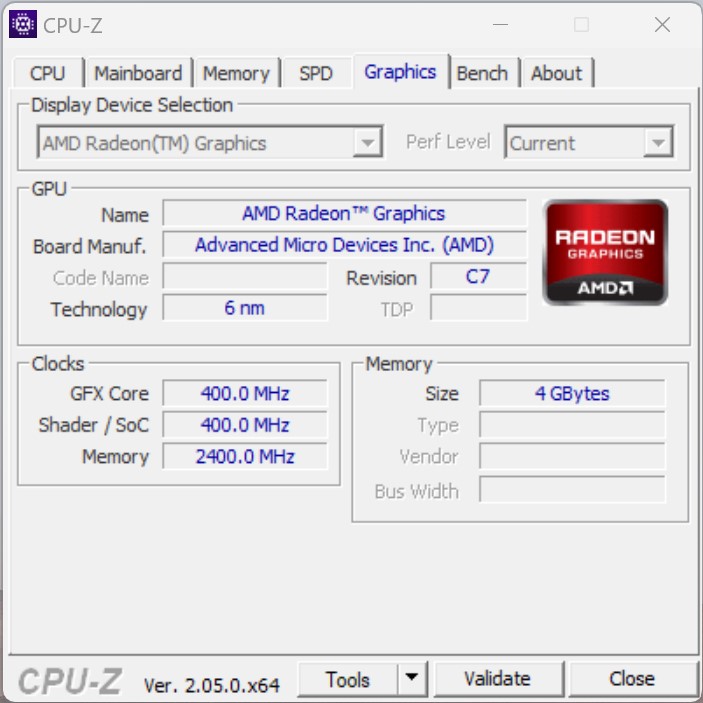

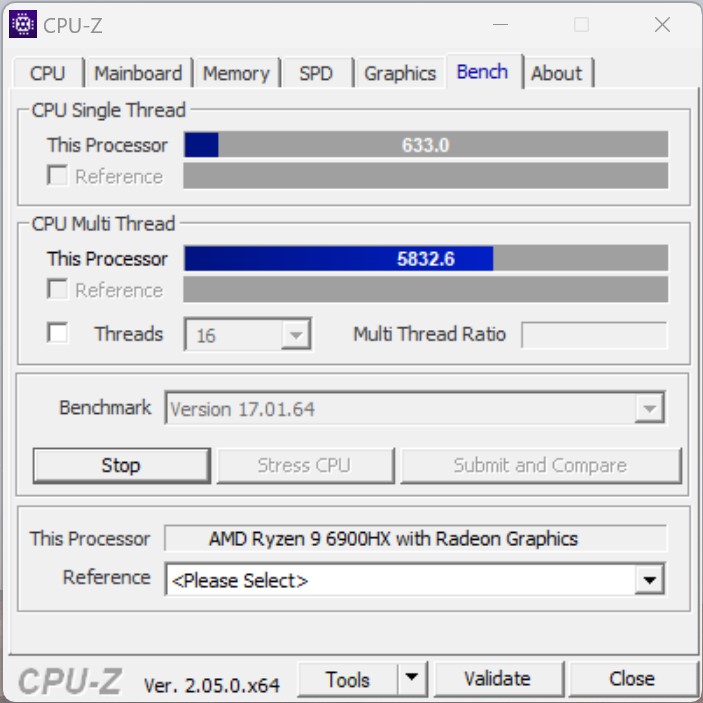

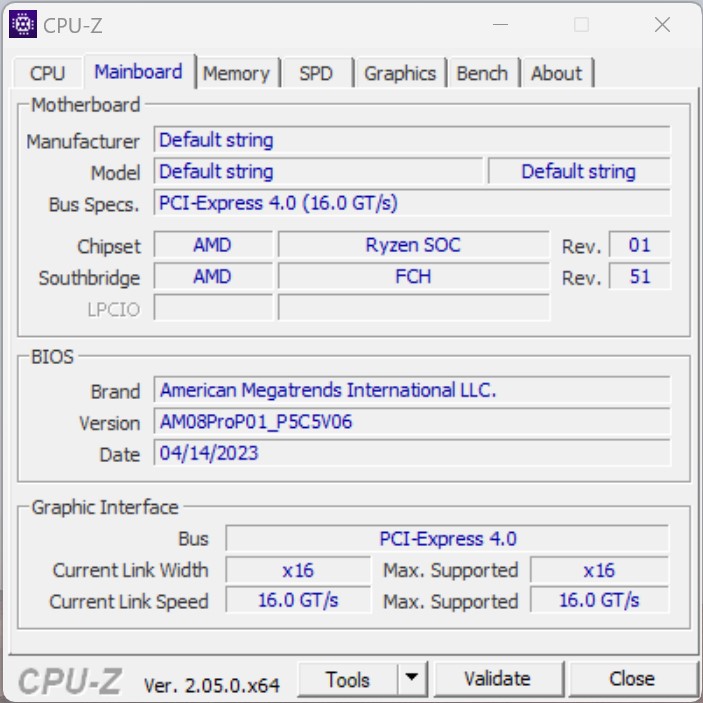

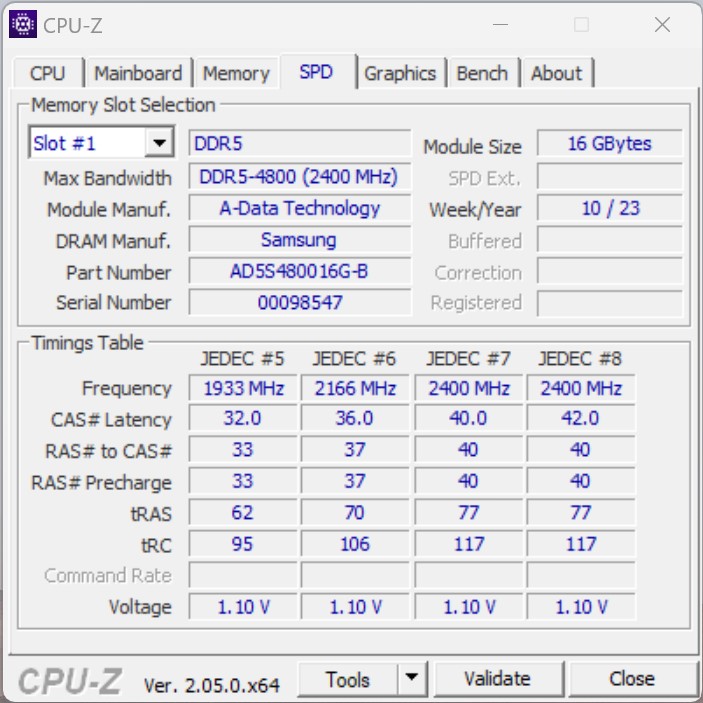

CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z

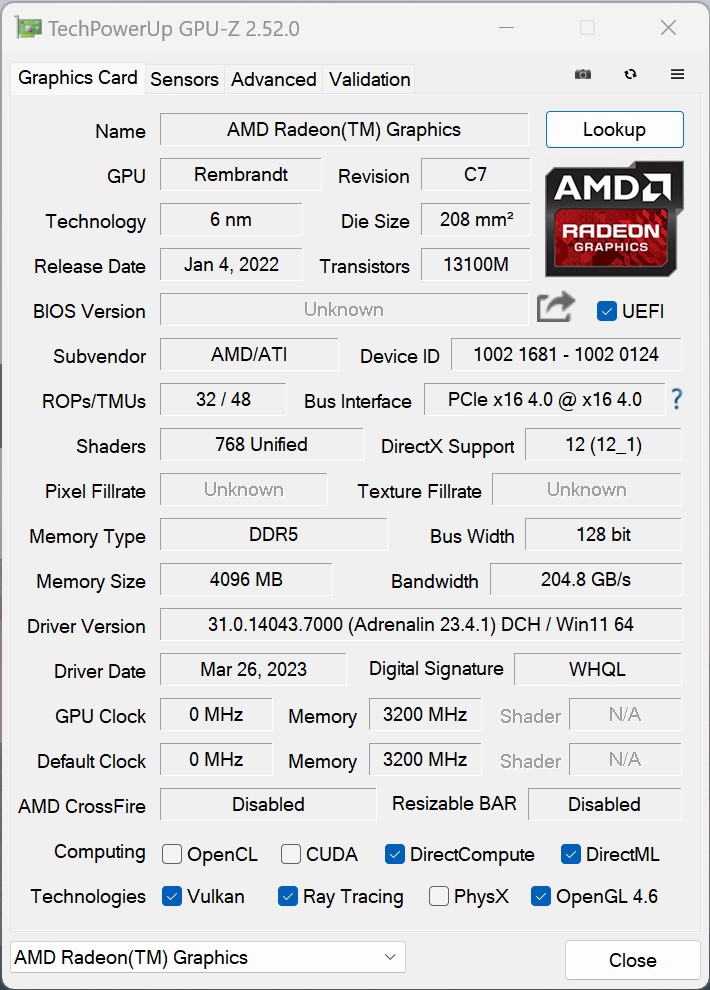

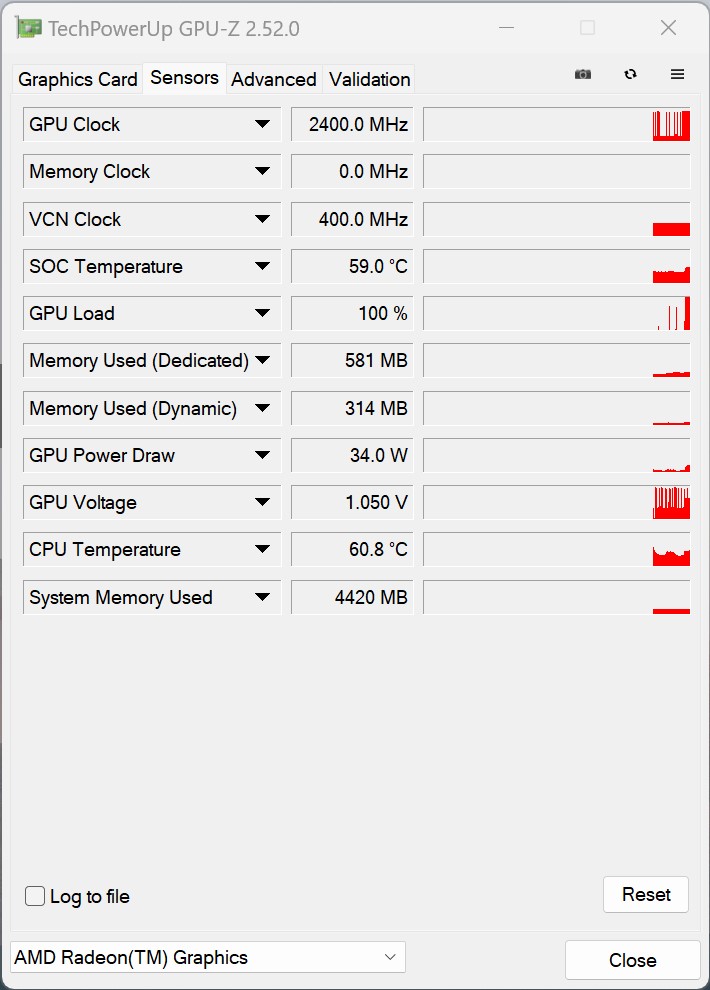

GPU-Z
GPU-Z

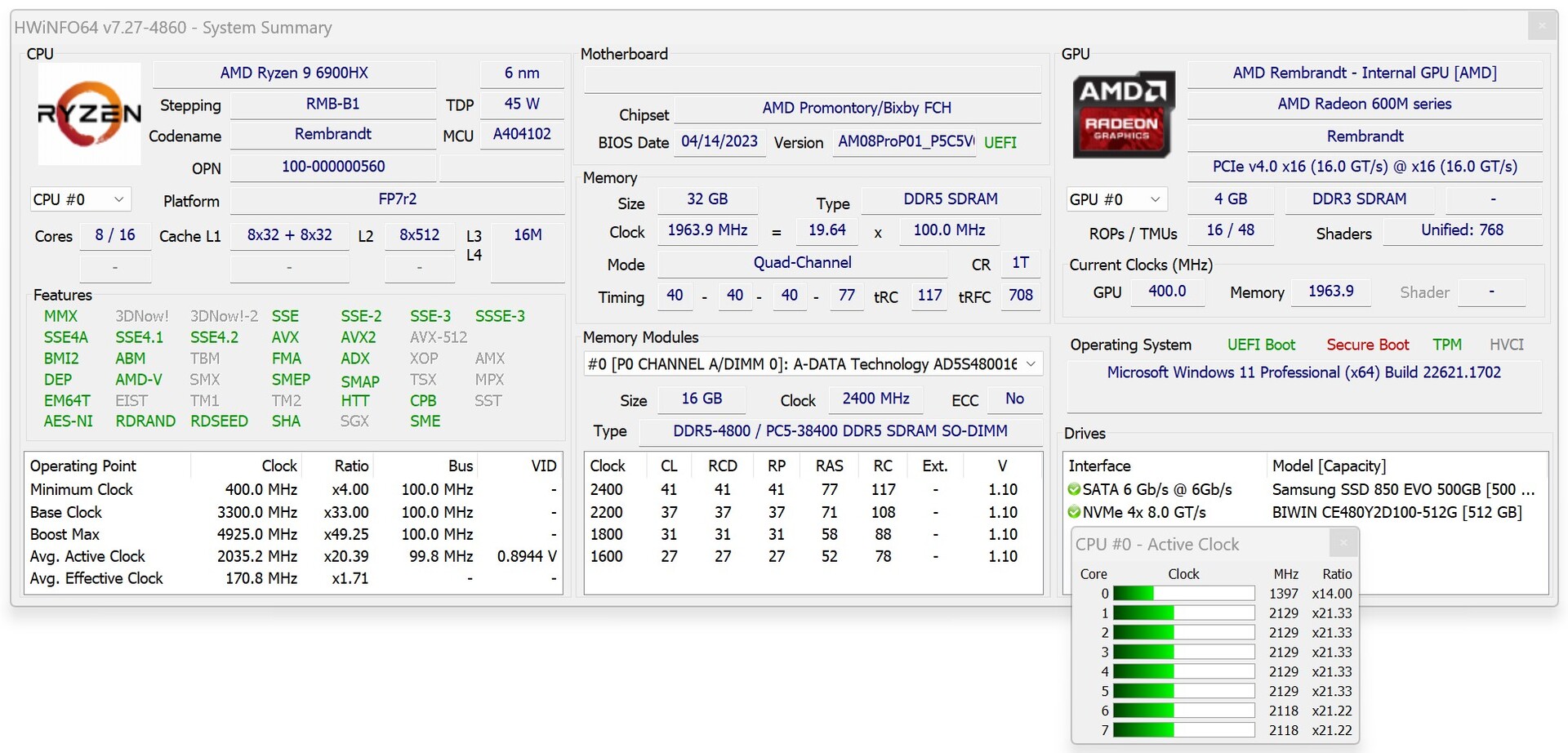

HWiNFO

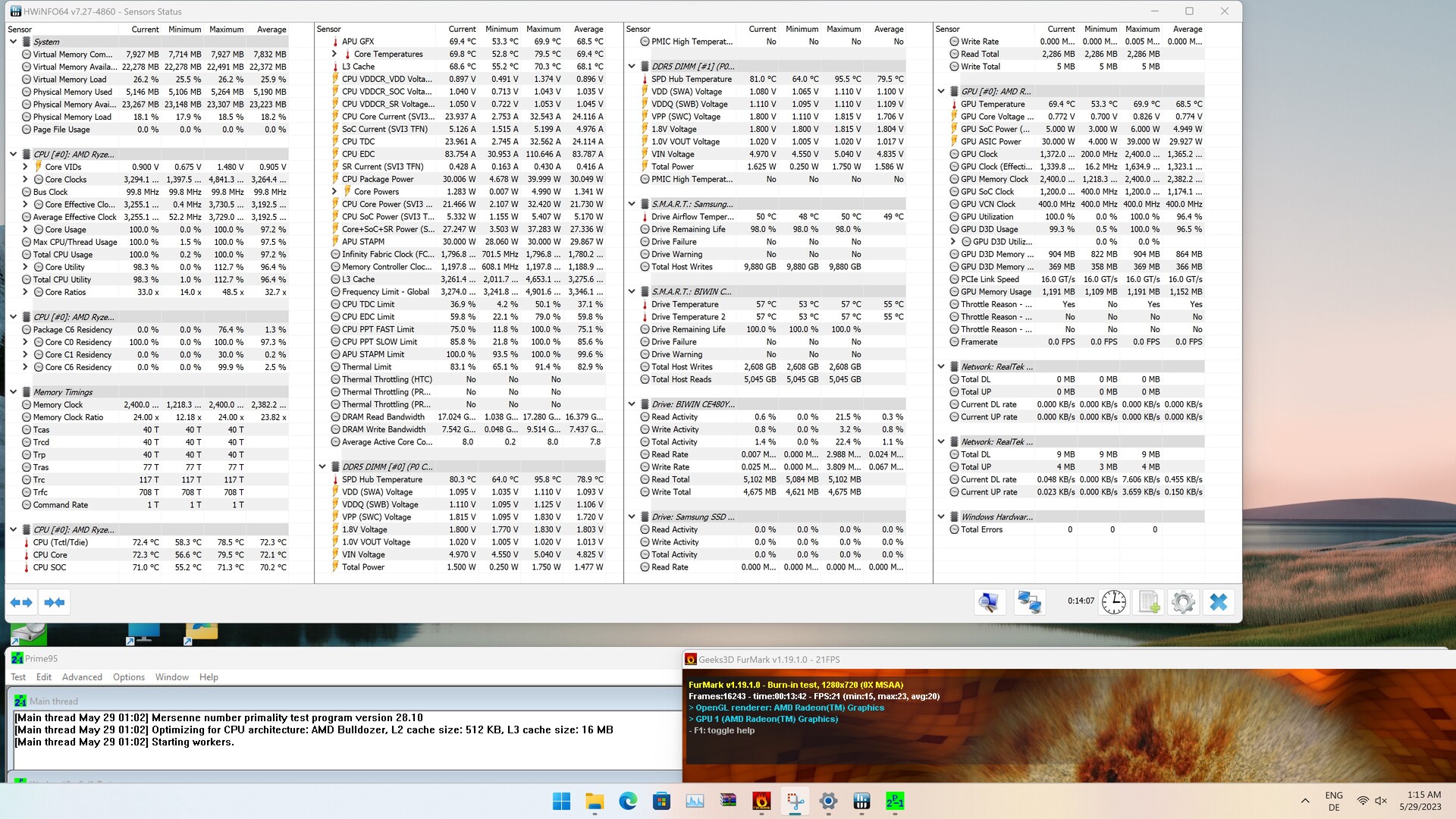

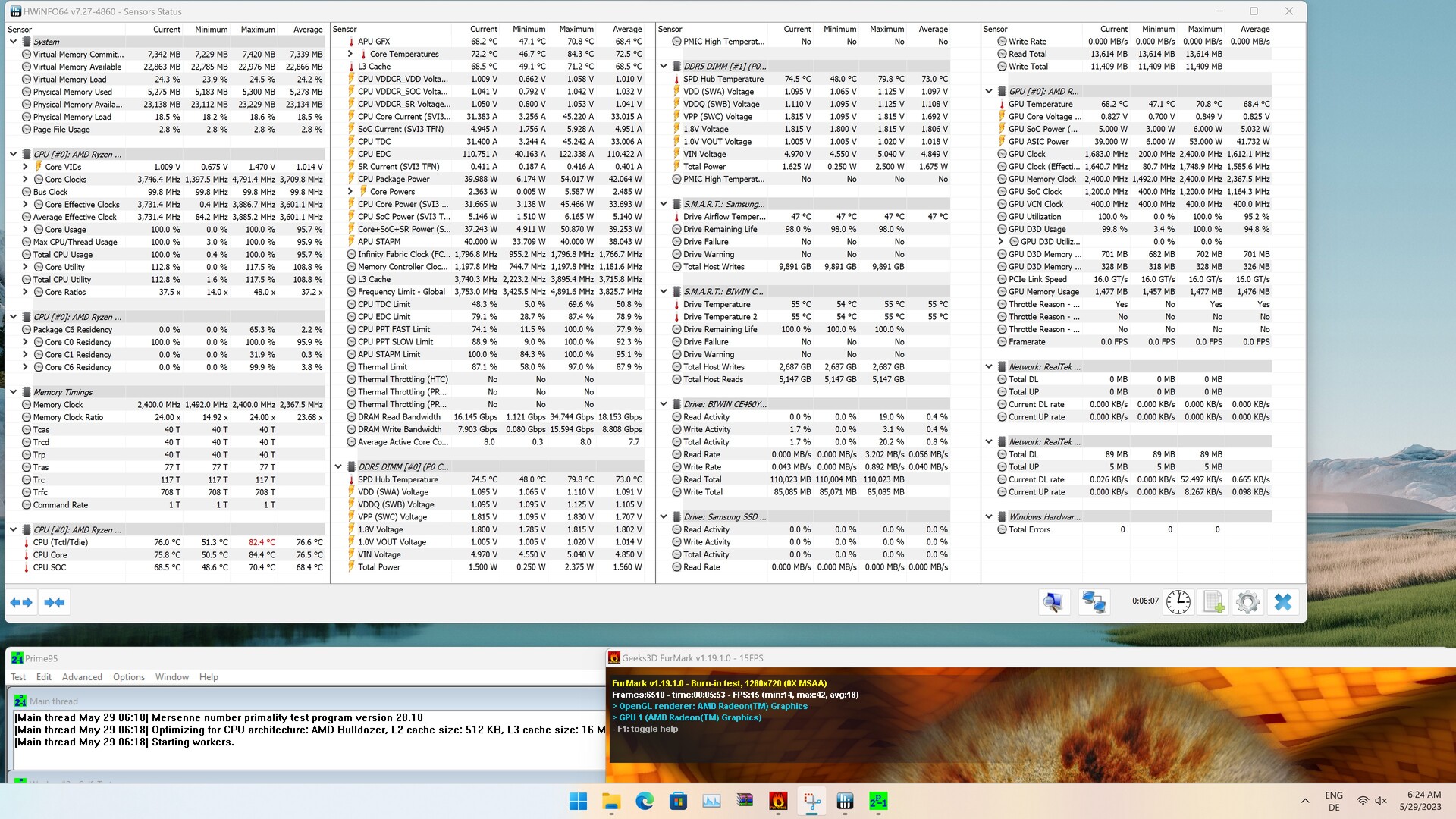

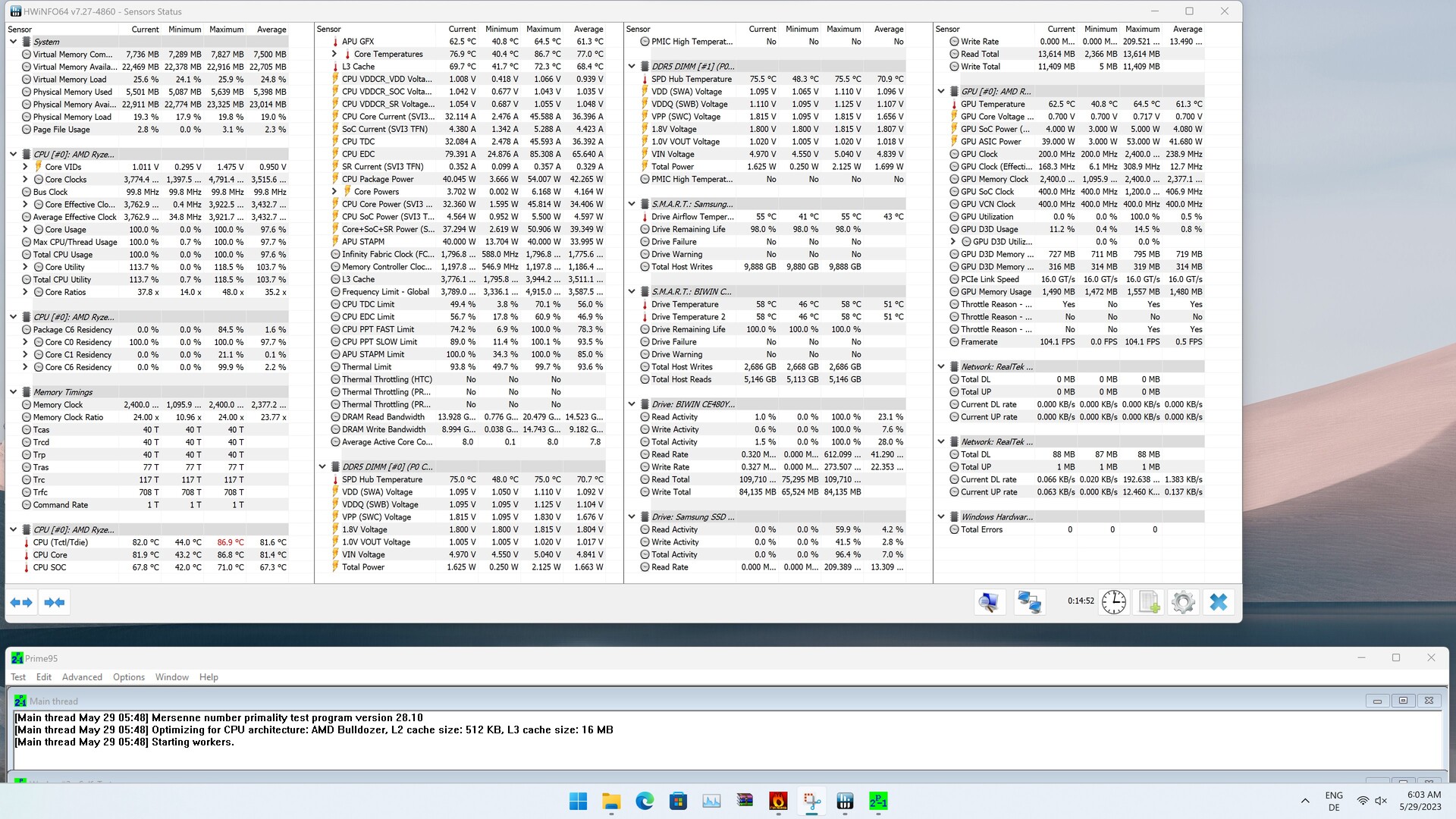

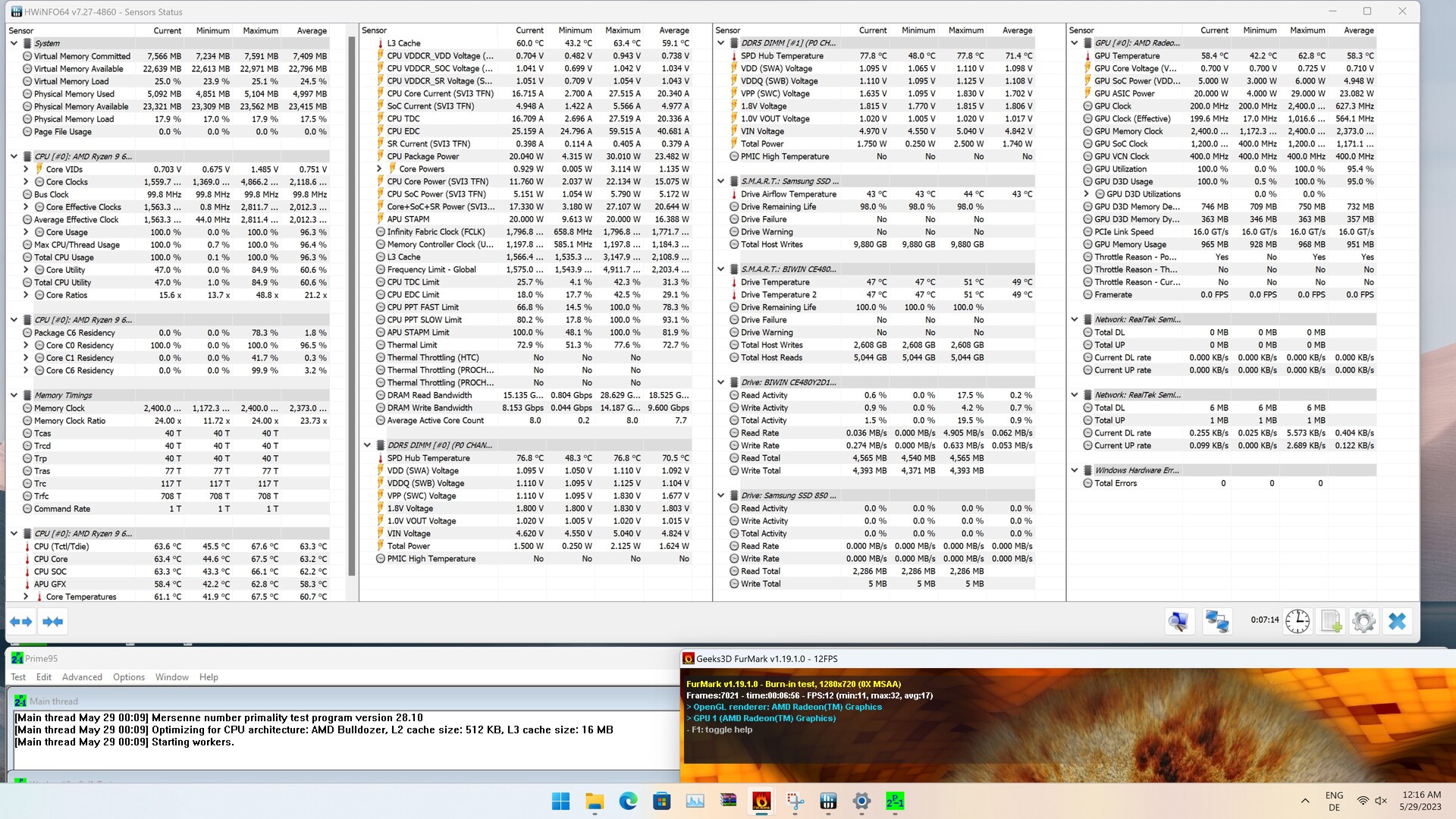

Condiciones de la prueba

Utilizamos el perfil de potencia "Equilibrado" para todas las pruebas de rendimiento de este dispositivo. Sólo nos desviamos de esto en las mediciones de consumo de energía y ruido según nuestros criterios de prueba. También ejecutamos todas las pruebas de rendimiento en cada uno de los modos disponibles (Silencioso, Auto y Rendimiento), usando también el perfil de energía "Equilibrado". Además, activamos el modo Juego en la BIOS, dotando a la iGPU de 4 GB de RAM.

Modo Potencia Temperatura de la CPU Temperatura máx. de la CPU Temperatura
Silencioso 20 W 63 °C 68 °C
Auto 30 W 75 °C 79 °C
Rendimiento 40 W 79 °C 85 °C

Procesador

AMD Ryzen 9 6900HX (Fuente: Ace Magician)
AMD Ryzen 9 6900HX (Fuente: Ace Magician)

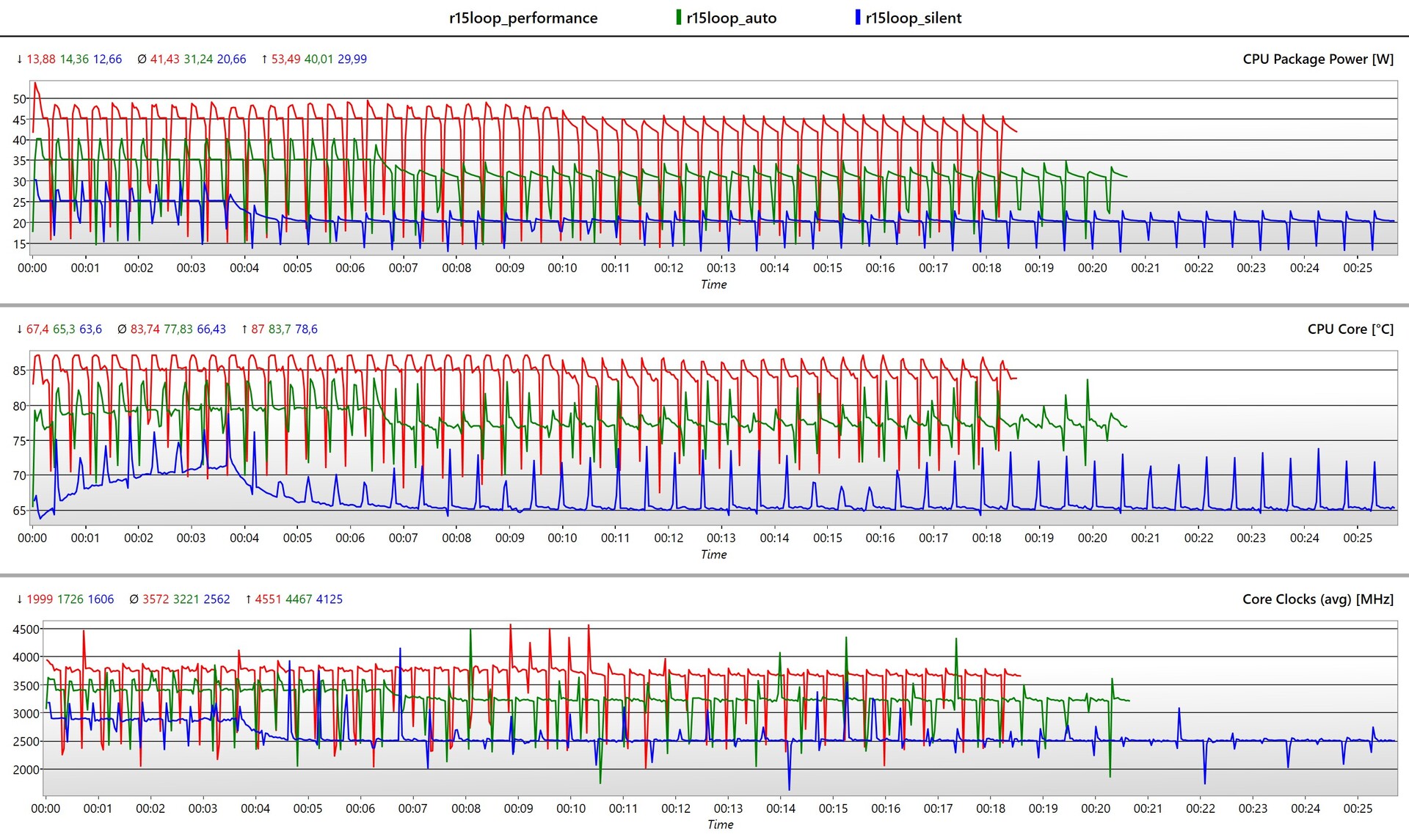

Con el AMD Ryzen 9 6900HX, el Ace Magician AM08 Pro ofrece un SoC muy actual con 8 núcleos y 16 hilos. En nuestra prueba, vemos que el SoC sigue los valores de la tabla anterior en gran medida. Al mismo tiempo, notamos un breve consumo de energía de hasta 54 vatios en el modo Rendimiento. En los otros dos modos no se supera el límite de TDP. En la comparación directa de rendimiento, en la que nos concentramos en el modo Rendimiento, vemos valores que están a la altura de los competidores. Sin embargo, nuestra unidad de prueba es incapaz de acercarse a la Minisforum Venus Series UM690, que es capaz de colocar alrededor de 6% por delante del Ace Magician AM08 Pro en la clasificación de rendimiento. Los competidores probablemente se benefician de una refrigeración más eficiente aquí, ya que sabemos que Minisforum utiliza metal líquido para una mejor transferencia de calor en ese modelo, lo que permite un corto período de mayor consumo de energía de hasta 65 vatios. Lo que es bueno es el aumento de rendimiento de nuestra unidad de prueba en comparación con el Ace Magicain AMR5, su predecesor directo. La ventaja es de casi un 15% de media y en las comparaciones individuales incluso de hasta un 70%. Sin embargo, tales ventajas numéricas en esta comparación no son relevantes en el funcionamiento práctico.

También hay diferencias en el funcionamiento Automático y Silencioso, donde el rendimiento de la CPU se ve notablemente reducido. Al mismo tiempo, el funcionamiento fluido y el trabajo rápido siempre son posibles usando esos modos.

Puedes encontrar más pruebas de rendimiento de los procesadores aquí.

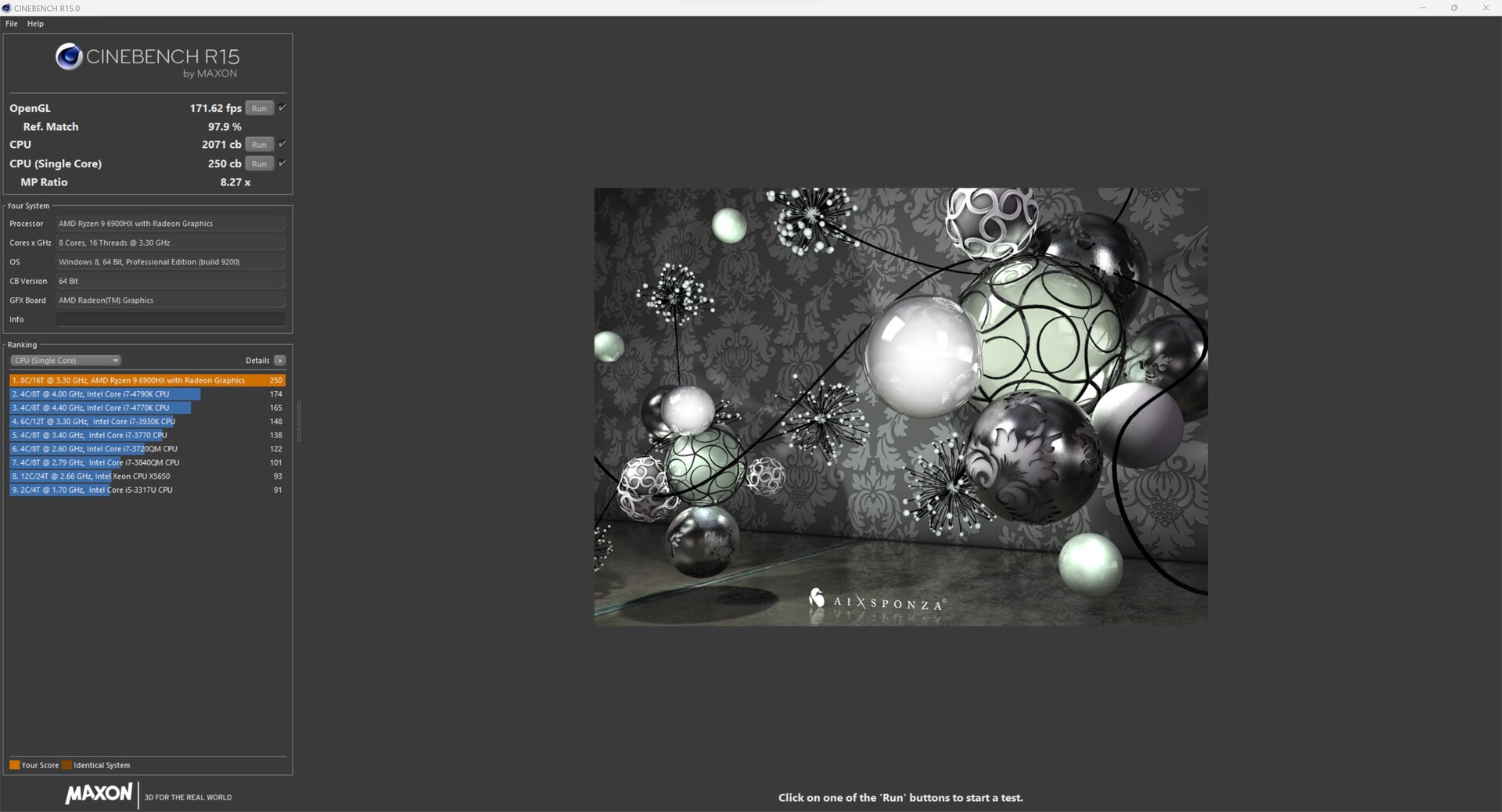

Cinebench R15
Cinebench R15

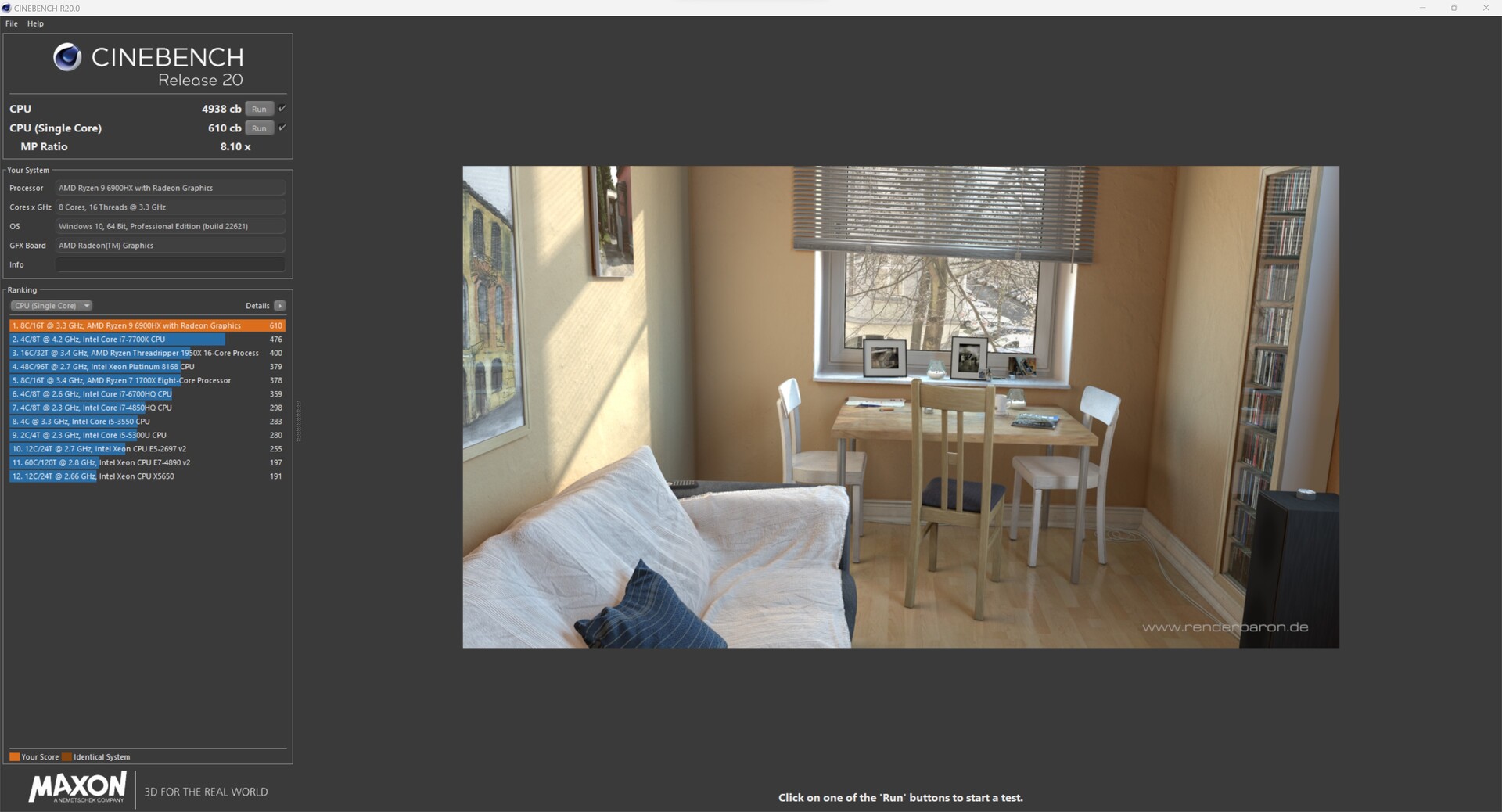

Cinebench R20
Cinebench R20

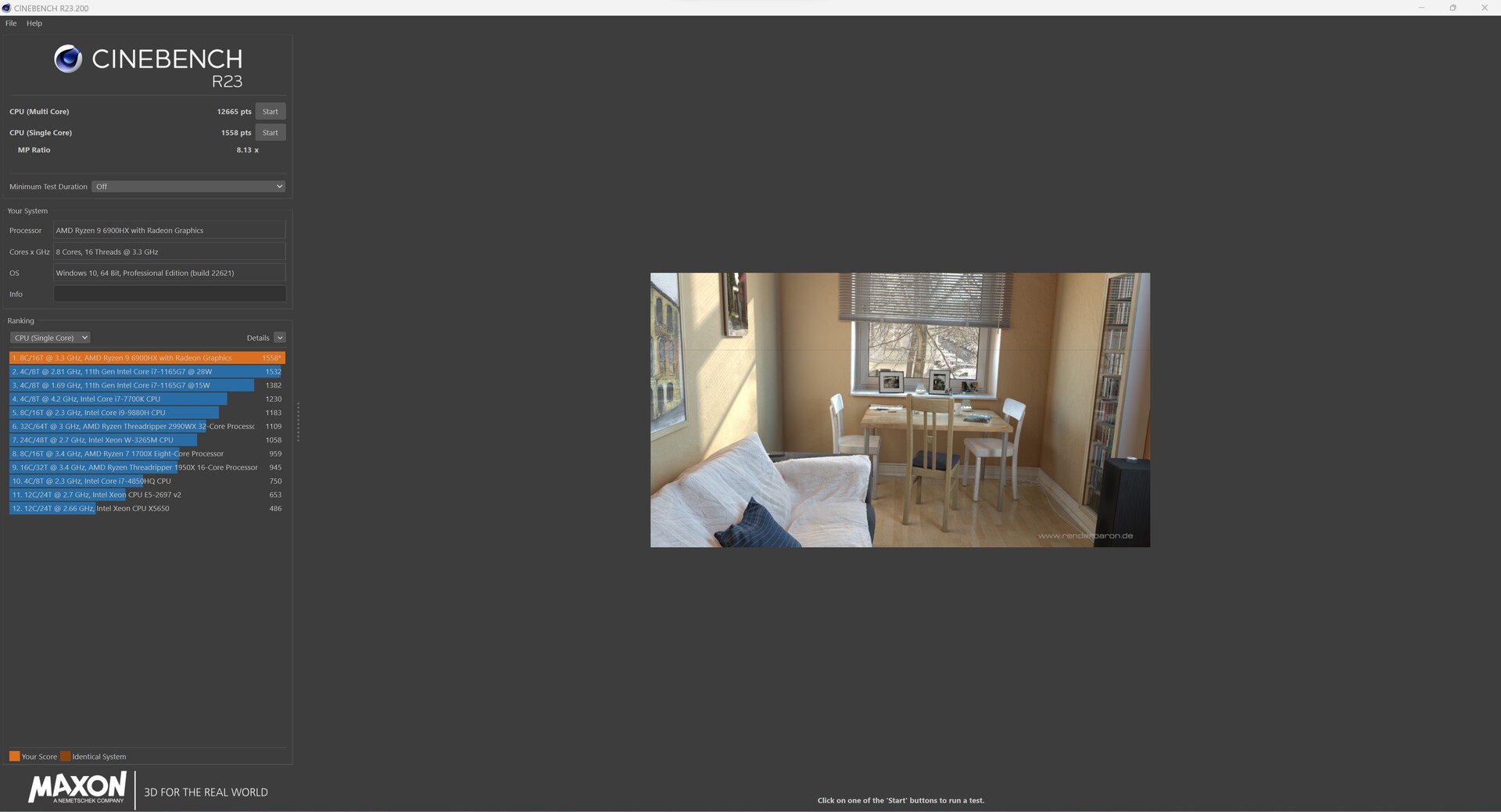

Cinebench R23
Cinebench R23
Performance Rating - Percent
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX
50.6 pt
Minisforum Neptune Series NAD9
Intel Core i9-12900H
50.1 pt
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX
49.3 pt
Morefine M600, 6900HX
AMD Ryzen 9 6900HX
48.4 pt
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX
48.1 pt
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX
46 pt
Geekom Mini IT12
Intel Core i7-1260P
45.8 pt
Morefine M600, 6600U
AMD Ryzen 5 6600U
44 pt
Minipc Union Ace Magician AMR5
Ace Magician AMR5, AMD Ryzen 5 5600U
41.8 pt
Cinebench R15
CPU Single 64Bit
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX
261 Points +4%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX
250 Points
Minisforum Neptune Series NAD9
Intel Core i9-12900H
247 Points -1%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX
244 Points -2%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX
244 Points -2%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX
244 Points -2%
Geekom Mini IT12
Intel Core i7-1260P
241 Points -4%
Morefine M600, 6600U
AMD Ryzen 5 6600U
227 Points -9%
Minipc Union Ace Magician AMR5
Ace Magician AMR5, AMD Ryzen 5 5600U
223 Points -11%
CPU Multi 64Bit
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX
2231 Points +8%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX
2071 Points
Minisforum Neptune Series NAD9
Intel Core i9-12900H
2067 Points 0%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX
1920 Points -7%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX
1886 Points -9%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX
1588 Points -23%
Geekom Mini IT12
Intel Core i7-1260P
1565 Points -24%
Morefine M600, 6600U
AMD Ryzen 5 6600U
1361 Points -34%
Minipc Union Ace Magician AMR5
Ace Magician AMR5, AMD Ryzen 5 5600U
1265 Points -39%
Cinebench R20
CPU (Single Core)
Minisforum Neptune Series NAD9
Intel Core i9-12900H
682 Points +12%
Geekom Mini IT12
Intel Core i7-1260P
652 Points +7%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX
629 Points +3%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX
610 Points
Morefine M600, 6900HX
AMD Ryzen 9 6900HX
600 Points -2%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX
597 Points -2%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX
596 Points -2%
Morefine M600, 6600U
AMD Ryzen 5 6600U
558 Points -9%
Minipc Union Ace Magician AMR5
Ace Magician AMR5, AMD Ryzen 5 5600U
534 Points -12%
CPU (Multi Core)
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX
5328 Points +8%
Minisforum Neptune Series NAD9
Intel Core i9-12900H
4941 Points 0%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX
4938 Points
Morefine M600, 6900HX
AMD Ryzen 9 6900HX
4788 Points -3%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX
4453 Points -10%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX
3742 Points -24%
Geekom Mini IT12
Intel Core i7-1260P
3427 Points -31%
Morefine M600, 6600U
AMD Ryzen 5 6600U
3419 Points -31%
Minipc Union Ace Magician AMR5
Ace Magician AMR5, AMD Ryzen 5 5600U
2975 Points -40%
Cinebench R11.5
CPU Single 64Bit
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX
3.07 Points +5%
Geekom Mini IT12
Intel Core i7-1260P
2.93 Points 0%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX
2.92 Points
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX
2.89 Points -1%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX
2.88 Points -1%
Minisforum Neptune Series NAD9
Intel Core i9-12900H
2.86 Points -2%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX
2.86 Points -2%
Morefine M600, 6600U
AMD Ryzen 5 6600U
2.73 Points -7%
Minipc Union Ace Magician AMR5
Ace Magician AMR5, AMD Ryzen 5 5600U
2.64 Points -10%
CPU Multi 64Bit
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX
26.35 Points +9%
Minisforum Neptune Series NAD9
Intel Core i9-12900H
25.96 Points +8%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX
24.09 Points
Morefine M600, 6900HX
AMD Ryzen 9 6900HX
23.66 Points -2%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX
22.12 Points -8%
Geekom Mini IT12
Intel Core i7-1260P
20.06 Points -17%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX
19.01 Points -21%
Morefine M600, 6600U
AMD Ryzen 5 6600U
17.15 Points -29%
Minipc Union Ace Magician AMR5
Ace Magician AMR5, AMD Ryzen 5 5600U
14.78 Points -39%
Cinebench R10
Rendering Single CPUs 64Bit
Geekom Mini IT12
Intel Core i7-1260P
13568 Points +10%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX
12943 Points +5%
Minisforum Neptune Series NAD9
Intel Core i9-12900H
12846 Points +4%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX
12320 Points
Morefine M600, 6900HX
AMD Ryzen 9 6900HX
12185 Points -1%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX
12142 Points -1%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX
11870 Points -4%
Morefine M600, 6600U
AMD Ryzen 5 6600U
11685 Points -5%
Minipc Union Ace Magician AMR5
Ace Magician AMR5, AMD Ryzen 5 5600U
11098 Points -10%
Rendering Multiple CPUs 64Bit
Minisforum Neptune Series NAD9
Intel Core i9-12900H
77409 Points +10%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX
76758 Points +9%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX
70291 Points
Morefine M600, 6900HX
AMD Ryzen 9 6900HX
69797 Points -1%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX
64484 Points -8%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX
55915 Points -20%
Morefine M600, 6600U
AMD Ryzen 5 6600U
54792 Points -22%
Geekom Mini IT12
Intel Core i7-1260P
53950 Points -23%
Minipc Union Ace Magician AMR5
Ace Magician AMR5, AMD Ryzen 5 5600U
45363 Points -35%
Blender - v2.79 BMW27 CPU
Morefine M600, 6600U
AMD Ryzen 5 6600U
415 Seconds * -69%
Minipc Union Ace Magician AMR5
Ace Magician AMR5, AMD Ryzen 5 5600U
399 Seconds * -63%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX
357 Seconds * -46%
Geekom Mini IT12
Intel Core i7-1260P
279 Seconds * -14%
Minisforum Neptune Series NAD9
Intel Core i9-12900H
273 Seconds * -11%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX
266 Seconds * -9%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX
245 Seconds *
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX
234 Seconds * +4%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX
231 Seconds * +6%
wPrime 2.10
32m
Minipc Union Ace Magician AMR5
Ace Magician AMR5, AMD Ryzen 5 5600U
5.377 s * -43%
Morefine M600, 6600U
AMD Ryzen 5 6600U
4.688 s * -25%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX
4.688 s * -25%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX
4.623 s * -23%
Geekom Mini IT12
Intel Core i7-1260P
4.485 s * -19%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX
3.762 s *
Morefine M600, 6900HX
AMD Ryzen 9 6900HX
3.642 s * +3%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX
3.461 s * +8%
Minisforum Neptune Series NAD9
Intel Core i9-12900H
3.421 s * +9%
1024m
Geekom Mini IT12
Intel Core i7-1260P
237.123 s * -140%
Minisforum Neptune Series NAD9
Intel Core i9-12900H
189.07 s * -92%
Minipc Union Ace Magician AMR5
Ace Magician AMR5, AMD Ryzen 5 5600U
156.33 s * -58%
Morefine M600, 6600U
AMD Ryzen 5 6600U
146.553 s * -48%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX
146.553 s * -48%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX
107.28 s * -9%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX
103.226 s * -5%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX
98.696 s *
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX
93.19 s * +6%
X264 HD Benchmark 4.0
Pass 1
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX
262.5 (262min - 266max) fps +3%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX
258.5 (256min - 268max) fps +1%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX
255.5 (254min - 259max) fps
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX
248.5 (246min - 253max) fps -3%
Minisforum Neptune Series NAD9
Intel Core i9-12900H
245 (239min - 261max) fps -4%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX
240.5 (237min - 245max) fps -6%
Minipc Union Ace Magician AMR5
Ace Magician AMR5, AMD Ryzen 5 5600U
234 (233min - 235max) fps -8%
Geekom Mini IT12
Intel Core i7-1260P
224 (222min - 258max) fps -12%
Morefine M600, 6600U
AMD Ryzen 5 6600U
212 (206min - 224max) fps -17%
Pass 2
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX
127.8 (127.3min - 129.1max) fps +6%
Minisforum Neptune Series NAD9
Intel Core i9-12900H
125.25 (105.2min - 130max) fps +4%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX
120.2 (119.9min - 121.3max) fps
Morefine M600, 6900HX
AMD Ryzen 9 6900HX
114 (111.2min - 119.4max) fps -5%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX
109.65 (109.6min - 111.6max) fps -9%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX
93.25 (93.1min - 94.3max) fps -22%
Geekom Mini IT12
Intel Core i7-1260P
77.75 (77.6min - 113.9max) fps -35%
Minipc Union Ace Magician AMR5
Ace Magician AMR5, AMD Ryzen 5 5600U
76 (75.7min - 76.3max) fps -37%
Morefine M600, 6600U
AMD Ryzen 5 6600U
71.45 (70.2min - 76.6max) fps -41%
WinRAR - Result
Minisforum Neptune Series NAD9
Intel Core i9-12900H
7937 KB/s +16%
Morefine M600, 6600U
AMD Ryzen 5 6600U
6937 KB/s +1%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX
6937 KB/s +1%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX
6882 KB/s 0%
Minipc Union Ace Magician AMR5
Ace Magician AMR5, AMD Ryzen 5 5600U
6877 KB/s 0%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX
6875 KB/s 0%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX
6860 KB/s
Morefine M600, 6900HX
AMD Ryzen 9 6900HX
6795 KB/s -1%
Geekom Mini IT12
Intel Core i7-1260P
6559 KB/s -4%
TrueCrypt
AES Mean 100MB
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX
13.4 GB/s +13%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX
12.1 GB/s +2%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX
11.9 GB/s
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX
10.5 GB/s -12%
Geekom Mini IT12
Intel Core i7-1260P
10.4 GB/s -13%
Morefine M600, 6600U
AMD Ryzen 5 6600U
9.3 GB/s -22%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX
9.3 GB/s -22%
Minisforum Neptune Series NAD9
Intel Core i9-12900H
8.6 GB/s -28%
Minipc Union Ace Magician AMR5
Ace Magician AMR5, AMD Ryzen 5 5600U
7.7 GB/s -35%
Twofish Mean 100MB
Minisforum Neptune Series NAD9
Intel Core i9-12900H
2 GB/s +18%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX
1.8 GB/s +6%
Geekom Mini IT12
Intel Core i7-1260P
1.8 GB/s +6%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX
1.7 GB/s
Morefine M600, 6900HX
AMD Ryzen 9 6900HX
1.6 GB/s -6%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX
1.6 GB/s -6%
Morefine M600, 6600U
AMD Ryzen 5 6600U
1.3 GB/s -24%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX
1.3 GB/s -24%
Minipc Union Ace Magician AMR5
Ace Magician AMR5, AMD Ryzen 5 5600U
1.1 GB/s -35%
Serpent Mean 100MB
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX
1.2 GB/s +9%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX
1.1 GB/s 0%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX
1.1 GB/s
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX
1.1 GB/s 0%
Geekom Mini IT12
Intel Core i7-1260P
1 GB/s -9%
Minisforum Neptune Series NAD9
Intel Core i9-12900H
0.974 GB/s -11%
Morefine M600, 6600U
AMD Ryzen 5 6600U
0.857 GB/s -22%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX
0.857 GB/s -22%
Minipc Union Ace Magician AMR5
Ace Magician AMR5, AMD Ryzen 5 5600U
0.7 GB/s -36%
Geekbench 5.5
Multi-Core
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX
9706 Points +3%
Minisforum Neptune Series NAD9
Intel Core i9-12900H
9695 Points +3%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX
9399 Points
Morefine M600, 6900HX
AMD Ryzen 9 6900HX
9151 Points -3%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX
9078 Points -3%
Geekom Mini IT12
Intel Core i7-1260P
8918 Points -5%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX
8313 Points -12%
Morefine M600, 6600U
AMD Ryzen 5 6600U
7658 Points -19%
Minipc Union Ace Magician AMR5
Ace Magician AMR5, AMD Ryzen 5 5600U
6175 Points -34%
Single-Core
Minisforum Neptune Series NAD9
Intel Core i9-12900H
1861 Points +18%
Geekom Mini IT12
Intel Core i7-1260P
1782 Points +13%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX
1634 Points +3%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX
1596 Points +1%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX
1594 Points +1%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX
1581 Points
Morefine M600, 6900HX
AMD Ryzen 9 6900HX
1547 Points -2%
Morefine M600, 6600U
AMD Ryzen 5 6600U
1504 Points -5%
Minipc Union Ace Magician AMR5
Ace Magician AMR5, AMD Ryzen 5 5600U
1430 Points -10%
Geekbench 5.0
5.0 Multi-Core
Morefine M600, 6900HX
AMD Ryzen 9 6900HX
10249 Points 0%
Geekom Mini IT12
Intel Core i7-1260P
10249 Points 0%
Morefine M600, 6600U
AMD Ryzen 5 6600U
10249 Points 0%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX
10249 Points
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX
10249 Points 0%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX
10249 Points 0%
Minisforum Neptune Series NAD9
Intel Core i9-12900H
9663 Points -6%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX
9638 Points -6%
Minipc Union Ace Magician AMR5
Ace Magician AMR5, AMD Ryzen 5 5600U
6117 Points -40%
5.0 Single-Core
Minisforum Neptune Series NAD9
Intel Core i9-12900H
1838 Points +18%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX
1593 Points +2%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX
1557 Points 0%
Geekom Mini IT12
Intel Core i7-1260P
1557 Points 0%
Morefine M600, 6600U
AMD Ryzen 5 6600U
1557 Points 0%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX
1557 Points
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX
1557 Points 0%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX
1557 Points 0%
Minipc Union Ace Magician AMR5
Ace Magician AMR5, AMD Ryzen 5 5600U
1383 Points -11%
Geekbench 4.4
64 Bit Single-Core Score
Minisforum Neptune Series NAD9
Intel Core i9-12900H
8015 Points +20%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX
6804 Points +2%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX
6698 Points 0%
Geekom Mini IT12
Intel Core i7-1260P
6698 Points 0%
Morefine M600, 6600U
AMD Ryzen 5 6600U
6698 Points 0%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX
6698 Points
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX
6698 Points 0%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX
6698 Points 0%
Minipc Union Ace Magician AMR5
Ace Magician AMR5, AMD Ryzen 5 5600U
5854 Points -13%
64 Bit Multi-Core Score
Morefine M600, 6900HX
AMD Ryzen 9 6900HX
39852 Points 0%
Geekom Mini IT12
Intel Core i7-1260P
39852 Points 0%
Morefine M600, 6600U
AMD Ryzen 5 6600U
39852 Points 0%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX
39852 Points
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX
39852 Points 0%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX
39852 Points 0%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX
38566 Points -3%
Minisforum Neptune Series NAD9
Intel Core i9-12900H
36692 Points -8%
Minipc Union Ace Magician AMR5
Ace Magician AMR5, AMD Ryzen 5 5600U
24495 Points -39%
3DMark 11 - 1280x720 Performance Physics
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX
18393 Points
Minisforum Neptune Series NAD9
Intel Core i9-12900H
18382 Points 0%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX
18277 Points -1%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX
17065 Points -7%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX
15917 Points -13%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX
15855 Points -14%
Geekom Mini IT12
Intel Core i7-1260P
13067 Points -29%
Minipc Union Ace Magician AMR5
Ace Magician AMR5, AMD Ryzen 5 5600U
12608 Points -31%
Morefine M600, 6600U
AMD Ryzen 5 6600U
11630 Points -37%
7-Zip 18.03
7z b 4
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX
61401 MIPS +4%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX
58963 MIPS
Morefine M600, 6900HX
AMD Ryzen 9 6900HX
56923 MIPS -3%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX
55934 MIPS -5%
Minisforum Neptune Series NAD9
Intel Core i9-12900H
51151 MIPS -13%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX
49526 MIPS -16%
Morefine M600, 6600U
AMD Ryzen 5 6600U
44320 MIPS -25%
Minipc Union Ace Magician AMR5
Ace Magician AMR5, AMD Ryzen 5 5600U
39207 MIPS -34%
Geekom Mini IT12
Intel Core i7-1260P
37570 MIPS -36%
7z b 4 -mmt1
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX
6067 MIPS +5%
Minisforum Neptune Series NAD9
Intel Core i9-12900H
6019 MIPS +4%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX
5823 MIPS +1%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX
5790 MIPS
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX
5746 MIPS -1%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX
5591 MIPS -3%
Geekom Mini IT12
Intel Core i7-1260P
5577 MIPS -4%
Morefine M600, 6600U
AMD Ryzen 5 6600U
5486 MIPS -5%
Minipc Union Ace Magician AMR5
Ace Magician AMR5, AMD Ryzen 5 5600U
5249 MIPS -9%
HWBOT x265 Benchmark v2.2 - 4k Preset
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX
17.1 fps +8%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX
15.8 fps
Morefine M600, 6900HX
AMD Ryzen 9 6900HX
15.4 fps -3%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX
14.9 fps -6%
Minisforum Neptune Series NAD9
Intel Core i9-12900H
14.1 fps -11%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX
12.6 fps -20%
Morefine M600, 6600U
AMD Ryzen 5 6600U
11.7 fps -26%
Minipc Union Ace Magician AMR5
Ace Magician AMR5, AMD Ryzen 5 5600U
10.1 fps -36%
Geekom Mini IT12
Intel Core i7-1260P
10.1 fps -36%
R Benchmark 2.5 - Overall mean
Minipc Union Ace Magician AMR5
Ace Magician AMR5, AMD Ryzen 5 5600U
0.537 sec * -10%
Morefine M600, 6600U
AMD Ryzen 5 6600U
0.511 sec * -5%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX
0.4944 sec * -1%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX
0.4887 sec *
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX
0.4887 sec * -0%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX
0.4881 sec * -0%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX
0.4757 sec * +3%
Geekom Mini IT12
Intel Core i7-1260P
0.4718 sec * +3%
Minisforum Neptune Series NAD9
Intel Core i9-12900H
0.4641 sec * +5%
LibreOffice - 20 Documents To PDF
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX
54.9 s * -9%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX
53.4 s * -6%
Morefine M600, 6600U
AMD Ryzen 5 6600U
53 s * -6%
Minipc Union Ace Magician AMR5
Ace Magician AMR5, AMD Ryzen 5 5600U
51.1 s * -2%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX
50.2 s *
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX
49 s * +2%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX
48.8 s * +3%
Geekom Mini IT12
Intel Core i7-1260P
48.1 s * +4%
Minisforum Neptune Series NAD9
Intel Core i9-12900H
38 s * +24%
WebXPRT 3 - Overall
Minisforum Neptune Series NAD9
Intel Core i9-12900H
311 Points +8%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX
292 Points +2%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX
287 Points 0%
Geekom Mini IT12
Intel Core i7-1260P
287 Points 0%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX
287 Points
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX
287 Points 0%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX
287 Points 0%
Morefine M600, 6600U
AMD Ryzen 5 6600U
274 Points -5%
Minipc Union Ace Magician AMR5
Ace Magician AMR5, AMD Ryzen 5 5600U
255 Points -11%
Mozilla Kraken 1.1 - Total
Minipc Union Ace Magician AMR5
Ace Magician AMR5, AMD Ryzen 5 5600U
646 ms * -8%
Morefine M600, 6600U
AMD Ryzen 5 6600U
619 ms * -3%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX
605 ms * -1%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX
600 ms *
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX
600 ms * -0%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX
599 ms * -0%
Minisforum Neptune Series NAD9
Intel Core i9-12900H
577 ms * +4%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX
571 ms * +5%
Geekom Mini IT12
Intel Core i7-1260P
539 ms * +10%
3DMark
3840x2160 Fire Strike Ultra Physics
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX
25456 Points +5%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX
24167 Points
Morefine M600, 6900HX
AMD Ryzen 9 6900HX
22441 Points -7%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX
22166 Points -8%
Minisforum Neptune Series NAD9
Intel Core i9-12900H
21422 Points -11%
Morefine M600, 6600U
AMD Ryzen 5 6600U
18599 Points -23%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX
17731 Points -27%
Minipc Union Ace Magician AMR5
Ace Magician AMR5, AMD Ryzen 5 5600U
17568 Points -27%
Geekom Mini IT12
Intel Core i7-1260P
15903 Points -34%
1920x1080 Fire Strike Physics
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX
25915 Points +7%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX
24175 Points
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX
22789 Points -6%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX
22426 Points -7%
Minisforum Neptune Series NAD9
Intel Core i9-12900H
22244 Points -8%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX
18389 Points -24%
Minipc Union Ace Magician AMR5
Ace Magician AMR5, AMD Ryzen 5 5600U
18076 Points -25%
Geekom Mini IT12
Intel Core i7-1260P
16568 Points -31%
Morefine M600, 6600U
AMD Ryzen 5 6600U
15934 Points -34%
2560x1440 Time Spy CPU
Minisforum Neptune Series NAD9
Intel Core i9-12900H
10539 Points +13%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX
9354 Points 0%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX
9324 Points
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX
8691 Points -7%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX
8622 Points -8%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX
6621 Points -29%
Geekom Mini IT12
Intel Core i7-1260P
6487 Points -30%
Minipc Union Ace Magician AMR5
Ace Magician AMR5, AMD Ryzen 5 5600U
5443 Points -42%
Morefine M600, 6600U
AMD Ryzen 5 6600U
5114 Points -45%

* ... más pequeño es mejor

Geekbench 5.5
Multi-Core
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
9706 Points +3%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
9695 Points +3%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX, 3300 MHz
9399 Points
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
9151 Points -3%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX, 3300 MHz
9078 Points -3%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
8918 Points -5%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX, 3300 MHz
8313 Points -12%
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
7658 Points -19%
Minipc Union Ace Magician AMR5
Ace Magician AMR5, AMD Ryzen 5 5600U, 2300 MHz
6175 Points -34%
Single-Core
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
1861 Points +18%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
1782 Points +13%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
1634 Points +3%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX, 3300 MHz
1596 Points +1%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX, 3300 MHz
1594 Points +1%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX, 3300 MHz
1581 Points
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
1547 Points -2%
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
1504 Points -5%
Minipc Union Ace Magician AMR5
Ace Magician AMR5, AMD Ryzen 5 5600U, 2300 MHz
1430 Points -10%
Geekbench 5.0
5.0 Multi-Core
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
10249 Points 0%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
10249 Points 0%
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
10249 Points 0%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX, 3300 MHz
10249 Points
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX, 3300 MHz
10249 Points 0%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX, 3300 MHz
10249 Points 0%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
9663 Points -6%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
9638 Points -6%
Minipc Union Ace Magician AMR5
Ace Magician AMR5, AMD Ryzen 5 5600U, 2300 MHz
6117 Points -40%
5.0 Single-Core
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
1838 Points +18%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
1593 Points +2%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
1557 Points 0%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
1557 Points 0%
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
1557 Points 0%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX, 3300 MHz
1557 Points
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX, 3300 MHz
1557 Points 0%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX, 3300 MHz
1557 Points 0%
Minipc Union Ace Magician AMR5
Ace Magician AMR5, AMD Ryzen 5 5600U, 2300 MHz
1383 Points -11%
Geekbench 4.4
64 Bit Single-Core Score
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
8015 Points +20%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
6804 Points +2%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
6698 Points 0%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
6698 Points 0%
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
6698 Points 0%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX, 3300 MHz
6698 Points
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX, 3300 MHz
6698 Points 0%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX, 3300 MHz
6698 Points 0%
Minipc Union Ace Magician AMR5
Ace Magician AMR5, AMD Ryzen 5 5600U, 2300 MHz
5854 Points -13%
64 Bit Multi-Core Score
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, 3300 MHz
39852 Points 0%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
39852 Points 0%
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
39852 Points 0%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX, 3300 MHz
39852 Points
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX, 3300 MHz
39852 Points 0%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX, 3300 MHz
39852 Points 0%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, 3300 MHz
38566 Points -3%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
36692 Points -8%
Minipc Union Ace Magician AMR5
Ace Magician AMR5, AMD Ryzen 5 5600U, 2300 MHz
24495 Points -39%
Geekbench 6.0
Single-Core
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
2268 Points +11%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
2093 Points +2%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX, 3300 MHz
2048 Points
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX, 3300 MHz
2044 Points 0%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX, 3300 MHz
2042 Points 0%
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
1923 Points -6%
Multi-Core
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX, 3300 MHz
9864 Points
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX, 3300 MHz
9472 Points -4%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
9157 Points -7%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
9067 Points -8%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX, 3300 MHz
8784 Points -11%
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
7790 Points -21%
GPU OpenCL 6.0
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX, 3300 MHz
28763 Points
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX, 3300 MHz
28569 Points -1%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX, 3300 MHz
26376 Points -8%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
15826 Points -45%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
14890 Points -48%
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
14537 Points -49%
GPU Vulkan 6.0
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX, 3300 MHz
31401 Points
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX, 3300 MHz
29614 Points -6%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, 1800 MHz
20288 Points -35%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX, 3300 MHz
19768 Points -37%
Geekom Mini IT12
Intel Core i7-1260P, 1500 MHz
19247 Points -39%
Morefine M600, 6600U
AMD Ryzen 5 6600U, 2900 MHz
17295 Points -45%
Performance Rating
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
99.2 pt
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX, Radeon 680M
92 pt
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX, Radeon 680M
88.1 pt
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
85.9 pt
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX, Radeon 680M
77.7 pt
Average of class Mini PC

74.9 pt
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
70.7 pt
Morefine M600, 6600U
AMD Ryzen 5 6600U, Radeon 660M
62.7 pt
Minipc Union Ace Magician AMR5
Ace Magician AMR5, AMD Ryzen 5 5600U, Vega 7
60.1 pt
Geekom Mini IT12
Intel Core i7-1260P, Iris Xe G7 96EUs
57 pt
AIDA64 / FP32 Ray-Trace
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
15102 KRay/s +5%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX, Radeon 680M
14406 KRay/s
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
13757 KRay/s -5%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX, Radeon 680M
13100 KRay/s -9%
Average of class Mini PC
  (561 - 51004, n=119, last 2 years)
12449 KRay/s -14%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
10952 KRay/s -24%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX, Radeon 680M
10950 KRay/s -24%
Morefine M600, 6600U
AMD Ryzen 5 6600U, Radeon 660M
9518 KRay/s -34%
Minipc Union Ace Magician AMR5
Ace Magician AMR5, AMD Ryzen 5 5600U, Vega 7
9086 KRay/s -37%
Geekom Mini IT12
Intel Core i7-1260P, Iris Xe G7 96EUs
7933 KRay/s -45%
AIDA64 / FPU Julia
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
98980 Points +8%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX, Radeon 680M
91475 Points
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
87663 Points -4%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX, Radeon 680M
84100 Points -8%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX, Radeon 680M
71414 Points -22%
Average of class Mini PC
  (3604 - 214250, n=119, last 2 years)
62645 Points -32%
Morefine M600, 6600U
AMD Ryzen 5 6600U, Radeon 660M
59704 Points -35%
Minipc Union Ace Magician AMR5
Ace Magician AMR5, AMD Ryzen 5 5600U, Vega 7
57375 Points -37%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
55221 Points -40%
Geekom Mini IT12
Intel Core i7-1260P, Iris Xe G7 96EUs
40251 Points -56%
AIDA64 / CPU SHA3
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
3452 MB/s +11%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX, Radeon 680M
3117 MB/s
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
2931 MB/s -6%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX, Radeon 680M
2888 MB/s -7%
Average of class Mini PC
  (225 - 9399, n=119, last 2 years)
2760 MB/s -11%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
2558 MB/s -18%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX, Radeon 680M
2471 MB/s -21%
Geekom Mini IT12
Intel Core i7-1260P, Iris Xe G7 96EUs
2006 MB/s -36%
Morefine M600, 6600U
AMD Ryzen 5 6600U, Radeon 660M
1997 MB/s -36%
Minipc Union Ace Magician AMR5
Ace Magician AMR5, AMD Ryzen 5 5600U, Vega 7
1971 MB/s -37%
AIDA64 / CPU Queen
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
103686 Points +5%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
100293 Points +1%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX, Radeon 680M
99180 Points
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX, Radeon 680M
91908 Points -7%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
85240 Points -14%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX, Radeon 680M
84185 Points -15%
Average of class Mini PC
  (8172 - 184747, n=119, last 2 years)
77998 Points -21%
Morefine M600, 6600U
AMD Ryzen 5 6600U, Radeon 660M
75248 Points -24%
Geekom Mini IT12
Intel Core i7-1260P, Iris Xe G7 96EUs
73765 Points -26%
Minipc Union Ace Magician AMR5
Ace Magician AMR5, AMD Ryzen 5 5600U, Vega 7
67224 Points -32%
AIDA64 / FPU SinJulia
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
13101 Points +4%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX, Radeon 680M
12642 Points
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
12396 Points -2%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX, Radeon 680M
11995 Points -5%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX, Radeon 680M
10970 Points -13%
Morefine M600, 6600U
AMD Ryzen 5 6600U, Radeon 660M
8738 Points -31%
Average of class Mini PC
  (408 - 29064, n=119, last 2 years)
8538 Points -32%
Minipc Union Ace Magician AMR5
Ace Magician AMR5, AMD Ryzen 5 5600U, Vega 7
8294 Points -34%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
7548 Points -40%
Geekom Mini IT12
Intel Core i7-1260P, Iris Xe G7 96EUs
5567 Points -56%
AIDA64 / FPU Mandel
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
52710 Points +5%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX, Radeon 680M
50025 Points
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX, Radeon 680M
46034 Points -8%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
44629 Points -11%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX, Radeon 680M
39164 Points -22%
Average of class Mini PC
  (1958 - 113499, n=119, last 2 years)
32689 Points -35%
Morefine M600, 6600U
AMD Ryzen 5 6600U, Radeon 660M
32465 Points -35%
Minipc Union Ace Magician AMR5
Ace Magician AMR5, AMD Ryzen 5 5600U, Vega 7
31389 Points -37%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
28159 Points -44%
Geekom Mini IT12
Intel Core i7-1260P, Iris Xe G7 96EUs
19857 Points -60%
AIDA64 / CPU AES
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
136723 MB/s +10%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX, Radeon 680M
124515 MB/s
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX, Radeon 680M
117815 MB/s -5%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX, Radeon 680M
104582 MB/s -16%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
99521 MB/s -20%
Average of class Mini PC
  (3691 - 325960, n=119, last 2 years)
85358 MB/s -31%
Minipc Union Ace Magician AMR5
Ace Magician AMR5, AMD Ryzen 5 5600U, Vega 7
78211 MB/s -37%
Geekom Mini IT12
Intel Core i7-1260P, Iris Xe G7 96EUs
74716 MB/s -40%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
56199 MB/s -55%
Morefine M600, 6600U
AMD Ryzen 5 6600U, Radeon 660M
39680 MB/s -68%
AIDA64 / CPU ZLib
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
863 MB/s +49%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
745 MB/s +29%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX, Radeon 680M
736 MB/s +27%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
732 MB/s +27%
Average of class Mini PC
  (74.8 - 2039, n=119, last 2 years)
714 MB/s +24%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX, Radeon 680M
639 MB/s +11%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX, Radeon 680M
578 MB/s
Geekom Mini IT12
Intel Core i7-1260P, Iris Xe G7 96EUs
575 MB/s -1%
Morefine M600, 6600U
AMD Ryzen 5 6600U, Radeon 660M
530 MB/s -8%
Minipc Union Ace Magician AMR5
Ace Magician AMR5, AMD Ryzen 5 5600U, Vega 7
505 MB/s -13%
AIDA64 / FP64 Ray-Trace
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
7973 KRay/s +4%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX, Radeon 680M
7680 KRay/s
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
7288 KRay/s -5%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX, Radeon 680M
6998 KRay/s -9%
Average of class Mini PC
  (308 - 26952, n=119, last 2 years)
6658 KRay/s -13%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX, Radeon 680M
5798 KRay/s -25%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
5777 KRay/s -25%
Morefine M600, 6600U
AMD Ryzen 5 6600U, Radeon 660M
5058 KRay/s -34%
Minipc Union Ace Magician AMR5
Ace Magician AMR5, AMD Ryzen 5 5600U, Vega 7
4636 KRay/s -40%
Geekom Mini IT12
Intel Core i7-1260P, Iris Xe G7 96EUs
4156 KRay/s -46%
AIDA64 / CPU PhotoWorxx
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX, Radeon 680M
30038 MPixel/s
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX, Radeon 680M
29815 MPixel/s -1%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
29765 MPixel/s -1%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX, Radeon 680M
29607 MPixel/s -1%
Geekom Mini IT12
Intel Core i7-1260P, Iris Xe G7 96EUs
28118 MPixel/s -6%
Average of class Mini PC
  (4408 - 50500, n=119, last 2 years)
27805 MPixel/s -7%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
27720 MPixel/s -8%
Morefine M600, 6600U
AMD Ryzen 5 6600U, Radeon 660M
27456 MPixel/s -9%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
24323 MPixel/s -19%
Minipc Union Ace Magician AMR5
Ace Magician AMR5, AMD Ryzen 5 5600U, Vega 7
19395 MPixel/s -35%

Ace Magician AM08 Pro en el bucle múltiple de Cinebench R15

El bucle constante de Cinebench R15 ya nos da una buena idea de la eficiencia del sistema de refrigeración utilizado. No notamos ninguna pérdida grave de rendimiento con el Ace Magician AM08 Pro. En la comparación directa, nuestra unidad de prueba termina en un buen segundo lugar después de 50 carreras.

Métricas de la CPU durante el bucle Cinebench R15
Métricas de la CPU durante el bucle Cinebench R15
011523034546057569080592010351150126513801495161017251840195520702185Tooltip
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX, AMD Ryzen 9 6900HX: Ø2050 (2014.91-2082.68)
Minipc Union Ace Magician AMR5 Ace Magician AMR5, AMD Ryzen 5 5600U, AMD Ryzen 5 5600U: Ø1158 (1130.29-1266.62)
Morefine M600, 6900HX AMD Ryzen 9 6900HX, AMD Ryzen 9 6900HX: Ø1900 (1863.93-2044.26)
Minisforum Venus Series UM690 AMD Ryzen 9 6900HX, AMD Ryzen 9 6900HX: Ø2111 (2087.36-2211.78)
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Intel Core i9-12900H: Ø1703 (1657.14-2261.04)
Geekom Mini IT12 Intel Core i7-1260P, Intel Core i7-1260P: Ø1280 (1241-1619.37)
Morefine M600, 6600U AMD Ryzen 5 6600U, AMD Ryzen 5 6600U: Ø1166 (1105.77-1443.37)
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX, AMD Ryzen 9 6900HX: Ø1465 (1384.47-1639.48)
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX, AMD Ryzen 9 6900HX: Ø1838 (1759.56-1916.44)

Rendimiento del sistema

Todo el sistema funciona con gran fluidez, beneficiándose del rápido SoC en combinación con la memoria de trabajo DDR5. El sistema se puede utilizar incluso en modo silencioso para las tareas diarias. Usando esto, no sólo se ahorra algo de energía, sino que el Ace Magician AM08 Pro también funcionará en silencio. Al igual que en los puntos de referencia de la CPU, el Minisforum Venus Series UM690 resulta ser un oponente persistente también en los puntos de referencia para el rendimiento del sistema, y nuestra unidad de prueba sólo está por delante en los puntos de referencia de RAM.

Performance Rating - Percent
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX
AMD Ryzen 9 6900HX, AMD Radeon 680M, Kingston OM8PGP4512Q-A0
98.9 pt
ACEMagician Ace Magician AM08 Pro, AMD Ryzen 9 6900HX
AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX, AMD Radeon 680M, BiWin CE480Y2D100-512G
95.1 pt
Morefine M600, 6900HX, AMD Ryzen 9 6900HX
AMD Ryzen 9 6900HX, AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G
94.9 pt
ACEMagician Ace Magician AM08 Pro, AMD Ryzen 9 6900HX
AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX, AMD Radeon 680M,
94 pt
ACEMagician Ace Magician AM08 Pro, AMD Ryzen 9 6900HX
AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX, AMD Radeon 680M,
91 pt
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U
Ace Magician AMR5, AMD Ryzen 5 5600U, AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G
89.7 pt
Minisforum Neptune Series NAD9, Intel Core i9-12900H
Intel Core i9-12900H, Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0
88 pt
Morefine M600, 6600U, AMD Ryzen 5 6600U
AMD Ryzen 5 6600U, AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S
86.9 pt
Geekom Mini IT12, Intel Core i7-1260P
Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0
81.5 pt
PCMark 10
Score
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX
AMD Ryzen 9 6900HX, AMD Radeon 680M, Kingston OM8PGP4512Q-A0
7045 Points +4%
ACEMagician Ace Magician AM08 Pro, AMD Ryzen 9 6900HX
AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX, AMD Radeon 680M, BiWin CE480Y2D100-512G
6802 Points
Morefine M600, 6900HX, AMD Ryzen 9 6900HX
AMD Ryzen 9 6900HX, AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G
6654 Points -2%
ACEMagician Ace Magician AM08 Pro, AMD Ryzen 9 6900HX
AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX, AMD Radeon 680M,
6643 Points -2%
ACEMagician Ace Magician AM08 Pro, AMD Ryzen 9 6900HX
AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX, AMD Radeon 680M,
6251 Points -8%
Minisforum Neptune Series NAD9, Intel Core i9-12900H
Intel Core i9-12900H, Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0
6187 Points -9%
Morefine M600, 6600U, AMD Ryzen 5 6600U
AMD Ryzen 5 6600U, AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S
5872 Points -14%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U
Ace Magician AMR5, AMD Ryzen 5 5600U, AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G
5761 Points -15%
Geekom Mini IT12, Intel Core i7-1260P
Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0
5658 Points -17%
Essentials
Minisforum Neptune Series NAD9, Intel Core i9-12900H
Intel Core i9-12900H, Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0
11217 Points +7%
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX
AMD Ryzen 9 6900HX, AMD Radeon 680M, Kingston OM8PGP4512Q-A0
10838 Points +3%
ACEMagician Ace Magician AM08 Pro, AMD Ryzen 9 6900HX
AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX, AMD Radeon 680M, BiWin CE480Y2D100-512G
10496 Points
Morefine M600, 6900HX, AMD Ryzen 9 6900HX
AMD Ryzen 9 6900HX, AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G
10390 Points -1%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U
Ace Magician AMR5, AMD Ryzen 5 5600U, AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G
10385 Points -1%
ACEMagician Ace Magician AM08 Pro, AMD Ryzen 9 6900HX
AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX, AMD Radeon 680M,
10323 Points -2%
Geekom Mini IT12, Intel Core i7-1260P
Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0
10139 Points -3%
ACEMagician Ace Magician AM08 Pro, AMD Ryzen 9 6900HX
AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX, AMD Radeon 680M,
10029 Points -4%
Morefine M600, 6600U, AMD Ryzen 5 6600U
AMD Ryzen 5 6600U, AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S
9820 Points -6%
Productivity
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX
AMD Ryzen 9 6900HX, AMD Radeon 680M, Kingston OM8PGP4512Q-A0
10060 Points +5%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX
AMD Ryzen 9 6900HX, AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G
9817 Points +3%
ACEMagician Ace Magician AM08 Pro, AMD Ryzen 9 6900HX
AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX, AMD Radeon 680M,
9611 Points 0%
ACEMagician Ace Magician AM08 Pro, AMD Ryzen 9 6900HX
AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX, AMD Radeon 680M, BiWin CE480Y2D100-512G
9574 Points
ACEMagician Ace Magician AM08 Pro, AMD Ryzen 9 6900HX
AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX, AMD Radeon 680M,
9552 Points 0%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U
Ace Magician AMR5, AMD Ryzen 5 5600U, AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G
9539 Points 0%
Morefine M600, 6600U, AMD Ryzen 5 6600U
AMD Ryzen 5 6600U, AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S
9031 Points -6%
Minisforum Neptune Series NAD9, Intel Core i9-12900H
Intel Core i9-12900H, Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0
7673 Points -20%
Geekom Mini IT12, Intel Core i7-1260P
Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0
7427 Points -22%
CrossMark / Overall
Minisforum Neptune Series NAD9, Intel Core i9-12900H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0
1894 Points +19%
Geekom Mini IT12, Intel Core i7-1260P
Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0
1738 Points +9%
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX
AMD Radeon 680M, Kingston OM8PGP4512Q-A0
1731 Points +9%
AM08 Pro, 6900HX (Performance), ACEMagician Ace Magician AM08 Pro, AMD Ryzen 9 6900HX
AMD Radeon 680M, BiWin CE480Y2D100-512G
1595 Points
AM08 Pro, 6900HX (Auto), ACEMagician Ace Magician AM08 Pro, AMD Ryzen 9 6900HX
AMD Radeon 680M,
1560 Points -2%
AM08 Pro, 6900HX (Silent), ACEMagician Ace Magician AM08 Pro, AMD Ryzen 9 6900HX
AMD Radeon 680M,
1525 Points -4%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX
AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G
1517 Points -5%
Morefine M600, 6600U, AMD Ryzen 5 6600U
AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S
1517 Points -5%
Ace Magician AMR5, Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U
AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G
1373 Points -14%
CrossMark / Productivity
Minisforum Neptune Series NAD9, Intel Core i9-12900H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0
1921 Points +22%
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX
AMD Radeon 680M, Kingston OM8PGP4512Q-A0
1738 Points +10%
Geekom Mini IT12, Intel Core i7-1260P
Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0
1729 Points +9%
AM08 Pro, 6900HX (Performance), ACEMagician Ace Magician AM08 Pro, AMD Ryzen 9 6900HX
AMD Radeon 680M, BiWin CE480Y2D100-512G
1580 Points
AM08 Pro, 6900HX (Auto), ACEMagician Ace Magician AM08 Pro, AMD Ryzen 9 6900HX
AMD Radeon 680M,
1552 Points -2%
AM08 Pro, 6900HX (Silent), ACEMagician Ace Magician AM08 Pro, AMD Ryzen 9 6900HX
AMD Radeon 680M,
1523 Points -4%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX
AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G
1491 Points -6%
Morefine M600, 6600U, AMD Ryzen 5 6600U
AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S
1491 Points -6%
Ace Magician AMR5, Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U
AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G
1406 Points -11%
CrossMark / Creativity
Minisforum Neptune Series NAD9, Intel Core i9-12900H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0
1800 Points +5%
Geekom Mini IT12, Intel Core i7-1260P
Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0
1749 Points +2%
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX
AMD Radeon 680M, Kingston OM8PGP4512Q-A0
1745 Points +2%
AM08 Pro, 6900HX (Performance), ACEMagician Ace Magician AM08 Pro, AMD Ryzen 9 6900HX
AMD Radeon 680M, BiWin CE480Y2D100-512G
1712 Points
AM08 Pro, 6900HX (Auto), ACEMagician Ace Magician AM08 Pro, AMD Ryzen 9 6900HX
AMD Radeon 680M,
1670 Points -2%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX
AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G
1652 Points -4%
Morefine M600, 6600U, AMD Ryzen 5 6600U
AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S
1652 Points -4%
AM08 Pro, 6900HX (Silent), ACEMagician Ace Magician AM08 Pro, AMD Ryzen 9 6900HX
AMD Radeon 680M,
1632 Points -5%
Ace Magician AMR5, Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U
AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G
1379 Points -19%
CrossMark / Responsiveness
Minisforum Neptune Series NAD9, Intel Core i9-12900H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0
2116 Points +59%
Geekom Mini IT12, Intel Core i7-1260P
Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0
1734 Points +30%
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX
AMD Radeon 680M, Kingston OM8PGP4512Q-A0
1671 Points +26%
AM08 Pro, 6900HX (Performance), ACEMagician Ace Magician AM08 Pro, AMD Ryzen 9 6900HX
AMD Radeon 680M, BiWin CE480Y2D100-512G
1329 Points
AM08 Pro, 6900HX (Auto), ACEMagician Ace Magician AM08 Pro, AMD Ryzen 9 6900HX
AMD Radeon 680M,
1289 Points -3%
Ace Magician AMR5, Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U
AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G
1263 Points -5%
AM08 Pro, 6900HX (Silent), ACEMagician Ace Magician AM08 Pro, AMD Ryzen 9 6900HX
AMD Radeon 680M,
1245 Points -6%
Morefine M600, 6900HX, AMD Ryzen 9 6900HX
AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G
1238 Points -7%
Morefine M600, 6600U, AMD Ryzen 5 6600U
AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S
1238 Points -7%
AIDA64 / Memory Copy
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX, Radeon 680M
50686 MB/s 0%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX, Radeon 680M
50608 MB/s
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX, Radeon 680M
50495 MB/s 0%
Average AMD Ryzen 9 6900HX
  (47938 - 53345, n=20)
50405 MB/s 0%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
50228 MB/s -1%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
47938 MB/s -5%
Morefine M600, 6600U
AMD Ryzen 5 6600U, Radeon 660M
47711 MB/s -6%
Average of class Mini PC
  (6481 - 89287, n=119, last 2 years)
47585 MB/s -6%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
45941 MB/s -9%
Geekom Mini IT12
Intel Core i7-1260P, Iris Xe G7 96EUs
44726 MB/s -12%
Minipc Union Ace Magician AMR5
Ace Magician AMR5, AMD Ryzen 5 5600U, Vega 7
35051 MB/s -31%
AIDA64 / Memory Read
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX, Radeon 680M
51624 MB/s 0%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX, Radeon 680M
51552 MB/s
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX, Radeon 680M
51427 MB/s 0%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
51077 MB/s -1%
Average AMD Ryzen 9 6900HX
  (43892 - 53321, n=20)
51062 MB/s -1%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
49936 MB/s -3%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
49559 MB/s -4%
Average of class Mini PC
  (6914 - 99171, n=119, last 2 years)
48328 MB/s -6%
Geekom Mini IT12
Intel Core i7-1260P, Iris Xe G7 96EUs
47491 MB/s -8%
Morefine M600, 6600U
AMD Ryzen 5 6600U, Radeon 660M
46084 MB/s -11%
Minipc Union Ace Magician AMR5
Ace Magician AMR5, AMD Ryzen 5 5600U, Vega 7
38400 MB/s -26%
AIDA64 / Memory Write
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
55194 MB/s 0%
Average AMD Ryzen 9 6900HX
  (51085 - 57202, n=20)
55188 MB/s 0%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX, Radeon 680M
55144 MB/s
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX, Radeon 680M
55115 MB/s 0%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX, Radeon 680M
55096 MB/s 0%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
54750 MB/s -1%
Average of class Mini PC
  (6862 - 98583, n=119, last 2 years)
52056 MB/s -6%
Morefine M600, 6600U
AMD Ryzen 5 6600U, Radeon 660M
49353 MB/s -11%
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
46815 MB/s -15%
Geekom Mini IT12
Intel Core i7-1260P, Iris Xe G7 96EUs
46785 MB/s -15%
Minipc Union Ace Magician AMR5
Ace Magician AMR5, AMD Ryzen 5 5600U, Vega 7
37475 MB/s -32%
AIDA64 / Memory Latency
Minisforum Neptune Series NAD9
Intel Core i9-12900H, Iris Xe G7 96EUs
100 ns * -14%
Morefine M600, 6600U
AMD Ryzen 5 6600U, Radeon 660M
94 ns * -7%
Morefine M600, 6900HX
AMD Ryzen 9 6900HX, Radeon 680M
92.4 ns * -5%
Average of class Mini PC
  (44.9 - 184.8, n=119, last 2 years)
91.9 ns * -5%
Minipc Union Ace Magician AMR5
Ace Magician AMR5, AMD Ryzen 5 5600U, Vega 7
91.3 ns * -4%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Ryzen 9 6900HX, Radeon 680M
89.1 ns * -1%
Average AMD Ryzen 9 6900HX
  (80.7 - 120.6, n=20)
88.7 ns * -1%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Ryzen 9 6900HX, Radeon 680M
87.8 ns *
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Ryzen 9 6900HX, Radeon 680M
87.4 ns * -0%
Minisforum Venus Series UM690
AMD Ryzen 9 6900HX, Radeon 680M
83 ns * +5%
Geekom Mini IT12
Intel Core i7-1260P, Iris Xe G7 96EUs
80.2 ns * +9%

* ... más pequeño es mejor

Latencias del CPD

LatencyMon muestra latencias ligeramente elevadas al abrir varias pestañas en el navegador Edge. Al reproducir nuestro vídeo de prueba 4K, las latencias no aumentan más, y Prime95 tampoco empeora las latencias que medimos inicialmente.

Latencia máxima al abrir varias pestañas del navegador y reproducir vídeos 4K
Latencia máxima al abrir varias pestañas del navegador y reproducir vídeos 4K
Latencia máxima tras 10 segundos de Prime95
Latencia máxima tras 10 segundos de Prime95
Conductores ordenados por el mayor tiempo de ejecución.
Conductores ordenados por el mayor tiempo de ejecución.
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Minisforum Venus Series UM690, AMD Ryzen 9 6900HX
AMD Radeon 680M, Kingston OM8PGP4512Q-A0
1488 μs * -9%
ACEMagician Ace Magician AM08 Pro, AMD Ryzen 9 6900HX
AMD Radeon 680M, BiWin CE480Y2D100-512G
1371.2 μs *
Morefine M600, 6900HX, AMD Ryzen 9 6900HX
AMD Radeon 680M, Kingston KC3000 2048G SKC3000D2048G
1317 μs * +4%
Minisforum Neptune Series NAD9, Intel Core i9-12900H
Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0
1113.9 μs * +19%
Morefine M600, 6600U, AMD Ryzen 5 6600U
AMD Radeon 660M, Transcend M.2 SSD 2200S TS512GMTE220S
1016.7 μs * +26%
Geekom Mini IT12, Intel Core i7-1260P
Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0
985.8 μs * +28%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U
AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G
765 μs * +44%

* ... más pequeño es mejor

Solución de almacenamiento

sSD de 512 GB de BiWin
sSD de 512 GB de BiWin

Nuestra unidad de prueba del Ace Magician AM08 Pro está equipada con un SSD de 512-GB de BiWin. Este SSD soporta la velocidad PCIe 3.0, que también se refleja en los puntos de referencia. En esta comparación, nuestra unidad de pruebas lo pasa mal y tiene que conformarse con el último puesto. En particular, el rendimiento de escritura de la unidad SSD BiWin es un punto crítico aquí. Al mismo tiempo, el SSD no presenta ningún problema. Sin embargo, también queremos quejarnos de la capacidad de sólo 512 GB en este punto. Teniendo en cuenta el uso como PC de juegos, el estándar mínimo debería ser al menos un modelo con una capacidad de 1 TB. Por otra parte, el Ace Magician AM08 Pro también puede ser equipado fácilmente con una unidad de almacenamiento adicional en el formato de 2,5 pulgadas.

También puede encontrar más comparaciones y puntos de referencia en nuestra tabla comparativa.

AS SSD
AS SSD
MDL 3
MDL 3
MDL 5
MDL 5
MDL 6
MDL 6
CDI
CDI
BiWin CE480Y2D100-512G
Sequential Read: 1269 MB/s
Sequential Write: 669.7 MB/s
512K Read: 791.7 MB/s
512K Write: 625.9 MB/s
4K Read: 49.46 MB/s
4K Write: 183.1 MB/s
4K QD32 Read: 517.4 MB/s
4K QD32 Write: 278.8 MB/s
Drive Performance Rating - Percent
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
86.6 pt
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
82.5 pt
Morefine M600, 6900HX
Kingston KC3000 2048G SKC3000D2048G
67.1 pt
Average of class Mini PC

54.4 pt
Minipc Union Ace Magician AMR5
Future Path FPE220M8SSD512G
42.6 pt
Geekom Mini IT12
Kingston OM8SEP4512N-A0
39.1 pt
Morefine M600, 6600U
Transcend M.2 SSD 2200S TS512GMTE220S
37.8 pt
ACEMagician Ace Magician AM08 Pro
BiWin CE480Y2D100-512G
28.7 pt
DiskSpd
seq read
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
3195 (3147.62min - 3194.91max) MB/s +148%
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
2815 (2802.79min - 2814.97max) MB/s +118%
Average of class Mini PC
  (233 - 4357, n=119, last 2 years)
2288 MB/s +77%
Minipc Union Ace Magician AMR5
Future Path FPE220M8SSD512G
2082 (2067.58min - 2082.23max) MB/s +61%
Morefine M600, 6600U
Transcend M.2 SSD 2200S TS512GMTE220S
1720 (1344.24min - 1720.17max) MB/s +33%
Geekom Mini IT12
Kingston OM8SEP4512N-A0
1451 (1441.37min - 1451.23max) MB/s +12%
ACEMagician Ace Magician AM08 Pro
BiWin CE480Y2D100-512G
1290 (1269.59min - 1290.1max) MB/s
Morefine M600, 6900HX
Kingston KC3000 2048G SKC3000D2048G
1176 (1169.13min - 1175.87max) MB/s -9%
seq write
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
3539 (3516.6min - 3538.94max) MB/s +424%
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
3402 (3372.67min - 3402.21max) MB/s +403%
Average of class Mini PC
  (222 - 5595, n=119, last 2 years)
2448 MB/s +262%
Minipc Union Ace Magician AMR5
Future Path FPE220M8SSD512G
1792 (1662.17min - 1791.62max) MB/s +165%
Morefine M600, 6900HX
Kingston KC3000 2048G SKC3000D2048G
1530 (603.77min - 1530.08max) MB/s +126%
Geekom Mini IT12
Kingston OM8SEP4512N-A0
1203 (1169.58min - 1202.51max) MB/s +78%
Morefine M600, 6600U
Transcend M.2 SSD 2200S TS512GMTE220S
1075 (545.51min - 1075.26max) MB/s +59%
ACEMagician Ace Magician AM08 Pro
BiWin CE480Y2D100-512G
676 (608.43min - 676.24max) MB/s
seq q8 t1 read
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
4820 (3819.87min - 4820.3max) MB/s +89%
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
4801 (4506.78min - 4800.59max) MB/s +88%
Average of class Mini PC
  (236 - 8430, n=119, last 2 years)
3706 MB/s +45%
ACEMagician Ace Magician AM08 Pro
BiWin CE480Y2D100-512G
2557 (2087.92min - 2556.98max) MB/s
Morefine M600, 6600U
Transcend M.2 SSD 2200S TS512GMTE220S
2522 (2230.32min - 2522.44max) MB/s -1%
Minipc Union Ace Magician AMR5
Future Path FPE220M8SSD512G
2444 (2328.09min - 2444.09max) MB/s -4%
Morefine M600, 6900HX
Kingston KC3000 2048G SKC3000D2048G
1987 (1409.4min - 1987.27max) MB/s -22%
Geekom Mini IT12
Kingston OM8SEP4512N-A0
1694 (1415.05min - 1693.87max) MB/s -34%
seq q8 t1 write
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
3536 (3475.82min - 3536.01max) MB/s +428%
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
3402 (3374.28min - 3401.67max) MB/s +408%
Average of class Mini PC
  (228 - 6669, n=119, last 2 years)
2743 MB/s +309%
Minipc Union Ace Magician AMR5
Future Path FPE220M8SSD512G
1769 (1687.39min - 1768.92max) MB/s +164%
Morefine M600, 6600U
Transcend M.2 SSD 2200S TS512GMTE220S
1599 (266.87min - 1599.24max) MB/s +139%
Geekom Mini IT12
Kingston OM8SEP4512N-A0
1213 (1155.74min - 1212.78max) MB/s +81%
Morefine M600, 6900HX
Kingston KC3000 2048G SKC3000D2048G
1084 (553.02min - 1084.16max) MB/s +62%
ACEMagician Ace Magician AM08 Pro
BiWin CE480Y2D100-512G
670 (614.49min - 669.54max) MB/s
4k q1 t1 read
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
82.1 (81.4min - 82.09max) MB/s +68%
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
70.8 (63.28min - 70.81max) MB/s +45%
Geekom Mini IT12
Kingston OM8SEP4512N-A0
55.6 (54.87min - 55.6max) MB/s +14%
Average of class Mini PC
  (5.67 - 86.6, n=119, last 2 years)
54.7 MB/s +12%
ACEMagician Ace Magician AM08 Pro
BiWin CE480Y2D100-512G
48.9 (31.16min - 48.85max) MB/s
Morefine M600, 6900HX
Kingston KC3000 2048G SKC3000D2048G
48.5 (48.27min - 48.47max) MB/s -1%
Minipc Union Ace Magician AMR5
Future Path FPE220M8SSD512G
48.2 (48.04min - 48.16max) MB/s -1%
Morefine M600, 6600U
Transcend M.2 SSD 2200S TS512GMTE220S
40.3 (36.8min - 40.3max) MB/s -18%
4k q1 t1 write
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
425 (415.92min - 425.01max) MB/s +132%
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
288 (287.39min - 288.47max) MB/s +57%
Geekom Mini IT12
Kingston OM8SEP4512N-A0
276 (193.9min - 275.81max) MB/s +51%
Morefine M600, 6600U
Transcend M.2 SSD 2200S TS512GMTE220S
229 (165.03min - 229.29max) MB/s +25%
Morefine M600, 6900HX
Kingston KC3000 2048G SKC3000D2048G
220 (212.2min - 220.15max) MB/s +20%
Minipc Union Ace Magician AMR5
Future Path FPE220M8SSD512G
210 (122.22min - 209.88max) MB/s +15%
Average of class Mini PC
  (30.4 - 435, n=119, last 2 years)
194.7 MB/s +6%
ACEMagician Ace Magician AM08 Pro
BiWin CE480Y2D100-512G
183.3 (149.75min - 183.3max) MB/s
4k q32 t16 read
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
1944 (1936.89min - 1943.53max) MB/s +156%
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
1933 (1926.8min - 1932.75max) MB/s +154%
Average of class Mini PC
  (26.1 - 4158, n=119, last 2 years)
1360 MB/s +79%
Minipc Union Ace Magician AMR5
Future Path FPE220M8SSD512G
991 (989.79min - 991.47max) MB/s +30%
ACEMagician Ace Magician AM08 Pro
BiWin CE480Y2D100-512G
760 (325.52min - 759.71max) MB/s
Morefine M600, 6600U
Transcend M.2 SSD 2200S TS512GMTE220S
561 (475.29min - 560.56max) MB/s -26%
Geekom Mini IT12
Kingston OM8SEP4512N-A0
420 (418.45min - 419.54max) MB/s -45%
Morefine M600, 6900HX
Kingston KC3000 2048G SKC3000D2048G
354 (11.43min - 353.56max) MB/s -53%
4k q32 t16 write
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
3331 (2068.43min - 3331.41max) MB/s +425%
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
2396 (2376.28min - 2396.46max) MB/s +277%
Average of class Mini PC
  (30.2 - 4288, n=119, last 2 years)
1287 MB/s +103%
Geekom Mini IT12
Kingston OM8SEP4512N-A0
942 (402.72min - 941.71max) MB/s +48%
Morefine M600, 6900HX
Kingston KC3000 2048G SKC3000D2048G
893 (601.78min - 892.97max) MB/s +41%
Minipc Union Ace Magician AMR5
Future Path FPE220M8SSD512G
659 (650.84min - 659.33max) MB/s +4%
ACEMagician Ace Magician AM08 Pro
BiWin CE480Y2D100-512G
635 (272.57min - 635.12max) MB/s
Morefine M600, 6600U
Transcend M.2 SSD 2200S TS512GMTE220S
544 (355.98min - 544.47max) MB/s -14%
AS SSD
Score Total
Morefine M600, 6900HX
Kingston KC3000 2048G SKC3000D2048G
9030 Points +335%
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
7134 Points +244%
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
6665 Points +221%
Average of class Mini PC
  (181.5 - 10021, n=117, last 2 years)
4121 Points +99%
Minipc Union Ace Magician AMR5
Future Path FPE220M8SSD512G
2797 Points +35%
Geekom Mini IT12
Kingston OM8SEP4512N-A0
2491 Points +20%
ACEMagician Ace Magician AM08 Pro
BiWin CE480Y2D100-512G
2075 Points
Morefine M600, 6600U
Transcend M.2 SSD 2200S TS512GMTE220S
748.83 Points -64%
Score Read
Morefine M600, 6900HX
Kingston KC3000 2048G SKC3000D2048G
3635 Points +304%
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
2391 Points +166%
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
2352 Points +162%
Average of class Mini PC
  (61 - 3741, n=117, last 2 years)
1534 Points +71%
Minipc Union Ace Magician AMR5
Future Path FPE220M8SSD512G
1162 Points +29%
ACEMagician Ace Magician AM08 Pro
BiWin CE480Y2D100-512G
899 Points
Geekom Mini IT12
Kingston OM8SEP4512N-A0
725 Points -19%
Morefine M600, 6600U
Transcend M.2 SSD 2200S TS512GMTE220S
661 Points -26%
Score Write
Morefine M600, 6900HX
Kingston KC3000 2048G SKC3000D2048G
3615 Points +361%
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
3538 Points +351%
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
3145 Points +301%
Average of class Mini PC
  (88 - 4371, n=117, last 2 years)
1851 Points +136%
Geekom Mini IT12
Kingston OM8SEP4512N-A0
1457 Points +86%
Minipc Union Ace Magician AMR5
Future Path FPE220M8SSD512G
1059 Points +35%
ACEMagician Ace Magician AM08 Pro
BiWin CE480Y2D100-512G
785 Points
Morefine M600, 6600U
Transcend M.2 SSD 2200S TS512GMTE220S
700 Points -11%
Seq Read
Morefine M600, 6900HX
Kingston KC3000 2048G SKC3000D2048G
5338 MB/s +139%
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
4147 MB/s +86%
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
4050 MB/s +82%
Average of class Mini PC
  (291 - 6620, n=117, last 2 years)
3161 MB/s +42%
Morefine M600, 6600U
Transcend M.2 SSD 2200S TS512GMTE220S
2844 MB/s +28%
Geekom Mini IT12
Kingston OM8SEP4512N-A0
2789 MB/s +25%
Minipc Union Ace Magician AMR5
Future Path FPE220M8SSD512G
2260 MB/s +1%
ACEMagician Ace Magician AM08 Pro
BiWin CE480Y2D100-512G
2229 MB/s
Seq Write
Morefine M600, 6900HX
Kingston KC3000 2048G SKC3000D2048G
3927 MB/s +545%
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
3292 MB/s +441%
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
3025 MB/s +397%
Average of class Mini PC
  (240 - 5783, n=117, last 2 years)
2212 MB/s +263%
Minipc Union Ace Magician AMR5
Future Path FPE220M8SSD512G
1644 MB/s +170%
Geekom Mini IT12
Kingston OM8SEP4512N-A0
1232 MB/s +102%
ACEMagician Ace Magician AM08 Pro
BiWin CE480Y2D100-512G
609 MB/s
Morefine M600, 6600U
Transcend M.2 SSD 2200S TS512GMTE220S
524 MB/s -14%
4K Read
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
103.66 MB/s +130%
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
86.05 MB/s +91%
Morefine M600, 6900HX
Kingston KC3000 2048G SKC3000D2048G
66.6 MB/s +48%
Average of class Mini PC
  (6.08 - 104.3, n=117, last 2 years)
58.9 MB/s +31%
Morefine M600, 6600U
Transcend M.2 SSD 2200S TS512GMTE220S
53.5 MB/s +19%
Minipc Union Ace Magician AMR5
Future Path FPE220M8SSD512G
52.54 MB/s +17%
Geekom Mini IT12
Kingston OM8SEP4512N-A0
48.9 MB/s +9%
ACEMagician Ace Magician AM08 Pro
BiWin CE480Y2D100-512G
45 MB/s
4K Write
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
365.87 MB/s +133%
Geekom Mini IT12
Kingston OM8SEP4512N-A0
273 MB/s +74%
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
240.66 MB/s +53%
Morefine M600, 6900HX
Kingston KC3000 2048G SKC3000D2048G
209 MB/s +33%
Morefine M600, 6600U
Transcend M.2 SSD 2200S TS512GMTE220S
185.4 MB/s +18%
Average of class Mini PC
  (30.9 - 366, n=117, last 2 years)
175.1 MB/s +12%
ACEMagician Ace Magician AM08 Pro
BiWin CE480Y2D100-512G
157 MB/s
Minipc Union Ace Magician AMR5
Future Path FPE220M8SSD512G
144.1 MB/s -8%
4K-64 Read
Morefine M600, 6900HX
Kingston KC3000 2048G SKC3000D2048G
3035 MB/s +381%
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
1872.82 MB/s +197%
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
1860.96 MB/s +195%
Average of class Mini PC
  (23.4 - 3220, n=117, last 2 years)
1159 MB/s +84%
Minipc Union Ace Magician AMR5
Future Path FPE220M8SSD512G
883.24 MB/s +40%
ACEMagician Ace Magician AM08 Pro
BiWin CE480Y2D100-512G
631 MB/s
Geekom Mini IT12
Kingston OM8SEP4512N-A0
397 MB/s -37%
Morefine M600, 6600U
Transcend M.2 SSD 2200S TS512GMTE220S
323 MB/s -49%
4K-64 Write
Morefine M600, 6900HX
Kingston KC3000 2048G SKC3000D2048G
3013 MB/s +431%
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
2842.9 MB/s +401%
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
2602.12 MB/s +359%
Average of class Mini PC
  (32.8 - 3731, n=117, last 2 years)
1455 MB/s +157%
Geekom Mini IT12
Kingston OM8SEP4512N-A0
1060 MB/s +87%
Minipc Union Ace Magician AMR5
Future Path FPE220M8SSD512G
750.4 MB/s +32%
ACEMagician Ace Magician AM08 Pro
BiWin CE480Y2D100-512G
567 MB/s
Morefine M600, 6600U
Transcend M.2 SSD 2200S TS512GMTE220S
462 MB/s -19%
Access Time Read
ACEMagician Ace Magician AM08 Pro
BiWin CE480Y2D100-512G
0.15 ms *
Geekom Mini IT12
Kingston OM8SEP4512N-A0
0.098 ms * +35%
Average of class Mini PC
  (0.022 - 0.489, n=117, last 2 years)
0.09726 ms * +35%
Minipc Union Ace Magician AMR5
Future Path FPE220M8SSD512G
0.075 ms * +50%
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
0.074 ms * +51%
Morefine M600, 6900HX
Kingston KC3000 2048G SKC3000D2048G
0.066 ms * +56%
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
0.065 ms * +57%
Morefine M600, 6600U
Transcend M.2 SSD 2200S TS512GMTE220S
0.06 ms * +60%
Access Time Write
ACEMagician Ace Magician AM08 Pro
BiWin CE480Y2D100-512G
0.183 ms *
Geekom Mini IT12
Kingston OM8SEP4512N-A0
0.118 ms * +36%
Average of class Mini PC
  (0.014 - 0.765, n=117, last 2 years)
0.1153 ms * +37%
Minipc Union Ace Magician AMR5
Future Path FPE220M8SSD512G
0.102 ms * +44%
Minisforum Neptune Series NAD9
Kingston OM8PGP4512Q-A0
0.031 ms * +83%
Minisforum Venus Series UM690
Kingston OM8PGP4512Q-A0
0.031 ms * +83%
Morefine M600, 6600U
Transcend M.2 SSD 2200S TS512GMTE220S
0.023 ms * +87%
Morefine M600, 6900HX
Kingston KC3000 2048G SKC3000D2048G
0.018 ms * +90%

* ... más pequeño es mejor

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

0245490735980122514701715196022052450269529403185343036753920416544104655Tooltip
ACEMagician Ace Magician AM08 Pro BiWin CE480Y2D100-512G: Ø2845 (145.88-3195.22)
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G: Ø1878 (827.51-2439.04)
Morefine M600, 6900HX Kingston KC3000 2048G SKC3000D2048G: Ø1770 (1505.89-1954.62)
Minisforum Venus Series UM690 Kingston OM8PGP4512Q-A0: Ø2987 (1605.58-4819.04)
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0: Ø3302 (1830.49-4799.45)
Geekom Mini IT12 Kingston OM8SEP4512N-A0: Ø2178 (1555.46-2595.65)
Morefine M600, 6600U Transcend M.2 SSD 2200S TS512GMTE220S: Ø1047 (95.4-2400.59)

Tarjeta gráfica

El SoC Rembrandt de AMD aporta un notable aumento del rendimiento con la nueva iGPU. LaAMD Radeon 680Mes capaz de mostrar su excelente rendimiento en el Ace Magician AM08 Pro, y nuestra unidad de prueba es capaz de superar al Minisforum Venus Serie UM690con la misma iGPU al segundo lugar. ElMorefine M600tampoco es capaz de suponer un peligro para el Ace Magician AM08 Pro. Sin embargo, no deberíamos dar demasiada importancia a estas posiciones, ya que todos los competidores basados en la AMD Radeon 680M se sitúan muy cerca unos de otros. Intel con sus iGPUs Iris Xe es incapaz de siquiera acercarse a la AMD. EnMinisforum Neptune Series NAD9y también la Geekom Mini IT12tienen que conformarse con quedarse significativamente atrás en el medio del campo.

Para un rendimiento 3D significativamente mayor, puede utilizar el puerto Thunderbolt para conectar una tarjeta gráfica externa. Basada en la Razer Core X junto con la Nvidia GeForce RTX 3060 Tievaluamos el rendimiento que cabe esperar e incluimos los valores alcanzados con la tarjeta gráfica dedicada en nuestra tabla comparativa.

Puedes encontrar pruebas comparativas adicionales sobre la AMD Radeon 680M aquí.

AMD Radeon 680M

3DMark Performance Rating - Percent
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
99.3 pt
Minisforum Venus Series UM690
AMD Radeon 680M
95.3 pt
Morefine M600, 6900HX
AMD Radeon 680M
94.2 pt
Minisforum Neptune Series NAD9
Intel Iris Xe Graphics G7 96EUs
69.5 pt
Geekom Mini IT12
Intel Iris Xe Graphics G7 96EUs
60.4 pt
Morefine M600, 6600U
AMD Radeon 660M
59.8 pt
Minipc Union Ace Magician AMR5
Ace Magician AMR5, AMD Radeon RX Vega 7
49.4 pt
3DMark 11 - 1280x720 Performance GPU
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
11478 Points
Morefine M600, 6900HX
AMD Radeon 680M
11055 Points -4%
Minisforum Venus Series UM690
AMD Radeon 680M
10845 Points -6%
Minisforum Neptune Series NAD9
Intel Iris Xe Graphics G7 96EUs
7057 Points -39%
Geekom Mini IT12
Intel Iris Xe Graphics G7 96EUs
6599 Points -43%
Morefine M600, 6600U
AMD Radeon 660M
5634 Points -51%
Minipc Union Ace Magician AMR5
Ace Magician AMR5, AMD Radeon RX Vega 7
5610 Points -51%
3DMark
1280x720 Cloud Gate Standard Graphics
Minisforum Venus Series UM690
AMD Radeon 680M
43275 Points +4%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
41726 Points
Morefine M600, 6900HX
AMD Radeon 680M
41124 Points -1%
Minisforum Neptune Series NAD9
Intel Iris Xe Graphics G7 96EUs
30434 Points -27%
Morefine M600, 6600U
AMD Radeon 660M
28159 Points -33%
Minipc Union Ace Magician AMR5
Ace Magician AMR5, AMD Radeon RX Vega 7
26247 Points -37%
Geekom Mini IT12
Intel Iris Xe Graphics G7 96EUs
22570 Points -46%
1920x1080 Fire Strike Graphics
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
7303 Points
Minisforum Venus Series UM690
AMD Radeon 680M
6679 Points -9%
Morefine M600, 6900HX
AMD Radeon 680M
6644 Points -9%
Minisforum Neptune Series NAD9
Intel Iris Xe Graphics G7 96EUs
5526 Points -24%
Geekom Mini IT12
Intel Iris Xe Graphics G7 96EUs
4860 Points -33%
Morefine M600, 6600U
AMD Radeon 660M
4621 Points -37%
Minipc Union Ace Magician AMR5
Ace Magician AMR5, AMD Radeon RX Vega 7
3586 Points -51%
2560x1440 Time Spy Graphics
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
2437 Points
Morefine M600, 6900HX
AMD Radeon 680M
2408 Points -1%
Minisforum Venus Series UM690
AMD Radeon 680M
2351 Points -4%
Minisforum Neptune Series NAD9
Intel Iris Xe Graphics G7 96EUs
1658 Points -32%
Geekom Mini IT12
Intel Iris Xe Graphics G7 96EUs
1528 Points -37%
Morefine M600, 6600U
AMD Radeon 660M
1430 Points -41%
Minipc Union Ace Magician AMR5
Ace Magician AMR5, AMD Radeon RX Vega 7
1102 Points -55%
Fire Strike Extreme Graphics
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
3408 Points
Minisforum Venus Series UM690
AMD Radeon 680M
3206 Points -6%
Morefine M600, 6900HX
AMD Radeon 680M
3066 Points -10%
Minisforum Neptune Series NAD9
Intel Iris Xe Graphics G7 96EUs
2455 Points -28%
Geekom Mini IT12
Intel Iris Xe Graphics G7 96EUs
2150 Points -37%
Morefine M600, 6600U
AMD Radeon 660M
2149 Points -37%
Minipc Union Ace Magician AMR5
Ace Magician AMR5, AMD Radeon RX Vega 7
1472 Points -57%
Performance Rating - Percent
Minisforum Venus Series UM690
AMD Radeon 680M
97.7 pt
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
91.9 pt
Morefine M600, 6900HX
AMD Radeon 680M
90.9 pt
Minisforum Neptune Series NAD9
Intel Iris Xe Graphics G7 96EUs
58.8 pt
Morefine M600, 6600U
AMD Radeon 660M
58.4 pt
Geekom Mini IT12
Intel Iris Xe Graphics G7 96EUs
57 pt
Minipc Union Ace Magician AMR5
Ace Magician AMR5, AMD Radeon RX Vega 7
48.7 pt
Unigine Heaven 4.0
Extreme Preset OpenGL
Minisforum Venus Series UM690
AMD Radeon 680M
34.6 fps +20%
Morefine M600, 6900HX
AMD Radeon 680M
33.6 fps +16%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
28.9 fps
Minisforum Neptune Series NAD9
Intel Iris Xe Graphics G7 96EUs
23.3 fps -19%
Geekom Mini IT12
Intel Iris Xe Graphics G7 96EUs
21 fps -27%
Morefine M600, 6600U
AMD Radeon 660M
20.4 fps -29%
Minipc Union Ace Magician AMR5
Ace Magician AMR5, AMD Radeon RX Vega 7
17.7 fps -39%
Extreme Preset DX11
Minisforum Venus Series UM690
AMD Radeon 680M
33.4 fps +2%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
32.6 fps
Morefine M600, 6900HX
AMD Radeon 680M
32.2 fps -1%
Minisforum Neptune Series NAD9
Intel Iris Xe Graphics G7 96EUs
24 fps -26%
Geekom Mini IT12
Intel Iris Xe Graphics G7 96EUs
21.7 fps -33%
Morefine M600, 6600U
AMD Radeon 660M
20.9 fps -36%
Minipc Union Ace Magician AMR5
Ace Magician AMR5, AMD Radeon RX Vega 7
17.1 fps -48%
Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Morefine M600, 6900HX
AMD Radeon 680M
21 fps +37%
Minisforum Venus Series UM690
AMD Radeon 680M
18.8 fps +23%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
15.3 fps
Minisforum Neptune Series NAD9
Intel Iris Xe Graphics G7 96EUs
14.3 fps -7%
Geekom Mini IT12
Intel Iris Xe Graphics G7 96EUs
13.2 fps -14%
Minipc Union Ace Magician AMR5
Ace Magician AMR5, AMD Radeon RX Vega 7
11.3 fps -26%
Morefine M600, 6600U
AMD Radeon 660M
10.9 fps -29%
1920x1080 Extreme HD Preset OpenGL AA:x8
Morefine M600, 6900HX
AMD Radeon 680M
22.8 fps +34%
Minisforum Venus Series UM690
AMD Radeon 680M
21.3 fps +25%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
17 fps
Geekom Mini IT12
Intel Iris Xe Graphics G7 96EUs
16.1 fps -5%
Minisforum Neptune Series NAD9
Intel Iris Xe Graphics G7 96EUs
15.2 fps -11%
Morefine M600, 6600U
AMD Radeon 660M
11.6 fps -32%
Minipc Union Ace Magician AMR5
Ace Magician AMR5, AMD Radeon RX Vega 7
11.5 fps -32%
Unigine Superposition
1280x720 720p Low
Minisforum Venus Series UM690
AMD Radeon 680M
10523 Points +16%
Morefine M600, 6900HX
AMD Radeon 680M
9915 Points +9%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
9085 Points
Morefine M600, 6600U
AMD Radeon 660M
7862 Points -13%
Minipc Union Ace Magician AMR5
Ace Magician AMR5, AMD Radeon RX Vega 7
5361 Points -41%
Geekom Mini IT12
Intel Iris Xe Graphics G7 96EUs
5141 Points -43%
Minisforum Neptune Series NAD9
Intel Iris Xe Graphics G7 96EUs
4088 Points -55%
1920x1080 1080p High
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
3251 Points
Minisforum Venus Series UM690
AMD Radeon 680M
3187 Points -2%
Morefine M600, 6900HX
AMD Radeon 680M
2916 Points -10%
Minisforum Neptune Series NAD9
Intel Iris Xe Graphics G7 96EUs
2095 Points -36%
Geekom Mini IT12
Intel Iris Xe Graphics G7 96EUs
1923 Points -41%
Morefine M600, 6600U
AMD Radeon 660M
1800 Points -45%
Minipc Union Ace Magician AMR5
Ace Magician AMR5, AMD Radeon RX Vega 7
1459 Points -55%
1920x1080 1080p Extreme
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
1498 Points
Minisforum Venus Series UM690
AMD Radeon 680M
1481 Points -1%
Morefine M600, 6900HX
AMD Radeon 680M
1358 Points -9%
Minisforum Neptune Series NAD9
Intel Iris Xe Graphics G7 96EUs
1076 Points -28%
Geekom Mini IT12
Intel Iris Xe Graphics G7 96EUs
992 Points -34%
Morefine M600, 6600U
AMD Radeon 660M
801 Points -47%
Minipc Union Ace Magician AMR5
Ace Magician AMR5, AMD Radeon RX Vega 7
687 Points -54%
ComputeMark v2.1
1024x600 Normal, Score
Minisforum Venus Series UM690
AMD Radeon 680M
7111 Points +4%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
6834 Points
Morefine M600, 6900HX
AMD Radeon 680M
5813 Points -15%
Morefine M600, 6600U
AMD Radeon 660M
3439 Points -50%
Minisforum Neptune Series NAD9
Intel Iris Xe Graphics G7 96EUs
3390 Points -50%
Geekom Mini IT12
Intel Iris Xe Graphics G7 96EUs
3308 Points -52%
Minipc Union Ace Magician AMR5
Ace Magician AMR5, AMD Radeon RX Vega 7
3225 Points -53%
1024x600 Normal, Fluid 3DTex
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
413 Points
Minisforum Venus Series UM690
AMD Radeon 680M
400 Points -3%
Morefine M600, 6900HX
AMD Radeon 680M
371 Points -10%
Morefine M600, 6600U
AMD Radeon 660M
318 Points -23%
Geekom Mini IT12
Intel Iris Xe Graphics G7 96EUs
237 Points -43%
Minisforum Neptune Series NAD9
Intel Iris Xe Graphics G7 96EUs
234 Points -43%
Minipc Union Ace Magician AMR5
Ace Magician AMR5, AMD Radeon RX Vega 7
224 Points -46%
1024x600 Normal, Fluid 2DTexArr
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
424 Points
Minisforum Venus Series UM690
AMD Radeon 680M
404 Points -5%
Morefine M600, 6900HX
AMD Radeon 680M
367 Points -13%
Morefine M600, 6600U
AMD Radeon 660M
340 Points -20%
Minisforum Neptune Series NAD9
Intel Iris Xe Graphics G7 96EUs
249 Points -41%
Geekom Mini IT12
Intel Iris Xe Graphics G7 96EUs
237 Points -44%
Minipc Union Ace Magician AMR5
Ace Magician AMR5, AMD Radeon RX Vega 7
212 Points -50%
1024x600 Normal, Mandel Vector
Minisforum Venus Series UM690
AMD Radeon 680M
2030 Points +6%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
1914 Points
Morefine M600, 6900HX
AMD Radeon 680M
1677 Points -12%
Minipc Union Ace Magician AMR5
Ace Magician AMR5, AMD Radeon RX Vega 7
982 Points -49%
Morefine M600, 6600U
AMD Radeon 660M
933 Points -51%
Minisforum Neptune Series NAD9
Intel Iris Xe Graphics G7 96EUs
851 Points -56%
Geekom Mini IT12
Intel Iris Xe Graphics G7 96EUs
827 Points -57%
1024x600 Normal, QJuliaRayTrace
Minisforum Venus Series UM690
AMD Radeon 680M
2332 Points +2%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
2279 Points
Morefine M600, 6900HX
AMD Radeon 680M
1924 Points -16%
Minisforum Neptune Series NAD9
Intel Iris Xe Graphics G7 96EUs
1191 Points -48%
Geekom Mini IT12
Intel Iris Xe Graphics G7 96EUs
1174 Points -48%
Morefine M600, 6600U
AMD Radeon 660M
963 Points -58%
Minipc Union Ace Magician AMR5
Ace Magician AMR5, AMD Radeon RX Vega 7
900 Points -61%

Ace Magician AM08 Pro and its Three Performance Modes in Comparison

3DMark Performance Rating - Percent
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
100 pt
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Radeon 680M
95 pt
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Radeon 680M
84.2 pt
3DMark 11 - 1280x720 Performance GPU
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
11478 Points
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Radeon 680M
10590 Points -8%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Radeon 680M
9452 Points -18%
3DMark
1280x720 Cloud Gate Standard Graphics
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
41726 Points
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Radeon 680M
40076 Points -4%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Radeon 680M
35759 Points -14%
1920x1080 Fire Strike Graphics
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
7303 Points
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Radeon 680M
7037 Points -4%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Radeon 680M
6297 Points -14%
2560x1440 Time Spy Graphics
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
2437 Points
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Radeon 680M
2323 Points -5%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Radeon 680M
1901 Points -22%
Fire Strike Extreme Graphics
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
3408 Points
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Radeon 680M
3237 Points -5%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Radeon 680M
3028 Points -11%
Performance Rating - Percent
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
98.7 pt
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Radeon 680M
89.4 pt
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Radeon 680M
68.4 pt
Unigine Heaven 4.0
Extreme Preset OpenGL
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
28.9 fps
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Radeon 680M
21.1 fps -27%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Radeon 680M
20.7 fps -28%
Extreme Preset DX11
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
32.6 fps
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Radeon 680M
29.8 fps -9%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Radeon 680M
27.1 fps -17%
Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
15.3 fps
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Radeon 680M
11.7 fps -24%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Radeon 680M
11.6 fps -24%
1920x1080 Extreme HD Preset OpenGL AA:x8
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
17 fps
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Radeon 680M
13 fps -24%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Radeon 680M
12.8 fps -25%
Unigine Superposition
1280x720 720p Low
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Radeon 680M
10773 Points +19%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
9085 Points
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Radeon 680M
6473 Points -29%
1920x1080 1080p High
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
3251 Points
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Radeon 680M
3179 Points -2%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Radeon 680M
2336 Points -28%
1920x1080 1080p Extreme
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
1498 Points
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Radeon 680M
1370 Points -9%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Radeon 680M
1250 Points -17%
ComputeMark v2.1
1024x600 Normal, Score
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
6834 Points
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Radeon 680M
6108 Points -11%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Radeon 680M
3439 Points -50%
1024x600 Normal, Fluid 3DTex
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
413 Points
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Radeon 680M
412 Points 0%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Radeon 680M
318 Points -23%
1024x600 Normal, Fluid 2DTexArr
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
424 Points
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Radeon 680M
424 Points 0%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Radeon 680M
340 Points -20%
1024x600 Normal, Mandel Vector
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
1914 Points
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Radeon 680M
1696 Points -11%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Radeon 680M
933 Points -51%
1024x600 Normal, QJuliaRayTrace
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
2279 Points
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Radeon 680M
2022 Points -11%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Radeon 680M
963 Points -58%

Nvidia GeForce RTX 3060 Ti a través de Thunderbolt 3

Performance Rating - Percent
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3)
Intel Core i7-1360P
100 pt
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 9 6900HX
97.4 pt
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 9 6900HX
96.5 pt
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 5 6600U
96.3 pt
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 9 6900HX
96 pt
3DMark 11 - 1280x720 Performance GPU
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3)
Intel Core i7-1360P
33577 Points +193%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 9 6900HX
32915 Points +187%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 9 6900HX
32835 Points +186%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 9 6900HX
32726 Points +185%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 5 6600U
32467 Points +183%

11478 Points
3DMark
1280x720 Cloud Gate Standard Graphics
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3)
Intel Core i7-1360P
123559 Points +196%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 9 6900HX
118686 Points +184%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 9 6900HX
116565 Points +179%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 9 6900HX
116516 Points +179%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 5 6600U
115545 Points +177%

41726 Points
1920x1080 Fire Strike Graphics
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3)
Intel Core i7-1360P
25669 Points +251%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 9 6900HX
24905 Points +241%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 5 6600U
24738 Points +239%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 9 6900HX
24657 Points +238%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 9 6900HX
24360 Points +234%

7303 Points
2560x1440 Time Spy Graphics
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3)
Intel Core i7-1360P
11031 Points +353%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 9 6900HX
10777 Points +342%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 5 6600U
10768 Points +342%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 9 6900HX
10743 Points +341%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 9 6900HX
10717 Points +340%

2437 Points
Fire Strike Extreme Graphics
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3)
Intel Core i7-1360P
13552 Points +298%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 9 6900HX
13299 Points +290%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 5 6600U
13186 Points +287%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 9 6900HX
13117 Points +285%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 9 6900HX
13007 Points +282%

3408 Points
Performance Rating - Percent
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3)
, i7-1360P, Samsung PM9A1 MZVL2512HCJQ
100 pt
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3)
, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G
98 pt
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3)
, R9 6900HX
98 pt
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3)
, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S
97.1 pt
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3)
, R9 6900HX, BiWin CE480Y2D100-512G
96.8 pt
Unigine Heaven 4.0
Extreme Preset OpenGL
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3)
, i7-1360P, Samsung PM9A1 MZVL2512HCJQ
169.6 fps +487%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3)
, R9 6900HX
167.3 fps +479%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3)
, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G
167.3 fps +479%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3)
, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S
166.1 fps +475%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3)
, R9 6900HX, BiWin CE480Y2D100-512G
163.2 fps +465%

28.9 fps
Extreme Preset DX11
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3)
, i7-1360P, Samsung PM9A1 MZVL2512HCJQ
164.8 fps +406%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3)
, R9 6900HX
154.5 fps +374%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3)
, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G
154.3 fps +373%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3)
, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S
153.4 fps +371%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3)
, R9 6900HX, BiWin CE480Y2D100-512G
152.4 fps +367%

32.6 fps
Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3)
, i7-1360P, Samsung PM9A1 MZVL2512HCJQ
143.1 fps +835%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3)
, R9 6900HX
134.2 fps +777%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3)
, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G
131.7 fps +761%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3)
, R9 6900HX, BiWin CE480Y2D100-512G
131.4 fps +759%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3)
, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S
127.9 fps +736%

15.3 fps
1920x1080 Extreme HD Preset OpenGL AA:x8
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3)
, i7-1360P, Samsung PM9A1 MZVL2512HCJQ
125.8 fps +640%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3)
, R9 6900HX
122.7 fps +622%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3)
, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G
122.2 fps +619%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3)
, R9 6900HX, BiWin CE480Y2D100-512G
121.1 fps +612%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3)
, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S
120.1 fps +606%

17 fps
Unigine Superposition
1920x1080 1080p High
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3)
, i7-1360P, Samsung PM9A1 MZVL2512HCJQ
15114 Points +365%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3)
, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S
14836 Points +356%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3)
, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G
14751 Points +354%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3)
, R9 6900HX
14698 Points +352%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3)
, R9 6900HX, BiWin CE480Y2D100-512G
14660 Points +351%

3251 Points
1920x1080 1080p Extreme
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3)
, i7-1360P, Samsung PM9A1 MZVL2512HCJQ
7129 Points +376%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3)
, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G
7036 Points +370%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3)
, R9 6900HX
7035 Points +370%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3)
, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S
7012 Points +368%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3)
, R9 6900HX, BiWin CE480Y2D100-512G
6971 Points +365%

1498 Points
ComputeMark v2.1
1024x600 Normal, Score
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3)
, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G
27847 Points +307%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3)
, i7-1360P, Samsung PM9A1 MZVL2512HCJQ
27811 Points +307%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3)
, R9 6900HX
27740 Points +306%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3)
, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S
27566 Points +303%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3)
, R9 6900HX, BiWin CE480Y2D100-512G
27460 Points +302%

6834 Points
1024x600 Normal, Fluid 3DTex
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3)
, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G
2691 Points +552%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3)
, i7-1360P, Samsung PM9A1 MZVL2512HCJQ
2689 Points +551%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3)
, R9 6900HX
2679 Points +549%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3)
, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S
2675 Points +548%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3)
, R9 6900HX, BiWin CE480Y2D100-512G
2667 Points +546%

413 Points
1024x600 Normal, Fluid 2DTexArr
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3)
, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G
2622 Points +518%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3)
, R9 6900HX
2619 Points +518%
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3)
, i7-1360P, Samsung PM9A1 MZVL2512HCJQ
2619 Points +518%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3)
, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S
2606 Points +515%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3)
, R9 6900HX, BiWin CE480Y2D100-512G
2598 Points +513%

424 Points
1024x600 Normal, Mandel Vector
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3)
, i7-1360P, Samsung PM9A1 MZVL2512HCJQ
5694 Points +197%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3)
, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G
5689 Points +197%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3)
, R9 6900HX
5655 Points +195%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3)
, R9 6900HX, BiWin CE480Y2D100-512G
5606 Points +193%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3)
, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S
5603 Points +193%

1914 Points
1024x600 Normal, QJuliaRayTrace
Intel NUC 13 Pro Kit NUC13ANK (Nvidia GeForce RTX 3060 Ti FE TB3)
, i7-1360P, Samsung PM9A1 MZVL2512HCJQ
10555 Points +363%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3)
, R9 6900HX, Kingston KC3000 2048G SKC3000D2048G
10539 Points +362%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3)
, R9 6900HX
10536 Points +362%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3)
, R5 6600U, Transcend M.2 SSD 2200S TS512GMTE220S
10462 Points +359%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3)
, R9 6900HX, BiWin CE480Y2D100-512G
10388 Points +356%

2279 Points

Rendimiento en juegos

Aunque la AMD Radeon 680Mes sólo una iGPU del AMD Ryzen 9 6900HX, el modelo ofrece un rendimiento utilizable en el Ace Magician AM08 Pro. En comparación con el Ace Magician AMR5, el rendimiento de juego podría aumentar notablemente. Por otro lado, tampoco se debe esperar demasiado de la AMD Radeon 680M. A veces, los juegos muy exigentes como God of War ni siquiera se pueden jugar sin problemas en 720p y en los ajustes de detalle más bajos.

Puedes encontrar un resumen sobre el rendimiento de la iGPU comparado con otras tarjetas gráficas en nuestra Lista de juegos GPU.

Como ya se mencionó anteriormente, también realizamos pruebas de juegos adicionales con el Ace Magician AM08 Pro junto con el Razer Core X y nuestra tarjeta gráfica Nvidia GeForce RTX 3060 Ti. El rendimiento 3D se puede aumentar notablemente con los accesorios correspondientes a través del puerto Thunderbolt. No hay diferencias graves de rendimiento entre los sistemas basados en AMD. El Geekom Mini IT12 así como el Intel NUC 12 basado en el Intel Core i7-1260P son capaces de alcanzar un mayor rendimiento con la tarjeta gráfica externa. Medimos alrededor de un 10% más de rendimiento comparado con nuestra unidad de pruebas.

AMD Radeon 680M

F1 2021
1280x720 Ultra Low Preset
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
191.6 (154min, 143P1) fps
Minisforum Venus Series UM690
AMD Radeon 680M
184.4 (146min, 139P1) fps -4%
Morefine M600, 6900HX
AMD Radeon 680M
175.3 (131min, 141P1) fps -9%
Morefine M600, 6600U
AMD Radeon 660M
109.5 (93min, 91P1) fps -43%
Minisforum Neptune Series NAD9
Intel Iris Xe Graphics G7 96EUs
97.2 (76min, 74P1) fps -49%
Minipc Union Ace Magician AMR5
Ace Magician AMR5, AMD Radeon RX Vega 7
94.7 (75min, 75P1) fps -51%
Geekom Mini IT12
Intel Iris Xe Graphics G7 96EUs
93 (72min, 70P1) fps -51%
1920x1080 Medium Preset AA:T AF:16x
Minisforum Venus Series UM690
AMD Radeon 680M
90.5 (66min, 62P1) fps +9%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
82.9 (53min, 49P1) fps
Morefine M600, 6900HX
AMD Radeon 680M
82.1 (69min, 63P1) fps -1%
Minisforum Neptune Series NAD9
Intel Iris Xe Graphics G7 96EUs
52.2 (42min, 42P1) fps -37%
Geekom Mini IT12
Intel Iris Xe Graphics G7 96EUs
46 (36min, 36P1) fps -45%
Morefine M600, 6600U
AMD Radeon 660M
44.4 (37min, 36P1) fps -46%
Minipc Union Ace Magician AMR5
Ace Magician AMR5, AMD Radeon RX Vega 7
39.9 (32min, 32P1) fps -52%
1920x1080 High Preset AA:T AF:16x
Minisforum Venus Series UM690
AMD Radeon 680M
67.5 (56min, 51P1) fps 0%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
67.5 (41min, 39P1) fps
Morefine M600, 6900HX
AMD Radeon 680M
63.5 (48min, 48P1) fps -6%
Minisforum Neptune Series NAD9
Intel Iris Xe Graphics G7 96EUs
40.4 (33min, 33P1) fps -40%
Geekom Mini IT12
Intel Iris Xe Graphics G7 96EUs
35.8 (30min, 29P1) fps -47%
Morefine M600, 6600U
AMD Radeon 660M
35.2 (29min, 28P1) fps -48%
Minipc Union Ace Magician AMR5
Ace Magician AMR5, AMD Radeon RX Vega 7
31.1 (25min, 25P1) fps -54%
F1 2020
1280x720 Ultra Low Preset
Minisforum Venus Series UM690
AMD Radeon 680M
177 (149min) fps +2%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
174.3 (162min) fps
Morefine M600, 6900HX
AMD Radeon 680M
166.9 (146min) fps -4%
Morefine M600, 6600U
AMD Radeon 660M
102.1 (87min) fps -41%
Minisforum Neptune Series NAD9
Intel Iris Xe Graphics G7 96EUs
95.2 (83min) fps -45%
Minipc Union Ace Magician AMR5
Ace Magician AMR5, AMD Radeon RX Vega 7
90.4 (73min) fps -48%
Geekom Mini IT12
Intel Iris Xe Graphics G7 96EUs
82.1 (73min) fps -53%
1920x1080 Medium Preset AF:16x
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
87.4 (72min) fps
Minisforum Venus Series UM690
AMD Radeon 680M
86.3 (72min) fps -1%
Morefine M600, 6900HX
AMD Radeon 680M
80.9 (71min) fps -7%
Minisforum Neptune Series NAD9
Intel Iris Xe Graphics G7 96EUs
48.2 (41min) fps -45%
Morefine M600, 6600U
AMD Radeon 660M
44.6 (37min) fps -49%
Geekom Mini IT12
Intel Iris Xe Graphics G7 96EUs
43.3 (38min) fps -50%
Minipc Union Ace Magician AMR5
Ace Magician AMR5, AMD Radeon RX Vega 7
41.2 (34min) fps -53%
1920x1080 High Preset AA:T AF:16x
Minisforum Venus Series UM690
AMD Radeon 680M
67.6 (53min) fps +1%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
67.2 (54min) fps
Morefine M600, 6900HX
AMD Radeon 680M
63.7 (55min) fps -5%
Minisforum Neptune Series NAD9
Intel Iris Xe Graphics G7 96EUs
37 (31min) fps -45%
Geekom Mini IT12
Intel Iris Xe Graphics G7 96EUs
33.5 (28min) fps -50%
Morefine M600, 6600U
AMD Radeon 660M
32.3 (27min) fps -52%
Minipc Union Ace Magician AMR5
Ace Magician AMR5, AMD Radeon RX Vega 7
30.8 (26min) fps -54%
Borderlands 3
1280x720 Very Low Overall Quality (DX11)
Morefine M600, 6900HX
AMD Radeon 680M
90.7 fps +5%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
86.6 fps
Minisforum Venus Series UM690
AMD Radeon 680M
82.1 fps -5%
Minisforum Neptune Series NAD9
Intel Iris Xe Graphics G7 96EUs
59.1 fps -32%
Minipc Union Ace Magician AMR5
Ace Magician AMR5, AMD Radeon RX Vega 7
53.4 fps -38%
Geekom Mini IT12
Intel Iris Xe Graphics G7 96EUs
51.8 fps -40%
Morefine M600, 6600U
AMD Radeon 660M
49 fps -43%
1920x1080 High Overall Quality (DX11)
Minisforum Venus Series UM690
AMD Radeon 680M
26.5 fps +50%
Morefine M600, 6900HX
AMD Radeon 680M
24.1 fps +36%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
17.7 fps
Minisforum Neptune Series NAD9
Intel Iris Xe Graphics G7 96EUs
16.2 fps -8%
Geekom Mini IT12
Intel Iris Xe Graphics G7 96EUs
14.8 fps -16%
Morefine M600, 6600U
AMD Radeon 660M
13.6 fps -23%
Minipc Union Ace Magician AMR5
Ace Magician AMR5, AMD Radeon RX Vega 7
13.3 fps -25%
GTA V
1024x768 Lowest Settings possible
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
155.4 (6.68min, 111.1P1) fps
Morefine M600, 6900HX
AMD Radeon 680M
152.1 (2.73min, 100P1) fps -2%
Minisforum Venus Series UM690
AMD Radeon 680M
149.3 (5.43min, 100P1) fps -4%
Morefine M600, 6600U
AMD Radeon 660M
142.9 (1.358min, 71.4P1) fps -8%
Minisforum Neptune Series NAD9
Intel Iris Xe Graphics G7 96EUs
135.3 (26.7min, 90.9P1) fps -13%
Geekom Mini IT12
Intel Iris Xe Graphics G7 96EUs
119.3 (25.1min, 76.9P1) fps -23%
Minipc Union Ace Magician AMR5
Ace Magician AMR5, AMD Radeon RX Vega 7
114.3 (8.54min, 76.9P1) fps -26%
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Morefine M600, 6900HX
AMD Radeon 680M
53.5 (3.46min, 38.5P1) fps +2%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
52.2 (11.6min, 26.3P1) fps
Minisforum Venus Series UM690
AMD Radeon 680M
49.3 (7.78min, 34.5P1) fps -6%
Morefine M600, 6600U
AMD Radeon 660M
33.9 (1.094min, 20.4P1) fps -35%
Minipc Union Ace Magician AMR5
Ace Magician AMR5, AMD Radeon RX Vega 7
27.2 (6.42min, 20P1) fps -48%
Minisforum Neptune Series NAD9
Intel Iris Xe Graphics G7 96EUs
21 (8.15min, 16.1P1) fps -60%
Geekom Mini IT12
Intel Iris Xe Graphics G7 96EUs
18.6 (8min, 14.3P1) fps -64%
The Witcher 3
1024x768 Low Graphics & Postprocessing
Minisforum Venus Series UM690
AMD Radeon 680M
131.8 fps +1%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
130.7 fps
Morefine M600, 6900HX
AMD Radeon 680M
113.9 fps -13%
Minisforum Neptune Series NAD9
Intel Iris Xe Graphics G7 96EUs
97.2 fps -26%
Geekom Mini IT12
Intel Iris Xe Graphics G7 96EUs
86.9 fps -34%
Morefine M600, 6600U
AMD Radeon 660M
76.8 fps -41%
Minipc Union Ace Magician AMR5
Ace Magician AMR5, AMD Radeon RX Vega 7
61.8 (16.1min, 20.6P0.1, 34.6P1) fps -53%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
42.6 fps
Minisforum Venus Series UM690
AMD Radeon 680M
41.3 fps -3%
Morefine M600, 6900HX
AMD Radeon 680M
39.4 fps -8%
Minisforum Neptune Series NAD9
Intel Iris Xe Graphics G7 96EUs
32 fps -25%
Geekom Mini IT12
Intel Iris Xe Graphics G7 96EUs
28.9 fps -32%
Morefine M600, 6600U
AMD Radeon 660M
22.6 fps -47%
Minipc Union Ace Magician AMR5
Ace Magician AMR5, AMD Radeon RX Vega 7
19.6 (10.2min, 13P0.1, 16.4P1) fps -54%
Far Cry 5
1280x720 Low Preset AA:T
Morefine M600, 6900HX
AMD Radeon 680M
75 (60min) fps +3%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
73 (65min) fps
Minisforum Venus Series UM690
AMD Radeon 680M
71 (39min) fps -3%
Morefine M600, 6600U
AMD Radeon 660M
62 (49min) fps -15%
Minisforum Neptune Series NAD9
Intel Iris Xe Graphics G7 96EUs
57 (49min) fps -22%
Geekom Mini IT12
Intel Iris Xe Graphics G7 96EUs
50 (41min) fps -32%
Minipc Union Ace Magician AMR5
Ace Magician AMR5, AMD Radeon RX Vega 7
44 (38min) fps -40%
1920x1080 High Preset AA:T
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
40 (35min) fps
Minisforum Venus Series UM690
AMD Radeon 680M
39 (34min) fps -2%
Morefine M600, 6900HX
AMD Radeon 680M
34 (30min) fps -15%
Morefine M600, 6600U
AMD Radeon 660M
29 (25min) fps -27%
Minisforum Neptune Series NAD9
Intel Iris Xe Graphics G7 96EUs
27 (24min) fps -32%
Geekom Mini IT12
Intel Iris Xe Graphics G7 96EUs
25 (22min) fps -37%
Minipc Union Ace Magician AMR5
Ace Magician AMR5, AMD Radeon RX Vega 7
20 (17min) fps -50%
Far Cry New Dawn
1280x720 Low Preset
Morefine M600, 6900HX
AMD Radeon 680M
66 (50min) fps +3%
Minisforum Venus Series UM690
AMD Radeon 680M
65 (50min) fps +2%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
64 (49min) fps
Morefine M600, 6600U
AMD Radeon 660M
58 (42min) fps -9%
Minisforum Neptune Series NAD9
Intel Iris Xe Graphics G7 96EUs
52 (31min) fps -19%
Geekom Mini IT12
Intel Iris Xe Graphics G7 96EUs
46 (28min) fps -28%
Minipc Union Ace Magician AMR5
Ace Magician AMR5, AMD Radeon RX Vega 7
40 (31min) fps -37%
1920x1080 High Preset
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
39 (31min) fps
Minisforum Venus Series UM690
AMD Radeon 680M
37 (17min) fps -5%
Morefine M600, 6900HX
AMD Radeon 680M
37 (29min) fps -5%
Morefine M600, 6600U
AMD Radeon 660M
29 (23min) fps -26%
Minisforum Neptune Series NAD9
Intel Iris Xe Graphics G7 96EUs
28 (21min) fps -28%
Geekom Mini IT12
Intel Iris Xe Graphics G7 96EUs
25 (19min) fps -36%
Minipc Union Ace Magician AMR5
Ace Magician AMR5, AMD Radeon RX Vega 7
19 (16min) fps -51%
Dota 2 Reborn
1280x720 min (0/3) fastest
Minisforum Venus Series UM690
AMD Radeon 680M
143 (124.5min) fps +5%
Minisforum Neptune Series NAD9
Intel Iris Xe Graphics G7 96EUs
136.9 (106.8min) fps 0%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
136.8 (122.1min) fps
Morefine M600, 6600U
AMD Radeon 660M
135.9 (121.4min) fps -1%
Morefine M600, 6900HX
AMD Radeon 680M
133.4 (119min) fps -2%
Minipc Union Ace Magician AMR5
Ace Magician AMR5, AMD Radeon RX Vega 7
111 (97.1min) fps -19%
Geekom Mini IT12
Intel Iris Xe Graphics G7 96EUs
108.1 (86.6min) fps -21%
1920x1080 high (2/3)
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
85.3 (74.5min) fps
Minisforum Venus Series UM690
AMD Radeon 680M
84.3 (74.6min) fps -1%
Morefine M600, 6900HX
AMD Radeon 680M
82.2 (71.4min) fps -4%
Minisforum Neptune Series NAD9
Intel Iris Xe Graphics G7 96EUs
68 (62.7min) fps -20%
Morefine M600, 6600U
AMD Radeon 660M
64.9 (56.8min) fps -24%
Geekom Mini IT12
Intel Iris Xe Graphics G7 96EUs
60.9 (55.7min) fps -29%
Minipc Union Ace Magician AMR5
Ace Magician AMR5, AMD Radeon RX Vega 7
50.5 (43.6min) fps -41%
Final Fantasy XV Benchmark
1280x720 Lite Quality
Minisforum Venus Series UM690
AMD Radeon 680M
66.7 fps +10%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
60.5 fps
Morefine M600, 6900HX
AMD Radeon 680M
59.5 fps -2%
Minisforum Neptune Series NAD9
Intel Iris Xe Graphics G7 96EUs
45.7 fps -24%
Morefine M600, 6600U
AMD Radeon 660M
40.9 fps -32%
Geekom Mini IT12
Intel Iris Xe Graphics G7 96EUs
40.5 fps -33%
Minipc Union Ace Magician AMR5
Ace Magician AMR5, AMD Radeon RX Vega 7
34.6 fps -43%
1920x1080 Standard Quality
Minisforum Venus Series UM690
AMD Radeon 680M
32.3 fps +19%
Morefine M600, 6900HX
AMD Radeon 680M
31 fps +14%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
27.2 fps
Minisforum Neptune Series NAD9
Intel Iris Xe Graphics G7 96EUs
24.8 fps -9%
Geekom Mini IT12
Intel Iris Xe Graphics G7 96EUs
21.8 fps -20%
Morefine M600, 6600U
AMD Radeon 660M
19.8 fps -27%
Minipc Union Ace Magician AMR5
Ace Magician AMR5, AMD Radeon RX Vega 7
17.3 fps -36%
1920x1080 High Quality
Minisforum Neptune Series NAD9
Intel Iris Xe Graphics G7 96EUs
24.8 fps +28%
Minisforum Venus Series UM690
AMD Radeon 680M
23.6 fps +22%
Morefine M600, 6900HX
AMD Radeon 680M
23.4 fps +21%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
19.3 fps
Geekom Mini IT12
Intel Iris Xe Graphics G7 96EUs
15.7 fps -19%
Morefine M600, 6600U
AMD Radeon 660M
14.5 fps -25%
Minipc Union Ace Magician AMR5
Ace Magician AMR5, AMD Radeon RX Vega 7
12.6 fps -35%
X-Plane 11.11
1280x720 low (fps_test=1)
Minisforum Neptune Series NAD9
Intel Iris Xe Graphics G7 96EUs
66.1 fps +2%
Minisforum Venus Series UM690
AMD Radeon 680M
66.1 fps +2%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
65.1 fps
Morefine M600, 6900HX
AMD Radeon 680M
63.5 fps -2%
Geekom Mini IT12
Intel Iris Xe Graphics G7 96EUs
58.3 fps -10%
Morefine M600, 6600U
AMD Radeon 660M
50.6 fps -22%
1920x1080 med (fps_test=2)
Minisforum Venus Series UM690
AMD Radeon 680M
53.1 fps +1%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
52.8 fps
Morefine M600, 6900HX
AMD Radeon 680M
50.7 fps -4%
Minisforum Neptune Series NAD9
Intel Iris Xe Graphics G7 96EUs
47.3 fps -10%
Geekom Mini IT12
Intel Iris Xe Graphics G7 96EUs
43.1 fps -18%
Morefine M600, 6600U
AMD Radeon 660M
36.7 fps -30%
1920x1080 high (fps_test=3)
Minisforum Venus Series UM690
AMD Radeon 680M
43.1 fps +2%
Minisforum Neptune Series NAD9
Intel Iris Xe Graphics G7 96EUs
42.3 fps 0%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
42.2 fps
Morefine M600, 6900HX
AMD Radeon 680M
41.3 fps -2%
Geekom Mini IT12
Intel Iris Xe Graphics G7 96EUs
38.5 fps -9%
Morefine M600, 6600U
AMD Radeon 660M
30.8 fps -27%

Ace Magician AM08 Pro in Silent, Auto, and Performance Mode

Performance Rating - Percent
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
99.9 pt
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Radeon 680M
90 pt
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Radeon 680M
82.9 pt
F1 2021
1280x720 Ultra Low Preset
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
191.6 (154min, 143P1) fps
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Radeon 680M
184.5 (148min, 141P1) fps -4%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Radeon 680M
163.8 (131min, 129P1) fps -15%
1920x1080 Medium Preset AA:T AF:16x
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
82.9 (53min, 49P1) fps
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Radeon 680M
77.8 (62min, 47P1) fps -6%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Radeon 680M
73.4 (50min, 45P1) fps -11%
1920x1080 High Preset AA:T AF:16x
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
67.5 (41min, 39P1) fps
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Radeon 680M
59.8 (38min, 37P1) fps -11%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Radeon 680M
58.9 (45min, 41P1) fps -13%
F1 2020
1280x720 Ultra Low Preset
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
174.3 (162min) fps
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Radeon 680M
165.3 (153min) fps -5%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Radeon 680M
154.1 (141min) fps -12%
1920x1080 Medium Preset AF:16x
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
87.4 (72min) fps
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Radeon 680M
79.2 (53min) fps -9%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Radeon 680M
73.8 (63min) fps -16%
1920x1080 High Preset AA:T AF:16x
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
67.2 (54min) fps
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Radeon 680M
60.1 (41min) fps -11%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Radeon 680M
57.8 (48min) fps -14%
Borderlands 3
1280x720 Very Low Overall Quality (DX11)
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
86.6 fps
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Radeon 680M
85.5 fps -1%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Radeon 680M
78.8 fps -9%
1920x1080 Medium Overall Quality (DX11)
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Radeon 680M
28.7 fps +3%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
28 fps
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Radeon 680M
27.6 fps -1%
1920x1080 High Overall Quality (DX11)
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Radeon 680M
18 fps +2%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
17.7 fps
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Radeon 680M
16.9 fps -5%
GTA V
1024x768 Lowest Settings possible
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
155.4 (6.68min, 111.1P1) fps
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Radeon 680M
151.6 (5.47min, 100P1) fps -2%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Radeon 680M
142.8 (1.614min, 83.3P1) fps -8%
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
52.2 (11.6min, 26.3P1) fps
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Radeon 680M
47.5 (12.1min, 23.8P1) fps -9%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Radeon 680M
46.4 (1.402min, 22.7P1) fps -11%
The Witcher 3
1024x768 Low Graphics & Postprocessing
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
130.7 fps
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Radeon 680M
97.3 fps -26%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Radeon 680M
94.2 fps -28%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
42.6 fps
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Radeon 680M
29.3 fps -31%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Radeon 680M
24.2 fps -43%
Far Cry 5
1280x720 Low Preset AA:T
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
73 (65min) fps
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Radeon 680M
72 (65min) fps -1%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Radeon 680M
53 (45min) fps -27%
1920x1080 Medium Preset AA:T
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
43 (37min) fps
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Radeon 680M
43 (36min) fps 0%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Radeon 680M
25 (17min) fps -42%
1920x1080 High Preset AA:T
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
40 (35min) fps
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Radeon 680M
37 (27min) fps -7%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Radeon 680M
26 (22min) fps -35%
Far Cry New Dawn
1280x720 Low Preset
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
64 (49min) fps
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Radeon 680M
63 (50min) fps -2%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Radeon 680M
58 (45min) fps -9%
1920x1080 Medium Preset
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
41 (32min) fps
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Radeon 680M
34 (28min) fps -17%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Radeon 680M
31 (19min) fps -24%
1920x1080 High Preset
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
39 (31min) fps
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Radeon 680M
37 (22min) fps -5%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Radeon 680M
32 (19min) fps -18%
Dota 2 Reborn
1280x720 min (0/3) fastest
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Radeon 680M
137.9 (122.9min) fps +1%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
136.8 (122.1min) fps
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Radeon 680M
132.9 (110min) fps -3%
1366x768 med (1/3)
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
114.6 (101.7min) fps
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Radeon 680M
111.3 (96.8min) fps -3%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Radeon 680M
104.7 (88.3min) fps -9%
1920x1080 high (2/3)
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
85.3 (74.5min) fps
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Radeon 680M
78.6 (69min) fps -8%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Radeon 680M
73.3 (63.4min) fps -14%
Final Fantasy XV Benchmark
1280x720 Lite Quality
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
60.5 fps
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Radeon 680M
48.2 fps -20%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Radeon 680M
47.9 fps -21%
1920x1080 Standard Quality
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
27.2 fps
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Radeon 680M
22.4 fps -18%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Radeon 680M
22 fps -19%
1920x1080 High Quality
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
19.3 fps
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Radeon 680M
16.2 fps -16%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Radeon 680M
15.6 fps -19%
X-Plane 11.11
1280x720 low (fps_test=1)
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
65.1 fps
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Radeon 680M
64.3 fps -1%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Radeon 680M
60 fps -8%
1920x1080 med (fps_test=2)
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
52.8 fps
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Radeon 680M
51 fps -3%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Radeon 680M
47 fps -11%
1920x1080 high (fps_test=3)
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
42.2 fps
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Radeon 680M
41.1 fps -3%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Radeon 680M
36.3 fps -14%
Tiny Tina's Wonderlands
1280x720 Lowest Preset (DX12)
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
121.7 fps
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Radeon 680M
90.6 fps -26%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Radeon 680M
83.7 fps -31%
1920x1080 Medium Preset (DX12)
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
34.8 fps
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Radeon 680M
32.7 fps -6%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Radeon 680M
28.4 fps -18%
1920x1080 High Preset (DX12)
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
24.4 fps
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Radeon 680M
23.4 fps -4%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Radeon 680M
20.5 fps -16%
GRID Legends
1280x720 Low Preset
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
129.9 (53.8min) fps
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Radeon 680M
115.9 (44.3min) fps -11%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Radeon 680M
101.9 (30.7min) fps -22%
1920x1080 Medium Preset
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
66.7 (33.1min) fps
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Radeon 680M
50 (4.32min) fps -25%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Radeon 680M
47.4 (3.63min) fps -29%
1920x1080 High Preset
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
51.9 (10min) fps
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Radeon 680M
44.1 (19.4min) fps -15%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Radeon 680M
37.3 (18.3min) fps -28%
Shadow of the Tomb Raider
1280x720 Lowest Preset
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Radeon 680M
92.9 fps 0%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
92.7 fps
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Radeon 680M
56.9 fps -39%
1920x1080 Medium Preset
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
26.4 fps
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Radeon 680M
23.9 fps -9%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Radeon 680M
20.7 fps -22%
1920x1080 High Preset AA:SM
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
25.2 fps
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Radeon 680M
20.6 fps -18%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Radeon 680M
18.7 fps -26%
Strange Brigade
1280x720 lowest AF:1
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
149.9 (100.2min, 129.1P1) fps
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Radeon 680M
140.9 (83.6min, 113.1P1) fps -6%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Radeon 680M
135.7 (74.4min, 113.8P1) fps -9%
1920x1080 medium AA:medium AF:4
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
59 (48.9min, 51.5P1) fps
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Radeon 680M
56.4 (27.7min, 30P1) fps -4%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Radeon 680M
54.2 (43.1min, 48.2P1) fps -8%
1920x1080 high AA:high AF:8
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), AMD Radeon 680M
49.1 (36.2min, 39P1) fps
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), AMD Radeon 680M
43.2 (21min, 23.2P1) fps -12%
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), AMD Radeon 680M
41.8 (21.5min, 22.2P1) fps -15%
bajomedioaltoultra
GTA V (2015) 155.4 143.9 52.2 22.7
The Witcher 3 (2015) 130.7 82.9 42.6 25.8
Dota 2 Reborn (2015) 136.8 114.6 85.3 75.2
Final Fantasy XV Benchmark (2018) 60.5 27.2 19.3
X-Plane 11.11 (2018) 65.1 52.8 42.2
Far Cry 5 (2018) 73 43 40 38
Strange Brigade (2018) 149.9 59 49.1 42.7
Shadow of the Tomb Raider (2018) 92.7 26.4 25.2 23.3
Far Cry New Dawn (2019) 64 41 39 36
Metro Exodus (2019) 57.8 31 23.4 19.8
Borderlands 3 (2019) 86.6 28 17.7 14.5
F1 2020 (2020) 174.3 87.4 67.2 46.4
F1 2021 (2021) 191.6 82.9 67.5 28.9
Far Cry 6 (2021) 77.9 45.2 38.4 32
God of War (2022) 20.4 16.5 12.2 8.98
GRID Legends (2022) 93.5 66.7 51.9 40.6
Tiny Tina's Wonderlands (2022) 51.9 34.8 24.4 20.5
F1 22 (2022) 85.4 74.6 55 14.1
F1 23 (2023) 66.6 56.3 40.9 10.7

Nvidia GeForce RTX 3060 Ti a través de Thunderbolt 3

Performance Rating - Percent
Intel NUC 12 Pro Kit NUC12WSKi7
NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P
96.7 pt
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3)
Intel Core i7-1260P
95.6 pt
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 9 6900HX
87 pt
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 9 6900HX
84.9 pt
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 9 6900HX
84.1 pt
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 5 6600U
79.1 pt
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti
Intel Core i5-1135G7
73.4 pt
GTA V - 1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3)
Intel Core i7-1260P
96.6 (15min, 66.7P1 - 168.7max) fps +326%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 9 6900HX
93.3 (11.5min, 58.8P1 - 195.1max) fps +311%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 9 6900HX
90.5 (15.8min, 62.5P1 - 187.2max) fps +299%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 9 6900HX
89.5 (16.6min, 58.8P1 - 175.8max) fps +294%
Intel NUC 12 Pro Kit NUC12WSKi7
NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P
85.1 (17.4min, 52.6P1 - 186.7max) fps +275%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 5 6600U
76.1 (11.9min, 50P1 - 151.7max) fps +235%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti
Intel Core i5-1135G7
56.1 (15.7min, 38.5P1 - 119.1max) fps +147%

22.7 (6.64min, 13.2P1 - 73.1max) fps
The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Intel NUC 12 Pro Kit NUC12WSKi7
NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P
75.3 (40.5min, 52.6P0.1, 59.5P1 - 173.3max) fps +192%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3)
Intel Core i7-1260P
73.8 fps +186%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti
Intel Core i5-1135G7
60.8 (40.3min, 43P0.1, 46.6P1 - 140.7max) fps +136%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 9 6900HX
57.9 fps +124%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 5 6600U
56.6 fps +119%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 9 6900HX
56.4 fps +119%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 9 6900HX
56.3 fps +118%

25.8 fps
Dota 2 Reborn - 1920x1080 ultra (3/3) best looking
Intel NUC 12 Pro Kit NUC12WSKi7
NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P
134.5 (115.1min) fps +79%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3)
Intel Core i7-1260P
126.2 (108.1min) fps +68%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 9 6900HX
113.8 (93.5min) fps +51%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 9 6900HX
113.3 (94.8min) fps +51%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 9 6900HX
111.7 (92.8min) fps +49%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 5 6600U
105 (89.2min) fps +40%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti
Intel Core i5-1135G7
92.8 (79.9min) fps +23%

75.2 (67min) fps
Final Fantasy XV Benchmark - 1920x1080 High Quality
Intel NUC 12 Pro Kit NUC12WSKi7
NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P
97.6 fps +406%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3)
Intel Core i7-1260P
97.4 fps +405%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 9 6900HX
92.2 fps +378%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 9 6900HX
91.8 fps +376%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 9 6900HX
91.5 fps +374%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 5 6600U
91.2 fps +373%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti
Intel Core i5-1135G7
79 fps +309%

19.3 fps
Strange Brigade - 1920x1080 ultra AA:ultra AF:16
Intel NUC 12 Pro Kit NUC12WSKi7
NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P
148.8 (78.4min, 90.6P1 - 285max) fps +248%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3)
Intel Core i7-1260P
147 (76.9min, 90.8P1 - 300max) fps +244%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 9 6900HX
135 (67.5min, 82.2P1 - 274max) fps +216%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 9 6900HX
131.1 (68.1min, 78.3P1 - 270max) fps +207%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 5 6600U
128.7 (36min, 76.1P1 - 249max) fps +201%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 9 6900HX
127.4 (45.3min, 77.9P1 - 260max) fps +198%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti
Intel Core i5-1135G7
114.7 (58.8min, 72.4P1 - 210max) fps +169%

42.7 (22.7min, 32.2P1 - 108.8max) fps
Far Cry 5 - 1920x1080 Ultra Preset AA:T
Intel NUC 12 Pro Kit NUC12WSKi7
NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P
120 (92min - 158max) fps +216%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3)
Intel Core i7-1260P
114 (85min - 152max) fps +200%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 9 6900HX
111 (90min - 149max) fps +192%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 9 6900HX
107 (72min - 143max) fps +182%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 9 6900HX
104 (77min - 138max) fps +174%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 5 6600U
88 (68min - 117max) fps +132%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti
Intel Core i5-1135G7
60 (46min - 78max) fps +58%

38 (33min - 45max) fps
Far Cry New Dawn - 1920x1080 Ultra Preset
Intel NUC 12 Pro Kit NUC12WSKi7
NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P
101 (74min - 147max) fps +181%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3)
Intel Core i7-1260P
95 (69min - 143max) fps +164%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 9 6900HX
93 (68min - 140max) fps +158%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 9 6900HX
88 (63min - 132max) fps +144%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 9 6900HX
87 (62min - 135max) fps +142%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 5 6600U
77 (54min - 122max) fps +114%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti
Intel Core i5-1135G7
54 (39min - 85max) fps +50%

36 (28min - 47max) fps
F1 2020 - 1920x1080 Ultra High Preset AA:T AF:16x
Intel NUC 12 Pro Kit NUC12WSKi7
NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P
102.7 (53min - 145max) fps +121%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3)
Intel Core i7-1260P
100.5 (58min - 143max) fps +117%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 9 6900HX
86.7 (48min - 122max) fps +87%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 9 6900HX
86.7 (47min - 121max) fps +87%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 5 6600U
84.5 (42min - 120max) fps +82%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 9 6900HX
82.4 (39min - 117max) fps +78%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti
Intel Core i5-1135G7
81.5 (43min - 107max) fps +76%

46.4 (36min - 59max) fps
F1 2021 - 1920x1080 Ultra High Preset + Raytracing AA:T AF:16x
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti
Intel Core i5-1135G7
65.4 (47min, 47P1 - 73max) fps +126%
Intel NUC 12 Pro Kit NUC12WSKi7
NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P
51.7 (34min, 24P1 - 59max) fps +79%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3)
Intel Core i7-1260P
51.5 (31min, 27P1 - 60max) fps +78%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 9 6900HX
44.1 (9min, 19P1 - 52max) fps +53%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 9 6900HX
44 (9min, 20P1 - 52max) fps +52%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 9 6900HX
43.5 (10min, 19P1 - 51max) fps +51%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 5 6600U
42.8 (11min, 19P1 - 50max) fps +48%

28.9 (21min, 19P1 - 33max) fps
Borderlands 3 - 1920x1080 Badass Overall Quality (DX11)
Intel NUC 12 Pro Kit NUC12WSKi7
NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P
83.6 fps +477%
Geekom Mini IT12 (Nvidia GeForce RTX 3060 Ti FE TB3)
Intel Core i7-1260P
83.2 fps +474%
Ace Magician AM08Pro (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 9 6900HX
77.9 fps +437%
Minisforum Venus Series UM690 (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 9 6900HX
76.4 fps +427%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti
Intel Core i5-1135G7
71.3 fps +392%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 9 6900HX
69.8 fps +381%
Morefine M600 (Nvidia GeForce RTX 3060 Ti FE TB3)
AMD Ryzen 5 6600U
68.7 fps +374%

14.5 fps
bajomedioaltoultraQHD4K
GTA V (2015) 178.9 173 159.5 93.3 86.2 97.5
The Witcher 3 (2015) 214.9 144.3 109.3 56.4 61.7
Dota 2 Reborn (2015) 143.9 129.4 128.5 113.8 98
Final Fantasy XV Benchmark (2018) 192 133.2 91.8 73.7 46.8
X-Plane 11.11 (2018) 113.7 100.5 80 69.6
Far Cry 5 (2018) 142 124 118 111 92 56
Strange Brigade (2018) 177.7 140 138.2 135 120.2 80.5
Shadow of the Tomb Raider (2018) 122.7 95 93.3 90 78.8 52.1
Far Cry New Dawn (2019) 123 107 104 93 85 58
Metro Exodus (2019) 115.7 79.5 59.8 45.1 40.2 30.7
Borderlands 3 (2019) 127.3 110.5 92.7 77.9 61.5 37.1
F1 2020 (2020) 184.6 109.2 103.5 86.7 74.5 52.7
F1 2021 (2021) 117.9 89.2 56.8 44.1 39.7 34.5
Far Cry 6 (2021) 64 55.1 45.3 38.9 38.1
God of War (2022) 99.3 87.6 74.1 56.8 51 38
GRID Legends (2022) 106.4 83.2 66.8 58.2 52.5 42.6
Tiny Tina's Wonderlands (2022) 157.1 126.1 91.9 75.3 58.2 35.1
F1 22 (2022) 50.1 47.2 35.2 23.6 22 17.7

Emisiones - El AM08 Pro no puede pasar desapercibido

Niveles de ruido

Unidad de refrigeración del Ace Magician AM08 Pro (Fuente: Ace Magician)
Unidad de refrigeración del Ace Magician AM08 Pro (Fuente: Ace Magician)

En nuestras mediciones de ruido, vemos una ligera mejora en comparación con el Ace Magician AMR5. Pero esto ya es todo, ya que todos los demás dispositivos de comparación siguen siendo significativamente más silenciosos por partes en todos los escenarios de prueba. Mientras que nuestro Ace Magician AM08 Pro funciona de forma bastante silenciosa con un máximo de 31,4 dB(A) durante el funcionamiento en reposo, los ventiladores se aceleran significativamente bajo carga. Medimos un nivel de ruido máximo de 47,8 dB (A), y el dispositivo no es notablemente más silencioso en promedio, con 47,6 dB (A) bajo carga. Sólo vemos algunas mejoras significativas en el nivel de ruido en modo Auto o Silencio. Sin embargo, con un poco más de 38 dB(A) en funcionamiento automático, el Ace Magician AM08 Pro sigue siendo más ruidoso que sus competidores. Sólo en el modo silencioso el Ace Magician AM08 Pro es capaz de mantenerse al día con los competidores en términos de nivel de ruido.

ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), R9 6900HX, Radeon 680M
Minipc Union Ace Magician AMR5
Ace Magician AMR5, R5 5600U, Vega 7
Morefine M600, 6900HX
R9 6900HX, Radeon 680M
Minisforum Venus Series UM690
R9 6900HX, Radeon 680M
Minisforum Neptune Series NAD9
i9-12900H, Iris Xe G7 96EUs
Geekom Mini IT12
i7-1260P, Iris Xe G7 96EUs
Morefine M600, 6600U
R5 6600U, Radeon 660M
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), R9 6900HX, Radeon 680M
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), R9 6900HX, Radeon 680M
Noise
-4%
8%
9%
13%
13%
16%
12%
7%
off / environment *
30
30.5
-2%
30.4
-1%
30.5
-2%
30.2
-1%
29.8
1%
29.4
2%
30
-0%
30
-0%
Idle Minimum *
31.3
31.5
-1%
30.9
1%
31.6
-1%
30.5
3%
29.9
4%
29.4
6%
30.1
4%
30.3
3%
Idle Average *
31.3
32.6
-4%
31.5
-1%
31.6
-1%
30.5
3%
30.1
4%
29.4
6%
30.3
3%
30.8
2%
Idle Maximum *
31.4
33.8
-8%
31.5
-0%
31.6
-1%
30.5
3%
30.2
4%
29.5
6%
31
1%
31.4
-0%
Load Average *
47.6
49.3
-4%
37.5
21%
33.9
29%
30.5
36%
32.1
33%
29.6
38%
32.1
33%
38.4
19%
Load Maximum *
47.8
50.9
-6%
34.1
29%
34.4
28%
30.5
36%
32.5
32%
29.6
38%
32.4
32%
38.5
19%

* ... más pequeño es mejor

Ace Magician AM08 Pro - Performance mode

Ruido

Ocioso
31.3 / 31.3 / 31.4 dB(A)
Carga
47.6 / 47.8 dB(A)
  red to green bar


30 dB
silencioso
40 dB(A)
audible
50 dB(A)
ruidosamente alto

min: dark, med: mid, max: light   Earthworks M23R, Arta (15 cm de distancia)   environment noise: 30 dB(A)

Ace Magician AM08 Pro - Auto mode

Ruido

Ocioso
30.3 / 30.8 / 31.4 dB(A)
Carga
38.4 / 38.5 dB(A)
  red to green bar


30 dB
silencioso
40 dB(A)
audible
50 dB(A)
ruidosamente alto

min: dark, med: mid, max: light   Earthworks M23R, Arta (15 cm de distancia)   environment noise: 30 dB(A)

Ace Magician AM08 Pro - Silent mode

Ruido

Ocioso
30.1 / 30.3 / 31 dB(A)
Carga
32.1 / 32.4 dB(A)
  red to green bar


30 dB
silencioso
40 dB(A)
audible
50 dB(A)
ruidosamente alto

min: dark, med: mid, max: light   Earthworks M23R, Arta (15 cm de distancia)   environment noise: 30 dB(A)

Temperaturas

Debido a la selección de materiales, la carcasa del Ace Magician AM08 Pro no se calienta demasiado. Vemos las temperaturas más altas en la zona de las rejillas de ventilación, que era de esperar. Los dos ventiladores son capaces de mantener el SoC constantemente a un buen nivel de rendimiento en el modo Rendimiento, como ya vimos en nuestra prueba del bucle Cinebench R15 Multi. Durante el test de estrés, observamos valores similares en términos de temperaturas. Medimos un máximo de 86.7 °C durante el test de carga Prime95. El SoC podría haber aguantado algo más de calor aquí, ya que AMD especifica un tJMax de 95 °C para el AMD Ryzen 9 6900HX. Con eso, el dispositivo habría podido funcionar más silenciosamente en modo Rendimiento. Debido al TDP ralentizado, vemos temperaturas significativamente inferiores en los otros modos.

Prueba de esfuerzo Prime95 sola
Prueba de esfuerzo Prime95 sola
Prueba de esfuerzo FurMark solo
Prueba de esfuerzo FurMark solo
Prueba de esfuerzo Prime95 + FurMark
Prueba de esfuerzo Prime95 + FurMark
Prueba de estrés Prime95 + FurMark (modo silencioso)
Prueba de estrés Prime95 + FurMark (modo silencioso)
Prueba de resistencia Prime95 + FurMark (modo automático)
Prueba de resistencia Prime95 + FurMark (modo automático)
Ace Magician AM08 Pro durante la prueba de resistencia (vista frontal)
Ace Magician AM08 Pro durante la prueba de resistencia (vista frontal)
Ace Magician AM08 Pro durante la prueba de resistencia (vista lateral)
Ace Magician AM08 Pro durante la prueba de resistencia (vista lateral)
Ace Magician AM08 Pro durante la prueba de resistencia (vista trasera)
Ace Magician AM08 Pro durante la prueba de resistencia (vista trasera)
Ace Magician AM08 Pro durante la prueba de esfuerzo (cargador)
Ace Magician AM08 Pro durante la prueba de esfuerzo (cargador)

Consumo de energía

cargador de 120 vatios
cargador de 120 vatios

El consumo de energía del Ace Magician AM08 Pro nos sorprende un poco. En comparación con los competidores que se basan en el mismo SoC, nuestra unidad de prueba es básicamente más eficiente bajo carga. Durante el funcionamiento en reposo, nuestra unidad de prueba es a veces menos eficiente que los competidores. Lo que destaca es el mayor consumo de energía en modo Silencioso y Automático. No podemos determinar de forma concluyente a qué se debe. Para excluir errores de medición, repetimos nuestras mediciones, obteniendo resultados similares.

El cargador incluido suministra un máximo de 120 vatios, por lo que su tamaño es suficiente. Con nuestro modelo, oímos un zumbido perceptible de la bobina, pero sólo durante el funcionamiento al ralentí.

ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Performance), R9 6900HX, Radeon 680M
Minipc Union Ace Magician AMR5
Ace Magician AMR5, R5 5600U, Vega 7
Morefine M600, 6900HX
R9 6900HX, Radeon 680M
Minisforum Venus Series UM690
R9 6900HX, Radeon 680M
Minisforum Neptune Series NAD9
i9-12900H, Iris Xe G7 96EUs
Geekom Mini IT12
i7-1260P, Iris Xe G7 96EUs
Morefine M600, 6600U
R5 6600U, Radeon 660M
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Silent), R9 6900HX, Radeon 680M
ACEMagician Ace Magician AM08 Pro
AM08 Pro, 6900HX (Auto), R9 6900HX, Radeon 680M
Average AMD Radeon 680M

Average of class Mini PC

Power Consumption
25%
-4%
7%
-26%
26%
18%
8%
-7%
22%
-4%
Idle Minimum *
9.6
8.4
12%
9.9
-3%
8.7
9%
12.1
-26%
5
48%
8
17%
10.7
-11%
10.8
-13%
Idle Average *
9.9
8.7
12%
11
-11%
9.6
3%
13
-31%
7
29%
8.7
12%
11
-11%
11
-11%
Idle Maximum *
11.8
9.3
21%
11.2
5%
10.5
11%
18.2
-54%
10.7
9%
8.8
25%
13.7
-16%
18.6
-58%
Load Average *
77.5
46.4
40%
74.2
4%
65.8
15%
70.6
9%
50.3
35%
54.6
30%
45.8
41%
59.9
23%
53.1 ?(20 - 77.7, n=32)
31%
Load Maximum *
89.8
52
42%
103.2
-15%
94.5
-5%
113
-26%
82
9%
83.2
7%
55.1
39%
69.8
22%

* ... más pequeño es mejor

Ace Magician AM08 Pro - Performance mode

Consumo de corriente
Off / Standbydarklight 1.7 / 9.1 Watt
Ociosodarkmidlight 9.6 / 9.9 / 11.8 Watt
Carga midlight 77.5 / 89.8 Watt
 color bar
Clave: min: dark, med: mid, max: light        Metrahit Energy

Ace Magician AM08 Pro - Auto mode

Consumo de corriente
Off / Standbydarklight 1.7 / 9.1 Watt
Ociosodarkmidlight 10.8 / 11 / 18.6 Watt
Carga midlight 59.9 / 69.8 Watt
 color bar
Clave: min: dark, med: mid, max: light        Metrahit Energy
Consumo de corriente
Off / Standbydarklight 1.7 / 9.1 Watt
Ociosodarkmidlight 10.7 / 11 / 13.7 Watt
Carga midlight 45.8 / 55.1 Watt
 color bar
Clave: min: dark, med: mid, max: light        Metrahit Energy

Power Consumption with External Monitor

0510152025303540455055606570758085Tooltip
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance); Prime95 V2810 Stress (external Monitor): Ø76.4 (74.1-86.6)
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent); Prime95 V2810 Stress (external Monitor): Ø48.7 (48-55.1)
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto); Prime95 V2810 Stress (external Monitor): Ø59.6 (54.9-69.8)
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance); Cinebench R15 Multi (external Monitor): Ø75.4 (71.7-82.7)
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent); Cinebench R15 Multi (external Monitor): Ø45.9 (43.1-51.3)
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent); Cinebench R15 Multi (external Monitor): Ø44.6 (42.2-52)
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto); Cinebench R15 Multi (external Monitor): Ø60.5 (57-65.4)
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance); 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø74.6 (64.4-86.4)
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent); 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø46.5 (39.7-57.5)
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto); 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø63.7 (60-70)
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance); 1920x1080 The Witcher 3 ultra (external Monitor): Ø76.8 (66.9-82.1)
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent); 1920x1080 The Witcher 3 ultra (external Monitor): Ø42.1 (38.1-47.3)
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto); 1920x1080 The Witcher 3 ultra (external Monitor): Ø55.9 (52.6-64.3)
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Performance); Idle 1min (external Monitor): Ø10.8 (10.4-11.8)
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Silent); Idle 1min (external Monitor): Ø11 (9.99-13.7)
ACEMagician Ace Magician AM08 Pro AM08 Pro, 6900HX (Auto); Idle 1min (external Monitor): Ø13 (9.55-18.6)

Pro

+ gran diseño con RGB discreto
+ excelente rendimiento de la AMD Radeon 680M
+ rápido y moderno Ryzen 9 6900HX
+ 32 GB DE RAM DDR5
+ excelente rendimiento del sistema
+ consumo de energía adecuado
+ 3 modos de rendimiento diferentes
+ se pueden utilizar hasta 3 pantallas simultáneamente
+ USB 4 + Thunderbolt
+ rápida apertura de la carcasa
+ 36 meses de garantía

Contra

- sin lector de tarjetas SD
- las conexiones de pantalla admiten un máximo de 4K@60Hz
- fuerte bajo carga (modo Rendimiento)
- sólo 512 GB de almacenamiento

Veredicto - Un rendimiento sólido gracias al AMD Ryzen 9 6900HX

Probando el Ace Magician AM08 Pro, unidad de prueba proporcionada por Ace Magician
Probando el Ace Magician AM08 Pro, unidad de prueba proporcionada por Ace Magician

El Ace Magician AM08 Pro es un mini PC de gama alta que ofrece un excelente rendimiento gracias al AMD Ryzen 9 6900HX. Nuestra unidad de prueba fue capaz de producir buenos resultados en todas las pruebas, ofreciendo básicamente un rendimiento similar al de los competidores basados en el mismo procesador. Comparado con su predecesor directo, el Ace Magician AMR5, tanto el rendimiento de la CPU como el de la iGPU se han incrementado notablemente. El SoC Rembrandt ofrece una iGPU muy potente con la GPU AMD Radeon 680Mque actualmente no tiene competidores y sólo puede ser superada por adaptadores gráficos dedicados. Con este equipo, el Ace Magician AM08 Pro ofrece una excelente base como PC de juegos compacto. Pero al mismo tiempo, también tenemos que tener claro que el pequeño paquete de potencia es incapaz de seguir el ritmo de un PC de juegos "grande". Sin embargo, el Ace Magician AM08 Pro todavía nos convenció en muchos aspectos. Debemos mencionar el buen equipo de conexión, que también ofrece muchas opciones con Thunderbolt, pero los tres modos de energía diferentes también son buenos, ahorrando mucha energía en el funcionamiento diario, ya que puede completar muchas tareas también en modo silencioso.

El Ace Magician AM08 Pro ofrece un excelente rendimiento de la CPU basado en el AMD Ryzen 9 6900HX. Además, el SoC Rembrandt también trae una potente iGPU, que puede considerarse adecuada para juegos en un sentido limitado.

Nuestra principal queja es con la unidad de refrigeración: Por un lado es capaz de refrigerar bien el sistema, permitiéndole siempre ofrecer todo el rendimiento, pero por otro, es simplemente demasiado ruidosa. Aquellos que no siempre quieran usar el eficiente modo silencioso oirán el dispositivo a menudo. En el pasado, pudimos probar otros mini PC que ofrecían un rendimiento similar sin dejar de ser silenciosos. Cabe mencionar los dispositivos de Minisforum (Serie Venus UM690) y Morefine (M600).

Precio y disponibilidad

El Ace Magician AM08 Pro en nuestra configuración de prueba se puede comprar directamente al fabricante por $650 en los EE.UU. Actualmente hay una rebaja de preventa, con un precio regular de $ 870. En el momento de esta prueba, el modelo barebone cuesta $560 en los EE.UU con un precio normal de 700 dólares.

Nuestra unidad de prueba fue proporcionada por el fabricante sin coste alguno para el autor. El fabricante no influyó en los resultados de las pruebas y no recibió una copia de este informe antes de su publicación. No había ningún requisito para su publicación.

ACEMagician Ace Magician AM08 Pro - 06/02/2023 v7 (old)
Sebastian Bade

Acabado
87 / 98 → 89%
Conectividad
60 / 81 → 74%
Peso
77%
Rendimiento de juegos
78%
Rendimiento de la Aplicación
94%
Workstation
79%
Ruido
72%
Médio
78%
82%
Mini PC - media ponderada
Please share our article, every link counts!
Mail Logo
> Análisis y pruebas de ordenadores portátiles y móviles teléfonos > Análisis > Mini PC para juegos Ace Magician AM08 Pro con Radeon 680M y Ryzen 9 6900HX ¡en nuestra prueba exhaustiva!
Sebastian Bade, 2023-06- 3 (Update: 2023-06- 3)
