El NucBox K2 es el último mini PC de GMKtec para entornos domésticos y de oficina. Aunque su nombre pueda sugerir que sustituye directamente al NucBox K1el NucBox K2 pertenece a su propia categoría, ya que el K1 se dirige a un subconjunto diferente de usuarios de mini PC.

Nuestra unidad de análisis viene configurada con la CPU AMD Ryzen 7 7735HS Zen 3+, GPU Radeon 680M integrada, SSD PCIe3 de 1 TB y 32 GB de RAM por aproximadamente 580 dólares o sólo 480 dólares en oferta. También hay disponibles SKU con la mitad de RAM y almacenamiento, e incluso una con el Ryzen 9 7940HS Zen 4 más rápido por algo menos de 800 dólares. Actualmente no hay opciones barebone.

Las alternativas al NucBox 2 incluyen otros mini PC con gráficos integrados como el Lenovo IdeaCentre Mini, Geekom Mini iT13, Trigkey Speed So Intel NUC 13 Pro.

Más opiniones sobre GMK:

Caso: simplificar las cosas

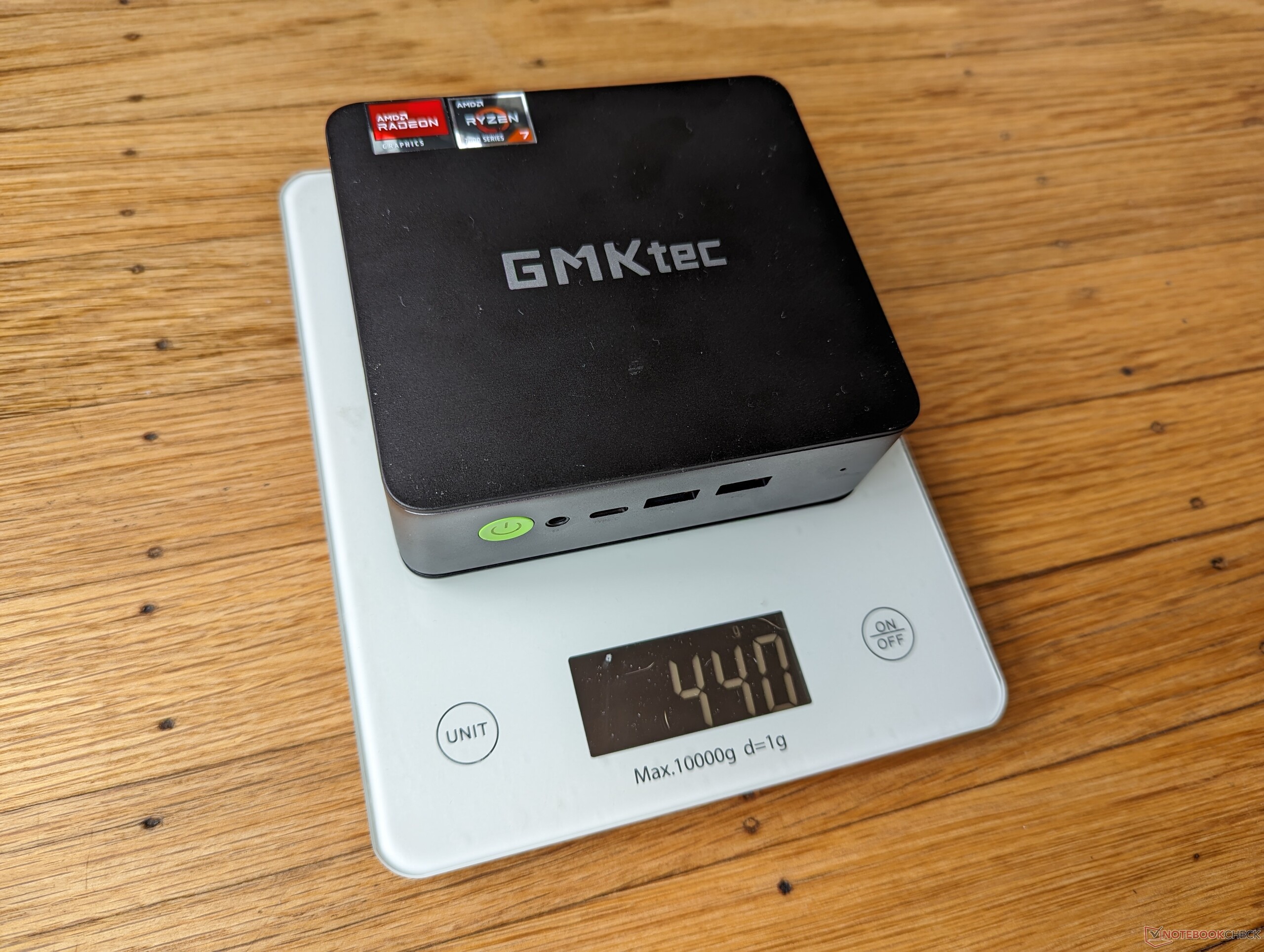

El NucBox K2 es notablemente más ligero que muchos otros mini PC de tamaño similar, incluyendo el Intel NUC 13 Pro y el Geekom Mini IT11. El inconveniente, sin embargo, es que el K2 utiliza más plástico en sus superficies superior e inferior, mientras que sólo los lados y los bordes son de metal. Su diseño totalmente mate es definitivamente más sutil que mini PCs como el Beelink SER7 en los que su aspecto cromado brillante atrae todas las miradas. No obstante, la rigidez del chasis sigue siendo muy buena y no ha habido problemas de calidad de construcción en nuestra unidad específica.

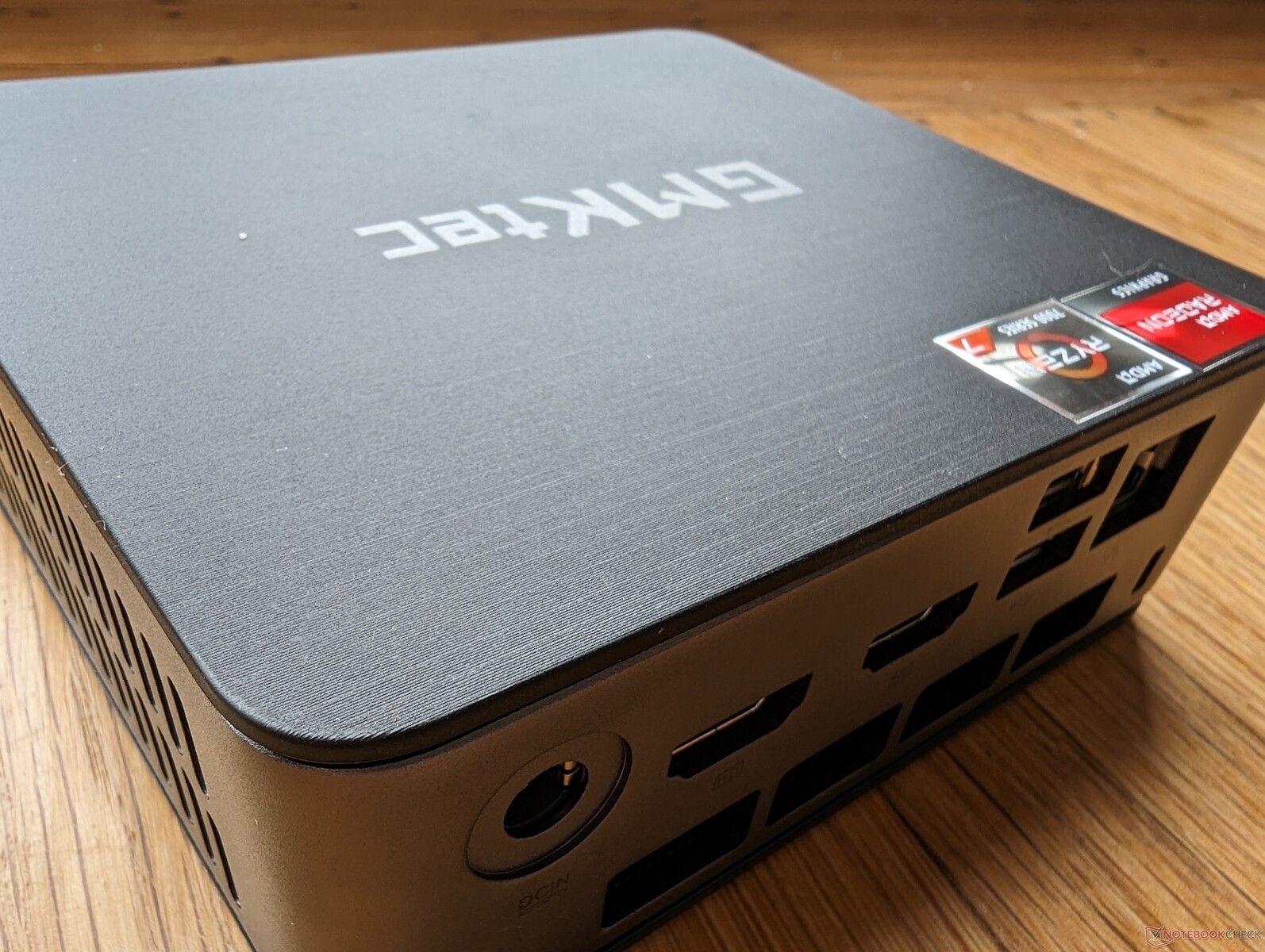

Cubierta superior de plástico mate sin diseños metálicos extravagantes

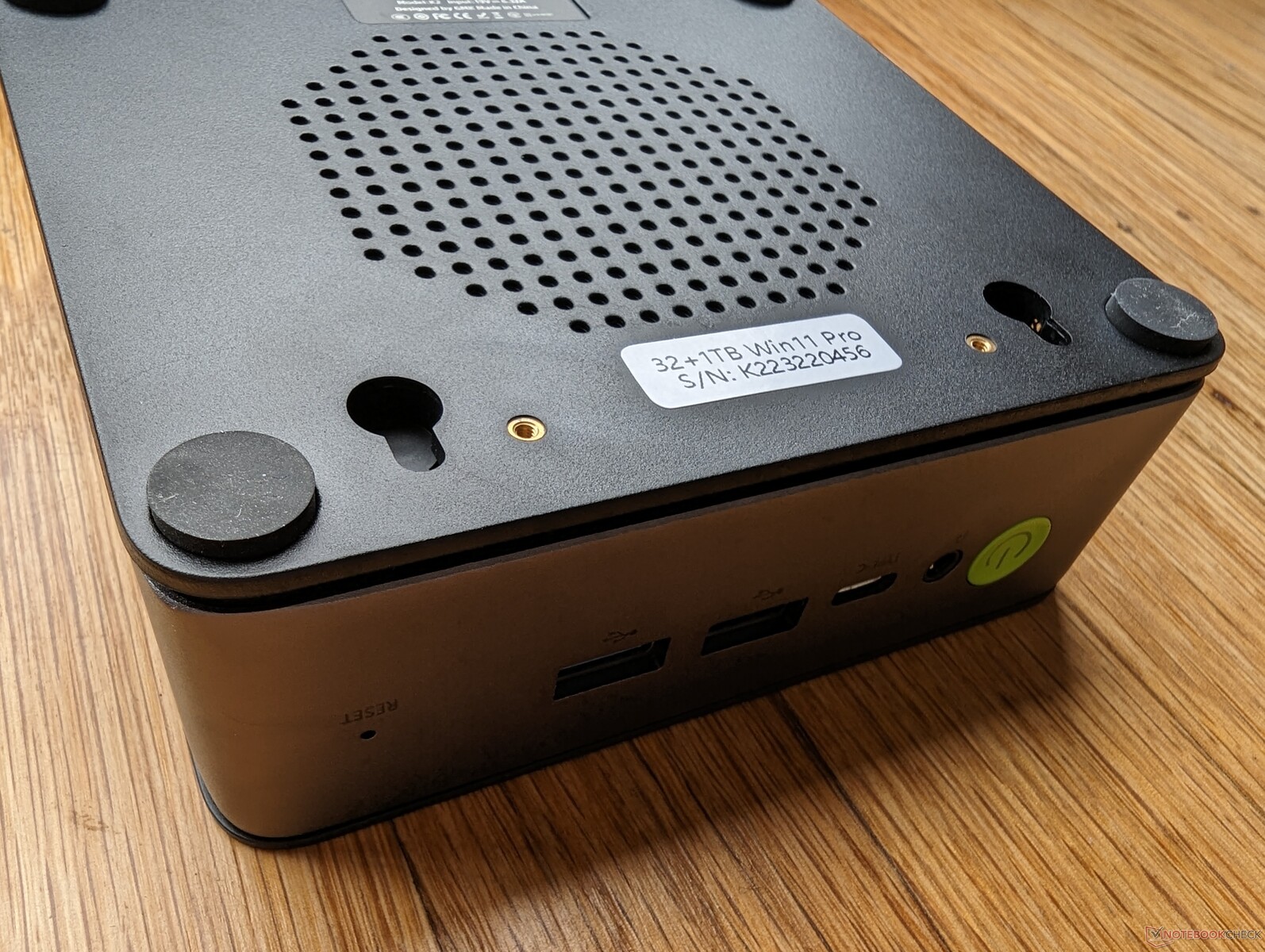

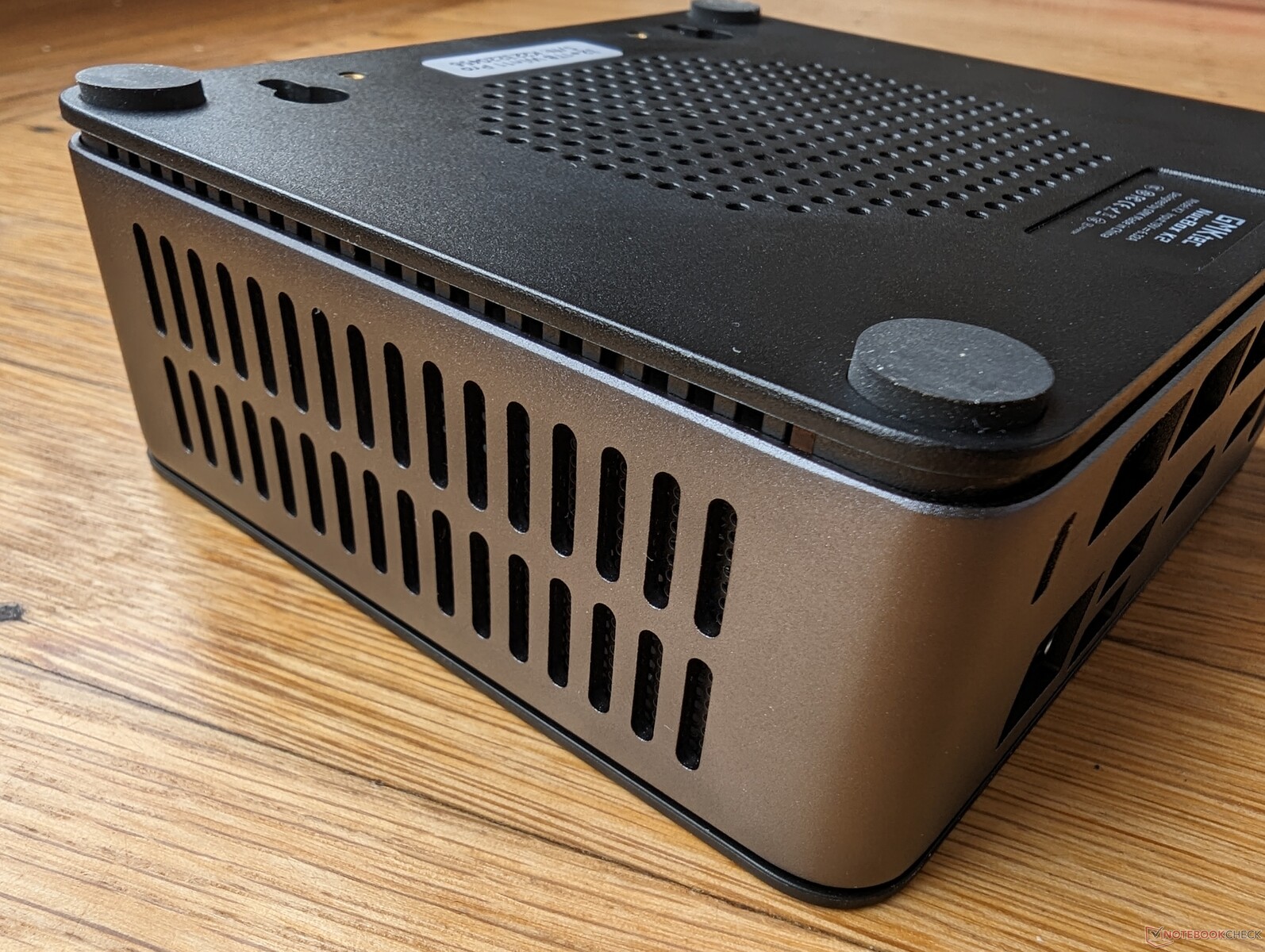

Orificios en la parte inferior de la unidad para montaje VESA o tornillos de pared normales

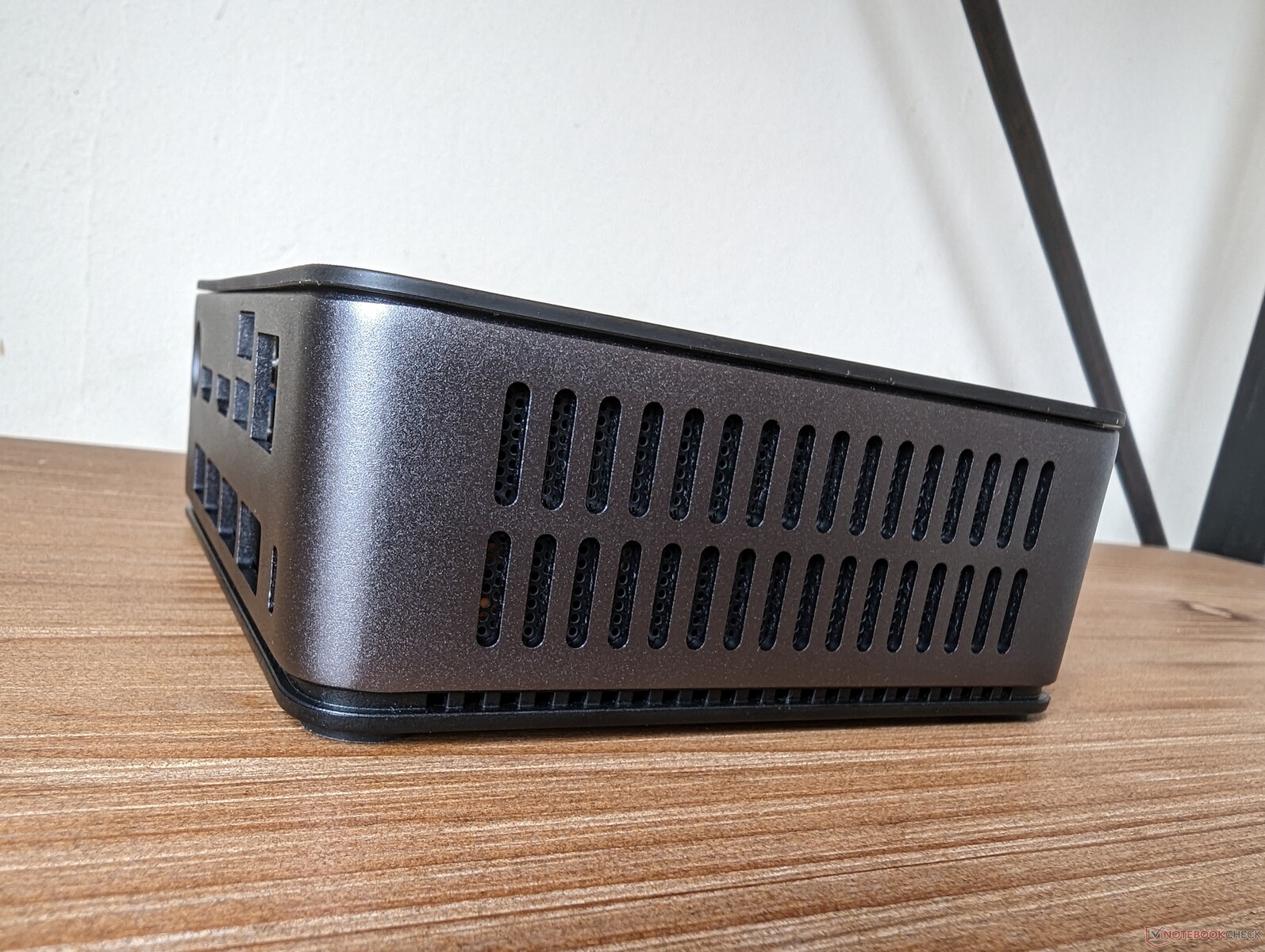

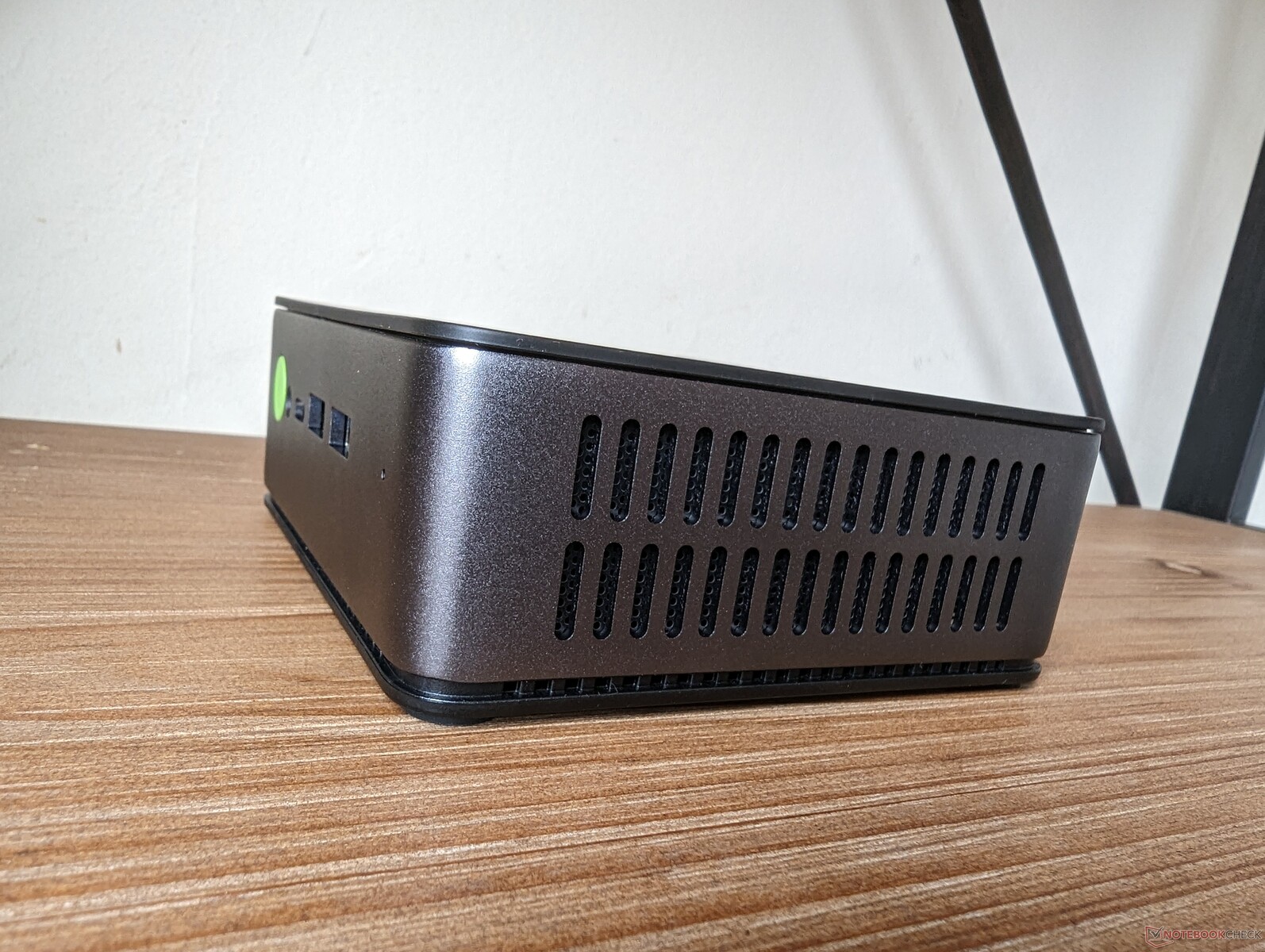

Rejillas de ventilación en los laterales e incluso alrededor de la placa inferior

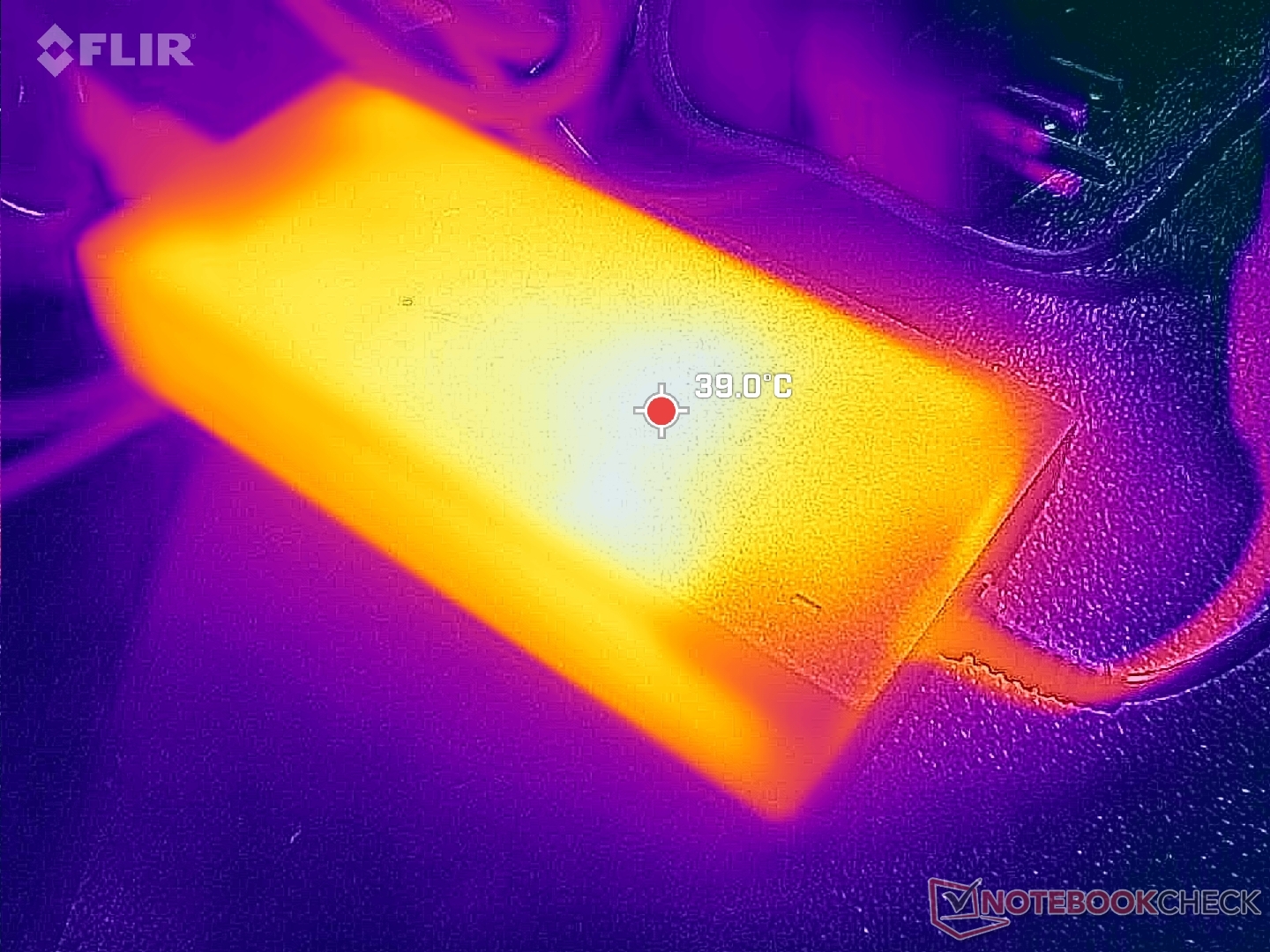

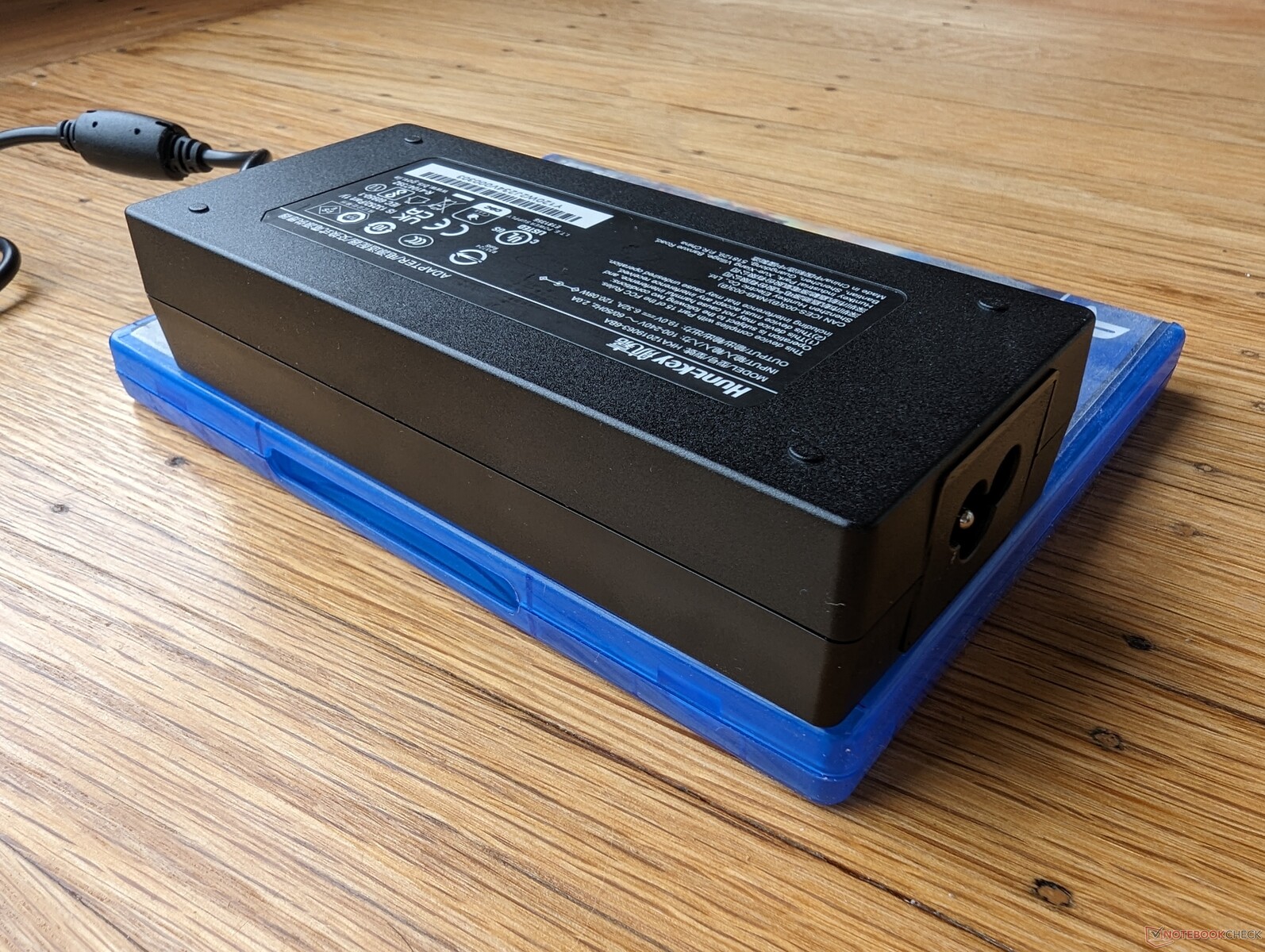

Ladrillo de alimentación externo de 120 W y tamaño mediano (~14,5 x 6,4 x 3 cm)

Comparación de tamaños

GMK NucBox 2 Beelink SER7 Trigkey Speed S GMK NucBox K2 Geekom Mini IT11, i7-11390H Intel NUC 13 Pro Desk Edition Kit DIN A5 ❌

Conectividad

El puerto más notable de la NucBox 2 es, sin duda, el puerto USB 4. Este versátil puerto se puede utilizar para GPU externas, pantallas externas, estaciones de acoplamiento e incluso adaptadores de CA de terceros si alguna vez pierdes el ladrillo de alimentación propietario que se entrega con la caja. Por desgracia, solo hay un puerto USB-C, a diferencia del Beelink SER7, que integra tres puertos USB-C.

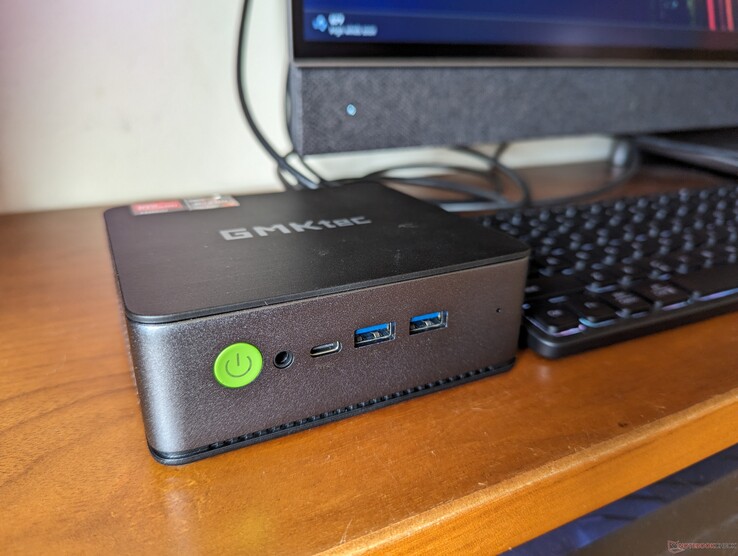

Frontal: Alimentación, auriculares de 3,5 mm, USB-C 4.0 con Power Delivery + DisplayPort, 2x USB-A 3.2 Gen. 2

Parte trasera: Adaptador de CA, 2 HDMI 2.1, USB-A 2.0, USB-A 3.2 Gen. 2, RJ-45 a 2,5 Gbps, ranura de bloqueo Kensington

Comunicación

Un MediaTek RZ608 viene de serie para soportar Wi-Fi 6 y Wi-Fi 6E. Aunque la conexión es fiable, el rendimiento es más lento de lo esperado cuando se empareja con nuestra red de 6 GHz, como se muestra a continuación. Esto sugiere que las antenas inalámbricas pueden estar en el lado débil.

Bluetooth también es problemático. Nuestro ratón Bluetooth no se reconectaba cada vez, aunque funcionaba perfectamente en otros dispositivos.

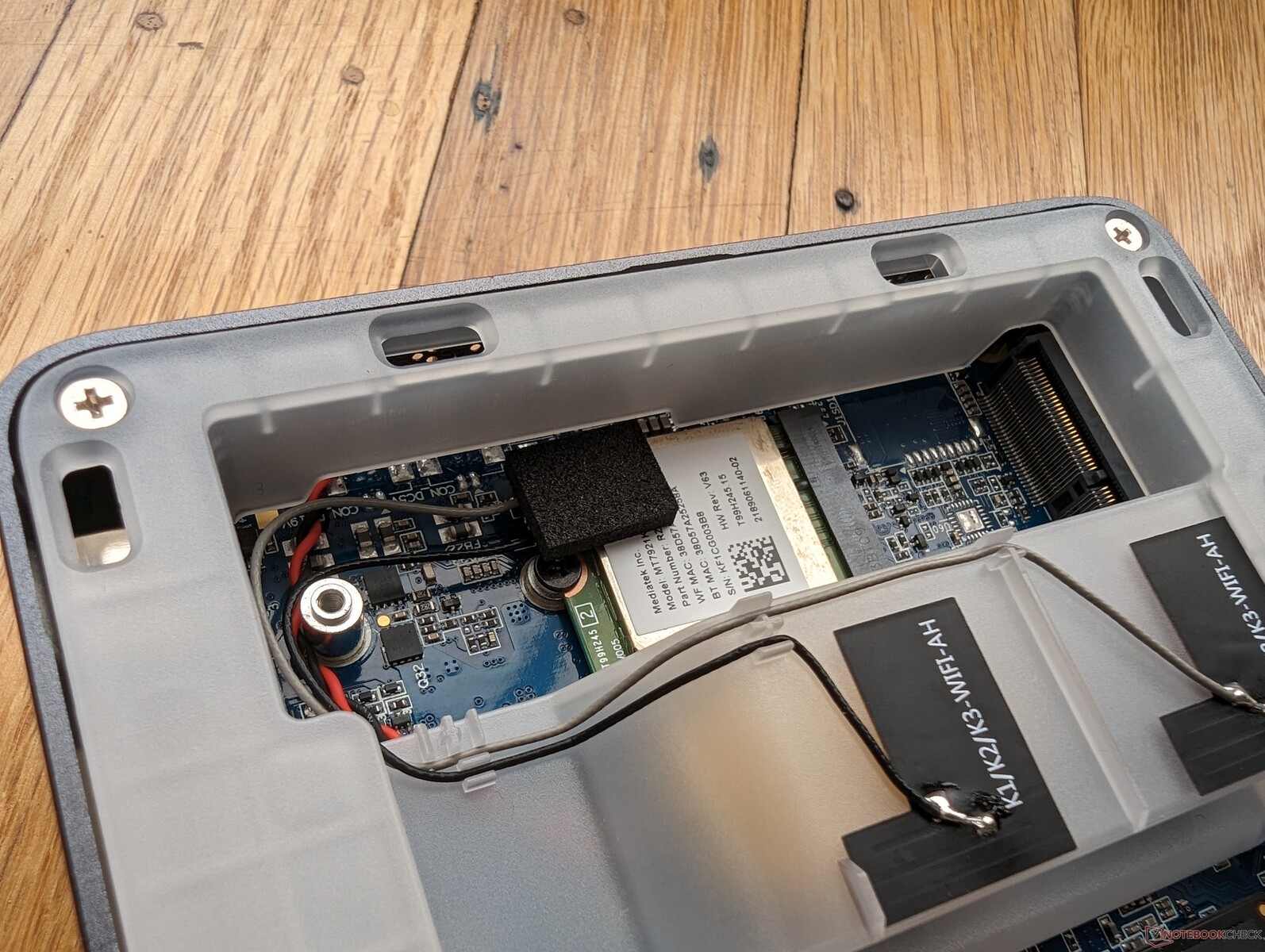

El módulo WLAN extraíble se encuentra debajo de la unidad SSD M.2 principal

Networking
iperf3 transmit AX12
GMK NucBox 2 Intel Dual Band Wireless-AC 7265	385 (299^min - 426^max) MBit/s
iperf3 receive AX12
GMK NucBox 2 Intel Dual Band Wireless-AC 7265	625 (346^min - 678^max) MBit/s
iperf3 transmit AXE11000
Beelink SER7 Intel Wi-Fi 6 AX200	1324 (665^min - 1408^max) MBit/s +53%
Intel NUC 13 Pro Desk Edition Kit Intel Wi-Fi 6E AX211	1301 (514^min - 1422^max) MBit/s +51%
Trigkey Speed S Intel Wi-Fi 6 AX201	1068 (610^min - 1322^max) MBit/s +24%
GMK NucBox K2 MediaTek RZ608	864 (682^min - 951^max) MBit/s
Geekom Mini IT11, i7-11390H Intel Wi-Fi 6 AX201	845 (818^min - 879^max) MBit/s -2%
iperf3 receive AXE11000
Beelink SER7 Intel Wi-Fi 6 AX200	1193 (588^min - 1333^max) MBit/s +38%
Trigkey Speed S Intel Wi-Fi 6 AX201	1163 (815^min - 1422^max) MBit/s +34%
Intel NUC 13 Pro Desk Edition Kit Intel Wi-Fi 6E AX211	1117 (884^min - 1368^max) MBit/s +29%
Geekom Mini IT11, i7-11390H Intel Wi-Fi 6 AX201	958 (941^min - 967^max) MBit/s +11%
GMK NucBox K2 MediaTek RZ608	865 (443^min - 893^max) MBit/s
iperf3 transmit AXE11000 6GHz
Intel NUC 13 Pro Desk Edition Kit Intel Wi-Fi 6E AX211	1511 (1451^min - 1552^max) MBit/s +98%
GMK NucBox K2 MediaTek RZ608	764 (524^min - 875^max) MBit/s
iperf3 receive AXE11000 6GHz
Intel NUC 13 Pro Desk Edition Kit Intel Wi-Fi 6E AX211	1448 (1357^min - 1490^max) MBit/s +96%
GMK NucBox K2 MediaTek RZ608	739 (709^min - 762^max) MBit/s

GMK NucBox K2; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø764 (524-875)

GMK NucBox K2; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø738 (709-762)

Mantenimiento

El NucBox K2 es uno de los mini PCs más fáciles de mantener, especialmente después de haber analizado el Beelink SER7. El panel superior de plástico se quita en cuestión de segundos sin necesidad de herramientas para acceder directamente a las 2 ranuras SODIMM, 1 SSD M.2 y el módulo WLAN. Incluso el ventilador del sistema es fácilmente accesible volteando la unidad boca abajo, retirando las cuatro patas de goma y desatornillando los cuatro tornillos.

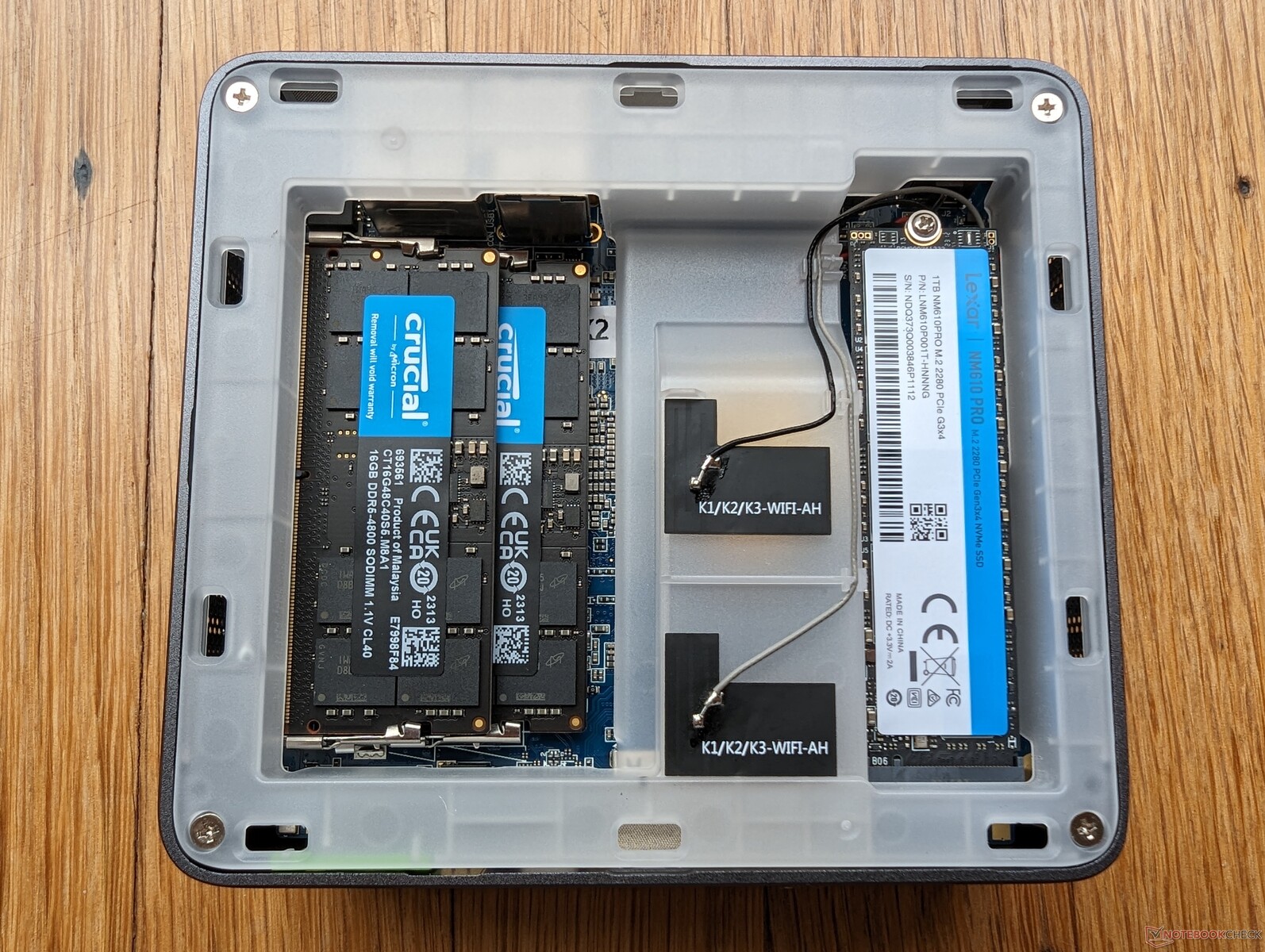

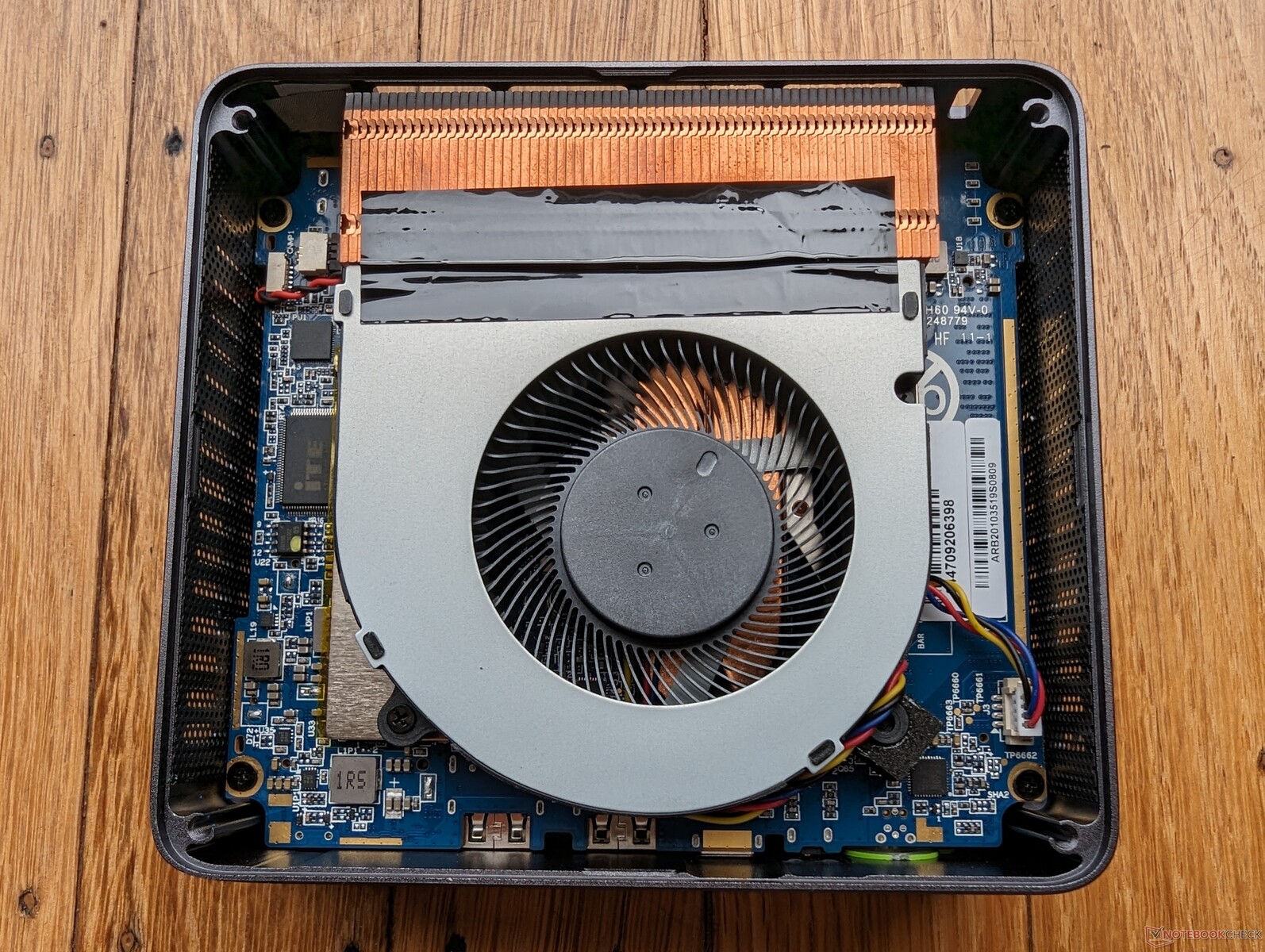

Al retirar el panel superior se descubren todos los componentes actualizables

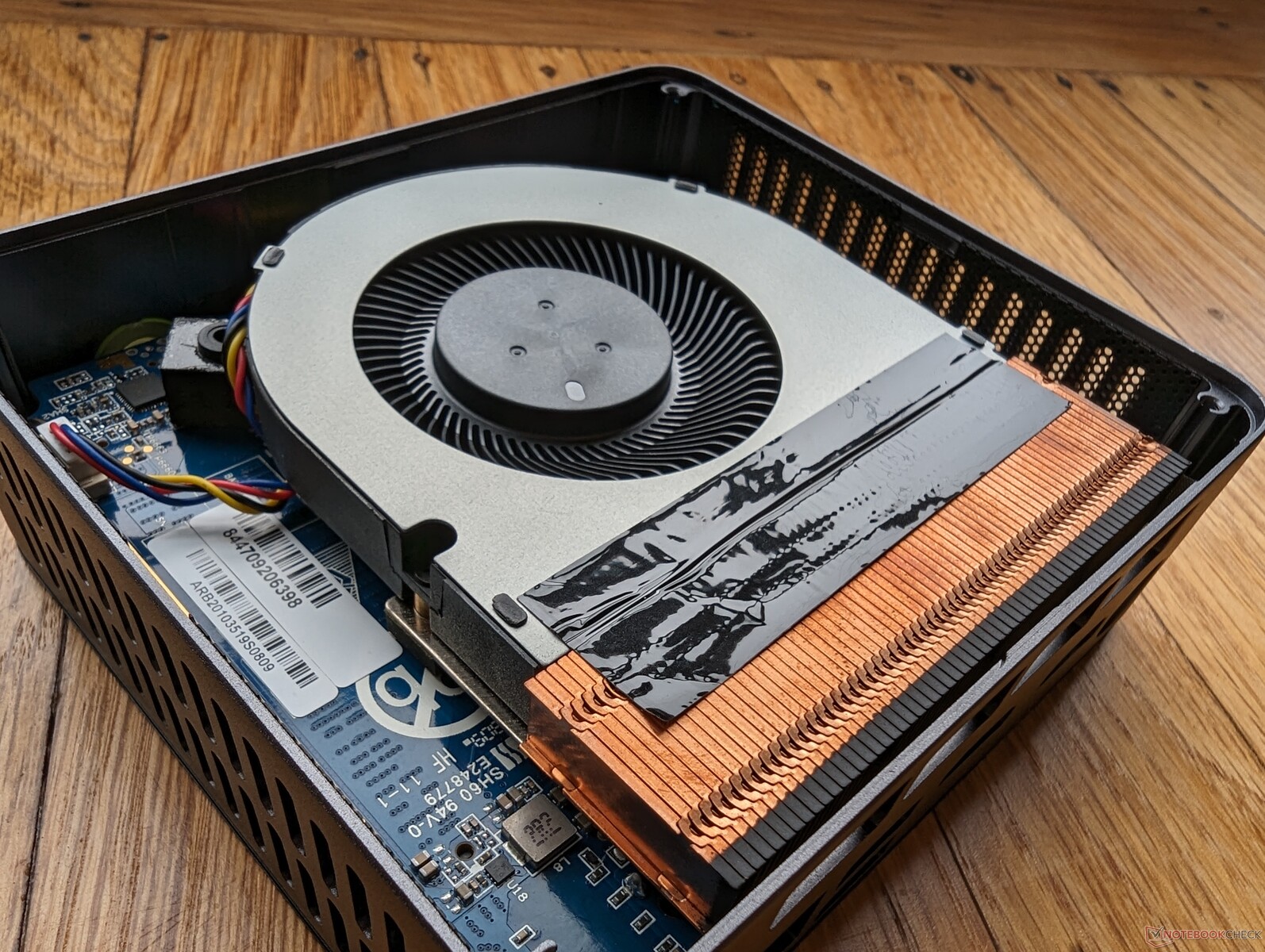

La extracción del panel inferior permite limpiar fácilmente el ventilador del sistema

Accesorios y garantía

La caja incluye el manual, el adaptador de CA, el cable HDMI y el soporte de montaje VESA extraíble. Si se adquiere en EE.UU., se aplica la garantía estándar limitada de un año del fabricante.

Rendimiento - El Zen 3+ sigue siendo potente

Condiciones de ensayo

Pusimos Windows en modo Rendimiento antes de ejecutar las pruebas de rendimiento. GMK no incluye aplicaciones de centro de control ni bloatware preinstalados.

Procesador

ElRyzen 7 7735HS es esencialmente un renombrado de la última generación Ryzen 7 6800H ya que ambos están basados en la arquitectura Zen 3+. Esto no quiere decir que la CPU sea lenta, pero los usuarios que quieran tener la última tecnología Zen 4 tendrán que buscar la configuración de gama alta con el Ryzen 9 7940HS que puede ofrecer hasta un 45-50% más de rendimiento multihilo que nuestra unidad Ryzen 7.

El rendimiento general es un 30 % más lento que el Core i7-12700H de 12ª generación Core i7-12700H que suele encontrarse en portátiles para juegos de alto rendimiento y mini PC como el Intel NUC 12 Serpent Canyon.

Cinebench R15 Multi Loop

GMK NucBox K2 AMD Ryzen 7 7735HS: Ø1907 (1875.64-1972)

GMK NucBox 2 Intel Core i5-8259U: Ø612 (608.07-614.94)

Beelink SER7 AMD Ryzen 7 7840HS: Ø2544 (2511.62-2564.76)

Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P: Ø1753 (1686.77-2083.33)

Geekom Mini IT11, i7-11390H Intel Core i7-11390H: Ø946 (931.81-953.22)

Trigkey Speed S Intel Core i5-11320H: Ø854 (839.91-860.88)

CPU Performance Rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

CPU Performance Rating
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	88.8 pt
Beelink SER7 AMD Ryzen 7 7840HS	87.8 pt
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H	82.9 pt
Minisforum Venus Series NPB5 Intel Core i5-13500H	76.9 pt
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	75.2 pt
Beelink GTR6 AMD Ryzen 9 6900HX	73 pt
Average AMD Ryzen 7 7735HS	72.2 pt
GMK NucBox K2 AMD Ryzen 7 7735HS	70.8 pt
Beelink SER6 Pro AMD Ryzen 7 6800H	69.6 pt
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U	65.3 pt
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	55.7 pt
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	52.6 pt
Trigkey Speed S Intel Core i5-11320H	48.6 pt
GMK NucBox 2 Intel Core i5-8259U	29.6 pt

Cinebench R23 / Multi Core
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	16985 Points +47%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H	16674 Points +44%
Beelink SER7 AMD Ryzen 7 7840HS	16105 (15785.6^min - 16105.2^max) Points +39%
Minisforum Venus Series NPB5 Intel Core i5-13500H	13542 Points +17%
Average AMD Ryzen 7 7735HS (11072 - 14131, n=12)	13103 Points +13%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	12155 Points +5%
Beelink GTR6 AMD Ryzen 9 6900HX	11862 (11361.7^min - 11862.4^max) Points +2%
GMK NucBox K2 AMD Ryzen 7 7735HS	11584 (11082.5^min - 11584.2^max) Points
Beelink SER6 Pro AMD Ryzen 7 6800H	11481 (10813.7^min - 11481.3^max) Points -1%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U	11171 Points -4%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	7945 (7877.51^min - 7944.53^max) Points -31%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	5917 Points -49%
Trigkey Speed S Intel Core i5-11320H	5724 (5641.98^min - 5723.64^max) Points -51%
GMK NucBox 2 Intel Core i5-8259U	3728 (3687.99^min - 3727.55^max) Points -68%

Cinebench R23 / Single Core
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	1878 Points +25%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	1813 Points +21%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H	1801 Points +20%
Minisforum Venus Series NPB5 Intel Core i5-13500H	1775 Points +18%
Beelink SER7 AMD Ryzen 7 7840HS	1774 Points +18%
Beelink GTR6 AMD Ryzen 9 6900HX	1608 Points +7%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	1602 Points +7%
Average AMD Ryzen 7 7735HS (1288 - 1570, n=12)	1524 Points +2%
Beelink SER6 Pro AMD Ryzen 7 6800H	1506 Points 0%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U	1506 Points 0%
GMK NucBox K2 AMD Ryzen 7 7735HS	1499 Points
Trigkey Speed S Intel Core i5-11320H	1465 Points -2%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	1367 Points -9%
GMK NucBox 2 Intel Core i5-8259U	973 Points -35%

Cinebench R20 / CPU (Multi Core)
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	6640 Points +46%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H	6459 Points +42%
Beelink SER7 AMD Ryzen 7 7840HS	6344 Points +40%
Minisforum Venus Series NPB5 Intel Core i5-13500H	5108 Points +13%
Average AMD Ryzen 7 7735HS (4339 - 5502, n=12)	5080 Points +12%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	4687 Points +3%
Beelink GTR6 AMD Ryzen 9 6900HX	4619 Points +2%
GMK NucBox K2 AMD Ryzen 7 7735HS	4533 Points
Beelink SER6 Pro AMD Ryzen 7 6800H	4460 Points -2%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U	4386 Points -3%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	3074 Points -32%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	2284 Points -50%
Trigkey Speed S Intel Core i5-11320H	2216 Points -51%
GMK NucBox 2 Intel Core i5-8259U	1432 Points -68%

Cinebench R20 / CPU (Single Core)
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	723 Points +22%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	711 Points +20%
Beelink SER7 AMD Ryzen 7 7840HS	698 Points +18%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H	692 Points +17%
Minisforum Venus Series NPB5 Intel Core i5-13500H	687 Points +16%
Beelink GTR6 AMD Ryzen 9 6900HX	631 Points +7%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	620 Points +5%
Average AMD Ryzen 7 7735HS (502 - 613, n=12)	595 Points +1%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U	592 Points 0%
GMK NucBox K2 AMD Ryzen 7 7735HS	591 Points
Beelink SER6 Pro AMD Ryzen 7 6800H	584 Points -1%
Trigkey Speed S Intel Core i5-11320H	567 Points -4%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	531 Points -10%
GMK NucBox 2 Intel Core i5-8259U	382 Points -35%

Cinebench R15 / CPU Multi 64Bit
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	2663 Points +35%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H	2632 Points +33%
Beelink SER7 AMD Ryzen 7 7840HS	2565 (2511.62^min - 2564.76^max) Points +30%
Minisforum Venus Series NPB5 Intel Core i5-13500H	2304 Points +17%
Average AMD Ryzen 7 7735HS (1795 - 2355, n=14)	2166 Points +10%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	1990 Points +1%
GMK NucBox K2 AMD Ryzen 7 7735HS	1972 (1875.64^min - 1972^max) Points
Beelink GTR6 AMD Ryzen 9 6900HX	1969 (1894.3^min - 1968.5^max) Points 0%
Beelink SER6 Pro AMD Ryzen 7 6800H	1931 (1821.83^min - 1930.5^max) Points -2%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U	1837 Points -7%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	1319 (1286.46^min - 1319.48^max) Points -33%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	953 Points -52%
Trigkey Speed S Intel Core i5-11320H	861 (839.91^min - 860.88^max) Points -56%
GMK NucBox 2 Intel Core i5-8259U	615 (608.07^min - 614.94^max) Points -69%

Cinebench R15 / CPU Single 64Bit
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	284 Points +16%
Beelink SER7 AMD Ryzen 7 7840HS	283 Points +16%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	267 Points +9%
Beelink GTR6 AMD Ryzen 9 6900HX	260 Points +7%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H	259 Points +6%
Minisforum Venus Series NPB5 Intel Core i5-13500H	255 Points +5%
Average AMD Ryzen 7 7735HS (206 - 255, n=13)	245 Points 0%
GMK NucBox K2 AMD Ryzen 7 7735HS	244 Points
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U	243 Points 0%
Beelink SER6 Pro AMD Ryzen 7 6800H	242 Points -1%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	232 Points -5%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	221 Points -9%
Trigkey Speed S Intel Core i5-11320H	215 Points -12%
GMK NucBox 2 Intel Core i5-8259U	151 Points -38%

Blender / v2.79 BMW27 CPU
GMK NucBox 2 Intel Core i5-8259U	755 Seconds * -192%
Trigkey Speed S Intel Core i5-11320H	543 Seconds * -110%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	513 Seconds * -98%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	384 Seconds * -48%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U	282 Seconds * -9%
Beelink SER6 Pro AMD Ryzen 7 6800H	268 Seconds * -3%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	268 Seconds * -3%
Minisforum Venus Series NPB5 Intel Core i5-13500H	260 Seconds * -0%
GMK NucBox K2 AMD Ryzen 7 7735HS	259 Seconds *
Beelink GTR6 AMD Ryzen 9 6900HX	257 Seconds * +1%
Average AMD Ryzen 7 7735HS (214 - 279, n=12)	238 Seconds * +8%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H	198 Seconds * +24%
Beelink SER7 AMD Ryzen 7 7840HS	196 Seconds * +24%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	188 Seconds * +27%

7-Zip 18.03 / 7z b 4
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	70019 MIPS +21%
Beelink SER7 AMD Ryzen 7 7840HS	69882 MIPS +21%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H	64403 MIPS +11%
Average AMD Ryzen 7 7735HS (48327 - 63698, n=12)	59032 MIPS +2%
GMK NucBox K2 AMD Ryzen 7 7735HS	57785 MIPS
Beelink GTR6 AMD Ryzen 9 6900HX	57261 MIPS -1%
Beelink SER6 Pro AMD Ryzen 7 6800H	55963 MIPS -3%
Minisforum Venus Series NPB5 Intel Core i5-13500H	52630 MIPS -9%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U	52046 MIPS -10%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	51340 MIPS -11%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	39897 MIPS -31%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	25876 MIPS -55%
Trigkey Speed S Intel Core i5-11320H	24718 MIPS -57%
GMK NucBox 2 Intel Core i5-8259U	18802 MIPS -67%

7-Zip 18.03 / 7z b 4 -mmt1
Beelink SER7 AMD Ryzen 7 7840HS	6734 MIPS +16%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	6683 MIPS +15%
Beelink GTR6 AMD Ryzen 9 6900HX	6005 MIPS +4%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H	5972 MIPS +3%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	5895 MIPS +2%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	5840 MIPS +1%
GMK NucBox K2 AMD Ryzen 7 7735HS	5790 MIPS
Beelink SER6 Pro AMD Ryzen 7 6800H	5768 MIPS 0%
Minisforum Venus Series NPB5 Intel Core i5-13500H	5695 MIPS -2%
Average AMD Ryzen 7 7735HS (4779 - 5849, n=12)	5676 MIPS -2%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U	5433 MIPS -6%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	5400 MIPS -7%
Trigkey Speed S Intel Core i5-11320H	5119 MIPS -12%
GMK NucBox 2 Intel Core i5-8259U	3951 MIPS -32%

Geekbench 5.5 / Multi-Core
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	11564 Points +23%
Minisforum Venus Series NPB5 Intel Core i5-13500H	11465 Points +22%
Beelink SER7 AMD Ryzen 7 7840HS	11423 Points +21%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	10269 Points +9%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H	10126 Points +7%
GMK NucBox K2 AMD Ryzen 7 7735HS	9436 Points
Average AMD Ryzen 7 7735HS (7368 - 10258, n=12)	9394 Points 0%
Beelink GTR6 AMD Ryzen 9 6900HX	9350 Points -1%
Beelink SER6 Pro AMD Ryzen 7 6800H	9218 Points -2%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U	7986 Points -15%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	6103 Points -35%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	5091 Points -46%
Trigkey Speed S Intel Core i5-11320H	4927 Points -48%
GMK NucBox 2 Intel Core i5-8259U	3359 Points -64%

Geekbench 5.5 / Single-Core
Beelink SER7 AMD Ryzen 7 7840HS	1983 Points +27%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	1975 Points +26%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	1832 Points +17%
Minisforum Venus Series NPB5 Intel Core i5-13500H	1762 Points +13%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	1669 Points +7%
Beelink GTR6 AMD Ryzen 9 6900HX	1652 Points +6%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H	1590 Points +2%
GMK NucBox K2 AMD Ryzen 7 7735HS	1564 Points
Beelink SER6 Pro AMD Ryzen 7 6800H	1554 Points -1%
Average AMD Ryzen 7 7735HS (1327 - 1615, n=12)	1541 Points -1%
Trigkey Speed S Intel Core i5-11320H	1523 Points -3%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U	1499 Points -4%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	1436 Points -8%
GMK NucBox 2 Intel Core i5-8259U	984 Points -37%

HWBOT x265 Benchmark v2.2 / 4k Preset
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	20.7 fps +37%
Beelink SER7 AMD Ryzen 7 7840HS	20.4 fps +35%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H	18.7 fps +24%
Average AMD Ryzen 7 7735HS (12.7 - 17.9, n=12)	16.3 fps +8%
Beelink GTR6 AMD Ryzen 9 6900HX	15.4 fps +2%
GMK NucBox K2 AMD Ryzen 7 7735HS	15.1 fps
Beelink SER6 Pro AMD Ryzen 7 6800H	15 fps -1%
Minisforum Venus Series NPB5 Intel Core i5-13500H	14.6 fps -3%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	13.9 fps -8%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U	13.3 fps -12%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	10.5 fps -30%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	7.61 fps -50%
Trigkey Speed S Intel Core i5-11320H	7.25 fps -52%
GMK NucBox 2 Intel Core i5-8259U	5.37 fps -64%

LibreOffice / 20 Documents To PDF
GMK NucBox 2 Intel Core i5-8259U	63.6 s * -38%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U	60.2 s * -31%
Average AMD Ryzen 7 7735HS (44.3 - 63.9, n=12)	53.9 s * -17%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	52.2 s * -13%
Beelink SER6 Pro AMD Ryzen 7 6800H	48.8 s * -6%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	47.2 s * -3%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	46.9 s * -2%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	46.3 s * -1%
Beelink GTR6 AMD Ryzen 9 6900HX	46 s * -0%
GMK NucBox K2 AMD Ryzen 7 7735HS	46 s *
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H	44.9 s * +2%
Trigkey Speed S Intel Core i5-11320H	44 s * +4%
Minisforum Venus Series NPB5 Intel Core i5-13500H	44 s * +4%
Beelink SER7 AMD Ryzen 7 7840HS	39.7 s * +14%

R Benchmark 2.5 / Overall mean
GMK NucBox 2 Intel Core i5-8259U	0.786 sec * -60%
Trigkey Speed S Intel Core i5-11320H	0.591 sec * -20%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H	0.543 sec * -10%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	0.53 sec * -8%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U	0.525 sec * -7%
Average AMD Ryzen 7 7735HS (0.4822 - 0.585, n=12)	0.504 sec * -2%
Beelink SER6 Pro AMD Ryzen 7 6800H	0.4989 sec * -1%
GMK NucBox K2 AMD Ryzen 7 7735HS	0.4924 sec *
Minisforum Venus Series NPB5 Intel Core i5-13500H	0.473 sec * +4%
Intel NUC 12, NUC12SNKi72_Serpent Canyon Intel Core i7-12700H	0.4643 sec * +6%
Beelink GTR6 AMD Ryzen 9 6900HX	0.4627 sec * +6%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	0.45 sec * +9%
Beelink SER7 AMD Ryzen 7 7840HS	0.4446 sec * +10%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS	0.4192 sec * +15%

CPU Performance Rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

* ... más pequeño es mejor

Performance Rating
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	100 pt
Average AMD Ryzen 7 7735HS	73.6 pt
GMK NucBox K2 AMD Ryzen 7 7735HS, Radeon 680M	71.8 pt
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	55.5 pt
Trigkey Speed S Intel Core i5-11320H, Iris Xe G7 96EUs	37.4 pt
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	35.6 pt
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	5.9 pt

AIDA64 / FP32 Ray-Trace
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	25685 KRay/s +93%
Average AMD Ryzen 7 7735HS (12718 - 17161, n=13)	15187 KRay/s +14%
GMK NucBox K2 AMD Ryzen 7 7735HS, Radeon 680M	13337 KRay/s
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	11188 KRay/s -16%
Trigkey Speed S Intel Core i5-11320H, Iris Xe G7 96EUs	6976 KRay/s -48%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	6633 KRay/s -50%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	769 KRay/s -94%

AIDA64 / FPU Julia
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	109853 Points +29%
Average AMD Ryzen 7 7735HS (81722 - 105483, n=13)	95077 Points +12%
GMK NucBox K2 AMD Ryzen 7 7735HS, Radeon 680M	84934 Points
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	56942 Points -33%
Trigkey Speed S Intel Core i5-11320H, Iris Xe G7 96EUs	30000 Points -65%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	27788 Points -67%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	4140 Points -95%

AIDA64 / CPU SHA3
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	4783 MB/s +61%
Average AMD Ryzen 7 7735HS (2818 - 3494, n=13)	3226 MB/s +9%
GMK NucBox K2 AMD Ryzen 7 7735HS, Radeon 680M	2969 MB/s
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	2669 MB/s -10%
Trigkey Speed S Intel Core i5-11320H, Iris Xe G7 96EUs	1979 MB/s -33%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	1841 MB/s -38%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	290 MB/s -90%

AIDA64 / CPU Queen
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	111969 Points +18%
Average AMD Ryzen 7 7735HS (90101 - 108729, n=13)	100876 Points +6%
GMK NucBox K2 AMD Ryzen 7 7735HS, Radeon 680M	95223 Points
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	86881 Points -9%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	49399 Points -48%
Trigkey Speed S Intel Core i5-11320H, Iris Xe G7 96EUs	48734 Points -49%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	8186 Points -91%

AIDA64 / FPU SinJulia
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	14705 Points +20%
Average AMD Ryzen 7 7735HS (11441 - 13097, n=13)	12501 Points +2%
GMK NucBox K2 AMD Ryzen 7 7735HS, Radeon 680M	12254 Points
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	7246 Points -41%
Trigkey Speed S Intel Core i5-11320H, Iris Xe G7 96EUs	4826 Points -61%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	4529 Points -63%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	408 Points -97%

AIDA64 / FPU Mandel
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	58699 Points +26%
Average AMD Ryzen 7 7735HS (44756 - 58232, n=13)	52240 Points +12%
GMK NucBox K2 AMD Ryzen 7 7735HS, Radeon 680M	46670 Points
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	28019 Points -40%
Trigkey Speed S Intel Core i5-11320H, Iris Xe G7 96EUs	17951 Points -62%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	16652 Points -64%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	2088 Points -96%

AIDA64 / CPU AES
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	161216 MB/s +34%
GMK NucBox K2 AMD Ryzen 7 7735HS, Radeon 680M	120363 MB/s
Average AMD Ryzen 7 7735HS (49927 - 137629, n=13)	84134 MB/s -30%
Trigkey Speed S Intel Core i5-11320H, Iris Xe G7 96EUs	68595 MB/s -43%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	57644 MB/s -52%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	53328 MB/s -56%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	7961 MB/s -93%

AIDA64 / CPU ZLib
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	949 MB/s +26%
Average AMD Ryzen 7 7735HS (651 - 906, n=13)	804 MB/s +7%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	775 MB/s +3%
GMK NucBox K2 AMD Ryzen 7 7735HS, Radeon 680M	751 MB/s
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	372 MB/s -50%
Trigkey Speed S Intel Core i5-11320H, Iris Xe G7 96EUs	362 MB/s -52%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	77.4 MB/s -90%

AIDA64 / FP64 Ray-Trace
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	13904 KRay/s +95%
Average AMD Ryzen 7 7735HS (1459 - 9094, n=13)	7511 KRay/s +5%
GMK NucBox K2 AMD Ryzen 7 7735HS, Radeon 680M	7123 KRay/s
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	5957 KRay/s -16%
Trigkey Speed S Intel Core i5-11320H, Iris Xe G7 96EUs	3761 KRay/s -47%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	3668 KRay/s -49%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	432 KRay/s -94%

AIDA64 / CPU PhotoWorxx
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	41088 MPixel/s +36%
GMK NucBox K2 AMD Ryzen 7 7735HS, Radeon 680M	30200 MPixel/s
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	29263 MPixel/s -3%
Average AMD Ryzen 7 7735HS (19153 - 30542, n=13)	27840 MPixel/s -8%
Trigkey Speed S Intel Core i5-11320H, Iris Xe G7 96EUs	25970 MPixel/s -14%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	25453 MPixel/s -16%
Blackview MP80 Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)	6599 MPixel/s -78%

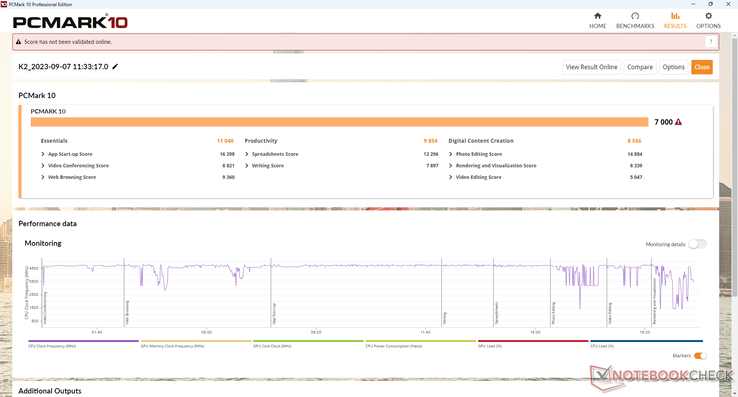

Rendimiento del sistema

Las puntuaciones de PCMark son excelentes, con resultados más rápidos que la mayoría de los mini PC con CPU Intel de 12ª generación o anteriores. Su puntuación en Creación de Contenidos Digitales es especialmente notable, ya que la Radeon 680M puede competir con la serie Iris Xe.

PCMark 10 / Score
Beelink SER7 Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	7225 Points +3%
Average AMD Ryzen 7 7735HS (5722 - 7916, n=13)	7022 Points 0%
GMK NucBox K2 Radeon 680M, R7 7735HS, Lexar NM610 Pro NM610P001T-HNNNG	7000 Points
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	5882 Points -16%
Trigkey Speed S Iris Xe G7 96EUs, i5-11320H, Intel SSD 670p SSDPEKNU512GZ	5302 Points -24%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	4914 Points -30%
GMK NucBox 2 Iris Plus Graphics 655, i5-8259U, Netac S930E8/256GPN	4132 Points -41%

PCMark 10 / Essentials
GMK NucBox K2 Radeon 680M, R7 7735HS, Lexar NM610 Pro NM610P001T-HNNNG	11040 Points
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	11035 Points 0%
Beelink SER7 Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	10819 Points -2%
Average AMD Ryzen 7 7735HS (9933 - 11124, n=13)	10636 Points -4%
Trigkey Speed S Iris Xe G7 96EUs, i5-11320H, Intel SSD 670p SSDPEKNU512GZ	10558 Points -4%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	9649 Points -13%
GMK NucBox 2 Iris Plus Graphics 655, i5-8259U, Netac S930E8/256GPN	8351 Points -24%

PCMark 10 / Productivity
Beelink SER7 Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	10452 Points +6%
GMK NucBox K2 Radeon 680M, R7 7735HS, Lexar NM610 Pro NM610P001T-HNNNG	9854 Points
Average AMD Ryzen 7 7735HS (8077 - 9862, n=13)	9251 Points -6%
Trigkey Speed S Iris Xe G7 96EUs, i5-11320H, Intel SSD 670p SSDPEKNU512GZ	6963 Points -29%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	6788 Points -31%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	6576 Points -33%
GMK NucBox 2 Iris Plus Graphics 655, i5-8259U, Netac S930E8/256GPN	6348 Points -36%

PCMark 10 / Digital Content Creation
Average AMD Ryzen 7 7735HS (5798 - 12699, n=13)	9663 Points +13%
Beelink SER7 Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	9052 Points +6%
GMK NucBox K2 Radeon 680M, R7 7735HS, Lexar NM610 Pro NM610P001T-HNNNG	8556 Points
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	7612 Points -11%
Trigkey Speed S Iris Xe G7 96EUs, i5-11320H, Intel SSD 670p SSDPEKNU512GZ	5502 Points -36%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	4916 Points -43%
GMK NucBox 2 Iris Plus Graphics 655, i5-8259U, Netac S930E8/256GPN	3613 Points -58%

CrossMark / Overall
Beelink SER7 Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	1700 Points +3%
GMK NucBox K2 Radeon 680M, R7 7735HS, Lexar NM610 Pro NM610P001T-HNNNG	1655 Points
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1596 Points -4%
Average AMD Ryzen 7 7735HS (1361 - 1736, n=9)	1577 Points -5%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	1438 Points -13%
Trigkey Speed S Iris Xe G7 96EUs, i5-11320H, Intel SSD 670p SSDPEKNU512GZ	1371 Points -17%

CrossMark / Productivity
GMK NucBox K2 Radeon 680M, R7 7735HS, Lexar NM610 Pro NM610P001T-HNNNG	1641 Points
Beelink SER7 Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	1621 Points -1%
Average AMD Ryzen 7 7735HS (1308 - 1730, n=9)	1566 Points -5%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1537 Points -6%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	1523 Points -7%
Trigkey Speed S Iris Xe G7 96EUs, i5-11320H, Intel SSD 670p SSDPEKNU512GZ	1456 Points -11%

CrossMark / Creativity
Beelink SER7 Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	1953 Points +14%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1769 Points +3%
GMK NucBox K2 Radeon 680M, R7 7735HS, Lexar NM610 Pro NM610P001T-HNNNG	1720 Points
Average AMD Ryzen 7 7735HS (1376 - 1785, n=9)	1652 Points -4%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	1359 Points -21%
Trigkey Speed S Iris Xe G7 96EUs, i5-11320H, Intel SSD 670p SSDPEKNU512GZ	1255 Points -27%

CrossMark / Responsiveness
GMK NucBox K2 Radeon 680M, R7 7735HS, Lexar NM610 Pro NM610P001T-HNNNG	1515 Points
Trigkey Speed S Iris Xe G7 96EUs, i5-11320H, Intel SSD 670p SSDPEKNU512GZ	1494 Points -1%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	1434 Points -5%
Average AMD Ryzen 7 7735HS (1108 - 1704, n=9)	1411 Points -7%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1311 Points -13%
Beelink SER7 Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	1293 Points -15%

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	69325 MB/s +35%
GMK NucBox K2 AMD Ryzen 7 7735HS, Radeon 680M	51223 MB/s
Average AMD Ryzen 7 7735HS (30324 - 52012, n=13)	48412 MB/s -5%
GMK NucBox 2 Intel Core i5-8259U, Iris Plus Graphics 655	48099 MB/s -6%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	44299 MB/s -14%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	41953 MB/s -18%
Trigkey Speed S Intel Core i5-11320H, Iris Xe G7 96EUs	41310 MB/s -19%

AIDA64 / Memory Read
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	61911 MB/s +20%
GMK NucBox K2 AMD Ryzen 7 7735HS, Radeon 680M	51734 MB/s
Average AMD Ryzen 7 7735HS (33938 - 51856, n=13)	48582 MB/s -6%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	47290 MB/s -9%
Trigkey Speed S Intel Core i5-11320H, Iris Xe G7 96EUs	46709 MB/s -10%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	44751 MB/s -13%
GMK NucBox 2 Intel Core i5-8259U, Iris Plus Graphics 655	38017 MB/s -27%

AIDA64 / Memory Write
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	87358 MB/s +58%
GMK NucBox K2 AMD Ryzen 7 7735HS, Radeon 680M	55242 MB/s
Average AMD Ryzen 7 7735HS (33175 - 55284, n=13)	52789 MB/s -4%
GMK NucBox 2 Intel Core i5-8259U, Iris Plus Graphics 655	51980 MB/s -6%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	46860 MB/s -15%
Trigkey Speed S Intel Core i5-11320H, Iris Xe G7 96EUs	46778 MB/s -15%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	45887 MB/s -17%

AIDA64 / Memory Latency
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	96.2 ns * -17%
Average AMD Ryzen 7 7735HS (78.2 - 109.7, n=13)	88.2 ns * -7%
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	85.1 ns * -4%
GMK NucBox K2 AMD Ryzen 7 7735HS, Radeon 680M	82.1 ns *
Trigkey Speed S Intel Core i5-11320H, Iris Xe G7 96EUs	77.6 ns * +5%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Iris Xe G7 96EUs	66.3 ns * +19%
GMK NucBox 2 Intel Core i5-8259U, Iris Plus Graphics 655	55.6 ns * +32%

* ... más pequeño es mejor

Latencia del CPD

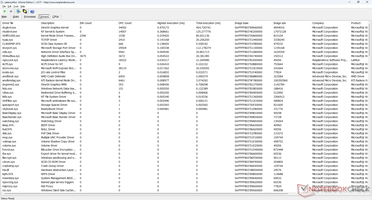

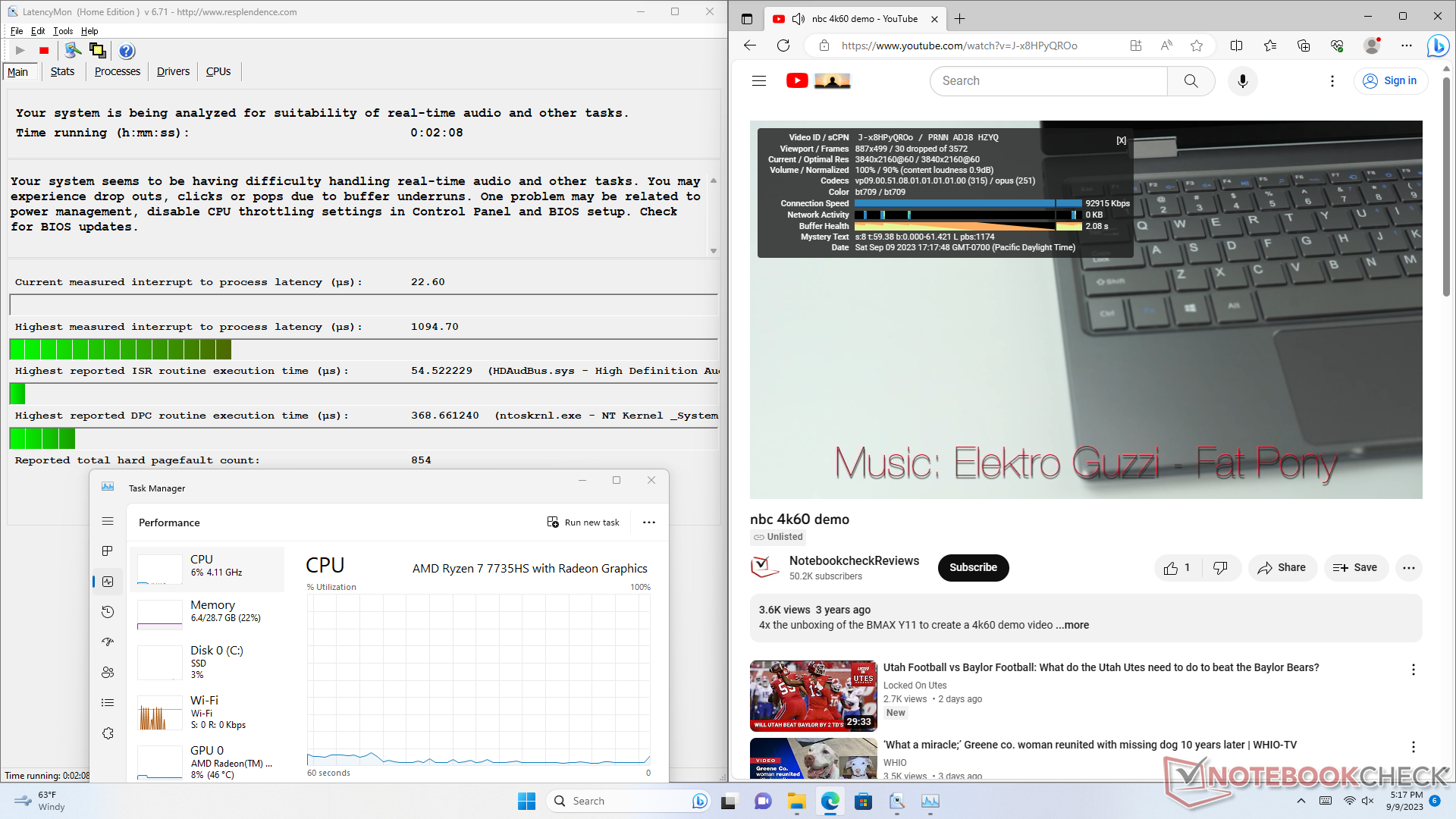

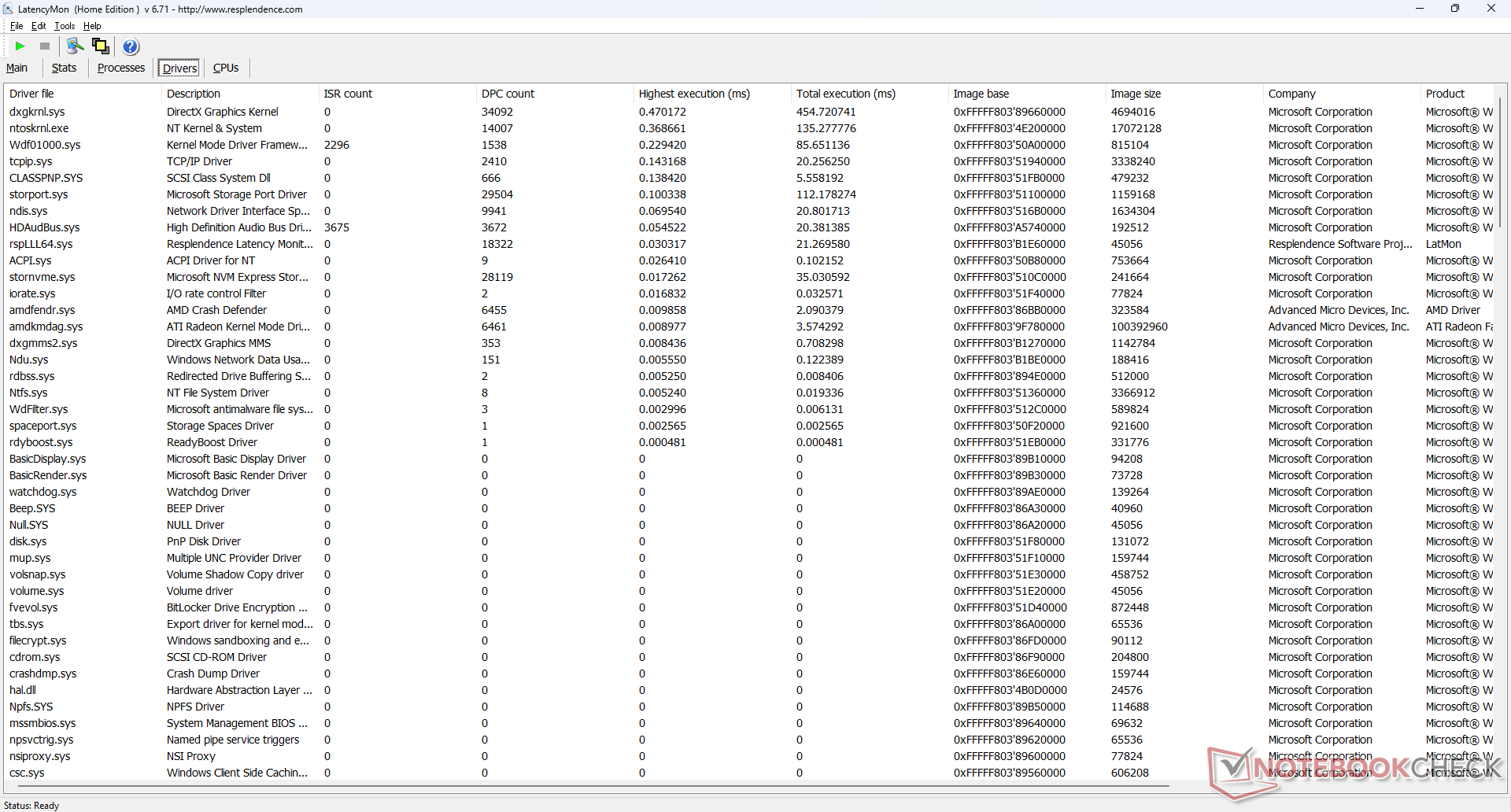

LatencyMon revela problemas menores de CPD al abrir varias pestañas de nuestra página de inicio. la reproducción de vídeo 4K a 60 FPS muestra problemas, ya que registramos 30 fotogramas caídos en un minuto. El tartamudeo sugiere un posible problema de controladores AMD que debería solucionarse.

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Trigkey Speed S Iris Xe G7 96EUs, i5-11320H, Intel SSD 670p SSDPEKNU512GZ	1455.4 μs * -33%
GMK NucBox K2 Radeon 680M, R7 7735HS, Lexar NM610 Pro NM610P001T-HNNNG	1094.7 μs *
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1068.7 μs * +2%
GMK NucBox 2 Iris Plus Graphics 655, i5-8259U, Netac S930E8/256GPN	786 μs * +28%
Beelink SER7 Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	647.9 μs * +41%
Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	466 μs * +57%

* ... más pequeño es mejor

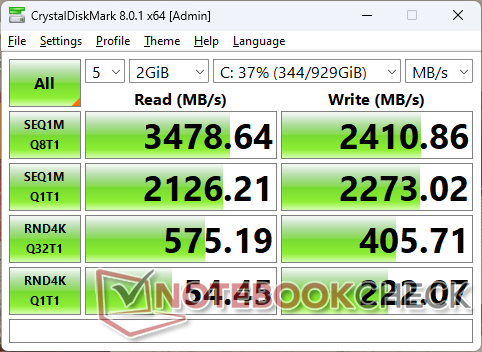

Dispositivos de almacenamiento

El modelo viene con un PCIe3 x4 de gama media Lexar NM610 Pro que ofrece velocidades de transferencia máximas más rápidas que la versión normal NM610 no Pro (3300 MB/s frente a 2100 MB/s). Los modelos PCIe4 más caros, como el Samsung PM9A1, son compatibles con hasta el doble de rendimiento, pero la ralentización podría ser un problema, ya que no hay refrigeración adicional para la unidad.

Sólo una ranura M.2 2280 sin opciones secundarias

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

Lexar NM610 Pro NM610P001T-HNNNG

CDM 5/6 Read Seq Q32T1: 3483 MB/s

CDM 5/6 Write Seq Q32T1: 2362 MB/s

CDM 5/6 Read 4K Q32T1: 569.9 MB/s

CDM 5/6 Write 4K Q32T1: 410.1 MB/s

CDM 5 Read Seq: 2029 MB/s

CDM 5 Write Seq: 2288 MB/s

CDM 5/6 Read 4K: 53.97 MB/s

CDM 5/6 Write 4K: 218.2 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	80.6 pt
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	62.7 pt
GMK NucBox K2 Lexar NM610 Pro NM610P001T-HNNNG	61.1 pt
Trigkey Speed S Intel SSD 670p SSDPEKNU512GZ	58.6 pt
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	53.9 pt
GMK NucBox 2 Netac S930E8/256GPN	35.1 pt

DiskSpd
seq read
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	3337 (3301.03^min - 3337.16^max) MB/s +57%
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	2718 (2645.56^min - 2717.91^max) MB/s +28%
Trigkey Speed S Intel SSD 670p SSDPEKNU512GZ	2433 (2411.3^min - 2433.16^max) MB/s +14%
GMK NucBox K2 Lexar NM610 Pro NM610P001T-HNNNG	2129 (2045.25^min - 2129.3^max) MB/s
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	1684 (1646.89^min - 1684.01^max) MB/s -21%
GMK NucBox 2 Netac S930E8/256GPN	1566 (1557.38^min - 1565.96^max) MB/s -26%
seq write
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	3404 (38.3^min - 3403.58^max) MB/s +56%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	3356 (3181.73^min - 3356.49^max) MB/s +54%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	2298 (1081.92^min - 2298.06^max) MB/s +5%
GMK NucBox K2 Lexar NM610 Pro NM610P001T-HNNNG	2180 (2126.36^min - 2180.16^max) MB/s
Trigkey Speed S Intel SSD 670p SSDPEKNU512GZ	1625 (1475.57^min - 1625.19^max) MB/s -25%
GMK NucBox 2 Netac S930E8/256GPN	1213 (454.38^min - 1213.29^max) MB/s -44%
seq q8 t1 read
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	5438 (4937.74^min - 5438.31^max) MB/s +59%
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	4893 (3920.33^min - 4893.08^max) MB/s +43%
GMK NucBox K2 Lexar NM610 Pro NM610P001T-HNNNG	3411 (3096.44^min - 3410.5^max) MB/s
Trigkey Speed S Intel SSD 670p SSDPEKNU512GZ	2909 (2628.77^min - 2908.96^max) MB/s -15%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	2223 (1765.77^min - 2223.4^max) MB/s -35%
GMK NucBox 2 Netac S930E8/256GPN	2121 (1959.37^min - 2121.01^max) MB/s -38%
seq q8 t1 write
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	4955 (4929.56^min - 4955.41^max) MB/s +108%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	2494 (2222.35^min - 2493.51^max) MB/s +5%
GMK NucBox K2 Lexar NM610 Pro NM610P001T-HNNNG	2378 (2283.33^min - 2377.68^max) MB/s
Trigkey Speed S Intel SSD 670p SSDPEKNU512GZ	1621 (1610.27^min - 1621.2^max) MB/s -32%
GMK NucBox 2 Netac S930E8/256GPN	1248 (414.41^min - 1248.45^max) MB/s -48%
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	739 (52.85^min - 739.46^max) MB/s -69%
4k q1 t1 read
Trigkey Speed S Intel SSD 670p SSDPEKNU512GZ	86.1 (85.71^min - 86.12^max) MB/s +66%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	84.5 (83.02^min - 84.54^max) MB/s +63%
GMK NucBox K2 Lexar NM610 Pro NM610P001T-HNNNG	51.8 (50.1^min - 51.75^max) MB/s
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	44.2 (41.58^min - 44.2^max) MB/s -15%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	38.1 (35.61^min - 38.07^max) MB/s -26%
GMK NucBox 2 Netac S930E8/256GPN	29.4 (21.8^min - 29.38^max) MB/s -43%
4k q1 t1 write
Trigkey Speed S Intel SSD 670p SSDPEKNU512GZ	260 (257.62^min - 260.21^max) MB/s +23%
GMK NucBox K2 Lexar NM610 Pro NM610P001T-HNNNG	212 (203.51^min - 212.25^max) MB/s
GMK NucBox 2 Netac S930E8/256GPN	156 (133.05^min - 156.14^max) MB/s -26%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	144.6 (143.6^min - 144.57^max) MB/s -32%
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	139.4 (137.92^min - 139.38^max) MB/s -34%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	120 (112.79^min - 120.03^max) MB/s -43%
4k q32 t16 read
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	2810 (2697.36^min - 2809.61^max) MB/s +84%
GMK NucBox K2 Lexar NM610 Pro NM610P001T-HNNNG	1530 (1528.13^min - 1529.56^max) MB/s
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	808 (792.58^min - 807.51^max) MB/s -47%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	639 (421.15^min - 639.47^max) MB/s -58%
Trigkey Speed S Intel SSD 670p SSDPEKNU512GZ	474 (472.39^min - 473.68^max) MB/s -69%
GMK NucBox 2 Netac S930E8/256GPN	331 (329.92^min - 330.85^max) MB/s -78%
4k q32 t16 write
Trigkey Speed S Intel SSD 670p SSDPEKNU512GZ	1258 (1245.8^min - 1257.91^max) MB/s +50%
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	1066 (54.15^min - 1066.13^max) MB/s +28%
GMK NucBox K2 Lexar NM610 Pro NM610P001T-HNNNG	836 (794.23^min - 835.97^max) MB/s
GMK NucBox 2 Netac S930E8/256GPN	739 (122.91^min - 738.54^max) MB/s -12%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	454 (443.2^min - 453.53^max) MB/s -46%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	176.1 (168.14^min - 176.06^max) MB/s -79%

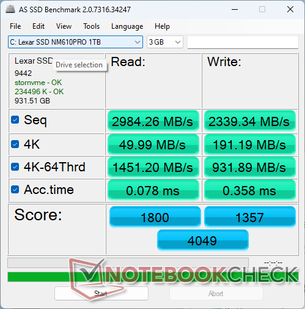

AS SSD
Score Total
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	5249 Points +30%
GMK NucBox K2 Lexar NM610 Pro NM610P001T-HNNNG	4049 Points
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	3887 Points -4%
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	2617 Points -35%
Trigkey Speed S Intel SSD 670p SSDPEKNU512GZ	2595 Points -36%
GMK NucBox 2 Netac S930E8/256GPN	1497 Points -63%
Score Read
GMK NucBox K2 Lexar NM610 Pro NM610P001T-HNNNG	1800 Points
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	1513 Points -16%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	1320 Points -27%
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	1215 Points -32%
Trigkey Speed S Intel SSD 670p SSDPEKNU512GZ	792 Points -56%
GMK NucBox 2 Netac S930E8/256GPN	615 Points -66%
Score Write
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	3326 Points +145%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	1632 Points +20%
Trigkey Speed S Intel SSD 670p SSDPEKNU512GZ	1442 Points +6%
GMK NucBox K2 Lexar NM610 Pro NM610P001T-HNNNG	1357 Points
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	800 Points -41%
GMK NucBox 2 Netac S930E8/256GPN	598 Points -56%
Seq Read
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	4536 MB/s +52%
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	3900.61 MB/s +31%
GMK NucBox K2 Lexar NM610 Pro NM610P001T-HNNNG	2984.26 MB/s
Trigkey Speed S Intel SSD 670p SSDPEKNU512GZ	2714.84 MB/s -9%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	2268 MB/s -24%
GMK NucBox 2 Netac S930E8/256GPN	2069 MB/s -31%
Seq Write
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	3390.67 MB/s +45%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	2698 MB/s +15%
GMK NucBox K2 Lexar NM610 Pro NM610P001T-HNNNG	2339.34 MB/s
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	1318 MB/s -44%
Trigkey Speed S Intel SSD 670p SSDPEKNU512GZ	1287.68 MB/s -45%
GMK NucBox 2 Netac S930E8/256GPN	1203 MB/s -49%
4K Read
Trigkey Speed S Intel SSD 670p SSDPEKNU512GZ	73.17 MB/s +46%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	72 MB/s +44%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	63.4 MB/s +27%
GMK NucBox K2 Lexar NM610 Pro NM610P001T-HNNNG	49.99 MB/s
GMK NucBox 2 Netac S930E8/256GPN	41.66 MB/s -17%
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	37.69 MB/s -25%
4K Write
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	225 MB/s +18%
Trigkey Speed S Intel SSD 670p SSDPEKNU512GZ	219.46 MB/s +15%
GMK NucBox K2 Lexar NM610 Pro NM610P001T-HNNNG	191.19 MB/s
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	166.8 MB/s -13%
GMK NucBox 2 Netac S930E8/256GPN	136.9 MB/s -28%
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	129.29 MB/s -32%
4K-64 Read
GMK NucBox K2 Lexar NM610 Pro NM610P001T-HNNNG	1451.2 MB/s
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	1223 MB/s -16%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	794 MB/s -45%
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	787.73 MB/s -46%
Trigkey Speed S Intel SSD 670p SSDPEKNU512GZ	447.15 MB/s -69%
GMK NucBox 2 Netac S930E8/256GPN	366.3 MB/s -75%
4K-64 Write
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	2889 MB/s +210%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	1276 MB/s +37%
Trigkey Speed S Intel SSD 670p SSDPEKNU512GZ	1094.27 MB/s +17%
GMK NucBox K2 Lexar NM610 Pro NM610P001T-HNNNG	931.89 MB/s
GMK NucBox 2 Netac S930E8/256GPN	340.5 MB/s -63%
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	331.93 MB/s -64%
Access Time Read
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	0.1 ms * -28%
Trigkey Speed S Intel SSD 670p SSDPEKNU512GZ	0.083 ms * -6%
GMK NucBox K2 Lexar NM610 Pro NM610P001T-HNNNG	0.078 ms *
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	0.066 ms * +15%
GMK NucBox 2 Netac S930E8/256GPN	0.064 ms * +18%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	0.06 ms * +23%
Access Time Write
GMK NucBox K2 Lexar NM610 Pro NM610P001T-HNNNG	0.358 ms *
GMK NucBox 2 Netac S930E8/256GPN	0.347 ms * +3%
Trigkey Speed S Intel SSD 670p SSDPEKNU512GZ	0.102 ms * +72%
Geekom Mini IT11, i7-11390H Lexar 1024GB LNM6A1X001T-HNNNG	0.087 ms * +76%
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	0.076 ms * +79%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	0.024 ms * +93%

* ... más pequeño es mejor

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

GMK NucBox K2: Ø3162 (1744.33-3330.86)

Rendimiento de la GPU

El Radeon 680M sigue siendo una de las GPU integradas más rápidas del mercado a pesar de estar a punto de cumplir un par de años. La GPU es lo bastante potente como para jugar a títulos 3D modernos a 1080p nativos siempre que los ajustes se ajusten a un nivel bajo. Recomendamos conectar una pantalla compatible con FreeSync si vas a jugar en la NucBox K2 con frecuencia, ya que la Radeon 680M tiende a oscilar entre 45 y 60 FPS.

La actualización a la configuración Ryzen 9 7940HS con la Radeon 780M se espera que aumente el rendimiento gráfico en alrededor de 10 a 20 por ciento basado en nuestro tiempo con el Beelink SER7.

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Beelink SER7 AMD Radeon 780M, AMD Ryzen 7 7840HS	100 pt
Minisforum Venus Series UM790 Pro AMD Radeon 780M, AMD Ryzen 9 7940HS	92.2 pt
GMK NucBox K2 AMD Radeon 680M, AMD Ryzen 7 7735HS	85.8 pt
Beelink SER6 Pro AMD Radeon 680M, AMD Ryzen 7 6800H	85.1 pt
Beelink GTR6 AMD Radeon 680M, AMD Ryzen 9 6900HX	84.2 pt
Average AMD Radeon 680M	78.7 pt
Minisforum Mercury Series EM680 AMD Radeon 680M, AMD Ryzen 7 6800U	64.2 pt
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	60.7 pt
Minisforum Venus Series NPB5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-13500H	55.4 pt
Trigkey Speed S Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	52.6 pt
Beelink SER Pro Ryzen 5 5600H AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	45.9 pt
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	45.5 pt
GMK NucBox 2 Intel Iris Plus Graphics 655, Intel Core i5-8259U	22 pt

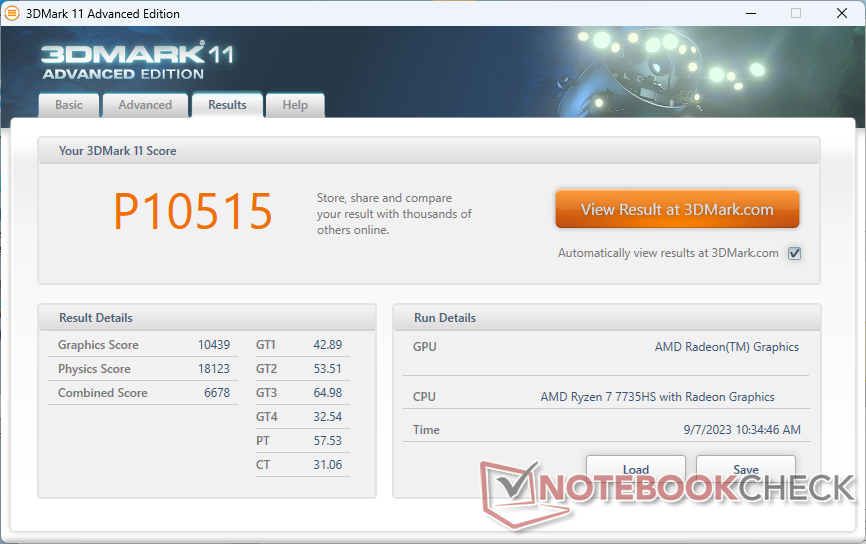

3DMark 11 - 1280x720 Performance GPU
Beelink SER7 AMD Radeon 780M, AMD Ryzen 7 7840HS	12845 Points +23%
Minisforum Venus Series UM790 Pro AMD Radeon 780M, AMD Ryzen 9 7940HS	12384 Points +19%
Beelink SER6 Pro AMD Radeon 680M, AMD Ryzen 7 6800H	10807 Points +4%
Beelink GTR6 AMD Radeon 680M, AMD Ryzen 9 6900HX	10566 Points +1%
GMK NucBox K2 AMD Radeon 680M, AMD Ryzen 7 7735HS	10439 Points
Average AMD Radeon 680M (6858 - 11755, n=35)	10068 Points -4%
Minisforum Mercury Series EM680 AMD Radeon 680M, AMD Ryzen 7 6800U	7718 Points -26%
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	7321 Points -30%
Minisforum Venus Series NPB5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-13500H	6477 Points -38%
Trigkey Speed S Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	6423 Points -38%
Beelink SER Pro Ryzen 5 5600H AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	6079 Points -42%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	5413 Points -48%
GMK NucBox 2 Intel Iris Plus Graphics 655, Intel Core i5-8259U	2947 Points -72%

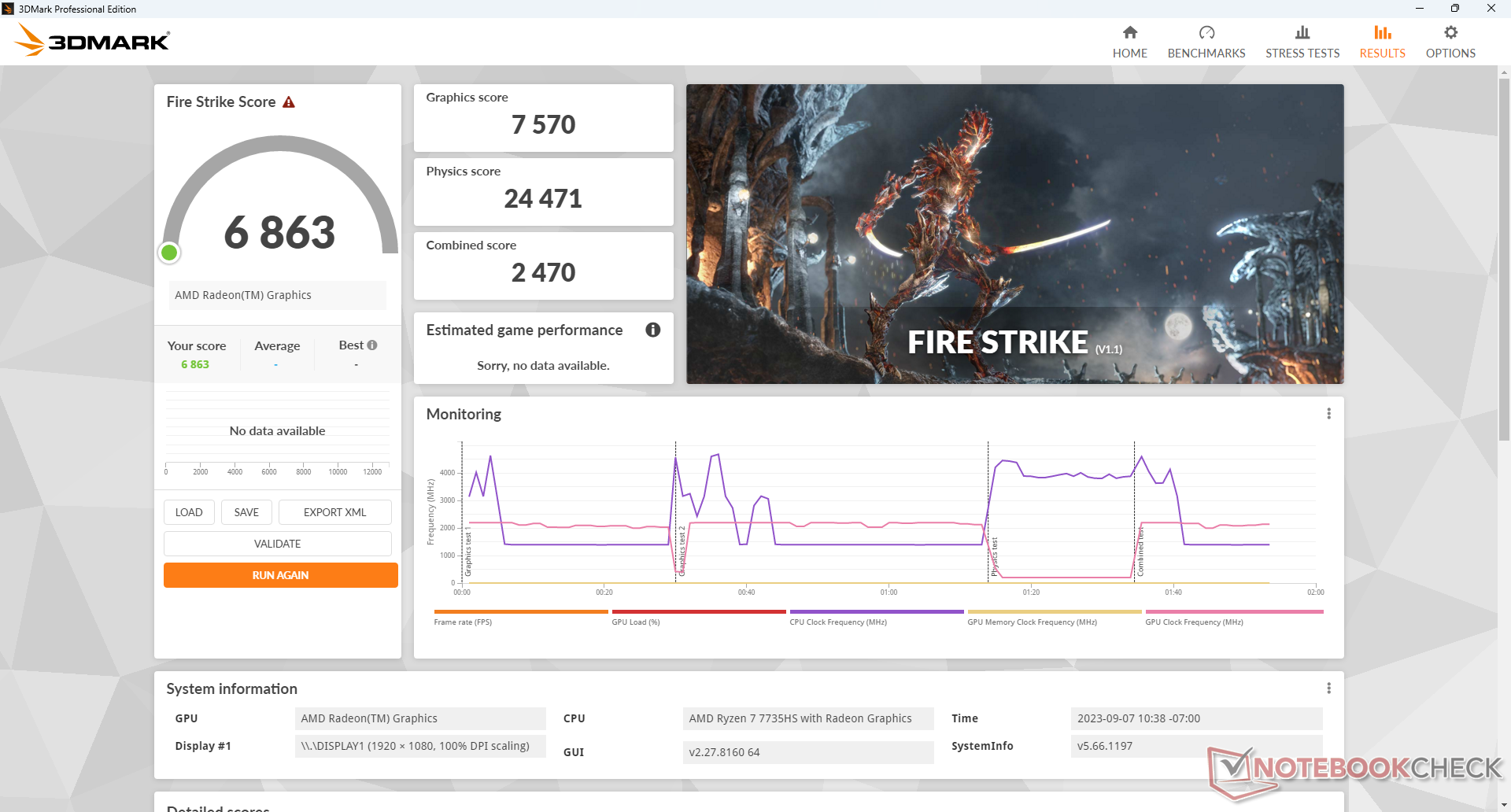

3DMark
1920x1080 Fire Strike Graphics
Beelink SER7 AMD Radeon 780M, AMD Ryzen 7 7840HS	8001 Points +6%
GMK NucBox K2 AMD Radeon 680M, AMD Ryzen 7 7735HS	7570 Points
Minisforum Venus Series UM790 Pro AMD Radeon 780M, AMD Ryzen 9 7940HS	7284 Points -4%
Beelink SER6 Pro AMD Radeon 680M, AMD Ryzen 7 6800H	7026 Points -7%
Beelink GTR6 AMD Radeon 680M, AMD Ryzen 9 6900HX	6962 Points -8%
Average AMD Radeon 680M (3791 - 7706, n=36)	6701 Points -11%
Minisforum Mercury Series EM680 AMD Radeon 680M, AMD Ryzen 7 6800U	5660 Points -25%
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	5616 Points -26%
Minisforum Venus Series NPB5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-13500H	5305 Points -30%
Trigkey Speed S Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	4568 Points -40%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	4041 Points -47%
Beelink SER Pro Ryzen 5 5600H AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	4037 Points -47%
GMK NucBox 2 Intel Iris Plus Graphics 655, Intel Core i5-8259U	1914 Points -75%
2560x1440 Time Spy Graphics
Beelink SER7 AMD Radeon 780M, AMD Ryzen 7 7840HS	2908 Points +19%
Minisforum Venus Series UM790 Pro AMD Radeon 780M, AMD Ryzen 9 7940HS	2632 Points +8%
Beelink SER6 Pro AMD Radeon 680M, AMD Ryzen 7 6800H	2452 Points +1%
Beelink GTR6 AMD Radeon 680M, AMD Ryzen 9 6900HX	2437 Points 0%
GMK NucBox K2 AMD Radeon 680M, AMD Ryzen 7 7735HS	2436 Points
Average AMD Radeon 680M (1359 - 2607, n=36)	2227 Points -9%
Minisforum Mercury Series EM680 AMD Radeon 680M, AMD Ryzen 7 6800U	1838 Points -25%
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	1672 Points -31%
Trigkey Speed S Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	1508 Points -38%
Minisforum Venus Series NPB5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-13500H	1508 Points -38%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	1300 Points -47%
Beelink SER Pro Ryzen 5 5600H AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	1247 Points -49%
GMK NucBox 2 Intel Iris Plus Graphics 655, Intel Core i5-8259U	594 Points -76%

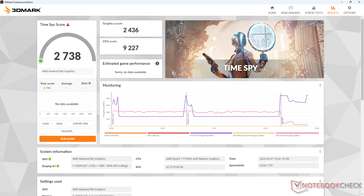

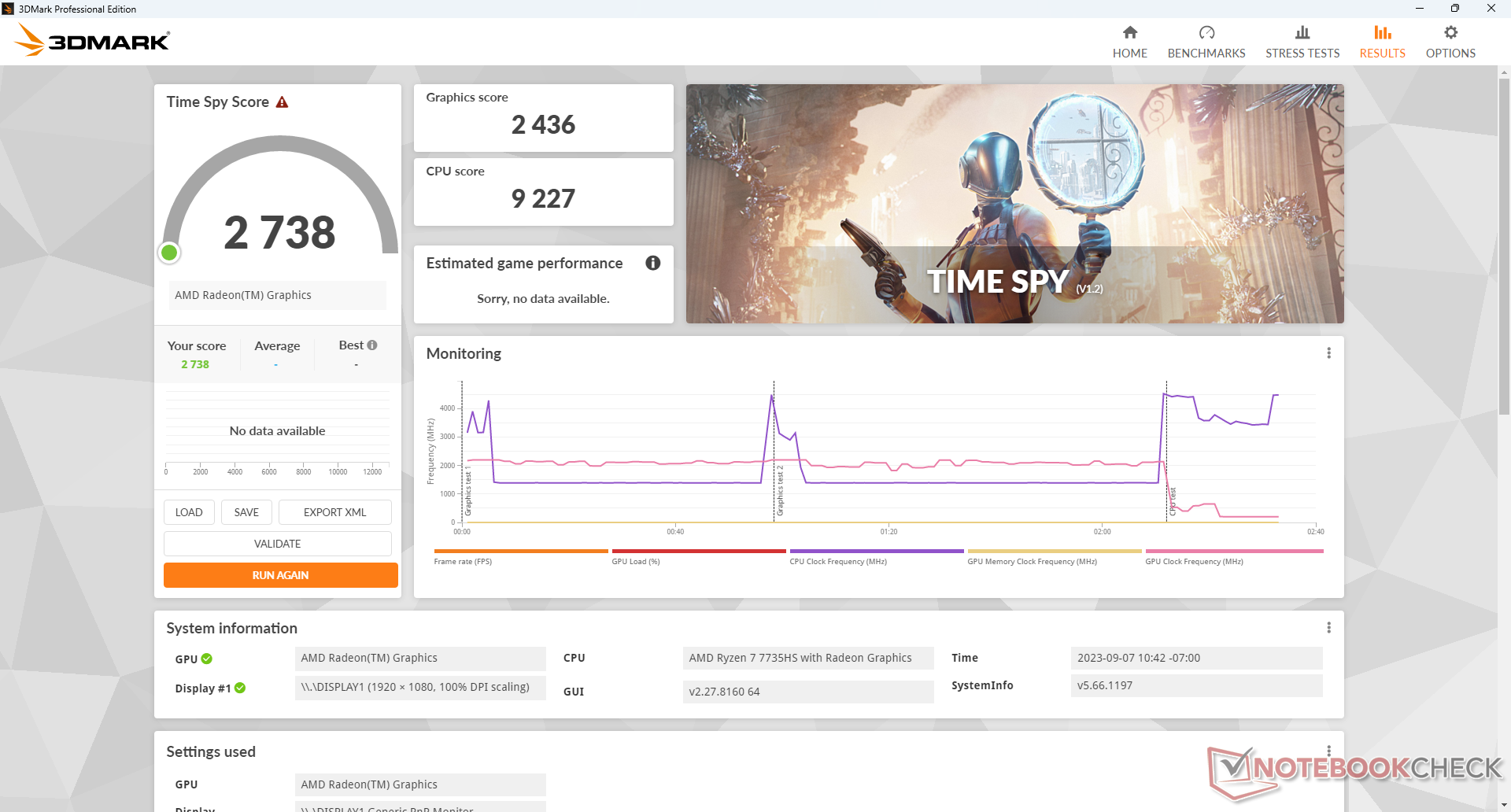

2560x1440 Time Spy Score
Beelink SER7 AMD Radeon 780M, AMD Ryzen 7 7840HS	3270 Points +19%
Minisforum Venus Series UM790 Pro AMD Radeon 780M, AMD Ryzen 9 7940HS	2966 Points +8%
Beelink SER6 Pro AMD Radeon 680M, AMD Ryzen 7 6800H	2751 Points 0%
GMK NucBox K2 AMD Radeon 680M, AMD Ryzen 7 7735HS	2738 Points
Beelink GTR6 AMD Radeon 680M, AMD Ryzen 9 6900HX	2735 Points 0%
Average AMD Radeon 680M (1546 - 2914, n=36)	2494 Points -9%
Minisforum Mercury Series EM680 AMD Radeon 680M, AMD Ryzen 7 6800U	2057 Points -25%
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	1903 Points -30%
Minisforum Venus Series NPB5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-13500H	1731 Points -37%
Trigkey Speed S Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	1680 Points -39%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	1456 Points -47%
Beelink SER Pro Ryzen 5 5600H AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	1405 Points -49%
GMK NucBox 2 Intel Iris Plus Graphics 655, Intel Core i5-8259U	676 Points -75%

3DMark Performance Rating | 3DMark 11 | 3DMark

Blender
v3.3 Classroom HIP/AMD
Minisforum Mercury Series EM680 AMD Radeon 680M, AMD Ryzen 7 6800U	504 Seconds * -87%
Beelink GTR6 AMD Radeon 680M, AMD Ryzen 9 6900HX	356 Seconds * -32%
Average AMD Radeon 680M (270 - 555, n=31)	346 Seconds * -28%
Beelink SER6 Pro AMD Radeon 680M, AMD Ryzen 7 6800H	318 Seconds * -18%
GMK NucBox K2 AMD Radeon 680M, AMD Ryzen 7 7735HS	270 Seconds *
v3.3 Classroom CPU
Trigkey Speed S Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	1010 Seconds * -131%
Geekom Mini IT11, i7-11390H Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H	943 Seconds * -115%
Beelink SER Pro Ryzen 5 5600H AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	666 Seconds * -52%
Minisforum Mercury Series EM680 AMD Radeon 680M, AMD Ryzen 7 6800U	479 Seconds * -9%
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	477 Seconds * -9%
Average AMD Radeon 680M (389 - 609, n=32)	475 Seconds * -8%
Minisforum Venus Series NPB5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-13500H	463 Seconds * -6%
Beelink SER6 Pro AMD Radeon 680M, AMD Ryzen 7 6800H	453 Seconds * -3%
GMK NucBox K2 AMD Radeon 680M, AMD Ryzen 7 7735HS	438 Seconds *
Beelink GTR6 AMD Radeon 680M, AMD Ryzen 9 6900HX	436 Seconds * -0%
Beelink SER7 AMD Radeon 780M, AMD Ryzen 7 7840HS	318 Seconds * +27%
Minisforum Venus Series UM790 Pro AMD Radeon 780M, AMD Ryzen 9 7940HS	305 Seconds * +30%

* ... más pequeño es mejor

Tiny Tina's Wonderlands
1280x720 Lowest Preset (DX12)
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	140.6 fps +23%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	131.4 fps +15%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	114.6 fps
Average AMD Radeon 680M (59.3 - 126.2, n=17)	98.2 fps -14%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	59.3 fps -48%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	57.7 fps -50%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	55 fps -52%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	35.9 fps -69%
1920x1080 Low Preset (DX12)
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	71.6 fps +17%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	62.6 fps +3%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	61 fps
Average AMD Radeon 680M (37.7 - 65.8, n=18)	52.2 fps -14%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	39.3 fps -36%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	32.3 fps -47%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	30.3 fps -50%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	22.3 fps -63%
1920x1080 Medium Preset (DX12)
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	52 fps +15%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	46.8 fps +4%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	45.1 fps
Average AMD Radeon 680M (28.2 - 47.7, n=18)	38.9 fps -14%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	30.6 fps -32%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	25.4 fps -44%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	23.9 fps -47%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	17 fps -62%
1920x1080 High Preset (DX12)
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	37.1 fps +19%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	33.3 fps +7%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	31.2 fps
Average AMD Radeon 680M (19.8 - 32.3, n=18)	26.3 fps -16%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	21.8 fps -30%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	15.9 fps -49%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	14.7 fps -53%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	10.7 fps -66%
1920x1080 Badass Preset (DX12)
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	30 fps +23%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	27.1 fps +11%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	24.4 fps
Average AMD Radeon 680M (16 - 26.1, n=18)	21 fps -14%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	18.5 fps -24%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	13.5 fps -45%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	11.4 fps -53%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	8.4 fps -66%

The Witcher 3
1024x768 Low Graphics & Postprocessing
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	148.1 (121^min) fps +22%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	139.2 (119^min) fps +14%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	138.1 (116^min) fps +14%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	135.1 fps +11%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	121.6 (89^min) fps
Average AMD Radeon 680M (67.4 - 150, n=30)	114.8 fps -6%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	102 fps -16%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	97.4 fps -20%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	87.8 (79^min) fps -28%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	79.2 (75^min) fps -35%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	67.4 fps -45%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	63.3 fps -48%
1366x768 Medium Graphics & Postprocessing
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	97.1 (91^min) fps +28%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	85.2 fps +12%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	85.1 (80^min) fps +12%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	84 (77^min) fps +11%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	75.9 (71^min) fps
Average AMD Radeon 680M (44.5 - 85.3, n=23)	70 fps -8%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	53.5 (49^min) fps -30%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	48.7 (45^min) fps -36%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	47.7 fps -37%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	49 (45^min) fps +29%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	46 (41^min) fps +21%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	43.3 (36^min) fps +14%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	43.3 fps +14%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	37.9 (35^min) fps
Average AMD Radeon 680M (22.3 - 48, n=32)	37.4 fps -1%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	33.5 fps -12%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	33.5 fps -12%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	32.1 fps -15%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	25.1 (22^min) fps -34%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	23.5 (22^min) fps -38%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	22.2 fps -41%
1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	30.5 (28^min) fps +34%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	28.1 fps +24%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	27.1 (24^min) fps +19%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	27 (25^min) fps +19%
Average AMD Radeon 680M (14.3 - 27.1, n=32)	23 fps +1%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	22.7 (20^min) fps
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	20.1 fps -11%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	16.9 fps -26%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	15.8 (14^min) fps -30%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	15.7 fps -31%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	13.1 (11^min) fps -42%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	11.4 fps -50%

X-Plane 11.11
1280x720 low (fps_test=1)
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	66.7 fps
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	66.4 fps 0%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	64.8 fps -3%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	60.3 fps -10%
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	57.8 fps -13%
Average AMD Radeon 680M (26.8 - 66.7, n=36)	55.5 fps -17%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	54.6 fps -18%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	53.4 fps -20%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	51.1 fps -23%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	48.7 fps -27%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	26.8 fps -60%
GMK NucBox 2 Intel Core i5-8259U, Intel Iris Plus Graphics 655	25.3 fps -62%
1920x1080 med (fps_test=2)
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	52.9 fps 0%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	52.8 fps
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	52.6 fps 0%
Average AMD Radeon 680M (21.1 - 53.1, n=36)	43.8 fps -17%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	43.7 fps -17%
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	43.5 fps -18%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	43 fps -19%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	41 fps -22%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	40.3 fps -24%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	34.4 fps -35%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	21.1 fps -60%
GMK NucBox 2 Intel Core i5-8259U, Intel Iris Plus Graphics 655	18 fps -66%
1920x1080 high (fps_test=3)
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	43 fps +1%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	42.4 fps
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	41.8 fps -1%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	38.7 fps -9%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	36.5 fps -14%
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	36.5 fps -14%
Average AMD Radeon 680M (16.6 - 44.5, n=36)	35.9 fps -15%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	35.7 fps -16%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	35.4 fps -17%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	30.3 fps -29%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	16.6 fps -61%
GMK NucBox 2 Intel Core i5-8259U, Intel Iris Plus Graphics 655	15.9 fps -62%

Final Fantasy XV Benchmark
1280x720 Lite Quality
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	76.5 fps +21%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	69.7 fps +10%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	68.5 fps +8%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	68.1 fps +7%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	63.4 fps
Average AMD Radeon 680M (34.4 - 74.7, n=34)	59.4 fps -6%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	45.7 fps -28%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	45.6 fps -28%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	45.6 fps -28%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	41.1 fps -35%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	39.8 fps -37%
GMK NucBox 2 Intel Core i5-8259U, Intel Iris Plus Graphics 655	17.3 fps -73%
1920x1080 Standard Quality
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	38.2 fps +16%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	35.2 fps +7%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	34.9 fps +6%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	34.7 fps +5%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	33 fps
Average AMD Radeon 680M (18.3 - 36.9, n=35)	30.9 fps -6%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	28.9 fps -12%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	25.1 fps -24%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	24.3 fps -26%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	21.3 fps -35%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	20.3 fps -38%
GMK NucBox 2 Intel Core i5-8259U, Intel Iris Plus Graphics 655	9.07 fps -73%
1920x1080 High Quality
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	28.5 fps +15%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	26 fps +5%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	24.8 fps
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	24.6 fps -1%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	24.5 fps -1%
Average AMD Radeon 680M (12.9 - 26.2, n=35)	22.1 fps -11%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	20.9 fps -16%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	17.4 fps -30%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	17.4 fps -30%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	15.4 fps -38%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	14.3 fps -42%
GMK NucBox 2 Intel Core i5-8259U, Intel Iris Plus Graphics 655	6.04 fps -76%

Dota 2 Reborn
1280x720 min (0/3) fastest
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	156.9 (136.5^min) fps +11%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	150.2 (132.8^min) fps +6%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	143.3 (123.8^min) fps +1%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	141.9 (121.4^min) fps 0%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	141.2 (122.4^min) fps
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	140.3 (102.2^min) fps -1%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	137.5 (109.5^min) fps -3%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	121 (109.7^min) fps -14%
Average AMD Radeon 680M (34.4 - 146.2, n=36)	115 fps -19%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	113.8 (8.3^min) fps -19%
GMK NucBox 2 Intel Core i5-8259U, Intel Iris Plus Graphics 655	98 (79.8^min) fps -31%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	95.8 (84.4^min) fps -32%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	62.4 (51.9^min) fps -56%
1366x768 med (1/3)
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	121.1 (100.6^min) fps +7%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	116.1 (95.8^min) fps +2%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	113.5 (96.1^min) fps
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	113.4 (94^min) fps 0%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	112.7 (95^min) fps -1%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	103.1 (78.3^min) fps -9%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	101.3 (78.4^min) fps -11%
Average AMD Radeon 680M (33.3 - 121.4, n=36)	95.6 fps -16%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	86.4 (68.3^min) fps -24%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	79.4 (61.1^min) fps -30%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	66.6 (50^min) fps -41%
GMK NucBox 2 Intel Core i5-8259U, Intel Iris Plus Graphics 655	66 (54.7^min) fps -42%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	57.3 (48.6^min) fps -50%
1920x1080 high (2/3)
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	95.5 (85.2^min) fps +13%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	89.9 (78.3^min) fps +7%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	84.2 (74.4^min) fps
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	83.9 (73.4^min) fps 0%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	80.9 (71.6^min) fps -4%
Average AMD Radeon 680M (33.2 - 89.1, n=36)	71.7 fps -15%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	70.7 (65.7^min) fps -16%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	67.6 (58.9^min) fps -20%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	59.3 (52.5^min) fps -30%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	50.6 (42.5^min) fps -40%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	45.2 (38.5^min) fps -46%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	44.8 (38.3^min) fps -47%
GMK NucBox 2 Intel Core i5-8259U, Intel Iris Plus Graphics 655	31.9 (29.3^min) fps -62%
1920x1080 ultra (3/3) best looking
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	85.6 (74.9^min) fps +16%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	80.3 (71.5^min) fps +9%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	73.7 (65.4^min) fps
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	73.1 (64^min) fps -1%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	71.4 (62.3^min) fps -3%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	64.5 (58.2^min) fps -12%
Average AMD Radeon 680M (33.2 - 84.9, n=36)	63 fps -15%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	60.5 (52.3^min) fps -18%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	56.3 (49.3^min) fps -24%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	52.3 (43.7^min) fps -29%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	42 (36.8^min) fps -43%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	42 (37.8^min) fps -43%
GMK NucBox 2 Intel Core i5-8259U, Intel Iris Plus Graphics 655	27.7 (25.5^min) fps -62%

Far Cry 5
1280x720 Low Preset AA:T
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	84 (73^min) fps +22%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	80 (69^min) fps +16%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	69 (62^min) fps
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	63 (57^min) fps -9%
Average AMD Radeon 680M (37 - 82, n=27)	62.3 fps -10%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	45 (40^min) fps -35%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	41 (35^min) fps -41%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	40 (35^min) fps -42%
1920x1080 Medium Preset AA:T
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	50 (45^min) fps +22%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	45 (40^min) fps +10%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	41 (36^min) fps
Average AMD Radeon 680M (21 - 45, n=27)	36.7 fps -10%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	31 (27^min) fps -24%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	29 (27^min) fps -29%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	26 (23^min) fps -37%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	20 (18^min) fps -51%
1920x1080 High Preset AA:T
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	46 (41^min) fps +21%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	41 (36^min) fps +8%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	38 (33^min) fps
Average AMD Radeon 680M (18 - 41, n=27)	33.5 fps -12%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	29 (25^min) fps -24%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	27 (25^min) fps -29%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	24 (21^min) fps -37%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	19 (17^min) fps -50%
1920x1080 Ultra Preset AA:T
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	44 (39^min) fps +22%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	39 (35^min) fps +8%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	36 (31^min) fps
Average AMD Radeon 680M (20 - 40, n=26)	32.2 fps -11%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	27 (24^min) fps -25%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	26 (23^min) fps -28%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	23 (20^min) fps -36%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	17 (15^min) fps -53%

GTA V
1024x768 Lowest Settings possible
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	166 (4.54^min, 125^P1) fps +9%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	157.8 (4.54^min, 111.1^P1) fps +4%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	152.6 (4.69^min, 100^P1) fps 0%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	152.3 (4.42^min, 100^P1) fps 0%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	152.3 (5.63^min, 100^P1) fps
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	144.6 (8.46^min, 100^P1) fps -5%
Average AMD Radeon 680M (67.7 - 155.4, n=31)	134 fps -12%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	132.9 (18.4^min, 90.9^P1) fps -13%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	124.5 (12.7^min, 76.9^P1) fps -18%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	97.7 (25.6^min, 55.6^P1) fps -36%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	92.2 (30.2^min, 58.8^P1) fps -39%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	67.7 (4.02^min, 38.5^P1) fps -56%
1920x1080 Lowest Settings possible
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	129.1 (9.37^min, 90.9^P1) fps +15%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	113.4 (16.8^min, 76.9^P1) fps +1%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	112.4 (25^min, 76.9^P1) fps
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	112 (30.2^min, 71.4^P1) fps 0%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	111.4 (35^min, 71.4^P1) fps -1%
Average AMD Radeon 680M (56.9 - 115.8, n=23)	102.9 fps -8%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	98.1 (39.1^min, 71.4^P1) fps -13%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	87.6 (30.9^min, 58.8^P1) fps -22%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	81 (12.3^min, 58.8^P1) fps -28%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	68.9 (21.3^min, 45.5^P1) fps -39%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	66.4 (17.6^min, 43.5^P1) fps -41%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	56.9 (8.92^min, 35.7^P1) fps -49%
1366x768 Normal/Off AF:4x
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	158.4 (14.6^min, 111.1^P1) fps +14%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	146 (6.65^min, 100^P1) fps +5%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	139.7 (5.95^min, 90.9^P1) fps 0%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	139.1 (7.31^min, 90.9^P1) fps
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	138 (28^min, 90.9^P1) fps -1%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	133.8 (46.7^min, 83.3^P1) fps -4%
Average AMD Radeon 680M (60.7 - 143.9, n=28)	120 fps -14%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	117.6 (20.9^min, 71.4^P1) fps -15%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	101.9 (27.6^min, 62.5^P1) fps -27%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	84.7 (19.5^min, 47.6^P1) fps -39%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	80.3 (25.9^min, 50^P1) fps -42%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	61.7 (8.03^min, 38.5^P1) fps -56%
1920x1080 Normal/Off AF:4x
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	132.3 (14.1^min, 83.3^P1) fps +17%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	117.6 (14.5^min, 83.3^P1) fps +4%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	113.3 (11.4^min, 71.4^P1) fps
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	110.4 (6.6^min, 71.4^P1) fps -3%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	109.6 (8.03^min, 71.4^P1) fps -3%
Average AMD Radeon 680M (54.9 - 117.3, n=23)	102.3 fps -10%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	97.2 (7.32^min, 66.7^P1) fps -14%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	81.8 (14.1^min, 55.6^P1) fps -28%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	74.8 (27^min, 47.6^P1) fps -34%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	60.6 (22.7^min, 41.7^P1) fps -47%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	59 (18^min, 35.7^P1) fps -48%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	54.9 (8.78^min, 33.3^P1) fps -52%
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	68.3 (4.5^min, 45.5^P1) fps +32%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	59.7 (4.52^min, 40^P1) fps +15%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	51.9 (14.3^min, 37^P1) fps 0%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	51.9 (5.75^min, 35.7^P1) fps
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	51.8 (9.91^min, 35.7^P1) fps 0%
Average AMD Radeon 680M (25.9 - 99.1, n=31)	49.2 fps -5%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	34 (1.184^min, 19.2^P1) fps -34%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	32.2 (8.1^min, 23.3^P1) fps -38%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	24.3 (14.7^min, 18.9^P1) fps -53%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	23.4 (9.03^min, 16.7^P1) fps -55%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	20.9 (10.5^min, 16.7^P1) fps -60%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	20.5 (8.17^min, 14.5^P1) fps -61%
1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	27.5 (3.06^min, 18.9^P1) fps +15%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	24 (5.07^min, 15.9^P1) fps
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	23.7 (7.88^min, 16.4^P1) fps -1%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	23.7 (9.52^min, 16.4^P1) fps -1%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	23.6 (2.03^min, 16.1^P1) fps -2%
Average AMD Radeon 680M (11.3 - 24.8, n=31)	21.5 fps -10%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	19.6 (0.569^min, 10.2^P1) fps -18%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	14.5 (4.85^min, 10.3^P1) fps -40%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	10.3 (4.68^min, 5.59^P1) fps -57%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	9.04 (4.64^min, 5.71^P1) fps -62%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	8.8 (4.66^min, 7.35^P1) fps -63%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	7.71 (3.66^min, 5.78^P1) fps -68%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	7.7 (3.58^min, 5.88^P1) fps -68%

F1 22
1280x720 Ultra Low Preset AA:T AF:16x
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	164.2 (129^min, 114^P1) fps +11%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	151.3 (123^min, 105^P1) fps +3%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	147.3 (118^min, 96^P1) fps
Average AMD Radeon 680M (75.5 - 147.3, n=19)	126.1 fps -14%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	81 (63^min, 64^P1) fps -45%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	80.1 (65^min, 63^P1) fps -46%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	77.5 (64^min, 42^P1) fps -47%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	58.2 (44^min, 44^P1) fps -60%
1920x1080 Low Preset AA:T AF:16x
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	94.6 (81^min, 71^P1) fps +15%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	82.6 (71^min, 56^P1) fps 0%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	82.6 (71^min, 57^P1) fps
Average AMD Radeon 680M (44.1 - 85.4, n=25)	73.3 fps -11%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	49.7 (37^min, 25^P1) fps -40%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	47.6 (39^min, 39^P1) fps -42%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	46.6 (39^min, 39^P1) fps -44%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	33.3 (28^min, 27^P1) fps -60%
1920x1080 Medium Preset AA:T AF:16x
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	85.7 (72^min, 66^P1) fps +16%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	74.1 (61^min, 47^P1) fps
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	72.9 (57^min, 45^P1) fps -2%
Average AMD Radeon 680M (38 - 75.1, n=25)	64.5 fps -13%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	46.1 (29^min, 22^P1) fps -38%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	43.4 (36^min, 36^P1) fps -41%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	42.5 (37^min, 34^P1) fps -43%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	30.6 (26^min, 25^P1) fps -59%
1920x1080 High Preset AA:T AF:16x
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	63 (48^min, 51^P1) fps +15%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	55.2 (39^min, 36^P1) fps +1%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	54.7 (47^min, 37^P1) fps
Average AMD Radeon 680M (30 - 56.2, n=25)	47.7 fps -13%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	34.8 (19^min, 17^P1) fps -36%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	31.7 (27^min, 26^P1) fps -42%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	29.8 (25^min, 23^P1) fps -46%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	21.7 (18^min, 18^P1) fps -60%
1920x1080 Ultra High Preset AA:T AF:16x
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	24 (20^min, 20^P1) fps +73%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	22.8 (19^min, 17^P1) fps +64%
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	17.7 (13^min, 13^P1) fps +27%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	16.5 (14^min, 13^P1) fps +19%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	13.9 (9^min, 9^P1) fps
Average AMD Radeon 680M (7.85 - 14.7, n=22)	11.5 fps -17%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	8.92 (2^min, 3^P1) fps -36%

Cyberpunk 2077 1.6
1280x720 Low Preset
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	75 (48.8^min) fps +26%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	72.8 (23.7^min) fps +22%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	72.2 (23.3^min) fps +21%
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	71.5 (19.7^min) fps +20%
Average AMD Radeon 680M (46.1 - 77.6, n=14)	63.7 fps +7%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	59.5 (21.9^min) fps
1920x1080 Low Preset
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	44.6 (33.4^min) fps +25%
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	43.9 (20.7^min) fps +23%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	43.3 (18.6^min) fps +21%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	43 (18^min) fps +20%
Average AMD Radeon 680M (26 - 50.6, n=15)	38 fps +6%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	35.8 (14.4^min) fps
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	20.9 (14^min) fps -42%
1920x1080 Medium Preset
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	36.3 (27.9^min) fps +32%
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	34.6 (17.5^min) fps +26%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	33.1 (19.1^min) fps +21%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	33 (19.6^min) fps +20%
Average AMD Radeon 680M (20.1 - 41.8, n=15)	29 fps +6%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	27.4 (12.8^min) fps
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	16.2 (12^min) fps -41%
1920x1080 High Preset
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	28.6 (21.3^min) fps +36%
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	26.9 (6.5^min) fps +28%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	22.3 (5.3^min) fps +6%
Average AMD Radeon 680M (16.3 - 33.6, n=15)	21.4 fps +2%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	21.3 (3^min) fps +1%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	21 (9.9^min) fps
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	11.4 (8.7^min) fps -46%
1920x1080 Ultra Preset
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	26 (18.8^min) fps +35%
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	24.8 (6.1^min) fps +29%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	19.2 (5^min) fps
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	17.5 (4^min) fps -9%
Average AMD Radeon 680M (14 - 23.8, n=15)	17.5 fps -9%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	17.2 (3.2^min) fps -10%

Strange Brigade
1280x720 lowest AF:1
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	163.2 (109.1^min, 139.7^P1) fps +11%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	148.8 (53.7^min, 130^P1) fps +1%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	147.3 (85.9^min, 124^P1) fps
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	142.4 (86.5^min, 118^P1) fps -3%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	141.9 (78.6^min, 116.6^P1) fps -4%
Average AMD Radeon 680M (72.9 - 167.5, n=34)	131.9 fps -10%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	99 (21.7^min, 36.5^P1) fps -33%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	98.7 (21.2^min, 36.7^P1) fps -33%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	95.3 (72.8^min, 84.4^P1) fps -35%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	84.5 (32.3^min, 62.9^P1) fps -43%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	80.1 (18.9^min, 25.5^P1) fps -46%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	68.6 (15.6^min, 21.8^P1) fps -53%
1920x1080 medium AA:medium AF:4
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	65.6 (52.2^min, 57^P1) fps +17%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	59.8 (35.1^min, 52^P1) fps +7%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	57.8 (43.1^min, 50.8^P1) fps +3%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	57.4 (43.4^min, 51^P1) fps +3%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	56 (46.4^min, 49.2^P1) fps
Average AMD Radeon 680M (30 - 63, n=34)	53.8 fps -4%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	46.2 (28.6^min, 35^P1) fps -17%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	40.9 (10.8^min, 22.7^P1) fps -27%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	39.4 (14.1^min, 23^P1) fps -30%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	36 (29.9^min, 31^P1) fps -36%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	34.5 (12.4^min, 19.8^P1) fps -38%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	29 (13.9^min, 17.8^P1) fps -48%
1920x1080 high AA:high AF:8
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	55.6 (39.2^min, 42.9^P1) fps +21%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	50.7 (14.7^min, 38.5^P1) fps +10%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	48.6 (34.2^min, 38.3^P1) fps +6%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	48.5 (35.1^min, 38.2^P1) fps +6%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	45.9 (25.6^min, 35.7^P1) fps
Average AMD Radeon 680M (25.3 - 53.1, n=34)	44.5 fps -3%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	39.4 (9.7^min, 22.8^P1) fps -14%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	32.3 (8.2^min, 17^P1) fps -30%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	32 (8.4^min, 15.8^P1) fps -30%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	30.1 (23.7^min, 24.1^P1) fps -34%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	28.5 (7.8^min, 15.4^P1) fps -38%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	23.3 (6.2^min, 12.7^P1) fps -49%
1920x1080 ultra AA:ultra AF:16
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	48.2 (23.8^min, 32^P1) fps +13%
Minisforum Venus Series UM790 Pro AMD Ryzen 9 7940HS, AMD Radeon 780M	43.3 (11.1^min, 16.3^P1) fps +2%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	42.5 (15.8^min, 22.3^P1) fps
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	41.9 (32.6^min, 33.4^P1) fps -1%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	41.6 (26.5^min, 33^P1) fps -2%
Average AMD Radeon 680M (22 - 44.2, n=34)	38.2 fps -10%
Minisforum Mercury Series EM680 AMD Ryzen 7 6800U, AMD Radeon 680M	34.2 (6.7^min, 10.3^P1) fps -20%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	26.2 (5.2^min, 9.1^P1) fps -38%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	26.1 (5.3^min, 8.13^P1) fps -39%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	25.5 (19.5^min, 20.8^P1) fps -40%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	22.9 (6.4^min, 8.1^P1) fps -46%
Geekom Mini IT11, i7-11390H Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs	19.1 (5^min, 5.1^P1) fps -55%

Las frecuencias de cuadro al ralentí en Witcher 3 son generalmente consistentes, pero no sin algunos altibajos como se muestra en nuestro gráfico a continuación. Afortunadamente, las fluctuaciones no son tan extremas como para preocuparse mientras se juega.

Witcher 3 FPS Chart

GMK NucBox K2: Ø38 (33-45)

	bajo	medio	alto	ultra
GTA V (2015)	152.3	139.1	51.9	24
The Witcher 3 (2015)	121.6	75.9	37.9	22.7
Dota 2 Reborn (2015)	141.2	113.5	84.2	73.7
Final Fantasy XV Benchmark (2018)	63.4	33	24.8
X-Plane 11.11 (2018)	66.7	52.8	42.4
Far Cry 5 (2018)	69	41	38	36
Strange Brigade (2018)	147.3	56	45.9	42.5
Cyberpunk 2077 1.6 (2022)	35.8	27.4	21	19.2
Tiny Tina's Wonderlands (2022)	61	45.1	31.2	24.4
F1 22 (2022)	82.6	74.1	54.7	13.9

Emisiones

Ruido del sistema

El ruido del ventilador es un punto débil del NucBox K2. El ventilador interno pulsa con bastante frecuencia de silencioso a 36 dB(A) incluso durante cargas bajas como navegar o streaming de vídeo. Podemos alcanzar un ruido máximo de casi 42 dB(A) bastante rápido a mitad de la primera escena de 3DMark 06.

Ruido

Ocioso		24.4 / 24.4 / 36.8 dB(A)
Carga		41.6 / 41.6 dB(A)

	30 dB silencioso 40 dB(A) audible 50 dB(A) ruidosamente alto
min: , med: , max: Earthworks M23R, Arta (15 cm de distancia) environment noise: 24.1 dB(A)

Temperatura

El adaptador de CA puede alcanzar casi 40 C cuando funciona con cargas exigentes

Las temperaturas superficiales en la parte superior de la unidad pueden alcanzar más de 36 C cuando se ejecutan cargas exigentes como juegos. El calor residual se escapa por la parte trasera, como muestran los mapas de temperatura de abajo.

Es seguro colocar la unidad en posición vertical en lugar de horizontal, ya que el diseño de NucBox 2 incluye rejillas de ventilación adicionales en la placa inferior.

Prueba de resistencia

Al ejecutar Prime95 para estresar la CPU, las frecuencias de reloj y el consumo de la placa se disparaban a 3,5 GHz y 45 W, respectivamente. Después de unos segundos, sin embargo, esto caería a 3,1 GHz y 38 W para sugerir que el potencial de alto turbo boost es limitado.

La temperatura del núcleo en funcionamiento Witcher 3 se estabiliza en 67 C frente a los 64 C del más caro Beelink SER7. La temperatura del núcleo sólo alcanza los 70 C o más cuando se ejecutan cargas exigentes durante periodos prolongados.

Gestión de la energía: un poco más de sed

Consumo de energía

El sistema es más exigente que otros mini PC con CPU más antiguas, como el NucBox 2 o elTrigkey Speed S. Sin embargo, las ventajas de rendimiento compensan con creces el mayor consumo de energía. Por ejemplo, nuestro NucBox K2 consumiría casi un 30 por ciento más de energía que el Trigkey Speed S al ejecutar juegos, pero el rendimiento sería entre un 60 y un 70 por ciento más rápido y merecería la pena el aumento del consumo.

Prime95+FurMark tensión iniciada en la marca 10s

El consumo se disparaba a 73 W durante unos 5 segundos al iniciar Prime95 antes de descender y estabilizarse en 63 W

Consumo de corriente

Off / Standby	0.62 / 0.83 Watt
Ocioso	7.3 / 9.8 / 10.5 Watt
Carga	61.3 / 72.8 Watt


Clave: min: , med: , max: Metrahit Energy

	GMK NucBox K2 R7 7735HS, Radeon 680M, Lexar NM610 Pro NM610P001T-HNNNG, , x,	GMK NucBox 2 i5-8259U, Iris Plus Graphics 655, Netac S930E8/256GPN, , x,	Beelink SER7 R7 7840HS, Radeon 780M, Crucial P3 Plus CT1000P3PSSD8, , x,	Intel NUC 13 Pro Desk Edition Kit i7-1360P, Iris Xe G7 96EUs, Samsung PM9A1 MZVL2512HCJQ, , x,	Geekom Mini IT11, i7-11390H i7-11390H, Iris Xe G7 96EUs, Lexar 1024GB LNM6A1X001T-HNNNG, , x,	Trigkey Speed S i5-11320H, Iris Xe G7 96EUs, Intel SSD 670p SSDPEKNU512GZ, , x,
Power Consumption		26%	-6%	-2%	22%	20%
Idle Minimum *	7.3	6.1 16%	6.7 8%	7 4%	7.3 -0%	6.7 8%
Idle Average *	9.8	6.8 31%	7.3 26%	9.2 6%	7.8 20%	8 18%
Idle Maximum *	10.5	7.3 30%	11.6 -10%	11.8 -12%	8.4 20%	8.1 23%
Load Average *	61.3	46.3 24%	64.1 -5%	45 27%	28.7 53%	47.6 22%
Witcher 3 ultra *	62.2		75.8 -22%			47.5 24%
Load Maximum *	72.8	50.7 30%	94.8 -30%	97.2 -34%	61.1 16%	56.3 23%

* ... más pequeño es mejor

Power Consumption Witcher 3 / Stresstest

GMK NucBox K2 R7 7735HS, Radeon 680M; Witcher 3 ultra: Ø62.2 (60.2-65.2)

Beelink SEi12 Core i5-1235U i5-1235U, Iris Xe G7 80EUs; Witcher 3 ultra: Ø50.7 (49.7-63.2)

GMK NucBox K2 R7 7735HS, Radeon 680M; 1280x720 Prime95 28.10 and Furmark 1.25: Ø64.2 (62.8-72.8)

Beelink SEi12 Core i5-1235U i5-1235U, Iris Xe G7 80EUs; 1280x720 Prime95 28.10 and Furmark 1.25: Ø78.5 (72.1-119.1)

Power Consumption external Monitor

GMK NucBox K2 R7 7735HS, Radeon 680M; Prime95 V2810 Stress (external Monitor): Ø63 (62.1-72.5)

Beelink SEi12 Core i5-1235U i5-1235U, Iris Xe G7 80EUs; Prime95 V2810 Stress (external Monitor): Ø63.2 (57.9-102.6)

GMK NucBox K2 R7 7735HS, Radeon 680M; Cinebench R15 Multi (external Monitor): Ø60.7 (57.3-67.4)

Beelink SEi12 Core i5-1235U i5-1235U, Iris Xe G7 80EUs; Cinebench R15 Multi (external Monitor): Ø69.5 (56-93.5)

GMK NucBox K2 R7 7735HS, Radeon 680M; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø63.2 (61.9-71)

Beelink SEi12 Core i5-1235U i5-1235U, Iris Xe G7 80EUs; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø43.8 (39.3-47.7)

GMK NucBox K2 R7 7735HS, Radeon 680M; 1920x1080 The Witcher 3 ultra (external Monitor): Ø62.2 (60.2-65.2)

Beelink SEi12 Core i5-1235U i5-1235U, Iris Xe G7 80EUs; 1920x1080 The Witcher 3 ultra (external Monitor): Ø50.7 (49.7-63.2)

Beelink SEi12 Core i5-1235U i5-1235U, Iris Xe G7 80EUs; Idle 1min (external Monitor): Ø16.6 (15.8-19.1)

Veredicto: muchas prestaciones por poco dinero

En revisión: GMKtec NucBox K2. Unidad de prueba proporcionada por GMK

El GMKtec NucBox K2 tiene todas las características básicas que los usuarios domésticos o de oficina pueden apreciar sin muchos de los extras llamativos. La facilidad de acceso y mantenimiento, la veloz CPU Zen 3+ y la GPU integrada, y el puerto USB4 en particular son los aspectos más destacados del modelo. El hecho de que nuestra configuración se pueda encontrar por tan sólo 480 dólares lo hace extremadamente atractivo, ya que se está comprometiendo muy poco en rendimiento y características.

No obstante, hay algunos recortes y un par de problemas que vale la pena mencionar. En primer lugar, el sistema solo admite un SSD interno, a diferencia de la mayoría de mini PC que admiten dos. En segundo lugar, el único puerto USB-C puede parecer limitado si se pretende conectar varios dispositivos USB-C. Por último, recomendamos volver a comprobar la funcionalidad Bluetooth y cualquier problema de salto de fotogramas, ya que experimentamos ambos en nuestra unidad de prueba.

El NucBox K2 está por encima de su peso y categoría de precio. Sin embargo, tiene algunos inconvenientes.

También nos gustaría ver mejoras en la intensidad de la señal WLAN y en el comportamiento del ventilador del sistema. Nuestra conexión Wi-Fi 6E es más lenta de lo esperado mientras que el ventilador pulsante es muy notable. Sin embargo, si puedes encontrar el modelo por menos de 500 $, puede que merezca la pena aceptar estos inconvenientes.

Precio y disponibilidad

Amazon está enviando ahora el GMKtec NucBox K2 como revisado por $ 580 USD o $ 480 después de aplicar el código de cupón actual.

GMK NucBox K2 - 09/12/2023 v7 ^(old)
Allen Ngo

Acabado

79 / 98 → 80%

Conectividad

60 / 81 → 74%

Peso

84%

Rendimiento de juegos

76%

Rendimiento de la Aplicación

95%

Ruido

83%

Médio

80%

83%

Mini PC - media ponderada

Transparency

The selection of devices to be reviewed is made by our editorial team. The test sample was provided to the author as a loan by the manufacturer or retailer for the purpose of this review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.

This is how Notebookcheck is testing

Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.

Valoración	Fecha	Modelo	Peso	Altura	Resolución
83 % v7 ^(old)	09/2023	GMK NucBox K2 R7 7735HS, Radeon 680M	440 g	43.2 mm	x
86.6 % v7 ^(old)	09/2023	Beelink SER7 R7 7840HS, Radeon 780M	640 g	49 mm	x
73.5 % v7 ^(old)	09/2023	Blackview MP80 N95, UHD Graphics 24EUs (Alder Lake-N)	214 g	37 mm	x
83.1 % v7 ^(old)	08/2023	Intel NUC 13 Pro Desk Edition Kit i7-1360P, Iris Xe G7 96EUs	558 g	37 mm	x
80.6 % v7 ^(old)	07/2023	Geekom Mini IT11, i7-11390H i7-11390H, Iris Xe G7 96EUs	536 g	48 mm	x
v ^(old)		Trigkey Speed S i5-11320H, Iris Xe G7 96EUs	415 g	40.7 mm	x

3DMark 11 Performance		10515 puntos
3DMark Fire Strike Score		6863 puntos
3DMark Time Spy Score		2738 puntos
ayuda

Análisis del mini PC GMK NucBox K2 Ryzen 7 7735HS: Optimizado para un alto rendimiento por dólar

Mucho por poco dinero.

Posibles contendientes en la comparación

Caso: simplificar las cosas

Comparación de tamaños

Conectividad

Comunicación

Mantenimiento

Accesorios y garantía

Rendimiento - El Zen 3+ sigue siendo potente

Condiciones de ensayo

Procesador

Cinebench R15 Multi Loop

Rendimiento del sistema

Latencia del CPD

Dispositivos de almacenamiento

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

Rendimiento de la GPU

Witcher 3 FPS Chart

Emisiones

Ruido del sistema

Temperatura

Prueba de resistencia

Gestión de la energía: un poco más de sed

Consumo de energía

Power Consumption Witcher 3 / Stresstest

Power Consumption external Monitor

Pro

Contra

Veredicto: muchas prestaciones por poco dinero

Precio y disponibilidad

More articles related to this device

Transparency

Price comparison

	GMK NucBox K2 Radeon 680M, R7 7735HS, Lexar NM610 Pro NM610P001T-HNNNG	GMK NucBox 2 Iris Plus Graphics 655, i5-8259U, Netac S930E8/256GPN	Beelink SER7 Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	Geekom Mini IT11, i7-11390H Iris Xe G7 96EUs, i7-11390H, Lexar 1024GB LNM6A1X001T-HNNNG	Trigkey Speed S Iris Xe G7 96EUs, i5-11320H, Intel SSD 670p SSDPEKNU512GZ
Noise		8%	6%	-3%	2%	13%
off / environment *	24.1	25.6 -6%	24.5 -2%	25.2 -5%	29.7 -23%	23.5 2%
Idle Minimum *	24.4	25.7 -5%	25.1 -3%	28.1 -15%	30.2 -24%	24.1 1%
Idle Average *	24.4	25.7 -5%	25.1 -3%	28.2 -16%	30.2 -24%	24.1 1%
Idle Maximum *	36.8	25.7 30%	25.1 32%	28.3 23%	30.2 18%	26.6 28%
Load Average *	41.6	35.3 15%	35.9 14%	42 -1%	30.6 26%	30.4 27%
Witcher 3 ultra *	41.7		35.6 15%		30.5 27%	30.4 27%
Load Maximum *	41.6	35.1 16%	45.4 -9%	42.1 -1%	36.4 12%	38.1 8%

	RelojCPU (GHz)	Reloj GPU (MHz)	Temperatura media CPU (°C)
Sistema en reposo	--	--	41
Prime95 Stress	3.0	--	79
Prime95+ FurMark Stress	3.1	~1323	71
Witcher 3 Tensión	0,4	2000 - 2200	67
