Análisis del mini PC Trigkey S3: Rendimiento similar al Core i3 por el precio de un Celeron o Atom

Trigkey se especializa en mini PC económicos que funcionan con procesadores antiguos para mantener los precios bajos. El S3 es uno de estos modelos con el procesador Ryzen 5 3550H que se vende por unos 280 dólares

Entre sus competidores se encuentran otros mini PC baratos como el BMax B5 Pro, Beelink U59o el Chuwi LarkBox.

Valoración	Fecha	Modelo	Peso	Altura	Resolución
v ^(old)	01/2023	Trigkey S3 R5 3550H, Vega 8	419 g	40.7 mm	x
v ^(old)	11/2022	Intel NUC Pro Chassis_i7_1265U i7-1265U, Iris Xe G7 96EUs		35 mm	x
v ^(old)	04/2021	Intel NUC11TNKi5 i5-1135G7, Iris Xe G7 80EUs	504 g	37 mm	x
v ^(old)	12/2022	Beelink SEi12 Core i5-1235U i5-1235U, Iris Xe G7 80EUs	465 g	42 mm	x
v ^(old)	09/2022	Beelink SEi11 Pro i5-11320H, Iris Xe G7 96EUs	440 g	40 mm	x
v ^(old)	10/2022	Beelink SER Pro Ryzen 5 5600H R5 5600H, Vega 7	498 g	42 mm	x

Caso

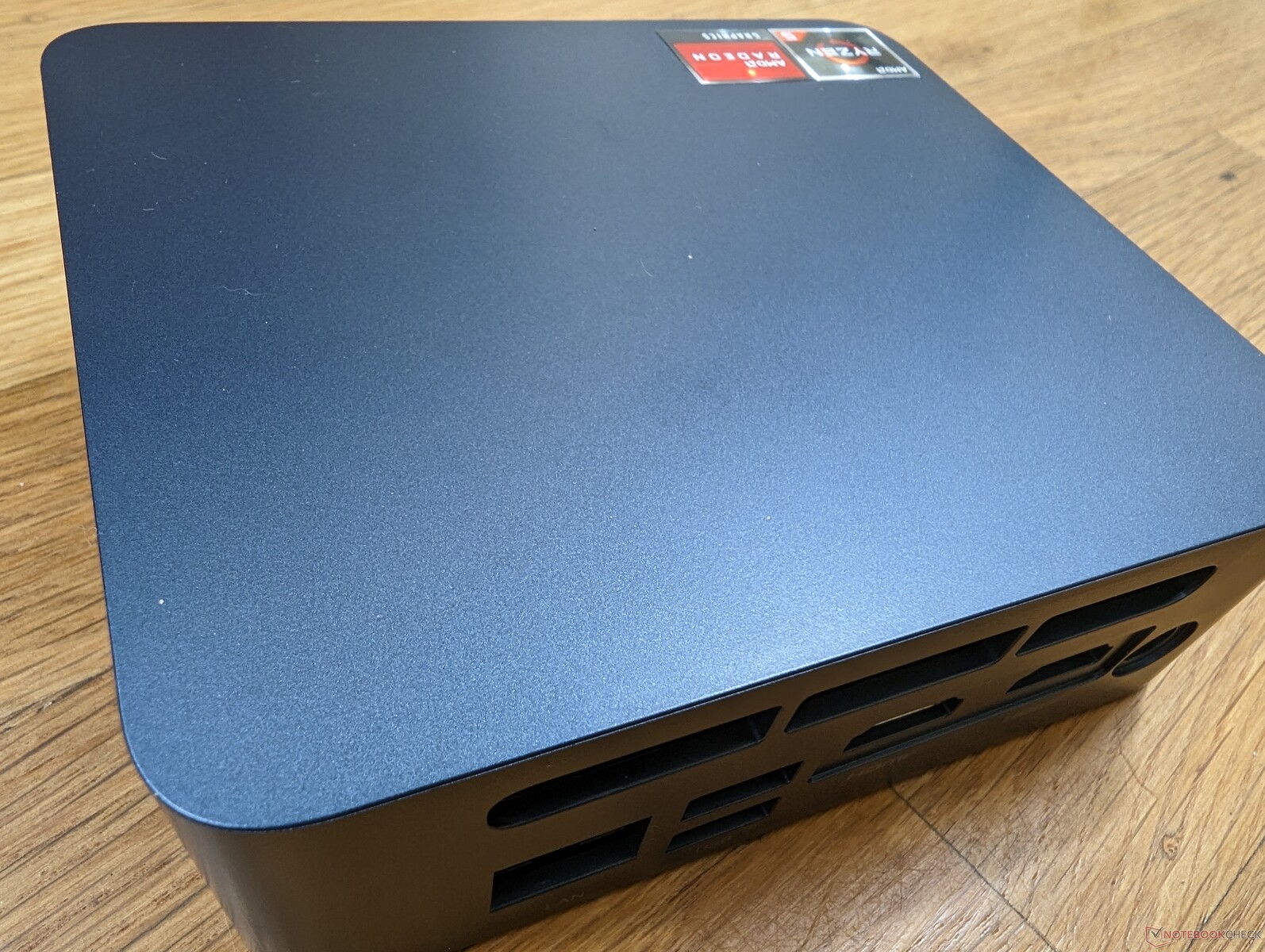

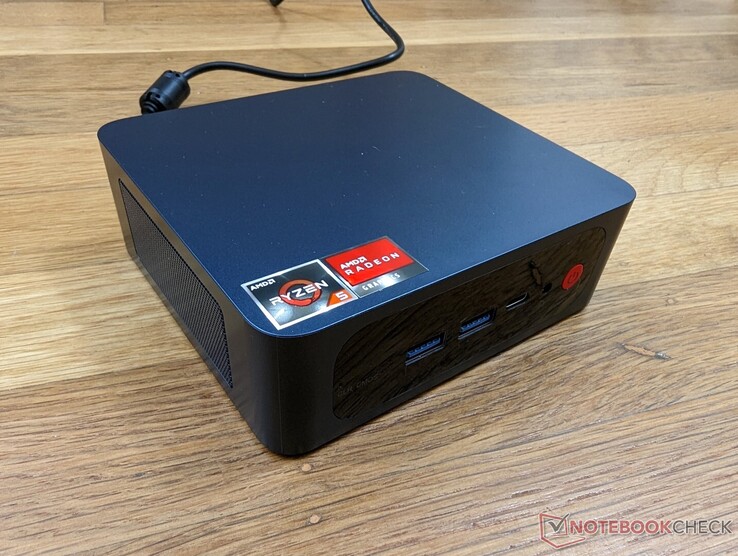

El chasis de plástico tiene una forma similar a la del Beelink SEi8 pero con varias diferencias superficiales. La parte superior, por ejemplo, es ahora toda mate y está a ras con los bordes de los laterales para darle un aspecto más limpio. Por lo demás, las opciones de puertos y el servicio son casi idénticos.

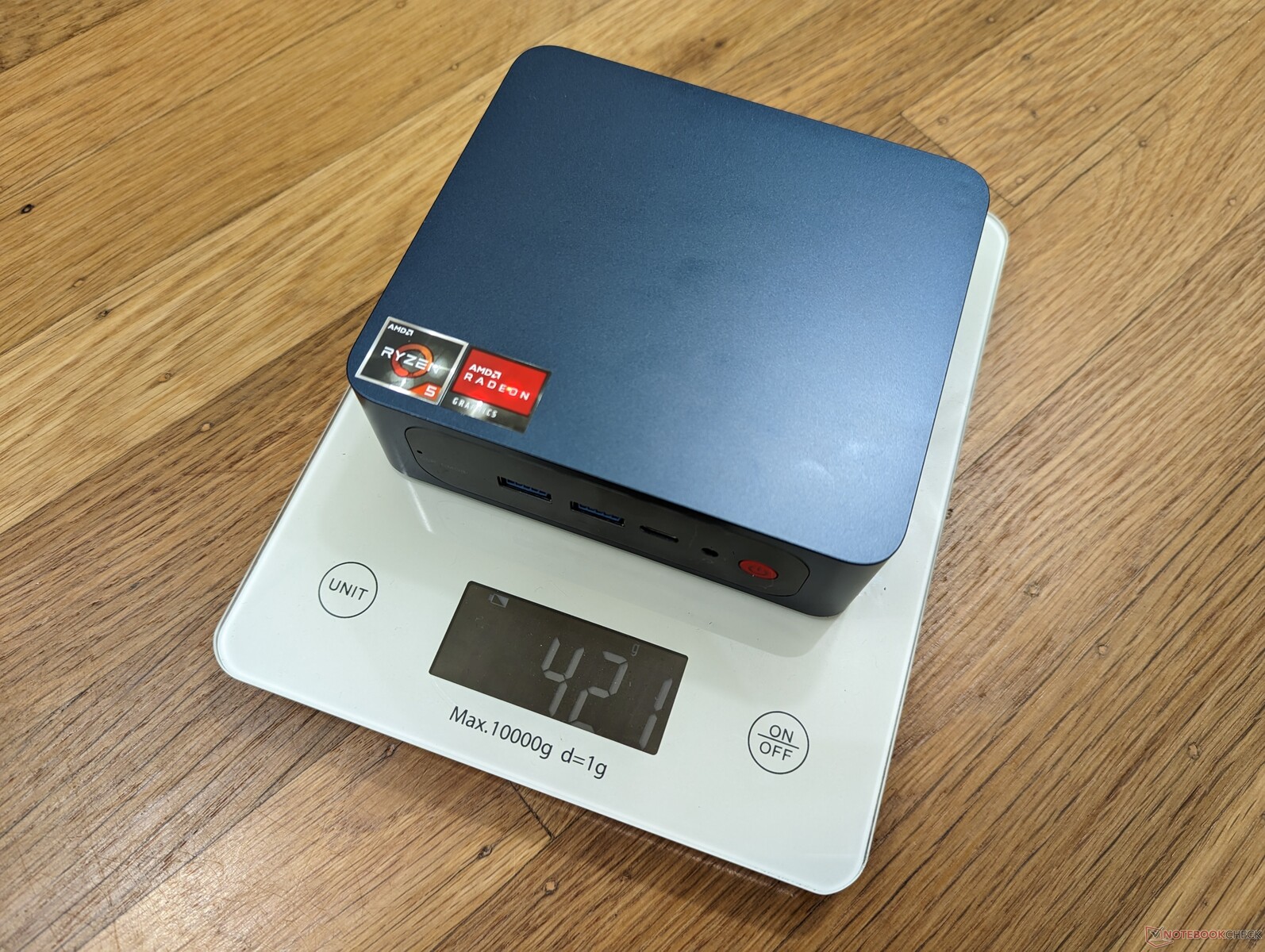

Con 421 g de peso con RAM y SSD, el Trigkey S3 es más ligero que muchos otros mini PC

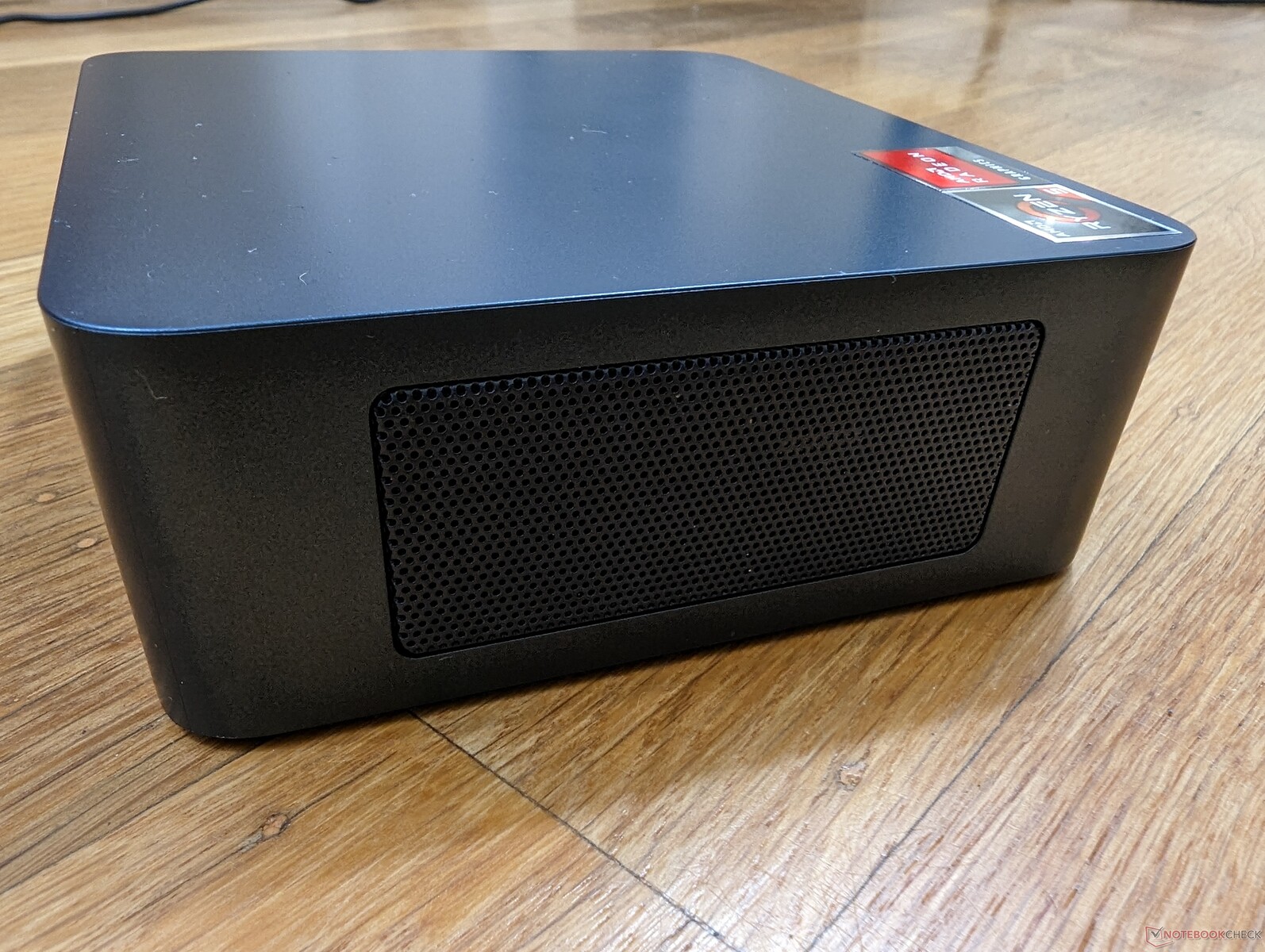

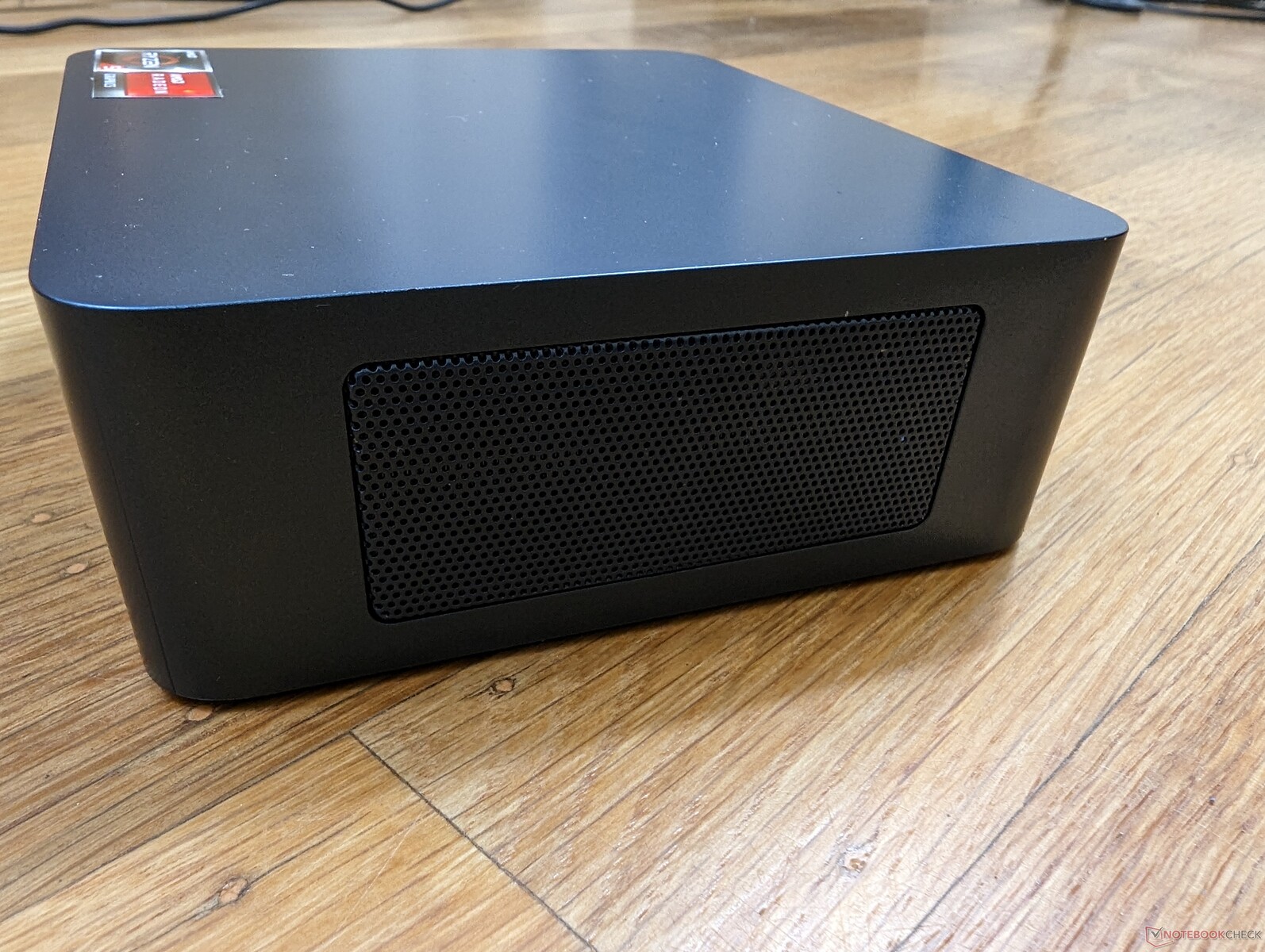

Parte superior y laterales de plástico liso mate, mientras que las rejillas de ventilación son metálicas

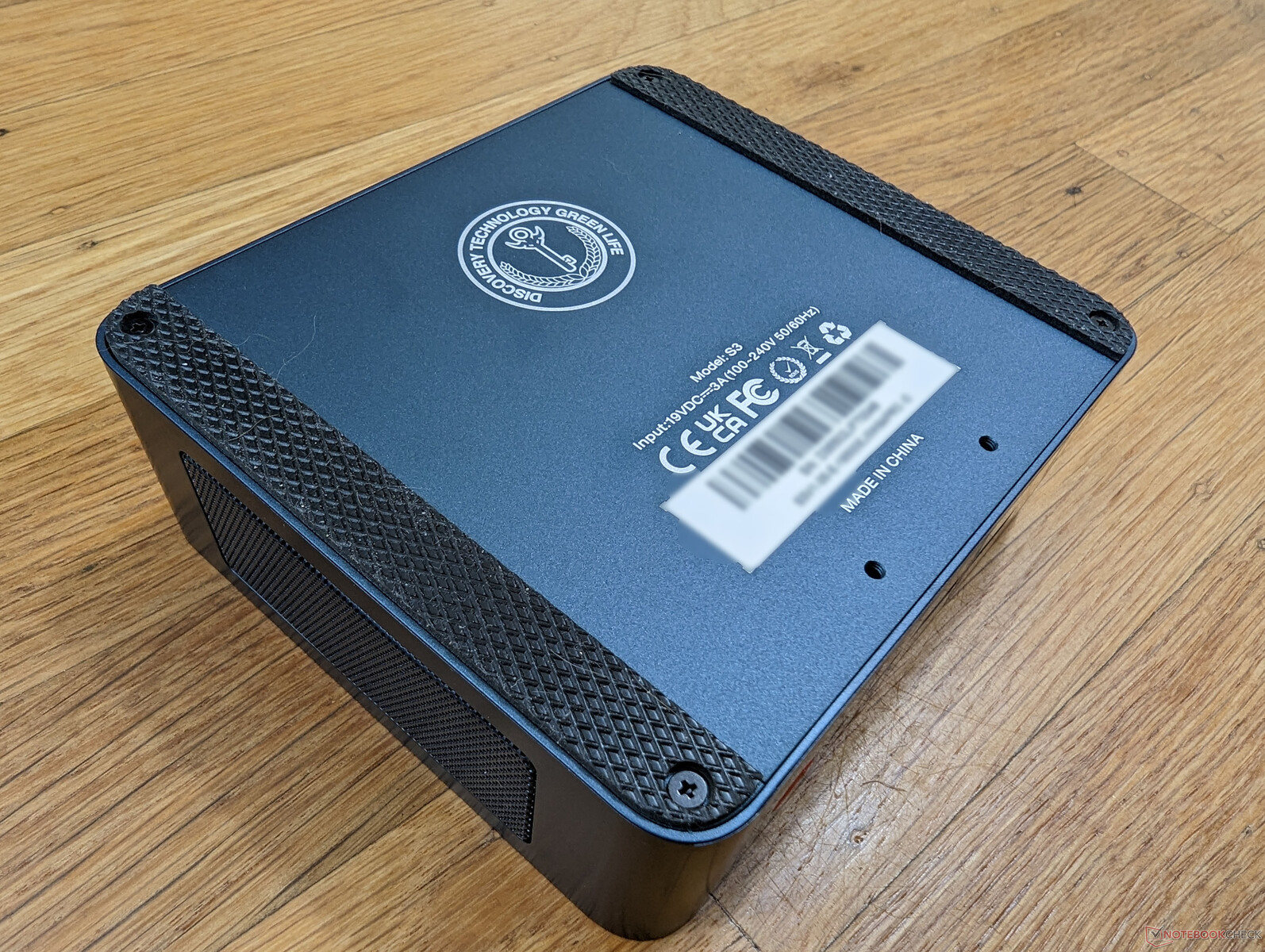

Pies de goma en la parte inferior con roscas para montaje VESA extraíble

Comparación de tamaños

Beelink SEi12 Core i5-1235U Beelink SER Pro Ryzen 5 5600H Trigkey S3 Beelink SEi11 Pro Intel NUC 12 Pro Kit NUC12WSKi7 Intel NUC11TNKi5 DIN A5 ❌

Conectividad

Las opciones de puerto son abundantes, pero el único puerto USB-C parece ser solo para datos o para cargar dispositivos externos. Nuestro monitor USB-C externo no funcionó con Trigkey.

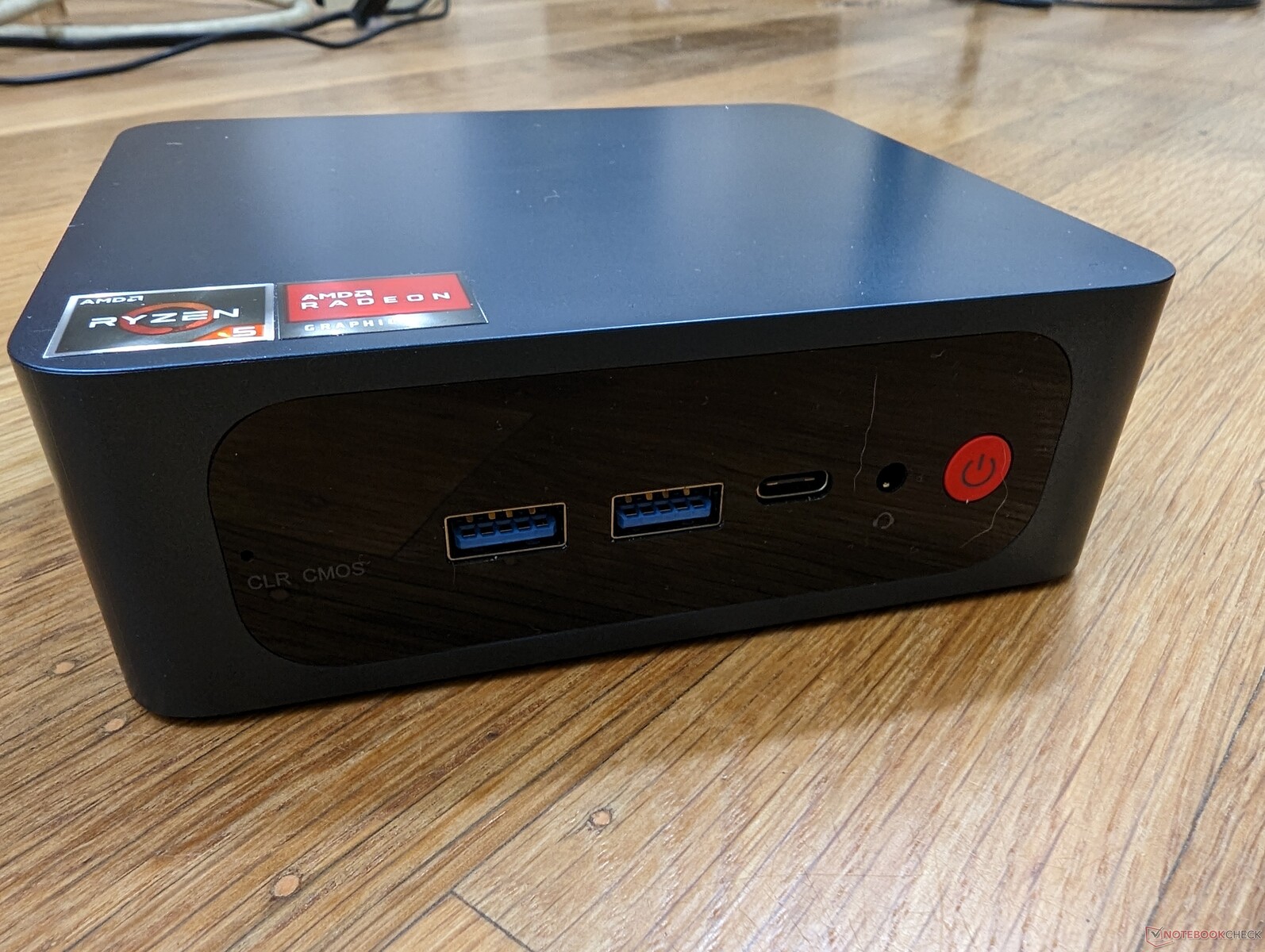

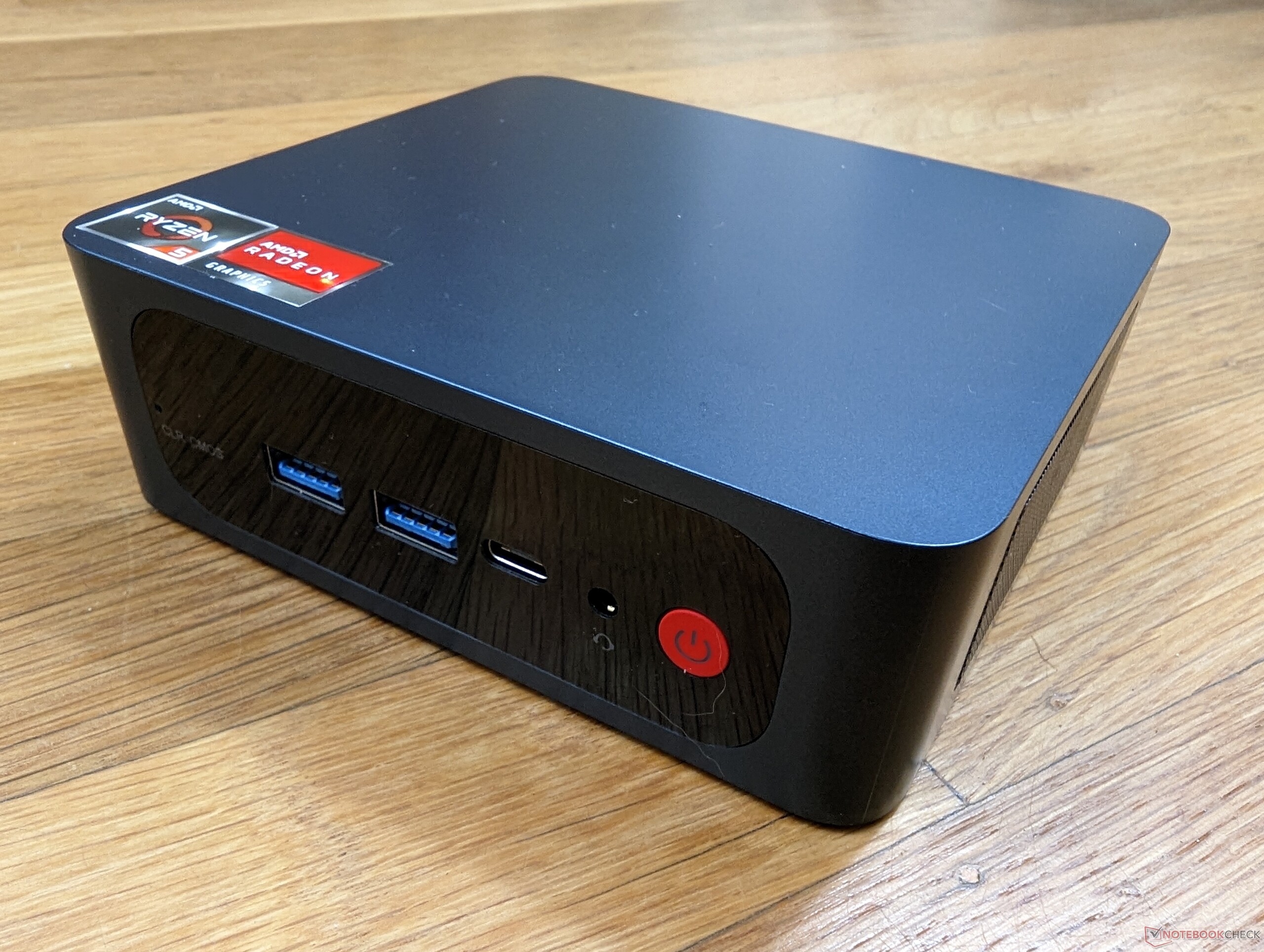

Frontal: Botón de borrado de CMOS, 2x USB-A 3.0, USB-C, auriculares de 3,5 mm, botón de encendido

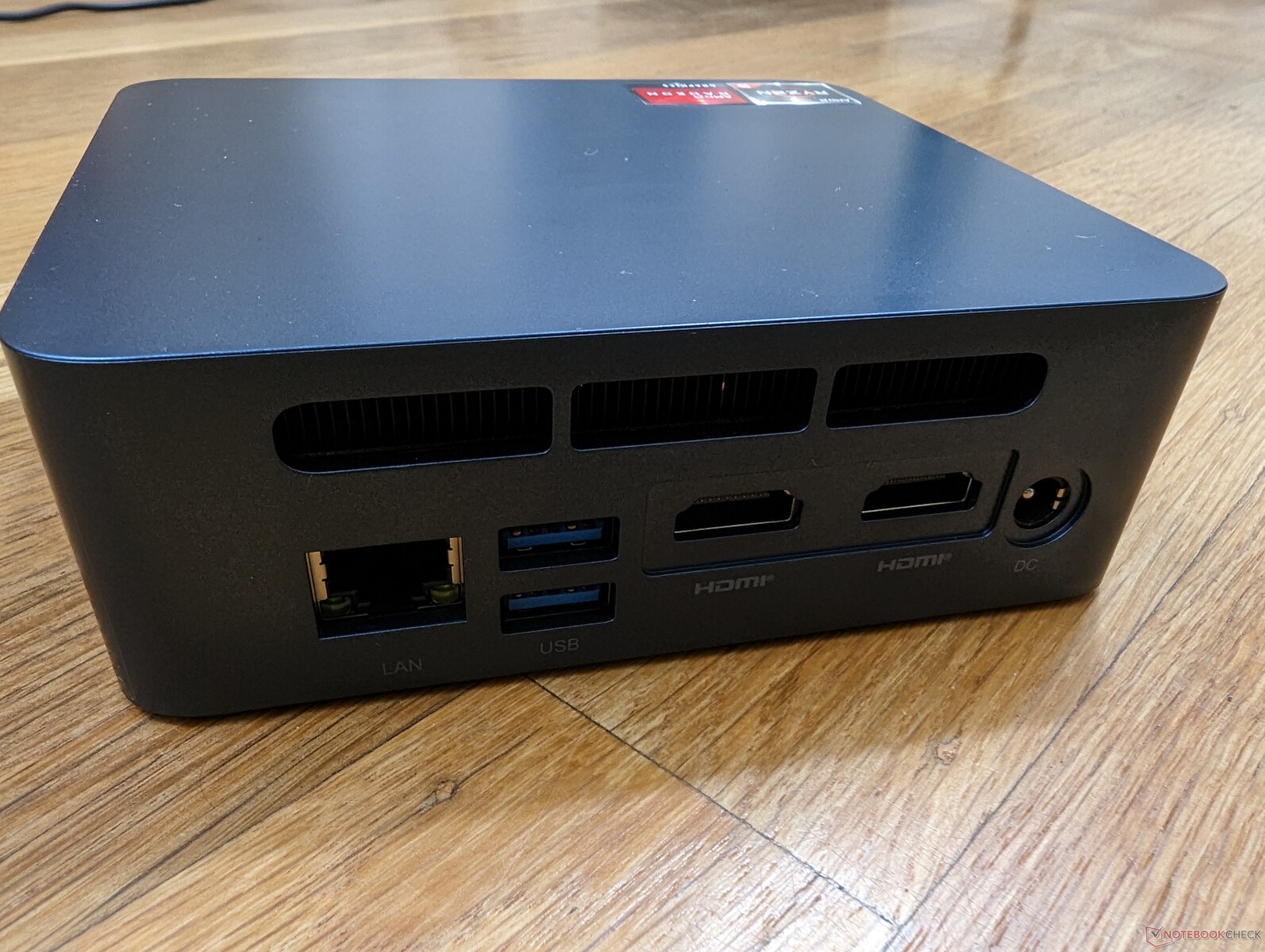

Trasero: Gigabit RJ-45, 2x USB-A, 2x HDMI (4k60), adaptador de CA

Comunicación

El sistema viene con el antiguo 1x1 Intel Dual Band Wireless-AC 3165 para velocidades de transferencia que son sólo una fracción de lo que los modernos módulos Wi-Fi 6 y 6E son capaces de hacer. No obstante, el rendimiento es estable y suficiente para el streaming y la navegación a 1080p.

Networking
iperf3 transmit AX12
Intel NUC11TNKi5 Intel Wi-Fi 6 AX201	1626 (1386^min - 1677^max) MBit/s
iperf3 receive AX12
Intel NUC11TNKi5 Intel Wi-Fi 6 AX201	1524 (1442^min - 1571^max) MBit/s
iperf3 receive AXE11000 6GHz
Intel NUC Pro Chassis_i7_1265U Intel Wi-Fi 6E AX211	1713 (1694^min - 1728^max) MBit/s
Beelink SER Pro Ryzen 5 5600H MediaTek RZ608	850 (802^min - 876^max) MBit/s
Beelink SEi11 Pro MediaTek RZ608	743 (453^min - 793^max) MBit/s
iperf3 receive AXE11000
Beelink SEi12 Core i5-1235U Intel Wi-Fi 6 AX201	1384 (1200^min - 1495^max) MBit/s +333%
Trigkey S3 Intel Dual Band Wireless-AC 3165	320 (269^min - 345^max) MBit/s
iperf3 transmit AXE11000
Beelink SEi12 Core i5-1235U Intel Wi-Fi 6 AX201	1491 (1413^min - 1572^max) MBit/s +469%
Trigkey S3 Intel Dual Band Wireless-AC 3165	262 (233^min - 292^max) MBit/s
iperf3 transmit AXE11000 6GHz
Intel NUC Pro Chassis_i7_1265U Intel Wi-Fi 6E AX211	1093 (570^min - 1168^max) MBit/s
Beelink SER Pro Ryzen 5 5600H MediaTek RZ608	750 (374^min - 799^max) MBit/s
Beelink SEi11 Pro MediaTek RZ608	722 (447^min - 789^max) MBit/s

Trigkey S3; iperf3 receive AXE11000; iperf 3.1.3: Ø319 (269-345)

Trigkey S3; iperf3 transmit AXE11000; iperf 3.1.3: Ø262 (233-292)

Mantenimiento

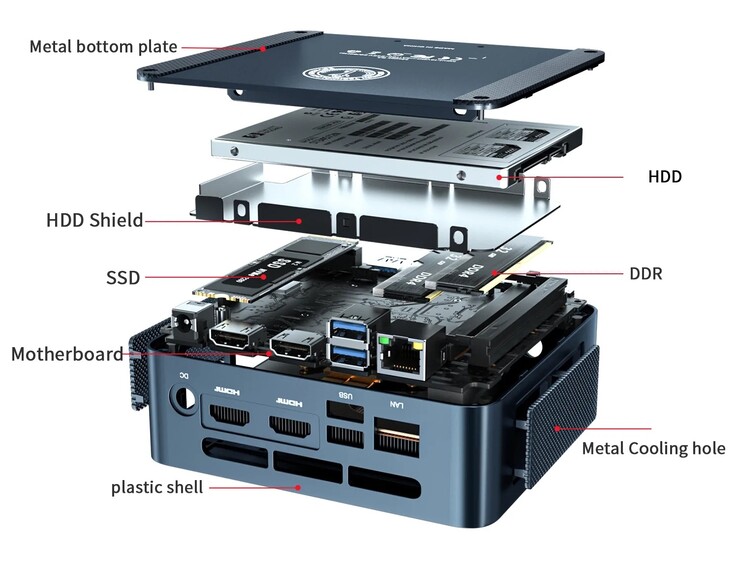

Se supone que el panel inferior se quita fácilmente, pero los tornillos son blandos y pueden salirse con más facilidad que en la mayoría de los mini PC. Por desgracia, esto ocurrió en nuestra unidad, por lo que recomendamos que los propietarios tengan mucho cuidado al reparar la unidad. En comparación, el Intel NUC tiene tornillos de mariposa para un mantenimiento más rápido y sin herramientas.

Accesorios y garantía

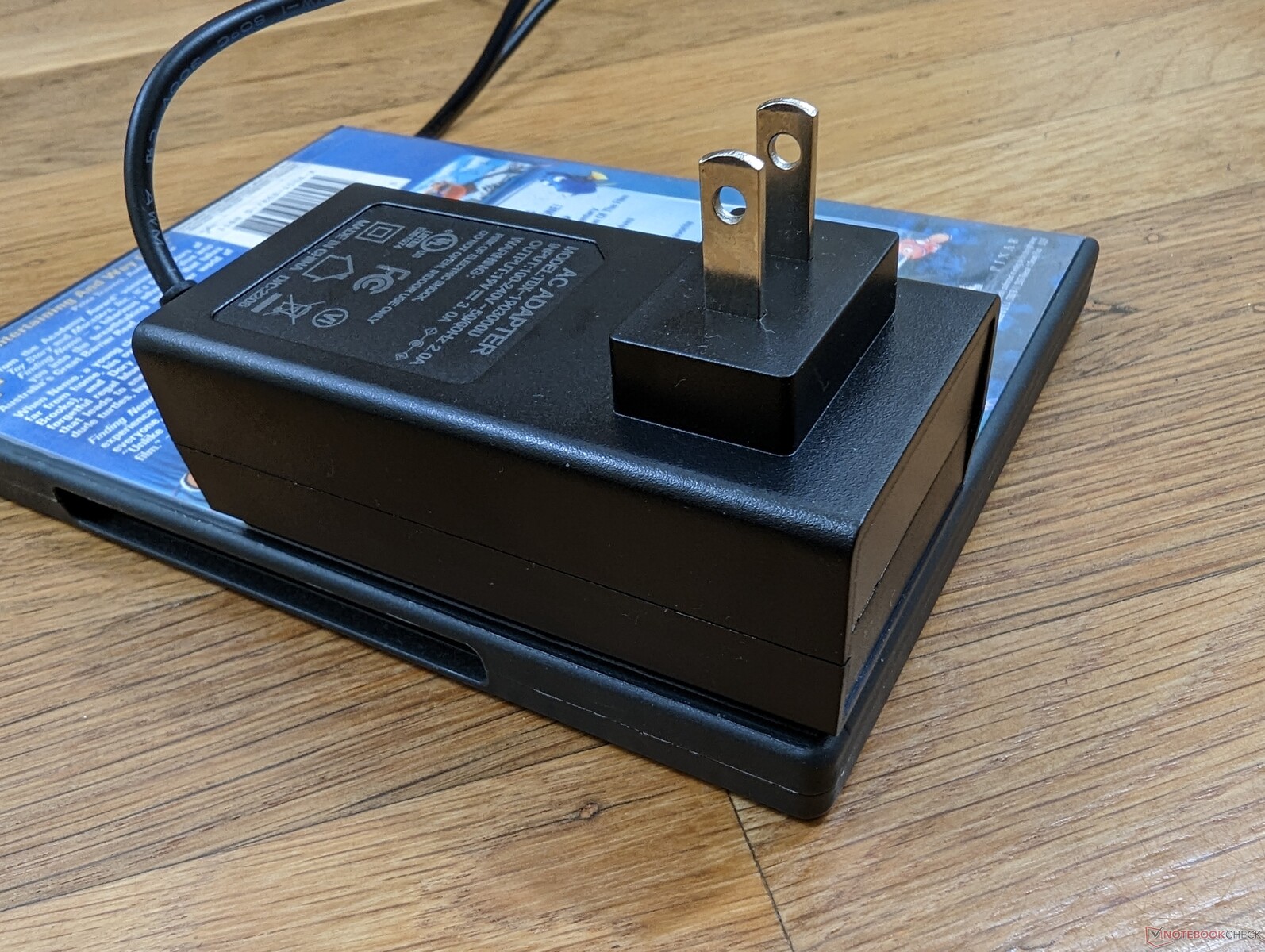

La caja incluye un soporte de pared, un adaptador de CA, un manual de instrucciones y dos cables HDMI. Se aplica la garantía limitada de un año habitual del fabricante.

Rendimiento

Condiciones de ensayo

Pusimos Windows en modo Rendimiento antes de ejecutar las pruebas. El sistema no viene con ninguna aplicación preinstalada del tipo "centro de control" para ajustar los perfiles de energía.

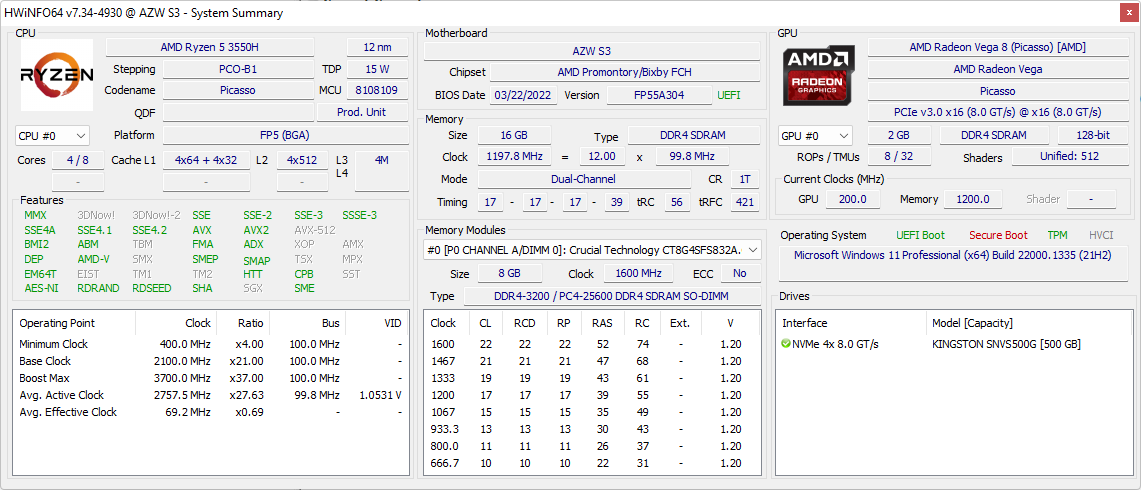

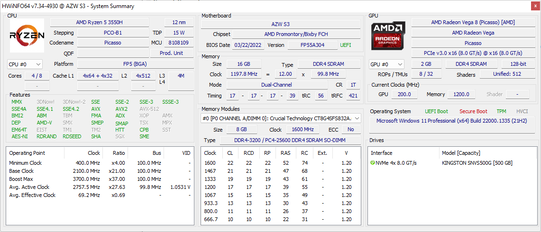

Procesador

El rendimiento general de la CPU es mucho más lento que el de cualquier CPU de la serie U Core i5 o i7 de Intel de 11ª o 12ª generación, pero sigue siendo notablemente más rápido que cualquier solución Celeron o Atom actualmente en el mercado. Por lo tanto, el Ryzen 5 3550H en nuestro Trigkey es más comparable a un PC basado en Intel Core i3 o al mucho más antiguo Core i5-8260U. Es una pena que el fabricante no haya optado por el Ryzen 7 4800U ya que la CPU Zen 2 es una gran mejora respecto a la serie Zen+ H.

Cinebench R15 Multi Loop

Trigkey S3 AMD Ryzen 5 3550H: Ø637 (633.41-642.56)

Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U: Ø1254 (1145.71-1444.46)

Intel NUC11TNKi5 Intel Core i5-1135G7: Ø789 (772.57-794.38)

Beelink SEi12 Core i5-1235U Intel Core i5-1235U: Ø1219 (1203.04-1409.15)

Beelink SEi11 Pro Intel Core i5-11320H: Ø851 (845.25-856.84)

Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H: Ø1310 (1286.46-1319.48)

CPU Performance Rating: Percent
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R23: Multi Core | Single Core
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

CPU Performance Rating
Beelink GTR6 AMD Ryzen 9 6900HX	91.8 pt
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P	90.8 pt
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	78.7 pt
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	75.9 pt
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	72.2 pt
Beelink SEi11 Pro Intel Core i5-11320H	63.8 pt
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	63.2 pt
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7	61.8 pt
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	50.3 pt
Beelink SER3 ^-2! AMD Ryzen 7 3750H	44.2 pt
Average AMD Ryzen 5 3550H	43.5 pt
Trigkey S3 AMD Ryzen 5 3550H	42.8 pt
MSI Cubi 5 10M ^-8! Intel Core i3-10110U	37.5 pt
Beelink SEi8 Intel Core i3-8109U	35.4 pt
BMAX B5 Pro G7H8 Intel Core i5-8260U	35.3 pt
Beelink U59 N5105 Intel Celeron N5105	27.6 pt
Geekom MiniAir 11 Special Edition Intel Celeron N5095	27.4 pt
Chuwi LapBook Plus ^-6! Intel Atom x7-E3950	10 pt
Chuwi Hi10 Air ^-12! Intel Atom x5-Z8350	8.2 pt

Cinebench R20 / CPU (Multi Core)
Beelink GTR6 AMD Ryzen 9 6900HX	4619 Points +225%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P	4578 Points +222%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	3234 Points +128%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	3111 Points +119%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	3074 Points +116%
Beelink SEi11 Pro Intel Core i5-11320H	2208 Points +55%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7	2051 Points +44%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	2027 Points +43%
Average AMD Ryzen 5 3550H (1421 - 1728, n=8)	1596 Points +12%
Beelink SER3 AMD Ryzen 7 3750H	1514 Points +7%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	1498 Points +5%
BMAX B5 Pro G7H8 Intel Core i5-8260U	1494 Points +5%
Trigkey S3 AMD Ryzen 5 3550H	1421 Points
Geekom MiniAir 11 Special Edition Intel Celeron N5095	828 Points -42%
Beelink U59 N5105 Intel Celeron N5105	826 Points -42%
Beelink SEi8 Intel Core i3-8109U	772 Points -46%
MSI Cubi 5 10M Intel Core i3-10110U	743 Points -48%
Chuwi LapBook Plus Intel Atom x7-E3950	272 Points -81%

Cinebench R20 / CPU (Single Core)
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P	698 Points +96%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	654 Points +83%
Beelink GTR6 AMD Ryzen 9 6900HX	631 Points +77%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	620 Points +74%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7	568 Points +59%
Beelink SEi11 Pro Intel Core i5-11320H	561 Points +57%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	558 Points +56%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	531 Points +49%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	415 Points +16%
MSI Cubi 5 10M Intel Core i3-10110U	401 Points +12%
BMAX B5 Pro G7H8 Intel Core i5-8260U	400 Points +12%
Beelink SER3 AMD Ryzen 7 3750H	377 Points +6%
Trigkey S3 AMD Ryzen 5 3550H	357 Points
Average AMD Ryzen 5 3550H (331 - 370, n=8)	354 Points -1%
Beelink SEi8 Intel Core i3-8109U	351 Points -2%
Beelink U59 N5105 Intel Celeron N5105	235 Points -34%
Geekom MiniAir 11 Special Edition Intel Celeron N5095	234 Points -34%
Chuwi LapBook Plus Intel Atom x7-E3950	93 Points -74%

Cinebench R23 / Multi Core
Beelink GTR6 AMD Ryzen 9 6900HX	11862 (11361.7^min - 11862.4^max) Points +225%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P	11815 Points +224%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	8342 Points +129%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	8128 (7685.59^min - 8128.32^max) Points +123%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	7945 (7877.51^min - 7944.53^max) Points +118%
Beelink SEi11 Pro Intel Core i5-11320H	5720 (5681.08^min - 5720.38^max) Points +57%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7	5240 Points +44%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	5222 Points +43%
Average AMD Ryzen 5 3550H (3646 - 4213, n=2)	3930 Points +8%
Beelink SER3 AMD Ryzen 7 3750H	3897 (3854.8^min - 3897.37^max) Points +7%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	3867 Points +6%
Trigkey S3 AMD Ryzen 5 3550H	3646 (3617.23^min - 3645.96^max) Points
BMAX B5 Pro G7H8 Intel Core i5-8260U	3028 (1303.58^min - 3027.81^max) Points -17%
Beelink U59 N5105 Intel Celeron N5105	2175 (2157.23^min - 2174.57^max) Points -40%
Geekom MiniAir 11 Special Edition Intel Celeron N5095	2164 Points -41%
Beelink SEi8 Intel Core i3-8109U	2004 (1983.59^min - 2004.09^max) Points -45%
MSI Cubi 5 10M Intel Core i3-10110U	1910 Points -48%

Cinebench R23 / Single Core
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P	1812 Points +97%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	1713 Points +86%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	1610 Points +75%
Beelink GTR6 AMD Ryzen 9 6900HX	1608 Points +74%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7	1487 Points +61%
Beelink SEi11 Pro Intel Core i5-11320H	1467 Points +59%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	1451 Points +57%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	1367 Points +48%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	1082 Points +17%
MSI Cubi 5 10M Intel Core i3-10110U	1031 Points +12%
Beelink SER3 AMD Ryzen 7 3750H	971 Points +5%
Trigkey S3 AMD Ryzen 5 3550H	922 Points
Beelink SEi8 Intel Core i3-8109U	906 Points -2%
Average AMD Ryzen 5 3550H (850 - 922, n=2)	886 Points -4%
BMAX B5 Pro G7H8 Intel Core i5-8260U	629 Points -32%
Beelink U59 N5105 Intel Celeron N5105	618 Points -33%
Geekom MiniAir 11 Special Edition Intel Celeron N5095	611 Points -34%

Cinebench R15 / CPU Multi 64Bit
Beelink GTR6 AMD Ryzen 9 6900HX	1969 (1894.3^min - 1968.5^max) Points +206%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P	1879 Points +192%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	1409 (1203.04^min - 1409.15^max) Points +119%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	1320 Points +105%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	1319 (1286.46^min - 1319.48^max) Points +105%
Beelink SEi11 Pro Intel Core i5-11320H	857 (845.25^min - 856.84^max) Points +33%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7	832 Points +29%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	791 Points +23%
Average AMD Ryzen 5 3550H (635 - 769, n=11)	717 Points +12%
Beelink SER3 AMD Ryzen 7 3750H	680 (670.93^min - 679.66^max) Points +6%
Trigkey S3 AMD Ryzen 5 3550H	643 (633.41^min - 642.56^max) Points
BMAX B5 Pro G7H8 Intel Core i5-8260U	627 (557.08^min - 626.69^max) Points -2%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	623 Points -3%
Geekom MiniAir 11 Special Edition Intel Celeron N5095	369 Points -43%
Beelink U59 N5105 Intel Celeron N5105	368 (359.79^min - 368.43^max) Points -43%
Beelink SEi8 Intel Core i3-8109U	324 (317.69^min - 324.13^max) Points -50%
MSI Cubi 5 10M Intel Core i3-10110U	316 Points -51%
Chuwi LapBook Plus Intel Atom x7-E3950	125 Points -81%
Chuwi Hi10 Air Intel Atom x5-Z8350	97 Points -85%

Cinebench R15 / CPU Single 64Bit
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P	260 Points +83%
Beelink GTR6 AMD Ryzen 9 6900HX	260 Points +83%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	245 Points +73%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	231 Points +63%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7	221 Points +56%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	221 Points +56%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	215 Points +52%
Beelink SEi11 Pro Intel Core i5-11320H	214 Points +51%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	170 Points +20%
MSI Cubi 5 10M Intel Core i3-10110U	162 Points +14%
BMAX B5 Pro G7H8 Intel Core i5-8260U	156.9 Points +11%
Beelink SER3 AMD Ryzen 7 3750H	146 Points +3%
Trigkey S3 AMD Ryzen 5 3550H	141.8 Points
Average AMD Ryzen 5 3550H (77 - 146, n=11)	137.9 Points -3%
Beelink SEi8 Intel Core i3-8109U	124.3 Points -12%
Beelink U59 N5105 Intel Celeron N5105	108.1 Points -24%
Geekom MiniAir 11 Special Edition Intel Celeron N5095	106 Points -25%
Chuwi LapBook Plus Intel Atom x7-E3950	41 Points -71%
Chuwi Hi10 Air Intel Atom x5-Z8350	30 Points -79%

Blender / v2.79 BMW27 CPU
Chuwi LapBook Plus Intel Atom x7-E3950	4564 Seconds * -530%
Beelink U59 N5105 Intel Celeron N5105	1573 Seconds * -117%
Geekom MiniAir 11 Special Edition Intel Celeron N5095	1550 Seconds * -114%
Beelink SEi8 Intel Core i3-8109U	1328 Seconds * -83%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7	759 Seconds * -5%
BMAX B5 Pro G7H8 Intel Core i5-8260U	726 Seconds * -0%
Trigkey S3 AMD Ryzen 5 3550H	724 Seconds *
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	694 Seconds * +4%
Average AMD Ryzen 5 3550H (612 - 759, n=6)	675 Seconds * +7%
Beelink SER3 AMD Ryzen 7 3750H	672 Seconds * +7%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	590 Seconds * +19%
Beelink SEi11 Pro Intel Core i5-11320H	541 Seconds * +25%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	390 Seconds * +46%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	384 Seconds * +47%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	380 Seconds * +48%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P	280 Seconds * +61%
Beelink GTR6 AMD Ryzen 9 6900HX	257 Seconds * +65%

7-Zip 18.03 / 7z b 4
Beelink GTR6 AMD Ryzen 9 6900HX	57261 MIPS +230%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P	47064 MIPS +171%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	39897 MIPS +130%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	36343 MIPS +109%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	35580 MIPS +105%
Beelink SEi11 Pro Intel Core i5-11320H	24798 MIPS +43%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7	24006 MIPS +38%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	23471 MIPS +35%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	20163 MIPS +16%
BMAX B5 Pro G7H8 Intel Core i5-8260U	18874 MIPS +9%
Average AMD Ryzen 5 3550H (16683 - 19409, n=6)	17967 MIPS +3%
Trigkey S3 AMD Ryzen 5 3550H	17375 MIPS
Beelink SER3 AMD Ryzen 7 3750H	17077 MIPS -2%
Beelink U59 N5105 Intel Celeron N5105	11153 MIPS -36%
Geekom MiniAir 11 Special Edition Intel Celeron N5095	10994 MIPS -37%
Beelink SEi8 Intel Core i3-8109U	9489 MIPS -45%
Chuwi LapBook Plus Intel Atom x7-E3950	4569 MIPS -74%

7-Zip 18.03 / 7z b 4 -mmt1
Beelink GTR6 AMD Ryzen 9 6900HX	6005 MIPS +64%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P	5738 MIPS +57%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	5400 MIPS +48%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	5353 MIPS +47%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7	5255 MIPS +44%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	5235 MIPS +43%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	5192 MIPS +42%
Beelink SEi11 Pro Intel Core i5-11320H	5105 MIPS +40%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	4638 MIPS +27%
BMAX B5 Pro G7H8 Intel Core i5-8260U	4056 MIPS +11%
Beelink SER3 AMD Ryzen 7 3750H	3752 MIPS +3%
Beelink SEi8 Intel Core i3-8109U	3752 MIPS +3%
Trigkey S3 AMD Ryzen 5 3550H	3652 MIPS
Average AMD Ryzen 5 3550H (3472 - 3652, n=6)	3554 MIPS -3%
Beelink U59 N5105 Intel Celeron N5105	3108 MIPS -15%
Geekom MiniAir 11 Special Edition Intel Celeron N5095	3098 MIPS -15%
Chuwi LapBook Plus Intel Atom x7-E3950	1454 MIPS -60%

Geekbench 5.5 / Multi-Core
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P	9935 Points +203%
Beelink GTR6 AMD Ryzen 9 6900HX	9350 Points +185%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	8772 Points +167%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	7804 Points +138%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	6103 Points +86%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	5813 Points +77%
Beelink SEi11 Pro Intel Core i5-11320H	4959 Points +51%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7	4851 Points +48%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	3934 Points +20%
Average AMD Ryzen 5 3550H (3162 - 3486, n=5)	3316 Points +1%
Trigkey S3 AMD Ryzen 5 3550H	3281 Points
Beelink U59 N5105 Intel Celeron N5105	2080 Points -37%
Geekom MiniAir 11 Special Edition Intel Celeron N5095	2020 Points -38%
Beelink SEi8 Intel Core i3-8109U	1880 Points -43%
BMAX B5 Pro G7H8 Intel Core i5-8260U	1817 Points -45%

Geekbench 5.5 / Single-Core
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P	1715 Points +89%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	1714 Points +89%
Beelink GTR6 AMD Ryzen 9 6900HX	1652 Points +82%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	1633 Points +80%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7	1543 Points +70%
Beelink SEi11 Pro Intel Core i5-11320H	1518 Points +67%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	1506 Points +66%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	1436 Points +58%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	1219 Points +34%
Trigkey S3 AMD Ryzen 5 3550H	907 Points
Average AMD Ryzen 5 3550H (880 - 907, n=5)	896 Points -1%
Beelink SEi8 Intel Core i3-8109U	888 Points -2%
Geekom MiniAir 11 Special Edition Intel Celeron N5095	657 Points -28%
Beelink U59 N5105 Intel Celeron N5105	653 Points -28%
BMAX B5 Pro G7H8 Intel Core i5-8260U	639 Points -30%

HWBOT x265 Benchmark v2.2 / 4k Preset
Beelink GTR6 AMD Ryzen 9 6900HX	15.4 fps +281%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P	13.2 fps +227%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	10.5 fps +160%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	9.7 fps +140%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	9.43 fps +133%
Beelink SEi11 Pro Intel Core i5-11320H	7.28 fps +80%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	6.55 fps +62%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	5.2 fps +29%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7	4.74 fps +17%
Beelink SER3 AMD Ryzen 7 3750H	4.14 fps +2%
Average AMD Ryzen 5 3550H (3.7 - 4.43, n=5)	4.05 fps 0%
Trigkey S3 AMD Ryzen 5 3550H	4.04 fps
Beelink SEi8 Intel Core i3-8109U	2.85 fps -29%
Geekom MiniAir 11 Special Edition Intel Celeron N5095	2.02 fps -50%
Beelink U59 N5105 Intel Celeron N5105	2.01 fps -50%
BMAX B5 Pro G7H8 Intel Core i5-8260U	1.8 fps -55%
Chuwi LapBook Plus Intel Atom x7-E3950	0.98 fps -76%

LibreOffice / 20 Documents To PDF
BMAX B5 Pro G7H8 Intel Core i5-8260U	107.9 s * -23%
Geekom MiniAir 11 Special Edition Intel Celeron N5095	103.2 s * -18%
Beelink U59 N5105 Intel Celeron N5105	101 s * -15%
Trigkey S3 AMD Ryzen 5 3550H	87.8 s *
Beelink SER3 AMD Ryzen 7 3750H	86.5 s * +1%
Average AMD Ryzen 5 3550H (73.3 - 92.7, n=4)	82.2 s * +6%
Beelink SEi8 Intel Core i3-8109U	79 s * +10%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	68.2 s * +22%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	52.2 s * +41%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7	51.8 s * +41%
Beelink SEi11 Pro Intel Core i5-11320H	49.1 s * +44%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	48.9 s * +44%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	48.7 s * +45%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	46.1 s * +47%
Beelink GTR6 AMD Ryzen 9 6900HX	46 s * +48%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P	45 s * +49%

R Benchmark 2.5 / Overall mean
BMAX B5 Pro G7H8 Intel Core i5-8260U	1.257 sec * -72%
Geekom MiniAir 11 Special Edition Intel Celeron N5095	1.166 sec * -59%
Beelink U59 N5105 Intel Celeron N5105	1.162 sec * -59%
Beelink SEi8 Intel Core i3-8109U	0.861 sec * -18%
Average AMD Ryzen 5 3550H (0.732 - 0.752, n=4)	0.739 sec * -1%
Trigkey S3 AMD Ryzen 5 3550H	0.732 sec *
Beelink SER3 AMD Ryzen 7 3750H	0.723 sec * +1%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U	0.7 sec * +4%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7	0.609 sec * +17%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7	0.599 sec * +18%
Beelink SEi11 Pro Intel Core i5-11320H	0.581 sec * +21%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H	0.53 sec * +28%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	0.512 sec * +30%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U	0.4856 sec * +34%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P	0.4787 sec * +35%
Beelink GTR6 AMD Ryzen 9 6900HX	0.4627 sec * +37%

CPU Performance Rating: Percent
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R23: Multi Core | Single Core
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

* ... más pequeño es mejor

Blender
v3.3 Classroom HIP/AMD
Trigkey S3 AMD Radeon RX Vega 8 (Ryzen 2000/3000), AMD Ryzen 5 3550H	926 Seconds *
Average AMD Radeon RX Vega 8 (Ryzen 2000/3000) ()	926 Seconds * -0%
v3.3 Classroom CPU
Trigkey S3 AMD Radeon RX Vega 8 (Ryzen 2000/3000), AMD Ryzen 5 3550H	1297 Seconds *
Average AMD Radeon RX Vega 8 (Ryzen 2000/3000) ()	1297 Seconds * -0%
Beelink SEi11 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	995 Seconds * +23%
Beelink SEi12 Core i5-1235U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1235U	707 Seconds * +45%
Intel NUC Pro Chassis_i7_1265U Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1265U	697 Seconds * +46%
Beelink SER Pro Ryzen 5 5600H AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	666 Seconds * +49%

* ... más pequeño es mejor

Performance Rating
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, Vega 7	92.6 pt
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Iris Xe G7 96EUs	76.7 pt
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	74.9 pt
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	69.6 pt
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	64.6 pt
Average AMD Ryzen 5 3550H	44.2 pt
Trigkey S3 AMD Ryzen 5 3550H, Vega 8	41.1 pt

AIDA64 / FP32 Ray-Trace
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, Vega 7	9181 KRay/s +206%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	7047 KRay/s +135%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Iris Xe G7 96EUs	6915 KRay/s +131%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	6784 KRay/s +126%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	6699 KRay/s +124%
Average AMD Ryzen 5 3550H (2996 - 3607, n=5)	3309 KRay/s +10%
Trigkey S3 AMD Ryzen 5 3550H, Vega 8	2996 KRay/s

AIDA64 / FPU Julia
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, Vega 7	58039 Points +255%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Iris Xe G7 96EUs	37275 Points +128%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	34444 Points +111%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	29972 Points +84%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	27861 Points +71%
Average AMD Ryzen 5 3550H (16278 - 18781, n=5)	17574 Points +8%
Trigkey S3 AMD Ryzen 5 3550H, Vega 8	16331 Points

AIDA64 / CPU SHA3
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, Vega 7	2006 MB/s +137%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	1992 MB/s +135%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Iris Xe G7 96EUs	1911 MB/s +126%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	1884 MB/s +122%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	1855 MB/s +119%
Average AMD Ryzen 5 3550H (847 - 983, n=4)	933 MB/s +10%
Trigkey S3 AMD Ryzen 5 3550H, Vega 8	847 MB/s

AIDA64 / CPU Queen
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, Vega 7	66699 Points +57%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Iris Xe G7 96EUs	65340 Points +54%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	59756 Points +41%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	48212 Points +14%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	46536 Points +10%
Average AMD Ryzen 5 3550H (42017 - 48622, n=5)	45217 Points +6%
Trigkey S3 AMD Ryzen 5 3550H, Vega 8	42470 Points

AIDA64 / FPU SinJulia
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, Vega 7	8340 Points +55%
Average AMD Ryzen 5 3550H (5386 - 6316, n=5)	5909 Points +10%
Trigkey S3 AMD Ryzen 5 3550H, Vega 8	5386 Points
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Iris Xe G7 96EUs	4779 Points -11%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	4771 Points -11%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	4644 Points -14%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	4444 Points -17%

AIDA64 / FPU Mandel
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, Vega 7	31962 Points +276%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Iris Xe G7 96EUs	17999 Points +111%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	17987 Points +111%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	16937 Points +99%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	16394 Points +93%
Average AMD Ryzen 5 3550H (8460 - 9767, n=5)	9148 Points +7%
Trigkey S3 AMD Ryzen 5 3550H, Vega 8	8511 Points

AIDA64 / CPU AES
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, Vega 7	79183 MB/s +185%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	68683 MB/s +147%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	67140 MB/s +142%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	66724 MB/s +140%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Iris Xe G7 96EUs	38221 MB/s +38%
Average AMD Ryzen 5 3550H (27486 - 32316, n=5)	29977 MB/s +8%
Trigkey S3 AMD Ryzen 5 3550H, Vega 8	27755 MB/s

AIDA64 / CPU ZLib
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	633 MB/s +110%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Iris Xe G7 96EUs	577 MB/s +91%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, Vega 7	507 MB/s +68%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	373 MB/s +24%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	368 MB/s +22%
Average AMD Ryzen 5 3550H (299 - 352, n=5)	323 MB/s +7%
Trigkey S3 AMD Ryzen 5 3550H, Vega 8	302 MB/s

AIDA64 / FP64 Ray-Trace
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, Vega 7	4811 KRay/s +204%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Iris Xe G7 96EUs	3926 KRay/s +148%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	3811 KRay/s +141%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	3628 KRay/s +129%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	3532 KRay/s +123%
Average AMD Ryzen 5 3550H (1584 - 1914, n=5)	1753 KRay/s +11%
Trigkey S3 AMD Ryzen 5 3550H, Vega 8	1584 KRay/s

AIDA64 / CPU PhotoWorxx
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Iris Xe G7 96EUs	44210 MPixel/s +164%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	29523 MPixel/s +76%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	25964 MPixel/s +55%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, Vega 7	20237 MPixel/s +21%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	16877 MPixel/s +1%
Trigkey S3 AMD Ryzen 5 3550H, Vega 8	16736 MPixel/s
Average AMD Ryzen 5 3550H (14325 - 17838, n=5)	16132 MPixel/s -4%

Rendimiento del sistema

Como era de esperar, los resultados de PCMark se sitúan entre los mini PC más lentos con CPU Celeron o Atom y los mini PC más rápidos con CPU Intel más modernas de 11ª o 12ª generación.

PCMark 10 / Score
Beelink SER Pro Ryzen 5 5600H Vega 7, R5 5600H, Kingston NV1 SNVS/500GCN	5902 Points +47%
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	5543 Points +38%
Intel NUC Pro Chassis_i7_1265U Iris Xe G7 96EUs, i7-1265U, WDC PC SN720 SDAQNTW-512G	5510 Points +38%
Beelink SEi11 Pro Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN	5095 Points +27%
Intel NUC11TNKi5 Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S	4512 Points +13%
Average AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000) (4006 - 4307, n=4)	4153 Points +4%
Trigkey S3 Vega 8, R5 3550H, Kingston NV1 SNVS/500GCN	4006 Points
Beelink U59 N5105 UHD Graphics (Jasper Lake 24 EU), Celeron N5105, Silicon Motion AZW 512G NV428	2670 Points -33%
Chuwi LapBook Plus HD Graphics 505, x7-E3950, Kimtigo KT256GM28S3	1144 Points -71%

PCMark 10 / Essentials
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	10845 Points +39%
Beelink SER Pro Ryzen 5 5600H Vega 7, R5 5600H, Kingston NV1 SNVS/500GCN	10351 Points +33%
Beelink SEi11 Pro Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN	10281 Points +32%
Intel NUC Pro Chassis_i7_1265U Iris Xe G7 96EUs, i7-1265U, WDC PC SN720 SDAQNTW-512G	10186 Points +31%
Intel NUC11TNKi5 Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S	9000 Points +16%
Average AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000) (7781 - 8579, n=4)	8202 Points +5%
Trigkey S3 Vega 8, R5 3550H, Kingston NV1 SNVS/500GCN	7781 Points
Beelink U59 N5105 UHD Graphics (Jasper Lake 24 EU), Celeron N5105, Silicon Motion AZW 512G NV428	6340 Points -19%
Chuwi LapBook Plus HD Graphics 505, x7-E3950, Kimtigo KT256GM28S3	2891 Points -63%

PCMark 10 / Productivity
Beelink SER Pro Ryzen 5 5600H Vega 7, R5 5600H, Kingston NV1 SNVS/500GCN	9293 Points +43%
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	7354 Points +13%
Intel NUC Pro Chassis_i7_1265U Iris Xe G7 96EUs, i7-1265U, WDC PC SN720 SDAQNTW-512G	7041 Points +9%
Beelink SEi11 Pro Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN	6915 Points +7%
Trigkey S3 Vega 8, R5 3550H, Kingston NV1 SNVS/500GCN	6487 Points
Average AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000) (5995 - 6487, n=4)	6327 Points -2%
Intel NUC11TNKi5 Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S	6190 Points -5%
Beelink U59 N5105 UHD Graphics (Jasper Lake 24 EU), Celeron N5105, Silicon Motion AZW 512G NV428	3758 Points -42%
Chuwi LapBook Plus HD Graphics 505, x7-E3950, Kimtigo KT256GM28S3	1407 Points -78%

PCMark 10 / Digital Content Creation
Intel NUC Pro Chassis_i7_1265U Iris Xe G7 96EUs, i7-1265U, WDC PC SN720 SDAQNTW-512G	6330 Points +83%
Beelink SER Pro Ryzen 5 5600H Vega 7, R5 5600H, Kingston NV1 SNVS/500GCN	5801 Points +68%
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	5798 Points +68%
Beelink SEi11 Pro Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN	5048 Points +46%
Intel NUC11TNKi5 Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S	4474 Points +29%
Average AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000) (3457 - 3947, n=4)	3751 Points +9%
Trigkey S3 Vega 8, R5 3550H, Kingston NV1 SNVS/500GCN	3457 Points
Beelink U59 N5105 UHD Graphics (Jasper Lake 24 EU), Celeron N5105, Silicon Motion AZW 512G NV428	2170 Points -37%
Chuwi LapBook Plus HD Graphics 505, x7-E3950, Kimtigo KT256GM28S3	1001 Points -71%

CrossMark / Overall
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	1644 Points +98%
Intel NUC Pro Chassis_i7_1265U Iris Xe G7 96EUs, i7-1265U, WDC PC SN720 SDAQNTW-512G	1559 Points +87%
Beelink SEi11 Pro Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN	1335 Points +60%
Beelink SER Pro Ryzen 5 5600H Vega 7, R5 5600H, Kingston NV1 SNVS/500GCN	1311 Points +58%
Trigkey S3 Vega 8, R5 3550H, Kingston NV1 SNVS/500GCN	832 Points
Average AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000) ()	832 Points 0%
Beelink U59 N5105 UHD Graphics (Jasper Lake 24 EU), Celeron N5105, Silicon Motion AZW 512G NV428	531 Points -36%

CrossMark / Productivity
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	1676 Points +88%
Intel NUC Pro Chassis_i7_1265U Iris Xe G7 96EUs, i7-1265U, WDC PC SN720 SDAQNTW-512G	1528 Points +72%
Beelink SEi11 Pro Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN	1419 Points +59%
Beelink SER Pro Ryzen 5 5600H Vega 7, R5 5600H, Kingston NV1 SNVS/500GCN	1355 Points +52%
Trigkey S3 Vega 8, R5 3550H, Kingston NV1 SNVS/500GCN	890 Points
Average AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000) ()	890 Points 0%
Beelink U59 N5105 UHD Graphics (Jasper Lake 24 EU), Celeron N5105, Silicon Motion AZW 512G NV428	590 Points -34%

CrossMark / Creativity
Intel NUC Pro Chassis_i7_1265U Iris Xe G7 96EUs, i7-1265U, WDC PC SN720 SDAQNTW-512G	1679 Points +116%
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	1546 Points +99%
Beelink SER Pro Ryzen 5 5600H Vega 7, R5 5600H, Kingston NV1 SNVS/500GCN	1315 Points +69%
Beelink SEi11 Pro Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN	1256 Points +62%
Trigkey S3 Vega 8, R5 3550H, Kingston NV1 SNVS/500GCN	777 Points
Average AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000) ()	777 Points 0%
Beelink U59 N5105 UHD Graphics (Jasper Lake 24 EU), Celeron N5105, Silicon Motion AZW 512G NV428	471 Points -39%

CrossMark / Responsiveness
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	1867 Points +123%
Beelink SEi11 Pro Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN	1336 Points +60%
Intel NUC Pro Chassis_i7_1265U Iris Xe G7 96EUs, i7-1265U, WDC PC SN720 SDAQNTW-512G	1327 Points +59%
Beelink SER Pro Ryzen 5 5600H Vega 7, R5 5600H, Kingston NV1 SNVS/500GCN	1177 Points +41%
Trigkey S3 Vega 8, R5 3550H, Kingston NV1 SNVS/500GCN	836 Points
Average AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000) ()	836 Points 0%
Beelink U59 N5105 UHD Graphics (Jasper Lake 24 EU), Celeron N5105, Silicon Motion AZW 512G NV428	554 Points -34%

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Iris Xe G7 96EUs	69882 MB/s +117%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	43215 MB/s +34%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, Vega 7	42001 MB/s +30%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	41106 MB/s +28%
Trigkey S3 AMD Ryzen 5 3550H, Vega 8	32188 MB/s
Average AMD Ryzen 5 3550H (28887 - 32188, n=5)	30294 MB/s -6%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	22895 MB/s -29%

AIDA64 / Memory Read
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Iris Xe G7 96EUs	65177 MB/s +85%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, Vega 7	47363 MB/s +35%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	46616 MB/s +33%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	46516 MB/s +32%
Trigkey S3 AMD Ryzen 5 3550H, Vega 8	35172 MB/s
Average AMD Ryzen 5 3550H (31862 - 35172, n=5)	33574 MB/s -5%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	24947 MB/s -29%

AIDA64 / Memory Write
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Iris Xe G7 96EUs	63385 MB/s +77%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	46760 MB/s +30%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	46475 MB/s +30%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, Vega 7	42347 MB/s +18%
Trigkey S3 AMD Ryzen 5 3550H, Vega 8	35845 MB/s
Average AMD Ryzen 5 3550H (32493 - 35847, n=5)	34148 MB/s -5%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	23454 MB/s -35%

AIDA64 / Memory Latency
Average AMD Ryzen 5 3550H (95 - 120, n=5)	113.8 ns * -20%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Iris Xe G7 96EUs	100 ns * -5%
Trigkey S3 AMD Ryzen 5 3550H, Vega 8	95 ns *
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	91.6 ns * +4%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	87.1 ns * +8%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	81 ns * +15%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, Vega 7	80.3 ns * +15%

* ... más pequeño es mejor

Latencia del CPD

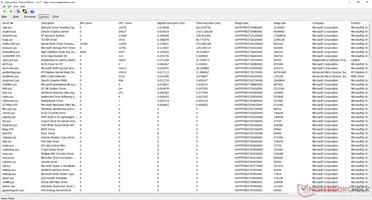

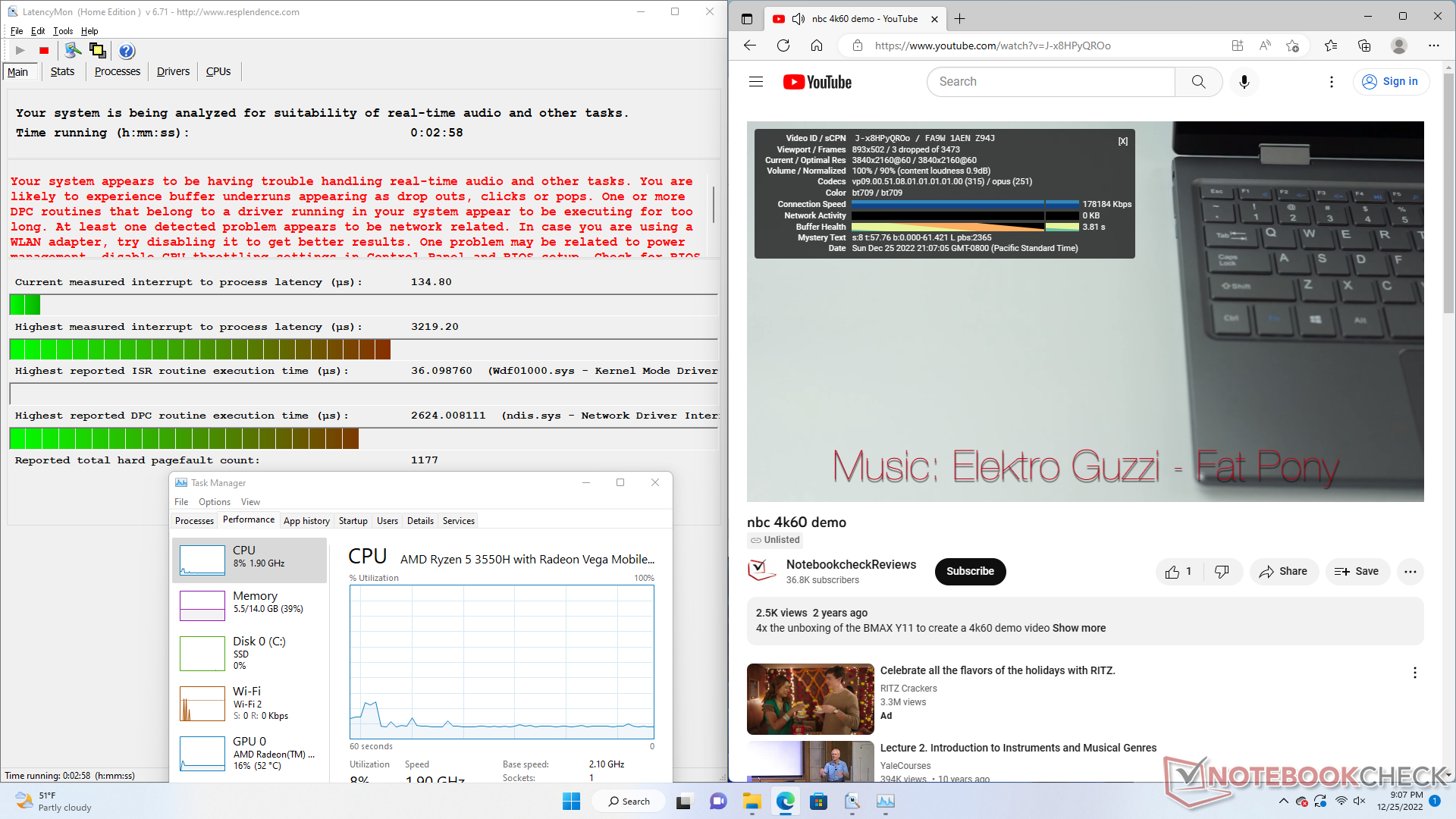

LatencyMon revela problemas de CPD al abrir varias pestañas de nuestra página de inicio. la reproducción de vídeo 4K a 60 FPS es fluida en su mayor parte, con sólo 3 fotogramas perdidos durante nuestro vídeo de prueba de un minuto.

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Trigkey S3 Vega 8, R5 3550H, Kingston NV1 SNVS/500GCN	3219.2 μs *
Intel NUC Pro Chassis_i7_1265U Iris Xe G7 96EUs, i7-1265U, WDC PC SN720 SDAQNTW-512G	1151 μs * +64%
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	830.3 μs * +74%
Beelink SER Pro Ryzen 5 5600H Vega 7, R5 5600H, Kingston NV1 SNVS/500GCN	562 μs * +83%
Intel NUC11TNKi5 Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S	525 μs * +84%
Beelink SEi11 Pro Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN	167.2 μs * +95%

* ... más pequeño es mejor

Dispositivos de almacenamiento

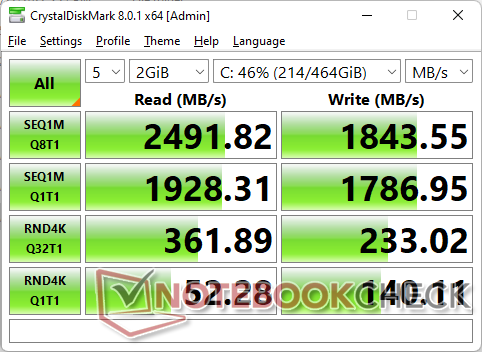

El Trigkey utiliza el mismoKingston NV1 SNVS/500GCN M.2 2280 NVMe SSD que se encuentra en muchos mini PC de Beelink como el SEi11 Pro o SER Pro. Se trata de una unidad PCIe3 x4 económica con velocidades de transferencia máximas sostenidas de unos 2500 MB/s. Los usuarios pueden instalar un SSD M.2 y una unidad SATA III de 2,5 pulgadas si pueden abrir el panel inferior.

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

Kingston NV1 SNVS/500GCN

CDM 5/6 Read Seq Q32T1: 2517 MB/s

CDM 5/6 Write Seq Q32T1: 1837 MB/s

CDM 5/6 Read 4K Q32T1: 364 MB/s

CDM 5/6 Write 4K Q32T1: 232.6 MB/s

CDM 5 Read Seq: 1963 MB/s

CDM 5 Write Seq: 1784 MB/s

CDM 5/6 Read 4K: 51.91 MB/s

CDM 5/6 Write 4K: 138.1 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	92.8 pt
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	70.5 pt
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	55.7 pt
Beelink SER Pro Ryzen 5 5600H ^-11! Kingston NV1 SNVS/500GCN	55.1 pt
Trigkey S3 Kingston NV1 SNVS/500GCN	52.2 pt
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	17.7 pt

DiskSpd
seq read
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	2512 (2493.51^min - 2511.76^max) MB/s +31%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	2228 (1938.09^min - 2228.38^max) MB/s +16%
Beelink SER Pro Ryzen 5 5600H Kingston NV1 SNVS/500GCN	1976 (1950.06^min - 1975.69^max) MB/s +3%
Trigkey S3 Kingston NV1 SNVS/500GCN	1924 (1916.02^min - 1924^max) MB/s
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	1638 (1628.34^min - 1637.59^max) MB/s -15%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	509 (505.62^min - 509.19^max) MB/s -74%
seq write
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	2848 (2821.72^min - 2847.93^max) MB/s +62%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	2198 (2143.62^min - 2198.23^max) MB/s +25%
Trigkey S3 Kingston NV1 SNVS/500GCN	1758 (745.14^min - 1757.99^max) MB/s
Beelink SER Pro Ryzen 5 5600H Kingston NV1 SNVS/500GCN	1746 (580.39^min - 1746.23^max) MB/s -1%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	1661 (336.85^min - 1661.33^max) MB/s -6%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	467 (462^min - 467.13^max) MB/s -73%
seq q8 t1 read
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	3632 (3373.44^min - 3632.06^max) MB/s +44%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	3497 (2944.82^min - 3496.65^max) MB/s +39%
Trigkey S3 Kingston NV1 SNVS/500GCN	2518 (2250.15^min - 2517.63^max) MB/s
Beelink SER Pro Ryzen 5 5600H Kingston NV1 SNVS/500GCN	2456 (2261.06^min - 2456.06^max) MB/s -2%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	2374 (2218.75^min - 2374.19^max) MB/s -6%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	561 (469.24^min - 560.5^max) MB/s -78%
seq q8 t1 write
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	2841 (2828.64^min - 2841.01^max) MB/s +57%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	2573 (2547.29^min - 2572.88^max) MB/s +42%
Trigkey S3 Kingston NV1 SNVS/500GCN	1809 (1103.1^min - 1809.06^max) MB/s
Beelink SER Pro Ryzen 5 5600H Kingston NV1 SNVS/500GCN	1763 (714.42^min - 1763.25^max) MB/s -3%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	1433 (67.32^min - 1432.98^max) MB/s -21%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	504 (500.38^min - 503.53^max) MB/s -72%
4k q1 t1 read
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	79.3 (78.06^min - 79.29^max) MB/s +79%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	50.5 (48.13^min - 50.48^max) MB/s +14%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	44.7 (43.85^min - 44.67^max) MB/s +1%
Trigkey S3 Kingston NV1 SNVS/500GCN	44.4 (42.57^min - 44.42^max) MB/s
Beelink SER Pro Ryzen 5 5600H Kingston NV1 SNVS/500GCN	44.3 (43.84^min - 44.26^max) MB/s 0%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	21.6 (20.05^min - 21.62^max) MB/s -51%
4k q1 t1 write
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	391 (374.32^min - 390.86^max) MB/s +189%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	173.6 (113.3^min - 173.62^max) MB/s +28%
Beelink SER Pro Ryzen 5 5600H Kingston NV1 SNVS/500GCN	147.9 (117.82^min - 147.87^max) MB/s +9%
Trigkey S3 Kingston NV1 SNVS/500GCN	135.1 (104.83^min - 135.1^max) MB/s
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	127.3 (125.68^min - 127.3^max) MB/s -6%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	46.4 (45.57^min - 46.37^max) MB/s -66%
4k q32 t16 read
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	1942 (1940.61^min - 1941.63^max) MB/s +161%
Beelink SER Pro Ryzen 5 5600H Kingston NV1 SNVS/500GCN	747 (745.51^min - 747.02^max) MB/s 0%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	745 (742.2^min - 744.53^max) MB/s 0%
Trigkey S3 Kingston NV1 SNVS/500GCN	745 (742.5^min - 744.62^max) MB/s
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	643 (632.31^min - 643.46^max) MB/s -14%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	285 (283.99^min - 284.61^max) MB/s -62%
4k q32 t16 write
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	2219 (2197.25^min - 2218.83^max) MB/s +180%
Beelink SER Pro Ryzen 5 5600H Kingston NV1 SNVS/500GCN	860 (472.56^min - 860.33^max) MB/s +8%
Trigkey S3 Kingston NV1 SNVS/500GCN	793 (785.74^min - 792.64^max) MB/s
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	733 (332^min - 733.18^max) MB/s -8%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	330 (329.53^min - 329.95^max) MB/s -58%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	328 (314.14^min - 327.95^max) MB/s -59%

AS SSD
Score Total
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	4619 Points +91%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	3536 Points +46%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	2742 Points +13%
Trigkey S3 Kingston NV1 SNVS/500GCN	2421 Points
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	839 Points -65%
Score Read
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	1633 Points +69%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	1042 Points +8%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	975 Points +1%
Trigkey S3 Kingston NV1 SNVS/500GCN	969 Points
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	304 Points -69%
Score Write
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	2278 Points +134%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	1997 Points +105%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	1282 Points +31%
Trigkey S3 Kingston NV1 SNVS/500GCN	975 Points
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	375 Points -62%
Seq Read
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	3206.84 MB/s +44%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	2881 MB/s +29%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	2246.84 MB/s +1%
Trigkey S3 Kingston NV1 SNVS/500GCN	2226.03 MB/s
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	527 MB/s -76%
Seq Write
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	1960 MB/s +19%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	1764.26 MB/s +8%
Trigkey S3 Kingston NV1 SNVS/500GCN	1640.43 MB/s
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	469 MB/s -71%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	463.76 MB/s -72%
4K Read
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	59.54 MB/s +41%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	45.38 MB/s +7%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	44.12 MB/s +4%
Trigkey S3 Kingston NV1 SNVS/500GCN	42.33 MB/s
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	20.41 MB/s -52%
4K Write
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	280.94 MB/s +162%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	192.62 MB/s +80%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	182.89 MB/s +71%
Trigkey S3 Kingston NV1 SNVS/500GCN	107.09 MB/s
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	42.52 MB/s -60%
4K-64 Read
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	1252.33 MB/s +78%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	708.14 MB/s +1%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	706.35 MB/s 0%
Trigkey S3 Kingston NV1 SNVS/500GCN	704.26 MB/s
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	231.4 MB/s -67%
4K-64 Write
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	1950.21 MB/s +177%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	1617.56 MB/s +130%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	912.72 MB/s +30%
Trigkey S3 Kingston NV1 SNVS/500GCN	703.84 MB/s
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	285.3 MB/s -59%
Access Time Read
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	0.124 ms * -75%
Trigkey S3 Kingston NV1 SNVS/500GCN	0.071 ms *
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	0.053 ms * +25%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	0.053 ms * +25%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	0.049 ms * +31%
Access Time Write
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	0.342 ms * -4%
Trigkey S3 Kingston NV1 SNVS/500GCN	0.328 ms *
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	0.269 ms * +18%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	0.07 ms * +79%
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G	0.022 ms * +93%

* ... más pequeño es mejor

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

Trigkey S3: Ø2442 (2098.62-2474.72)

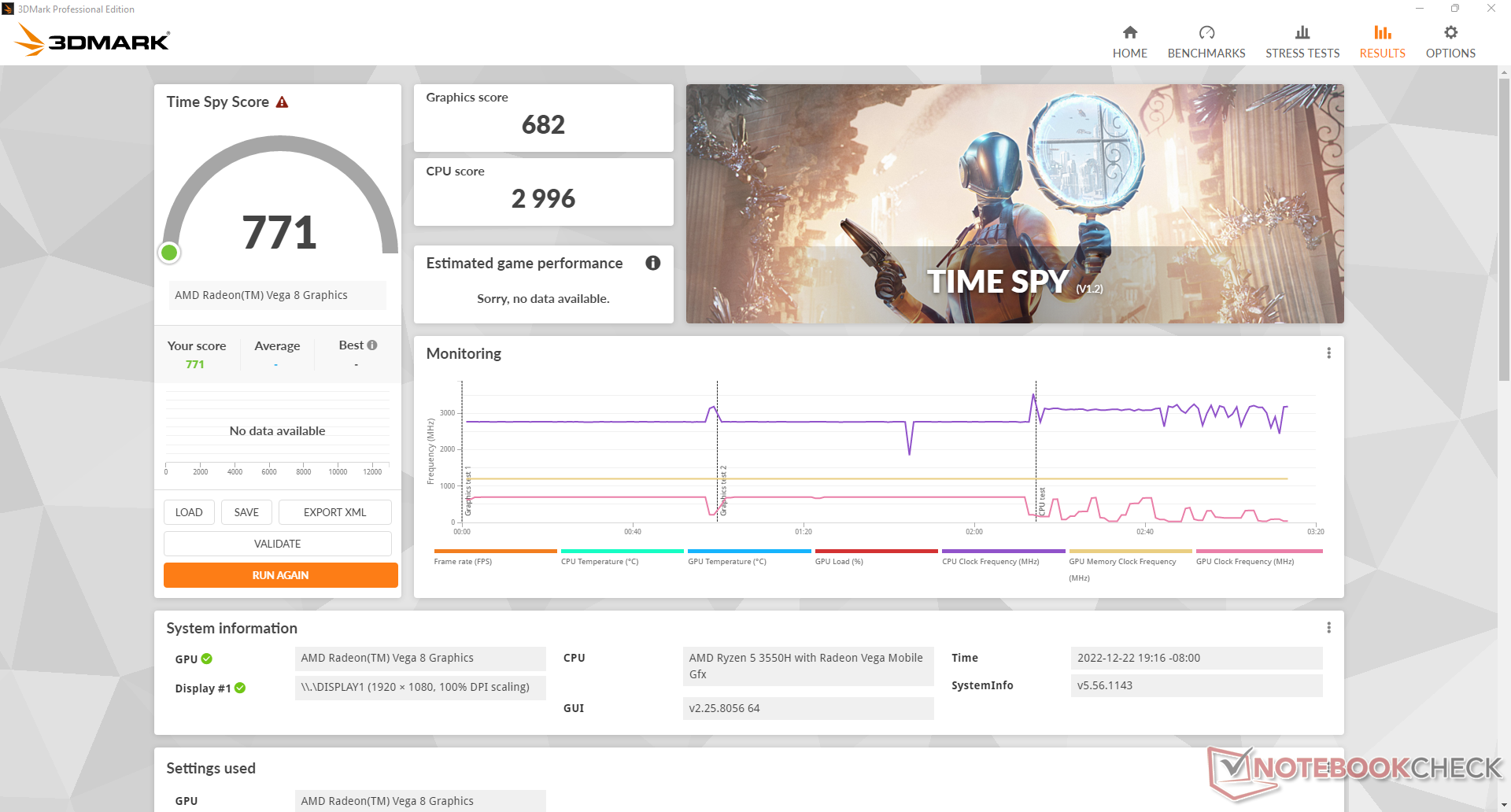

Rendimiento de la GPU

El rendimiento gráfico bruto es aproximadamente el doble que el de la UHD Graphics 620 que suelen tener las CPU Intel de 10ª generación o anteriores. No es suficiente para la mayoría de los juegos, pero todo ayuda a la hora de transmitir o ejecutar en pantallas de mayor resolución.

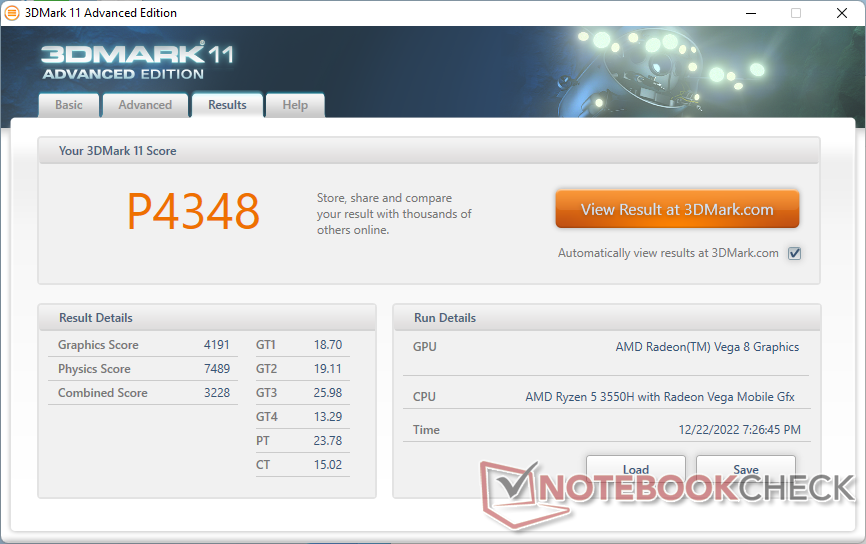

3DMark Performance Rating | 3DMark | 3DMark 11

3DMark Performance Rating - Percent
Beelink GTR6 AMD Radeon 680M, AMD Ryzen 9 6900HX	100 pt
Intel NUC Pro Chassis_i7_1185G7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7	64 pt
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	62.3 pt
Beelink SEi11 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	61.2 pt
Intel NUC Pro Chassis_i7_1265U Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1265U	60.4 pt
Beelink SER Pro Ryzen 5 5600H AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	59.3 pt
Prime Computer PrimeBook Circular-i7-1165G7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	56 pt
Intel NUC Pro Chassis_i5_1245U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1245U	52.6 pt
Beelink SEi12 Core i5-1235U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1235U	50.4 pt
Trigkey S3 AMD Radeon RX Vega 8 (Ryzen 2000/3000), AMD Ryzen 5 3550H	36.8 pt
Average AMD Radeon RX Vega 8 (Ryzen 2000/3000)	31.6 pt
Beelink SER3 AMD Radeon RX Vega 10, AMD Ryzen 7 3750H	28.9 pt
BMAX B5 Pro G7H8 Intel UHD Graphics 620, Intel Core i5-8260U	18.6 pt
Minipc Union NiPoGi CK10 - 10810U Intel UHD Graphics 620, Intel Core i7-10810U	16.1 pt
Beelink U59 N5105 Intel UHD Graphics (Jasper Lake 24 EU), Intel Celeron N5105	15.3 pt
Geekom MiniAir 11 Special Edition ^-1! Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	9.4 pt
Chuwi LapBook Plus ^-1! Intel HD Graphics 505, Intel Atom x7-E3950	7.3 pt
Chuwi Hi10 Air ^-3! Intel HD Graphics (Cherry Trail), Intel Atom x5-Z8350	2.6 pt

3DMark
1280x720 Cloud Gate Standard Graphics
Beelink GTR6 AMD Radeon 680M, AMD Ryzen 9 6900HX	44579 Points +137%
Beelink SER Pro Ryzen 5 5600H AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	31437 Points +67%
Beelink SEi11 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	26093 Points +39%
Intel NUC Pro Chassis_i7_1185G7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7	25485 Points +36%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	22735 Points +21%
Beelink SEi12 Core i5-1235U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1235U	22363 Points +19%
Intel NUC Pro Chassis_i7_1265U Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1265U	21602 Points +15%
Intel NUC Pro Chassis_i5_1245U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1245U	21276 Points +13%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	21114 Points +12%
Trigkey S3 AMD Radeon RX Vega 8 (Ryzen 2000/3000), AMD Ryzen 5 3550H	18788 Points
Average AMD Radeon RX Vega 8 (Ryzen 2000/3000) (7309 - 19399, n=37)	15327 Points -18%
Beelink SER3 AMD Radeon RX Vega 10, AMD Ryzen 7 3750H	13791 Points -27%
BMAX B5 Pro G7H8 Intel UHD Graphics 620, Intel Core i5-8260U	9921 Points -47%
Beelink U59 N5105 Intel UHD Graphics (Jasper Lake 24 EU), Intel Celeron N5105	8388 Points -55%
Minipc Union NiPoGi CK10 - 10810U Intel UHD Graphics 620, Intel Core i7-10810U	8164 Points -57%
Geekom MiniAir 11 Special Edition Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	4958 Points -74%
Chuwi LapBook Plus Intel HD Graphics 505, Intel Atom x7-E3950	3997 Points -79%

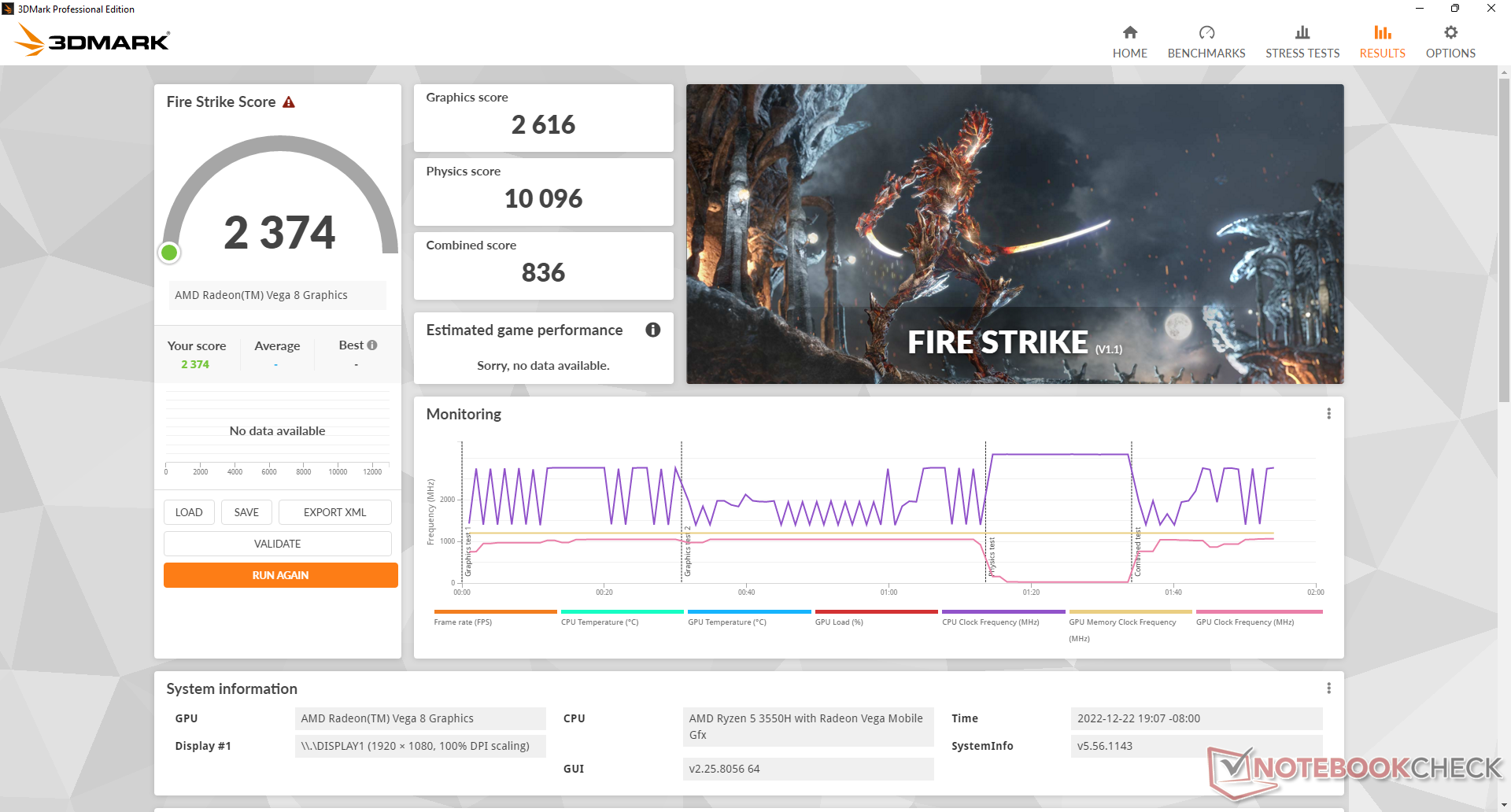

1920x1080 Fire Strike Graphics
Beelink GTR6 AMD Radeon 680M, AMD Ryzen 9 6900HX	6962 Points +166%
Intel NUC Pro Chassis_i7_1185G7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7	4959 Points +90%
Intel NUC Pro Chassis_i7_1265U Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1265U	4902 Points +87%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	4883 Points +87%
Beelink SEi11 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	4523 Points +73%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	4360 Points +67%
Intel NUC Pro Chassis_i5_1245U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1245U	4249 Points +62%
Beelink SER Pro Ryzen 5 5600H AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	4037 Points +54%
Beelink SEi12 Core i5-1235U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1235U	3939 Points +51%
Trigkey S3 AMD Radeon RX Vega 8 (Ryzen 2000/3000), AMD Ryzen 5 3550H	2616 Points
Average AMD Radeon RX Vega 8 (Ryzen 2000/3000) (1095 - 2901, n=41)	2224 Points -15%
Beelink SER3 AMD Radeon RX Vega 10, AMD Ryzen 7 3750H	2027 Points -23%
BMAX B5 Pro G7H8 Intel UHD Graphics 620, Intel Core i5-8260U	1288 Points -51%
Beelink U59 N5105 Intel UHD Graphics (Jasper Lake 24 EU), Intel Celeron N5105	1106 Points -58%
Minipc Union NiPoGi CK10 - 10810U Intel UHD Graphics 620, Intel Core i7-10810U	1078 Points -59%
Geekom MiniAir 11 Special Edition Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	637 Points -76%
2560x1440 Time Spy Graphics
Beelink GTR6 AMD Radeon 680M, AMD Ryzen 9 6900HX	2437 Points +257%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	1630 Points +139%
Intel NUC Pro Chassis_i7_1185G7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7	1570 Points +130%
Intel NUC Pro Chassis_i7_1265U Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1265U	1556 Points +128%
Beelink SEi11 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	1443 Points +112%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	1287 Points +89%
Beelink SER Pro Ryzen 5 5600H AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	1247 Points +83%
Intel NUC Pro Chassis_i5_1245U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1245U	1234 Points +81%
Beelink SEi12 Core i5-1235U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1235U	1147 Points +68%
Trigkey S3 AMD Radeon RX Vega 8 (Ryzen 2000/3000), AMD Ryzen 5 3550H	682 Points
Average AMD Radeon RX Vega 8 (Ryzen 2000/3000) (523 - 790, n=23)	673 Points -1%
Beelink SER3 AMD Radeon RX Vega 10, AMD Ryzen 7 3750H	609 Points -11%
BMAX B5 Pro G7H8 Intel UHD Graphics 620, Intel Core i5-8260U	422 Points -38%
Minipc Union NiPoGi CK10 - 10810U Intel UHD Graphics 620, Intel Core i7-10810U	365 Points -46%
Beelink U59 N5105 Intel UHD Graphics (Jasper Lake 24 EU), Intel Celeron N5105	312 Points -54%
Chuwi LapBook Plus Intel HD Graphics 505, Intel Atom x7-E3950	142 Points -79%

3DMark 11 - 1280x720 Performance GPU
Beelink GTR6 AMD Radeon 680M, AMD Ryzen 9 6900HX	10566 Points +152%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	6840 Points +63%
Intel NUC Pro Chassis_i7_1185G7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7	6676 Points +59%
Beelink SEi11 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	6571 Points +57%
Intel NUC Pro Chassis_i7_1265U Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1265U	6210 Points +48%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	6091 Points +45%
Beelink SER Pro Ryzen 5 5600H AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	6079 Points +45%
Intel NUC Pro Chassis_i5_1245U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1245U	5378 Points +28%
Beelink SEi12 Core i5-1235U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1235U	5054 Points +21%
Trigkey S3 AMD Radeon RX Vega 8 (Ryzen 2000/3000), AMD Ryzen 5 3550H	4191 Points
Average AMD Radeon RX Vega 8 (Ryzen 2000/3000) (1668 - 4317, n=44)	3447 Points -18%
Beelink SER3 AMD Radeon RX Vega 10, AMD Ryzen 7 3750H	3245 Points -23%
BMAX B5 Pro G7H8 Intel UHD Graphics 620, Intel Core i5-8260U	1744 Points -58%
Minipc Union NiPoGi CK10 - 10810U Intel UHD Graphics 620, Intel Core i7-10810U	1660 Points -60%
Beelink U59 N5105 Intel UHD Graphics (Jasper Lake 24 EU), Intel Celeron N5105	1458 Points -65%
Geekom MiniAir 11 Special Edition Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	837 Points -80%
Chuwi LapBook Plus Intel HD Graphics 505, Intel Atom x7-E3950	765 Points -82%
Chuwi Hi10 Air Intel HD Graphics (Cherry Trail), Intel Atom x5-Z8350	278 Points -93%

3DMark Performance Rating | 3DMark | 3DMark 11

The Witcher 3
1024x768 Low Graphics & Postprocessing
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	139.2 (119^min) fps +175%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	90.7 (3.4^min, 21.9^P0.1, 53.7^P1) fps +79%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	89.7 (45^min) fps +77%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	89 (38.4^min, 43.3^P0.1, 52.8^P1) fps +76%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	88.1 (3.39^min, 21.4^P0.1, 52.9^P1) fps +74%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	81.4 (31.8^min, 35.9^P0.1, 47.9^P1) fps +61%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	79.2 (75^min) fps +56%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	77.7 (46^min) fps +53%
Trigkey S3 AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	50.7 (41^min) fps
Average AMD Radeon RX Vega 8 (Ryzen 2000/3000) (22 - 50.7, n=18)	34.7 fps -32%
BMAX B5 Pro G7H8 Intel Core i5-8260U, Intel UHD Graphics 620	23.8 (20^min) fps -53%
1366x768 Medium Graphics & Postprocessing
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	84 (77^min) fps +149%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	59.9 (15.7^min, 28.4^P0.1, 34^P1) fps +77%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	57.9 (25.7^min, 27.5^P0.1, 33^P1) fps +71%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	53.7 (44^min) fps +59%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	52.3 (22.4^min, 24.9^P0.1, 29.9^P1) fps +55%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	48.7 (45^min) fps +44%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	48.7 (43^min) fps +44%
Trigkey S3 AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	33.8 (31^min) fps
Average AMD Radeon RX Vega 8 (Ryzen 2000/3000) (16.3 - 33.8, n=10)	23.6 fps -30%
BMAX B5 Pro G7H8 Intel Core i5-8260U, Intel UHD Graphics 620	13.5 (10^min) fps -60%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	46 (41^min) fps +151%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	33.5 (15.9^min, 16.8^P0.1, 18.7^P1) fps +83%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	32 (14^min, 15.4^P0.1, 17.2^P1) fps +75%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	27.8 (25^min) fps +52%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	27.7 (12.8^min, 13.7^P0.1, 15.4^P1) fps +51%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	26 (23^min) fps +42%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	25.1 (22^min) fps +37%
Trigkey S3 AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	18.3 (16^min) fps
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	15.2 (8.49^min, 8.73^P0.1, 9.27^P1) fps -17%
Average AMD Radeon RX Vega 8 (Ryzen 2000/3000) (6.7 - 18.3, n=14)	12.5 fps -32%
BMAX B5 Pro G7H8 Intel Core i5-8260U, Intel UHD Graphics 620	7.3 (2^min) fps -60%
1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	27.1 (24^min) fps +168%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	15.8 (14^min) fps +56%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	13.8 (12^min) fps +37%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	12.2 (11^min) fps +21%
Trigkey S3 AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	10.1 (8^min) fps
Average AMD Radeon RX Vega 8 (Ryzen 2000/3000) (4.44 - 10.1, n=7)	7.66 fps -24%

GTA V
1024x768 Lowest Settings possible
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	152.6 (4.69^min, 100^P1) fps +88%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	132.9 (18.4^min, 90.9^P1) fps +64%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	117.5 (24.8^min, 71.4^P1) fps +45%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	108.6 (21.4^min, 71.4^P1) fps +34%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	105.8 (17.8^min, 71.4^P1) fps +30%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	102.1 (19.6^min, 58.8^P1) fps +26%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	97.6 (17.8^min, 62.5^P1) fps +20%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	94.2 (16.5^min, 58.8^P1) fps +16%
Trigkey S3 AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	81.2 (24.5^min, 50^P1) fps
Average AMD Radeon RX Vega 8 (Ryzen 2000/3000) (41 - 81.2, n=6)	61 fps -25%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	33.9 (12.8^min, 19.2^P1) fps -58%
1920x1080 Lowest Settings possible
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	112 (30.2^min, 71.4^P1) fps +117%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	88.4 (8.61^min, 58.8^P1) fps +71%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	87.4 (18^min, 62.5^P1) fps +69%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	81 (12.3^min, 58.8^P1) fps +57%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	80.4 (22.6^min, 52.6^P1) fps +56%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	75.1 (18.8^min, 52.6^P1) fps +46%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	67.2 (25.1^min, 45.5^P1) fps +30%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	65.9 (13.2^min, 45.5^P1) fps +28%
Trigkey S3 AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	51.6 (14.7^min, 38.5^P1) fps
Average AMD Radeon RX Vega 8 (Ryzen 2000/3000) (21.7 - 51.6, n=3)	35.4 fps -31%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	18.7 (10.2^min, 12.8^P1) fps -64%
1366x768 Normal/Off AF:4x
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	138 (28^min, 90.9^P1) fps +91%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	117.6 (20.9^min, 71.4^P1) fps +63%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	98.7 (7.72^min, 66.7^P1) fps +37%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	95.2 (17.8^min, 58.8^P1) fps +32%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	93.9 (23.8^min, 58.8^P1) fps +30%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	89.4 (9.45^min, 55.6^P1) fps +24%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	87.4 (20.5^min, 50^P1) fps +21%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	77.6 (21.9^min, 50^P1) fps +7%
Trigkey S3 AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	72.3 (16.7^min, 47.6^P1) fps
Average AMD Radeon RX Vega 8 (Ryzen 2000/3000) (29.9 - 72.3, n=5)	54 fps -25%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	28 (12.2^min, 16.9^P1) fps -61%
1920x1080 Normal/Off AF:4x
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	109.6 (8.03^min, 71.4^P1) fps +114%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	81.8 (14.1^min, 55.6^P1) fps +60%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	78 (15.8^min, 50^P1) fps +52%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	76.7 (2.83^min, 50^P1) fps +50%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	71.3 (22.8^min, 45.5^P1) fps +39%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	66.5 (20.6^min, 43.5^P1) fps +30%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	64.7 (21.2^min, 43.5^P1) fps +26%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	57.3 (22.2^min, 38.5^P1) fps +12%
Trigkey S3 AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	51.2 (12.1^min, 38.5^P1) fps
Average AMD Radeon RX Vega 8 (Ryzen 2000/3000) (21.6 - 51.2, n=3)	35 fps -32%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	18.2 (9.02^min, 12.3^P1) fps -64%
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	51.8 (9.91^min, 35.7^P1) fps +138%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	32.2 (8.1^min, 23.3^P1) fps +48%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	29.4 (12.5^min, 20.8^P1) fps +35%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	24.3 (8.65^min, 18.2^P1) fps +11%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	23.2 (11.5^min, 15.9^P1) fps +6%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	22.1 (11^min, 16.7^P1) fps +1%
Trigkey S3 AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	21.8 (7.98^min, 15.6^P1) fps
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	19.4 (8.25^min, 15.2^P1) fps -11%
Average AMD Radeon RX Vega 8 (Ryzen 2000/3000) (9.09 - 25.3, n=6)	17.7 fps -19%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	17.2 (9.35^min, 13.5^P1) fps -21%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	6.56 (3.2^min, 4.55^P1) fps -70%
1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	23.7 (7.88^min, 16.4^P1) fps +130%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	14.5 (4.85^min, 10.3^P1) fps +41%
Trigkey S3 AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	10.3 (1.411^min, 6.71^P1) fps
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	9.51 (4.28^min, 5.71^P1) fps -8%
Average AMD Radeon RX Vega 8 (Ryzen 2000/3000) (4.95 - 12.3, n=4)	8.63 fps -16%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	8.27 (3.9^min, 4.85^P1) fps -20%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	7.41 (3.52^min, 4.12^P1) fps -28%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	2.67 (1.309^min, 1.961^P1) fps -74%

Dota 2 Reborn
1280x720 min (0/3) fastest
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	141.9 (121.4^min) fps +94%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	137.5 (109.5^min) fps +88%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	119.6 (108.4^min) fps +64%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	116.4 (93.7^min) fps +59%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	115.1 (96.2^min) fps +58%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	110.4 (89.3^min) fps +51%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	109 (85^min) fps +49%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	93.8 (8.8^min) fps +28%
Trigkey S3 AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	73 (59.4^min) fps
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	72.8 (60.3^min) fps 0%
Average AMD Radeon RX Vega 8 (Ryzen 2000/3000) (56.2 - 97.2, n=29)	70.4 fps -4%
BMAX B5 Pro G7H8 Intel Core i5-8260U, Intel UHD Graphics 620	42.4 (30.8^min) fps -42%
1366x768 med (1/3)
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	112.7 (95^min) fps +75%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	105.8 (88^min) fps +64%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	103.1 (78.3^min) fps +60%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	89 (72.1^min) fps +38%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	88.7 (71^min) fps +38%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	87.9 (69.9^min) fps +36%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	85.7 (67^min) fps +33%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	78.6 (66.2^min) fps +22%
Trigkey S3 AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	64.4 (52.7^min) fps
Average AMD Radeon RX Vega 8 (Ryzen 2000/3000) (39.9 - 76.3, n=29)	58.9 fps -9%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	45.1 (40.8^min) fps -30%
BMAX B5 Pro G7H8 Intel Core i5-8260U, Intel UHD Graphics 620	8.6 (6.3^min) fps -87%
1920x1080 high (2/3)
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	80.9 (71.6^min) fps +99%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	68.4 (57.5^min) fps +68%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	67.4 (60.9^min) fps +66%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	63.1 (57.2^min) fps +55%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	59.3 (52.5^min) fps +46%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	50.4 (41.9^min) fps +24%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	49.8 (46.3^min) fps +22%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	45.5 (42.6^min) fps +12%
Trigkey S3 AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	40.7 (36.4^min) fps
Average AMD Radeon RX Vega 8 (Ryzen 2000/3000) (20.4 - 47.8, n=29)	35.8 fps -12%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	18.4 (17^min) fps -55%
BMAX B5 Pro G7H8 Intel Core i5-8260U, Intel UHD Graphics 620	5.6 (4.2^min) fps -86%
1920x1080 ultra (3/3) best looking
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	71.4 (62.3^min) fps +89%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	61.9 (52.7^min) fps +64%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	59.8 (52.4^min) fps +58%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	57.9 (52^min) fps +53%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	56.3 (49.3^min) fps +49%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	47.4 (40.8^min) fps +25%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	45.7 (42.8^min) fps +21%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	42.2 (39.3^min) fps +12%
Trigkey S3 AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	37.8 (34.2^min) fps
Average AMD Radeon RX Vega 8 (Ryzen 2000/3000) (18.8 - 44.8, n=29)	33 fps -13%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	16 (14.9^min) fps -58%
BMAX B5 Pro G7H8 Intel Core i5-8260U, Intel UHD Graphics 620	5.6 (2.2^min) fps -85%

Final Fantasy XV Benchmark
1280x720 Lite Quality
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	68.5 fps +152%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	47.5 fps +75%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	43.6 fps +60%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	42.8 fps +57%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	41.1 fps +51%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	40.6 fps +49%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	38.6 fps +42%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	35.7 fps +31%
Trigkey S3 AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	27.2 fps
Average AMD Radeon RX Vega 8 (Ryzen 2000/3000) (13.4 - 27.8, n=11)	22.2 fps -18%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	10.8 fps -60%
BMAX B5 Pro G7H8 Intel Core i5-8260U, Intel UHD Graphics 620	5.61 fps -79%
1920x1080 Standard Quality
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	34.9 fps +153%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	25 fps +81%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	24.9 fps +80%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	23 fps +67%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	21.7 fps +57%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	20.3 fps +47%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	20.3 fps +47%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	19.3 fps +40%
Trigkey S3 AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	13.8 fps
Average AMD Radeon RX Vega 8 (Ryzen 2000/3000) (6.22 - 14, n=10)	11.4 fps -17%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	5.08 fps -63%
1920x1080 High Quality
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	25 fps +158%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	24.5 fps +153%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	18.1 fps +87%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	16.4 fps +69%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	15.2 fps +57%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	14.9 fps +54%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	14.3 fps +48%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	13.5 fps +39%
Trigkey S3 AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	9.68 fps
Average AMD Radeon RX Vega 8 (Ryzen 2000/3000) (3.7 - 9.68, n=8)	7.04 fps -27%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	3.75 fps -61%

X-Plane 11.11
1280x720 low (fps_test=1)
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	64.8 fps +463%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	62.3 fps +442%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	58.2 fps +406%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	53.4 fps +364%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	48.4 fps +321%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	48.4 fps +321%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	44.5 fps +287%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	37.9 fps +230%
Average AMD Radeon RX Vega 8 (Ryzen 2000/3000) (11.5 - 39.9, n=26)	25.5 fps +122%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	20.2 fps +76%
Trigkey S3 AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	11.5 fps
1920x1080 med (fps_test=2)
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	52.6 fps +401%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	46.2 fps +340%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	41.2 fps +292%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	40.3 fps +284%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	35.8 fps +241%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	34.9 fps +232%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	33.3 fps +217%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	32.8 fps +212%
Average AMD Radeon RX Vega 8 (Ryzen 2000/3000) (10.5 - 31, n=26)	19.5 fps +86%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	13.1 fps +25%
Trigkey S3 AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	10.5 fps
1920x1080 high (fps_test=3)
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	41.8 fps +336%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	40.4 fps +322%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	37.3 fps +289%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	35.7 fps +273%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	32.9 fps +243%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	30.4 fps +217%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	29.9 fps +212%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	29.5 fps +208%
Average AMD Radeon RX Vega 8 (Ryzen 2000/3000) (9.58 - 27.3, n=25)	17.4 fps +82%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	12 fps +25%
Trigkey S3 AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	9.58 fps

Strange Brigade
1280x720 lowest AF:1
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	142.4 (86.5^min, 118^P1) fps +117%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	95.3 (72.8^min, 84.4^P1) fps +45%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	90.1 (16.9^min, 29.3^P1) fps +38%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	89.9 (20^min, 32.7^P1) fps +37%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	87.6 (11.7^min, 31^P1) fps +34%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	79.3 (18.8^min, 25.6^P1) fps +21%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	66.1 (9.6^min, 21.1^P1) fps +1%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	65.9 (14.2^min, 19.7^P1) fps +1%
Trigkey S3 AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	65.5 (26.1^min, 55.9^P1) fps
Average AMD Radeon RX Vega 8 (Ryzen 2000/3000) (34.2 - 65.5, n=4)	54.3 fps -17%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	25.7 (5.3^min, 6.92^P1) fps -61%
1920x1080 medium AA:medium AF:4
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	57.4 (43.4^min, 51^P1) fps +163%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	39.5 (13.2^min, 21.1^P1) fps +81%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	38.3 (10.4^min, 17.6^P1) fps +76%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	38.1 (8.7^min, 14.5^P1) fps +75%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	36 (29.9^min, 31^P1) fps +65%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	33.9 (10.3^min, 19.8^P1) fps +56%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	29.6 (9.5^min, 16^P1) fps +36%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	26.5 (7^min, 12.6^P1) fps +22%
Trigkey S3 AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	21.8 (18.4^min, 18.9^P1) fps
Average AMD Radeon RX Vega 8 (Ryzen 2000/3000) (14 - 24.1, n=4)	20.4 fps -6%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	9.8 (5^min, 5^P1) fps -55%
1920x1080 high AA:high AF:8
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	48.5 (35.1^min, 38.2^P1) fps +177%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	32.5 (8.7^min, 17^P1) fps +86%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	30.4 (6.3^min, 11.4^P1) fps +74%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	30.1 (23.7^min, 24.1^P1) fps +72%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	29.7 (7.4^min, 10.7^P1) fps +70%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	27.7 (10^min, 15.1^P1) fps +58%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	23.5 (5.8^min, 8.9^P1) fps +34%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	21.4 (5^min, 7.98^P1) fps +22%
Trigkey S3 AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	17.5 (13.4^min, 13.6^P1) fps
Average AMD Radeon RX Vega 8 (Ryzen 2000/3000) (11.1 - 20, n=4)	15.9 fps -9%
Minipc Union NiPoGi CK10 - 10810U Intel Core i7-10810U, Intel UHD Graphics 620	10.1 (5^min, 5^P1) fps -42%
1920x1080 ultra AA:ultra AF:16
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	41.6 (26.5^min, 33^P1) fps +185%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	26.2 (8.6^min, 9.63^P1) fps +79%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	25.5 (19.5^min, 20.8^P1) fps +75%
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs	24.5 (5^min, 6.62^P1) fps +68%
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs	23.7 (5^min, 6.21^P1) fps +62%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	22.2 (5.6^min, 7.76^P1) fps +52%
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs	18.8 (5^min, 5^P1) fps +29%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	17.5 (5^min, 5^P1) fps +20%
Trigkey S3 AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	14.6 (10.1^min, 11.6^P1) fps
Average AMD Radeon RX Vega 8 (Ryzen 2000/3000) (8.3 - 16.7, n=4)	13.2 fps -10%

Cyberpunk 2077 1.6
1920x1080 Low Preset
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	43 (18^min) fps +298%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	20.9 (14^min) fps +94%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	18.6 (8.1^min) fps +72%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	13.4 (8.9^min) fps +24%
Trigkey S3 AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	10.8 (7.4^min) fps
Average AMD Radeon RX Vega 8 (Ryzen 2000/3000) (7.7 - 10.8, n=2)	9.25 fps -14%
1920x1080 Medium Preset
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	33 (19.6^min) fps +284%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	16.2 (12^min) fps +88%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	15.6 (7.8^min) fps +81%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	11.4 (8^min) fps +33%
Trigkey S3 AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	8.6 (5.5^min) fps
Average AMD Radeon RX Vega 8 (Ryzen 2000/3000) ()	8.6 fps 0%
1920x1080 High Preset
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	22.3 (5.3^min) fps +254%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	11.7 (6.1^min) fps +86%
Beelink SER Pro Ryzen 5 5600H AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	11.4 (8.7^min) fps +81%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	9 (6.7^min) fps +43%
Trigkey S3 AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	6.3 (4.5^min) fps
Average AMD Radeon RX Vega 8 (Ryzen 2000/3000) ()	6.3 fps 0%
1920x1080 Ultra Preset
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	17.5 (4^min) fps +250%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	9.8 (4.9^min) fps +96%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	7.4 (5.3^min) fps +48%
Trigkey S3 AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	5 (3.2^min) fps
Average AMD Radeon RX Vega 8 (Ryzen 2000/3000) ()	5 fps 0%

Ralentí activado Witcher 3 muestra velocidades de fotogramas que descienden periódicamente hasta 30 FPS durante breves periodos antes de recuperarse. Este comportamiento sugiere una mala optimización o una interrupción de la actividad en segundo plano que podría provocar caídas de fotogramas al transmitir otros contenidos.

Witcher 3 FPS Chart

Trigkey S3: Ø50 (29-56)

	bajo	medio	alto	ultra
GTA V (2015)	81.2	72.3	21.8	10.3
The Witcher 3 (2015)	50.7	33.8	18.3	10.1
Dota 2 Reborn (2015)	73	64.4	40.7	37.8
Final Fantasy XV Benchmark (2018)	27.2	13.8	9.68
X-Plane 11.11 (2018)	11.5	10.5	9.58
Strange Brigade (2018)	65.5	21.8	17.5	14.6
Cyberpunk 2077 1.6 (2022)	10.8	8.6	6.3	5

Emisiones

Ruido del sistema

El ruido del ventilador es sorprendentemente silencioso para ser un punto fuerte del S3. Sólo somos capaces de alcanzar un máximo de poco más de 31 dB(A) cuando se ejecutan cargas exigentes en comparación con los 40 dB(A) o más en mini PCs más rápidos como el Beelink SEi12 o el Beelink SER Pro.

Ruido

Ocioso		24.5 / 24.5 / 24.5 dB(A)
Carga		27.1 / 31.3 dB(A)

	30 dB silencioso 40 dB(A) audible 50 dB(A) ruidosamente alto
min: , med: , max: Earthworks M23R, Arta (15 cm de distancia) environment noise: 23.2 dB(A)

Temperatura

El adaptador de CA puede alcanzar los 40 C con cargas exigentes

Las temperaturas superficiales son más cálidas hacia la parte trasera, por donde se escapa el aire caliente. El aire frío entra por los laterales y no por la parte superior, a diferencia del Beelink SEi12, lo que significa que es seguro colocar objetos como papel encima del mini PC sin impedir el flujo de aire.

Prueba de resistencia

Al ejecutar Prime95 para estresar la CPU, las frecuencias de reloj de la CPU y el consumo de energía de la placa aumentaban a 3 GHz y 13 W, respectivamente, antes de descender unos segundos más tarde y estabilizarse en 2,7 GHz, 11 W y 74 C. La temperatura del núcleo se estabilizaba en 70 C al ejecutar Witcher 3 comparable a la del Beelink SEi12 en condiciones de prueba similares, pero aún más caliente que en elIntel NUC11TNKi5 Pro.

Gestión de la energía

Consumo de energía

El consumo se disparaba a 45 W al iniciar Prime95 antes de descender y estabilizarse en 40 W unos segundos después

El consumo de energía en ralentí es relativamente alto con hasta 22 W comparado con la mitad que en mini PCs alimentados por la serie U como el Intel NUC11 o el Beelink SEi12 lo que no es inesperado dado que el S3 está alimentado por un procesador de la serie H más antiguo. La situación se invierte cuando se ejecutan cargas más altas como juegos a pesar del rendimiento gráfico más lento de la Radeon Vega 8 integrada. El escaso rendimiento general por vatio no sorprende dado que la serie Zen+ tiene unos años.

Consumo de corriente

Off / Standby	0.8 / 1.2 Watt
Ocioso	11.3 / 21.8 / 22.2 Watt
Carga	39.7 / 48.9 Watt


Clave: min: , med: , max: Metrahit Energy

	Trigkey S3 R5 3550H, Vega 8, Kingston NV1 SNVS/500GCN, , x,	GMK NucBox 2 i5-8259U, Iris Plus Graphics 655, Netac S930E8/256GPN, , x,	Intel NUC11TNKi5 i5-1135G7, Iris Xe G7 80EUs, Transcend M.2 SSD 430S TS512GMTS430S, , x,	Beelink SEi12 Core i5-1235U i5-1235U, Iris Xe G7 80EUs, Kingston NV1 SNVS/500GCN, , x,	Beelink SEi11 Pro i5-11320H, Iris Xe G7 96EUs, Kingston NV1 SNVS/500GCN, , x,	Beelink SER Pro Ryzen 5 5600H R5 5600H, Vega 7, Kingston NV1 SNVS/500GCN, , x,
Power Consumption		32%	2%	-35%	3%	21%
Idle Minimum *	11.3	6.1 46%	11.5 -2%	15.8 -40%	9.8 13%	5.4 52%
Idle Average *	21.8	6.8 69%	12.4 43%	16.8 23%	10.3 53%	8.2 62%
Idle Maximum *	22.2	7.3 67%	12.9 42%	17 23%	10.5 53%	8.3 63%
Load Average *	39.7	46.3 -17%	40.7 -3%	54.4 -37%	54.2 -37%	49.3 -24%
Witcher 3 ultra *	37.5		43.9 -17%	50.7 -35%	53.1 -42%	46.1 -23%
Load Maximum *	48.9	50.7 -4%	73.5 -50%	119.1 -144%	59 -21%	50.2 -3%

* ... más pequeño es mejor

Power Consumption Witcher 3 / Stresstest

Trigkey S3; Witcher 3 ultra: Ø37.5 (36.7-41.8)

Trigkey S3; 1280x720 Prime95 28.10 and Furmark 1.25: Ø43.7 (43.1-48.8)

Power Consumption external Monitor

Trigkey S3; Prime95 V2810 Stress (external Monitor): Ø39.9 (39.2-45.4)

Trigkey S3; Cinebench R15 Multi (external Monitor): Ø35.2 (33.6-39.9)

Trigkey S3; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø43.3 (42.4-44.5)

Trigkey S3; 1920x1080 The Witcher 3 ultra (external Monitor): Ø37.5 (36.7-41.8)

Trigkey S3; Idle 1min (external Monitor): Ø11.2 (11-14.5)

Veredicto - Más rápido que las alternativas Celeron o Atom

En revisión: Trigkey S3. Unidad de prueba proporcionada por Trigkey

Cuando se buscan mini PC por debajo de los 300 dólares, es habitual conformarse con procesadores Intel Celeron o Atom ya que estos procesadores son más lentos y baratos que las opciones Core habituales. Las CPU rápidas no son realmente necesarias para la mayoría de los HTPC básicos, pero las CPU Celeron y Atom son conocidas por ser demasiado lentas incluso para las tareas multitarea mínimas. Aquí es donde entra en juego el Trigkey S3, ya que su CPU Ryzen 5 3550H puede proporcionar ese plus de rendimiento sin necesidad de subir los precios.

El Trigkey S3 ofrece un rendimiento similar al Core i3 por el precio de un mini PC Atom o Celeron.

El principal inconveniente es que el Ryzen 5 3550H es una CPU más antigua y por lo tanto requiere un poco más de energía para funcionar en muchas situaciones que las últimas opciones de la serie U. Aun así, el ruido del ventilador no es más alto a pesar del mayor consumo de energía.

Precio y disponibilidad

El Trigkey S3 ya está a la venta en Amazon por $280 USD.

3DMark 11 Performance		4348 puntos
3DMark Cloud Gate Standard Score		13817 puntos
3DMark Fire Strike Score		2374 puntos
3DMark Time Spy Score		771 puntos
ayuda

Análisis del mini PC Trigkey S3: Rendimiento similar al Core i3 por el precio de un Celeron o Atom

Ryzen 5 3550H en 2023.

Posibles contendientes en la comparación

Caso

Comparación de tamaños

Conectividad

Comunicación

Mantenimiento

Accesorios y garantía

Rendimiento

Condiciones de ensayo

Procesador

Cinebench R15 Multi Loop

Rendimiento del sistema

Latencia del CPD

Dispositivos de almacenamiento

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

Rendimiento de la GPU

Witcher 3 FPS Chart

Emisiones

Ruido del sistema

Temperatura

Prueba de resistencia

Gestión de la energía

Consumo de energía

Power Consumption Witcher 3 / Stresstest

Power Consumption external Monitor

Pro

Contra

Veredicto - Más rápido que las alternativas Celeron o Atom

Precio y disponibilidad

Price comparison

	Trigkey S3 Vega 8, R5 3550H, Kingston NV1 SNVS/500GCN	Intel NUC Pro Chassis_i7_1265U Iris Xe G7 96EUs, i7-1265U, WDC PC SN720 SDAQNTW-512G	Intel NUC11TNKi5 Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S	Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	Beelink SEi11 Pro Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN	Beelink SER Pro Ryzen 5 5600H Vega 7, R5 5600H, Kingston NV1 SNVS/500GCN
Noise		-36%	-36%	-13%	-9%	-10%
off / environment *	23.2	30.5 -31%	24.8 -7%	23.3 -0%	22.8 2%	22.8 2%
Idle Minimum *	24.5	31.4 -28%	35.6 -45%	27.8 -13%	24.7 -1%	26.1 -7%
Idle Average *	24.5	31.4 -28%	35.6 -45%	27.8 -13%	24.7 -1%	26.1 -7%
Idle Maximum *	24.5	31.4 -28%	35.6 -45%	27.8 -13%	25.3 -3%	28.7 -17%
Load Average *	27.1	43.8 -62%	36.2 -34%	32 -18%	33.2 -23%	32.3 -19%
Witcher 3 ultra *	30.6		38 -24%	34.1 -11%	34.5 -13%	32.8 -7%
Load Maximum *	31.3	44 -41%	47.6 -52%	39.2 -25%	37.8 -21%	36.4 -16%

	RelojCPU (GHz)	Reloj GPU (MHz)	Temperatura media CPU (°C)
Sistema en reposo	--	--	42
Prime95 Stress	2.7	--	74
Prime95+ FurMark Stress	2.2	523	75
Witcher 3 Estrés	2.0	688	70
