Breve análisis del portátil PC Specialist Defiance IV (i7-7700HQ, GTX 1060, Full-HD)
| SD Card Reader | |
| average JPG Copy Test (av. of 3 runs) | |
| MSI GS73VR 7RG (Toshiba Exceria Pro SDXC 64 GB UHS-II) | |
| PC Zentrum Defiance IV (Toshiba Exceria Pro SDXC 64 GB UHS-II) | |
| Razer Blade Pro RZ09-0220 (Toshiba Exceria Pro SDXC 64 GB UHS-II) | |
| Acer Aspire V17 Nitro BE VN7-793-738J (Toshiba Exceria Pro SDXC 64 GB UHS-II) | |
| maximum AS SSD Seq Read Test (1GB) | |
| MSI GS73VR 7RG (Toshiba Exceria Pro SDXC 64 GB UHS-II) | |
| PC Zentrum Defiance IV (Toshiba Exceria Pro SDXC 64 GB UHS-II) | |
| Razer Blade Pro RZ09-0220 (Toshiba Exceria Pro SDXC 64 GB UHS-II) | |
| Acer Aspire V17 Nitro BE VN7-793-738J (Toshiba Exceria Pro SDXC 64 GB UHS-II) | |
| |||||||||||||||||||||||||
iluminación: 86 %
Brillo con batería: 312 cd/m²
Contraste: 1076:1 (Negro: 0.29 cd/m²)
ΔE Color 10.64 | 0.5-29.43 Ø4.91
ΔE Greyscale 11.66 | 0.5-98 Ø5.2
100% sRGB (Argyll 1.6.3 3D)
77% AdobeRGB 1998 (Argyll 1.6.3 3D)
86.1% AdobeRGB 1998 (Argyll 2.2.0 3D)
100% sRGB (Argyll 2.2.0 3D)
89.5% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.08
| PC Zentrum Defiance IV CMN N173HHE-G32 (CMN1747), 1920x1080, 17.3" | Medion Erazer X7857 LG Philips LP 173WF4-SPF5, 1920x1080, 17.3" | MSI GS73VR 7RG ID: CMN1747, Name: Chi Mei N173HHE-G32, 1920x1080, 17.3" | Razer Blade Pro RZ09-0220 ID: AUO169D, Name: AU Optronics B173HAN01.6, 1920x1080, 17.3" | Acer Aspire V17 Nitro BE VN7-793-738J AU Optronics B173ZAN01.0, 3840x2160, 17.3" | |
|---|---|---|---|---|---|
| Display | -24% | 0% | -21% | 3% | |
| Display P3 Coverage | 89.5 | 65.3 -27% | 89.6 0% | 64 -28% | 85.4 -5% |
| sRGB Coverage | 100 | 83.4 -17% | 100 0% | 89.7 -10% | 100 0% |
| AdobeRGB 1998 Coverage | 86.1 | 61 -29% | 86.9 1% | 64.9 -25% | 97.8 14% |
| Response Times | 59% | 9% | -171% | -101% | |
| Response Time Grey 50% / Grey 80% * | 28.8 ? | 34 ? -18% | 23.6 ? 18% | 36.8 ? -28% | 29 ? -1% |
| Response Time Black / White * | 9 ? | 24 ? -167% | 8.4 ? 7% | 37.2 ? -313% | 27 ? -200% |
| PWM Frequency | 25770 ? | 119000 ? 362% | 26040 ? 1% | ||
| Screen | 3% | 5% | 18% | 21% | |
| Brightness middle | 312 | 413 32% | 350.9 12% | 367.4 18% | 380 22% |
| Brightness | 289 | 376 30% | 311 8% | 363 26% | 336 16% |
| Brightness Distribution | 86 | 82 -5% | 79 -8% | 86 0% | 81 -6% |
| Black Level * | 0.29 | 0.6 -107% | 0.33 -14% | 0.32 -10% | 0.32 -10% |
| Contrast | 1076 | 688 -36% | 1063 -1% | 1148 7% | 1188 10% |
| Colorchecker dE 2000 * | 10.64 | 5.06 52% | 7.7 28% | 3.8 64% | 5.32 50% |
| Colorchecker dE 2000 max. * | 18.65 | 9.33 50% | 14.4 23% | 10.4 44% | 7.63 59% |
| Greyscale dE 2000 * | 11.66 | 5.29 55% | 11.1 5% | 3.5 70% | 4.9 58% |
| Gamma | 2.08 106% | 2.64 83% | 2.11 104% | 2.18 101% | 2.61 84% |
| CCT | 14907 44% | 6766 96% | 11813 55% | 6467 101% | 6558 99% |
| Color Space (Percent of AdobeRGB 1998) | 77 | 55 -29% | 77.74 1% | 58.1 -25% | 87.2 13% |
| Color Space (Percent of sRGB) | 100 | 83 -17% | 100 0% | 89.3 -11% | 100 0% |
| Media total (Programa/Opciones) | 13% /
8% | 5% /
5% | -58% /
-15% | -26% /
1% |
* ... más pequeño es mejor
Tiempos de respuesta del display
| ↔ Tiempo de respuesta de Negro a Blanco | ||
|---|---|---|
| 9 ms ... subida ↗ y bajada ↘ combinada | ↗ 6.8 ms subida |  |
| ↘ 2.2 ms bajada | ||
| La pantalla mostró tiempos de respuesta rápidos en nuestros tests y debería ser adecuada para juegos. En comparación, todos los dispositivos de prueba van de ##min### (mínimo) a 240 (máximo) ms. » 21 % de todos los dispositivos son mejores. Esto quiere decir que el tiempo de respuesta medido es mejor que la media (20.9 ms) de todos los dispositivos testados. | ||

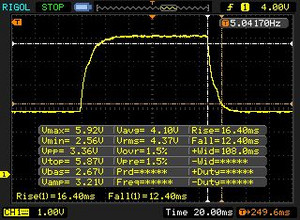

| ↔ Tiempo de respuesta 50% Gris a 80% Gris | ||
| 28.8 ms ... subida ↗ y bajada ↘ combinada | ↗ 16.4 ms subida |  |
| ↘ 12.4 ms bajada | ||
| La pantalla mostró tiempos de respuesta relativamente lentos en nuestros tests pero podría ser demasiado lenta para los jugones. En comparación, todos los dispositivos de prueba van de ##min### (mínimo) a 636 (máximo) ms. » 35 % de todos los dispositivos son mejores. Esto quiere decir que el tiempo de respuesta medido es mejor que la media (32.8 ms) de todos los dispositivos testados. | ||
Parpadeo de Pantalla / PWM (Pulse-Width Modulation)
| Parpadeo de Pantalla / PWM detectado | 25770 Hz | ≤ 20 % de brillo |  |
La retroiluminación del display parpadea a 25770 Hz (seguramente usa PWM - Pulse-Width Modulation) a un brillo del 20 % e inferior. Sobre este nivel de brillo no debería darse parpadeo / PWM. La frecuencia de 25770 Hz es bastante alta, por lo que la mayoría de gente sensible al parpadeo no debería ver parpadeo o tener fatiga visual. Comparación: 53 % de todos los dispositivos testados no usaron PWM para atenuar el display. Si se usó, medimos una media de 8705 (mínimo: 5 - máxmo: 343500) Hz. | |||
| Cinebench R11.5 | |
| CPU Single 64Bit | |
| MSI GS73VR 7RG | |
| PC Zentrum Defiance IV | |
| Razer Blade Pro RZ09-0220 | |
| CPU Multi 64Bit | |
| MSI GS73VR 7RG | |
| PC Zentrum Defiance IV | |
| Razer Blade Pro RZ09-0220 | |
| PCMark 8 | |
| Home Score Accelerated v2 | |
| Medion Erazer X7857 | |
| MSI GS73VR 7RG | |
| Razer Blade Pro RZ09-0220 | |
| PC Zentrum Defiance IV | |
| Acer Aspire V17 Nitro BE VN7-793-738J | |
| Work Score Accelerated v2 | |
| MSI GS73VR 7RG | |
| PC Zentrum Defiance IV | |
| Razer Blade Pro RZ09-0220 | |
| Acer Aspire V17 Nitro BE VN7-793-738J | |
| PCMark 10 - Score | |
| MSI GS73VR 7RG | |
| Razer Blade Pro RZ09-0220 | |
| PC Zentrum Defiance IV | |
| PCMark 8 Home Score Accelerated v2 | 4053 puntos | |
| PCMark 8 Work Score Accelerated v2 | 5180 puntos | |
| PCMark 10 Score | 4543 puntos | |
ayuda | ||
| PC Zentrum Defiance IV Samsung PM961 MZVLW256HEHP | Medion Erazer X7857 Samsung PM961 NVMe MZVLW512HMJP | MSI GS73VR 7RG Samsung SSD PM871 MZNLN512HMJP | Razer Blade Pro RZ09-0220 Samsung SSD PM951 MZVLV256HCHP | Acer Aspire V17 Nitro BE VN7-793-738J Intel SSD 600p SSDPEKKW512G7 | |
|---|---|---|---|---|---|
| AS SSD | -37% | -51% | -31% | -29% | |
| Seq Read | 1485 | 2188 47% | 497.9 -66% | 1464 -1% | 1590 7% |
| Seq Write | 1122 | 347.1 -69% | 465.1 -59% | 291.8 -74% | 566 -50% |
| 4K Read | 51.7 | 45.19 -13% | 33.69 -35% | 38.31 -26% | 29.75 -42% |
| 4K Write | 118.6 | 1.02 -99% | 96.8 -18% | 109.9 -7% | 104.8 -12% |
| Score Read | 1429 | 1302 -9% | 421 -71% | 1056 -26% | 692 -52% |
| Score Write | 778 | 106 -86% | 417 -46% | 406 -48% | 677 -13% |
| Score Total | 2929 | 1990 -32% | 1064 -64% | 1951 -33% | 1678 -43% |
| 3DMark - 1920x1080 Fire Strike Graphics | |
| MSI GS73VR 7RG | |
| PC Zentrum Defiance IV | |
| Acer Aspire V17 Nitro BE VN7-793-738J | |
| Razer Blade Pro RZ09-0220 | |
| 3DMark 11 - 1280x720 Performance GPU | |
| Medion Erazer X7857 | |
| MSI GS73VR 7RG | |
| PC Zentrum Defiance IV | |
| Acer Aspire V17 Nitro BE VN7-793-738J | |
| Razer Blade Pro RZ09-0220 | |
| 3DMark 11 Performance | 11900 puntos | |
| 3DMark Ice Storm Standard Score | 115509 puntos | |
| 3DMark Cloud Gate Standard Score | 25108 puntos | |
| 3DMark Fire Strike Score | 10023 puntos | |
ayuda | ||
| The Witcher 3 | |
| 1920x1080 Ultra Graphics & Postprocessing (HBAO+) | |
| Medion Erazer X7857 | |
| MSI GS73VR 7RG | |
| PC Zentrum Defiance IV | |
| Razer Blade Pro RZ09-0220 | |
| 1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off) | |
| Medion Erazer X7857 | |
| MSI GS73VR 7RG | |
| PC Zentrum Defiance IV | |
| Razer Blade Pro RZ09-0220 | |
| bajo | medio | alto | ultra | |
|---|---|---|---|---|
| The Witcher 3 (2015) | 72.3 | 40.2 | ||
| FIFA 18 (2017) | 163 | |||
| Middle-earth: Shadow of War (2017) | 70 | 53 | ||
| The Evil Within 2 (2017) | 39.1 | 38.1 | ||
| ELEX (2017) | 68 | 52 | ||
| Destiny 2 (2017) | 85 | 71.4 | ||
| Assassin´s Creed Origins (2017) | 49 | 42 | ||
| Call of Duty WWII (2017) | 92.3 | 71.6 | ||
| Need for Speed Payback (2017) | 69.1 | 66.2 | ||
| Star Wars Battlefront 2 (2017) | 61.1 | 55 |
Ruido
| Ocioso |
| 31 / 32 / 33 dB(A) |
| Carga |
| 48 / 50 dB(A) |
 | ||
30 dB silencioso 40 dB(A) audible 50 dB(A) ruidosamente alto |
||
min:  , med:  , max:  Audix TM1, Arta (15 cm de distancia) environment noise: 30 dB(A) | ||
| PC Zentrum Defiance IV GeForce GTX 1060 Mobile, i7-7700HQ | Medion Erazer X7857 GeForce GTX 1070 Mobile, i7-7820HK | MSI GS73VR 7RG GeForce GTX 1070 Max-Q, i7-7700HQ | Razer Blade Pro RZ09-0220 GeForce GTX 1060 Mobile, i7-7700HQ | Acer Aspire V17 Nitro BE VN7-793-738J GeForce GTX 1060 Mobile, i7-7700HQ | |
|---|---|---|---|---|---|
| Noise | -1% | 5% | 8% | 6% | |
| off / environment * | 30 | 30.3 -1% | 28 7% | 28.1 6% | 30.8 -3% |
| Idle Minimum * | 31 | 31.3 -1% | 29.4 5% | 29.5 5% | 31.4 -1% |
| Idle Average * | 32 | 31.7 1% | 30.7 4% | 29.6 7% | 31.4 2% |
| Idle Maximum * | 33 | 31.7 4% | 34 -3% | 29.6 10% | 31.4 5% |
| Load Average * | 48 | 48.3 -1% | 42 12% | 31.6 34% | 38.6 20% |
| Witcher 3 ultra * | 46 | 50.6 -10% | 45.8 -0% | 46 -0% | |
| Load Maximum * | 50 | 49.6 1% | 45.8 8% | 51.8 -4% | 44.3 11% |
* ... más pequeño es mejor
(-) The maximum temperature on the upper side is 52 °C / 126 F, compared to the average of 40.5 °C / 105 F, ranging from 21.2 to 68.8 °C for the class Gaming.
(-) The bottom heats up to a maximum of 52 °C / 126 F, compared to the average of 43.2 °C / 110 F
(+) In idle usage, the average temperature for the upper side is 24.3 °C / 76 F, compared to the device average of 33.9 °C / 93 F.
(-) Playing The Witcher 3, the average temperature for the upper side is 39 °C / 102 F, compared to the device average of 33.9 °C / 93 F.
(±) The palmrests and touchpad can get very hot to the touch with a maximum of 36 °C / 96.8 F.
(-) The average temperature of the palmrest area of similar devices was 28.9 °C / 84 F (-7.1 °C / -12.8 F).
| PC Zentrum Defiance IV GeForce GTX 1060 Mobile, i7-7700HQ | Medion Erazer X7857 GeForce GTX 1070 Mobile, i7-7820HK | MSI GS73VR 7RG GeForce GTX 1070 Max-Q, i7-7700HQ | Razer Blade Pro RZ09-0220 GeForce GTX 1060 Mobile, i7-7700HQ | Acer Aspire V17 Nitro BE VN7-793-738J GeForce GTX 1060 Mobile, i7-7700HQ | |
|---|---|---|---|---|---|
| Heat | -6% | -9% | 6% | -11% | |
| Maximum Upper Side * | 52 | 46.2 11% | 52.2 -0% | 48.2 7% | 56 -8% |
| Maximum Bottom * | 52 | 42.2 19% | 46.6 10% | 43.2 17% | 48.7 6% |
| Idle Upper Side * | 26 | 32.4 -25% | 30.8 -18% | 25.4 2% | 30.9 -19% |
| Idle Bottom * | 25 | 32.2 -29% | 32 -28% | 25.8 -3% | 30.6 -22% |
* ... más pequeño es mejor
PC Zentrum Defiance IV audio analysis
(±) | speaker loudness is average but good (79 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 10.6% lower than median
(±) | linearity of bass is average (12.9% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 8.7% higher than median
(±) | linearity of mids is average (7.6% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 1.7% away from median
(+) | highs are linear (4.9% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (18.2% difference to median)
Compared to same class
» 55% of all tested devices in this class were better, 8% similar, 37% worse
» The best had a delta of 6%, average was 18%, worst was 132%
Compared to all devices tested
» 35% of all tested devices were better, 8% similar, 57% worse
» The best had a delta of 4%, average was 25%, worst was 134%
Acer Aspire V17 Nitro BE VN7-793-738J audio analysis
(±) | speaker loudness is average but good (72 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 5.7% lower than median
(+) | bass is linear (5% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 4.4% away from median
(+) | mids are linear (6% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3% away from median
(±) | linearity of highs is average (7.2% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (12.5% difference to median)
Compared to same class
» 14% of all tested devices in this class were better, 3% similar, 82% worse
» The best had a delta of 6%, average was 18%, worst was 132%
Compared to all devices tested
» 9% of all tested devices were better, 2% similar, 89% worse
» The best had a delta of 4%, average was 25%, worst was 134%
| Off / Standby | 0.3 / 0.8 Watt |
| Ocioso | 9 / 16 / 21 Watt |
| Carga |
88 / 160 Watt |

| |
Clave:
min: ,
med: ,
max: Metrahit Energy | |
| PC Zentrum Defiance IV GeForce GTX 1060 Mobile, i7-7700HQ | Medion Erazer X7857 GeForce GTX 1070 Mobile, i7-7820HK | MSI GS73VR 7RG GeForce GTX 1070 Max-Q, i7-7700HQ | Razer Blade Pro RZ09-0220 GeForce GTX 1060 Mobile, i7-7700HQ | Acer Aspire V17 Nitro BE VN7-793-738J GeForce GTX 1060 Mobile, i7-7700HQ | |
|---|---|---|---|---|---|
| Power Consumption | -49% | -5% | 4% | -10% | |
| Idle Minimum * | 9 | 20.6 -129% | 10.1 -12% | 10.6 -18% | 10.5 -17% |
| Idle Average * | 16 | 26 -63% | 18.3 -14% | 16 -0% | 20.5 -28% |
| Idle Maximum * | 21 | 28 -33% | 19.6 7% | 16.4 22% | 22 -5% |
| Load Average * | 88 | 95 -8% | 87.6 -0% | 75.9 14% | 91 -3% |
| Witcher 3 ultra * | 124 | 170 -37% | 136.3 -10% | 111.2 10% | |
| Load Maximum * | 160 | 197 -23% | 160.7 -0% | 163.8 -2% | 155 3% |
* ... más pequeño es mejor
| PC Zentrum Defiance IV GeForce GTX 1060 Mobile, i7-7700HQ, 66 Wh | Medion Erazer X7857 GeForce GTX 1070 Mobile, i7-7820HK, 66 Wh | MSI GS73VR 7RG GeForce GTX 1070 Max-Q, i7-7700HQ, 51 Wh | Razer Blade Pro RZ09-0220 GeForce GTX 1060 Mobile, i7-7700HQ, 70 Wh | Acer Aspire V17 Nitro BE VN7-793-738J GeForce GTX 1060 Mobile, i7-7700HQ, 69 Wh | |
|---|---|---|---|---|---|
| Duración de Batería | -29% | -37% | 21% | -7% | |
| Reader / Idle | 457 | 349 -24% | 721 58% | ||
| H.264 | 296 | ||||
| WiFi v1.3 | 297 | 210 -29% | 191 -36% | 419 41% | 277 -7% |
| Load | 114 | 57 -50% | 72 -37% |
Pro
Contra
El Defiance IV tiene una pinta genial. Su carcasa está bien fabricada y es discreta, y tiene superficies metálicas atractivas que, a pesar de ensuciarse rápidamente, le dan una impresión sólida y de alta calidad.
Como debería ser para un portátil gaming moderno, el dispositivo también tiene un teclado retroiluminado. Si olvidas el puerto Thunderbolt 3 que falta, su conectividad es muy impresionante también.
La pantalla de 120 Hz es un arma de doble filo. Si bien el amplio espacio de color y los tiempos de respuesta bajos son excelentes, no pueden equilibrar por completo a los ángulos de visualización mediocres y la fuerte desviación de color (en fábrica). El valor negro, el brillo y la distribución del brillo, por otro lado, no dan motivo de crítica.
La frecuencia de la CPU es un poco más problemática. El hecho de que el procesador se realentice a menos de su frecuencia base durante el uso de aplicaciones fuertes en 3D no es bueno en un portátil gaming, incluso si esta caída no se nota siempre en el rendimiento del dispositivo. Quizás el fabricante debería dar una actualización de la BIOS que resolviera el problema. Si el Core i7-7700HQ llegase a su máximo potencial, será mejor que los otros portátiles gaming de 17" (Acer V17 Nitro, MSI GS73VR 7RG, ...) se preparen.
Además del buen aguante de la batería, gracias a la opción de cambio de gráficas Optimus de Nvidia, también queremos mencionar los emisiones de primera clase cuando está en espera, la carcasa de fácil mantenimiento y las opciones de configuración individual. Sin embargo, preferiríamos menos ruido del sistema y temperaturas más bajas bajo carga.
Ésta es una versión acortada del análisis original. Puedes leer el análisis completo en inglés aquí.
