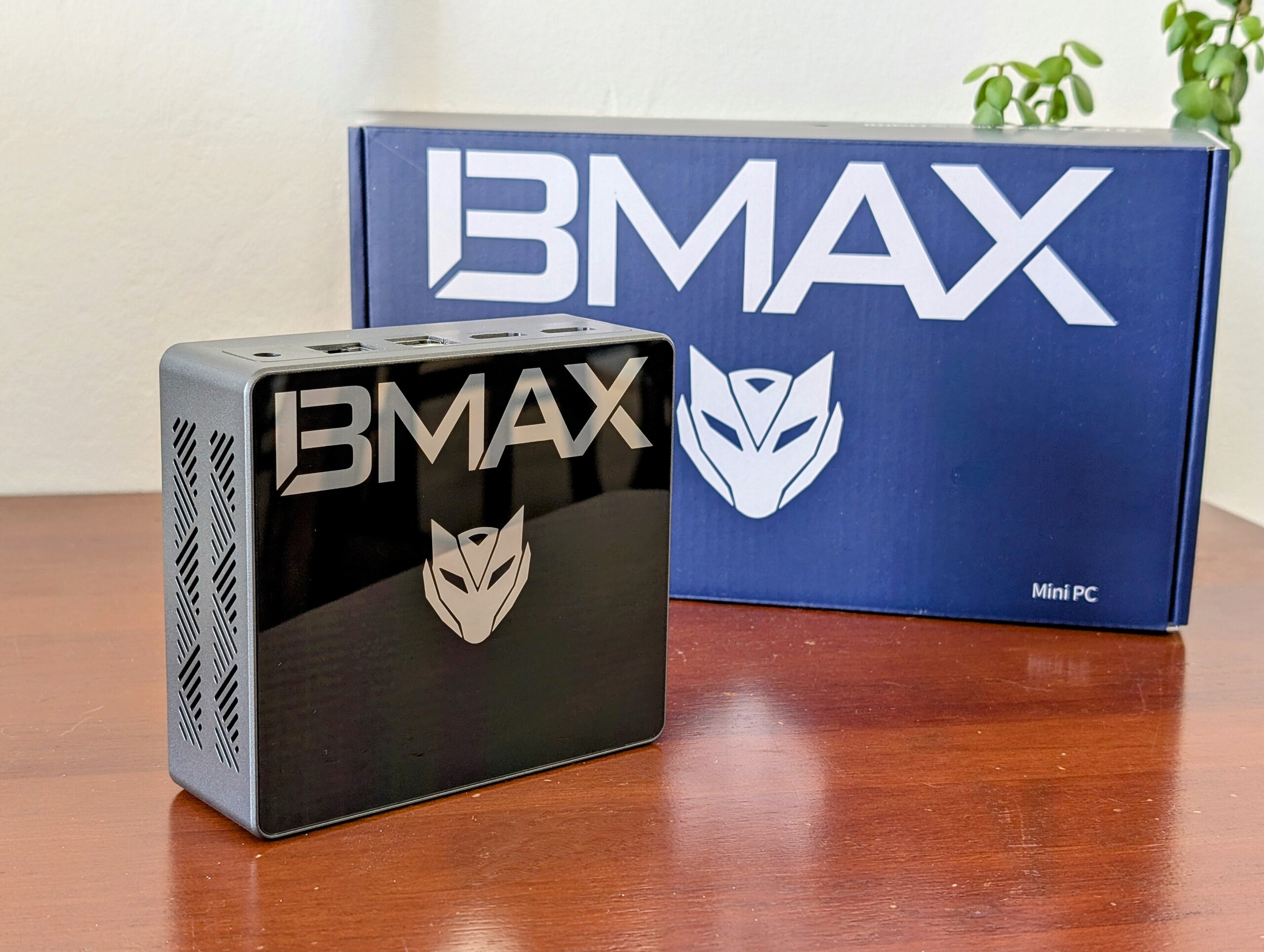

Reseña del BMAX B4 Turbo: Mini PC económico con Intel N150

¿Turbo con una CPU de 6 W?

El B4 Turbo se vende al por menor por bastante menos de 200 dólares, lo que lo convierte en uno de los mini PC listos para usar más baratos disponibles sin recurrir a hardware muy antiguo. Por otro lado, no espere hacer mucho con el procesador Twin Lake.
Allen Ngo, 👁 Allen Ngo (traducido por DeepL / Ninh Duy) Publicado 🇺🇸 🇫🇷 ...
Mini PC Intel

Veredicto - Estupendo para las necesidades básicas de un HTPC

No es razonable esperar un procesador rápido de un mini PC listo para usar que se vende por menos de 200 dólares. Aunque la CPU Twin Lake N150 es relativamente nueva, aún no se acerca a las opciones Core i3 más antiguas como el Core i3-1115G4.

Sin embargo, para fines básicos de HTPC como streaming 1080p, servidores de impresión, música y otras cargas multitarea poco exigentes o bajas, el B4 Max es suficiente en su mayor parte. El ruido del ventilador y las velocidades inalámbricas podrían haber sido más silenciosas y rápidas, respectivamente, pero estas limitaciones no deberían ser un problema en una configuración de sala de estar 1080p. También apreciamos la compatibilidad integrada con unidades SSD SAYA III de 2,5 pulgadas, ya que esta opción es cada vez más infrecuente en los diseños más recientes.

Pro

+ admite unidad SATA secundaria de 2,5 pulgadas
+ admite montaje VESA
+ relativamente barato
+ 3 puertos de salida de vídeo
+ fácil de mantener

Contra

- cable del adaptador de CA relativamente corto
- reproducción imperfecta de vídeo 4K60
- sólo un canal de RAM
- rendimiento Wi-Fi lento
- ventilador siempre activo

Precio y disponibilidad

El BMax B4 Turbo está agotado tanto en Amazon como en la tienda oficial del fabricante https://www.bmaxit.com/MaxMini-B4-Turbo-16GB-1TB-pd536517658.html en el momento de escribir estas líneas. El código de cupón temporal 'BMAXAnniversary5' es válido hasta el 1 de abril para rebajar el precio a algo menos de 150 dólares.

Amazon Logo
$179.00
Bmax N150 Mini PC,B4 Turbo Windows 11 Mini Desktop Computers 16GB DDR4 500GB M.2 SSD (up to 3.6 GHz,4C/4T),Triple Screen Display WiFi,4K,Type-C,Business,Home,Office PC
  • $12.99
    PWR+ 12V Power Supply for Bmax MaxMini B1 B2 B3 B4 B5 Pro Turbo Plus Mini PC Desktop Computer AC Adapter Extra Long Power Cord - (UL Listed Safety Certified)
  • $14.99
    PowerHOOD 12V AC/DC Adapter Compatible with Bmax B4 Turbo N150 Mini PC Small Desktop Computer 12VDC DC12V 12volt 12.0 Volts Power Supply Cord Wall Plug Charger Cable PSU Mains

A pesar de lo que pueda sugerir su nombre, el BMax B4 Turbo es un mini PC de gama baja que funciona con un procesador N150 Twin Lake de baja potencia. Está diseñado más para aplicaciones de streaming o de servidor económico que para un PC principal o un sistema multimedia en toda regla. Nuestra unidad de prueba se puede encontrar en Internet entre 150 y 200 dólares con 16 GB de RAM, 512 GB de SSD y Windows 11 preinstalado.

Las alternativas incluyen otros mini PC económicos como el Acemagic S1, Beelink EQ14o el Asus NUC 14 Essential.

Más BMax opiniones:

Especificaciones

BMAX B4 Turbo
Procesador
Intel Processor N150 4 x - 3.6 GHz, 20 W PL2 / Short Burst, 15 W PL1 / Sustained, Twin Lake
Adaptador gráfico
Intel UHD Graphics 24EUs (Alder Lake-N), Núcleo: 1000 MHz, DDR5, 32.0.101.5972
Memoría
16 GB
, DDR4-2666, Single-Channel, 19-19-19-43
Placa base
Intel Alder Lake-N PCH
Tarjeta de sonido
Intel Alder Lake-N PCH - cAVS
Conexiones
2 USB 2.0, 3 USB 3.0, USB-C Power Delivery (PD), 1 HDMI, 1 DisplayPort, Audio Conexiones: 3.5 mm combo
Equipamento de red
Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit/s), Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 5.0
Tamaño
Alto x ancho x profundidad (en mm): 44 x 125 x 112
Sistema Operativo
Microsoft Windows 11 Home
Características adicionales
12 Meses Garantía
Peso
315 g, Suministro de Electricidad: 113 g
Precio
175 EUR
Nota: El fabricante puede utilizar componentes de diferentes proveedores, incluidos paneles de visualización, unidades o lápices de memoria con especificaciones similares.



Comparación de tamaños

155 mm 126.5 mm 62 mm 1.2 kg135.6 mm 132.6 mm 50.1 mm 660 g135 mm 115 mm 36 mm 465 g128 mm 124 mm 42 mm 450 g125 mm 112 mm 44 mm 315 g125 mm 112 mm 44 mm 363 g126 mm 126 mm 39 mm 432 g210 mm 148 mm 1 mm 2.9 g

Conectividad

Las opciones de puerto incluyen todo lo básico, salvo un DisplayPort de tamaño completo. Tenga en cuenta que el puerto USB-C también se puede utilizar para la alimentación si alguna vez pierde el adaptador de CA de barril incluido en la caja.

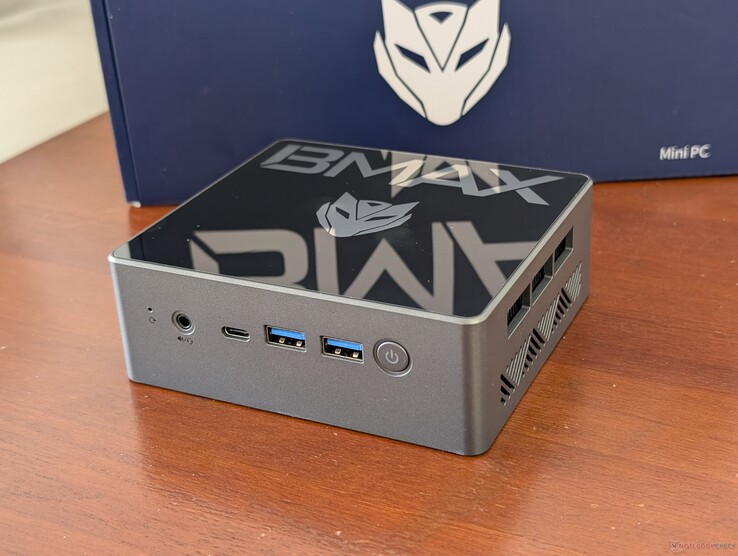

Frontal: Botón de reinicio, auriculares de 3,5 mm, USB-C con Power Delivery + DisplayPort, 2x USB-A 3.0, botón de encendido
Frontal: Botón de reinicio, auriculares de 3,5 mm, USB-C con Power Delivery + DisplayPort, 2x USB-A 3.0, botón de encendido

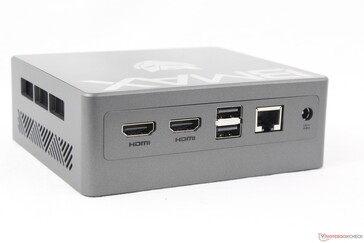

Parte trasera: 2x HDMI 2.1, 2x USB-A 2.0, RJ-45, adaptador de CA
Parte trasera: 2x HDMI 2.1, 2x USB-A 2.0, RJ-45, adaptador de CA

Comunicación

Networking
iperf3 transmit AXE11000
Asus NUC 14 Essential
Intel Wi-Fi 6E AX211
965 (927min - 1014max) MBit/s +284%
BMAX B7 Power G7A2
Realtek RTL8852BE
898 (858min - 935max) MBit/s +258%
MSI Cubi NUC 1M
Intel Wi-Fi 6E AX211
636 (430min - 784max) MBit/s +153%
Acemagic S1
Realtek RTL8852BE
537 (512min - 556max) MBit/s +114%
Beelink EQ14
Intel Wi-Fi 6 AX101
432 (380min - 463max) MBit/s +72%
BMAX B4 Turbo
Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC
251 (226min - 264max) MBit/s
iperf3 receive AXE11000
Asus NUC 14 Essential
Intel Wi-Fi 6E AX211
956 (938min - 965max) MBit/s +258%
BMAX B7 Power G7A2
Realtek RTL8852BE
747 (374min - 763max) MBit/s +180%
Acemagic S1
Realtek RTL8852BE
707 (636min - 742max) MBit/s +165%
MSI Cubi NUC 1M
Intel Wi-Fi 6E AX211
692 (506min - 872max) MBit/s +159%
Beelink EQ14
Intel Wi-Fi 6 AX101
460 (398min - 486max) MBit/s +72%
BMAX B4 Turbo
Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC
267 (232min - 293max) MBit/s
iperf3 transmit AXE11000 6GHz
Asus NUC 14 Essential
Intel Wi-Fi 6E AX211
1434 (1092min - 1585max) MBit/s
MSI Cubi NUC 1M
Intel Wi-Fi 6E AX211
1400 (1199min - 1463max) MBit/s
iperf3 receive AXE11000 6GHz
Asus NUC 14 Essential
Intel Wi-Fi 6E AX211
1682 (1671min - 1693max) MBit/s
MSI Cubi NUC 1M
Intel Wi-Fi 6E AX211
1560 (1528min - 1585max) MBit/s
050100150200250Tooltip
BMAX B4 Turbo; iperf3 transmit AXE11000; iperf 3.1.3: Ø251 (226-264)
BMAX B4 Turbo; iperf3 receive AXE11000; iperf 3.1.3: Ø266 (232-293)

Mantenimiento

El panel inferior puede retirarse con un simple destornillador Phillips. Admite una unidad secundaria SATA III de 2,5 pulgadas, mientras que la RAM está limitada a una sola ranura.

Opciones de actualización del turbo B4
Opciones de actualización del turbo B4

Sostenibilidad

BMax no anuncia ninguna medida explícita de sostenibilidad tomada durante el proceso de fabricación.

Accesorios y garantía

La caja de venta incluye un cable HDMI y un soporte VESA extraíble, además del adaptador de CA y la documentación.

Rendimiento




Condiciones de prueba

Pusimos Windows en modo Rendimiento antes de ejecutar las pruebas comparativas que se indican a continuación.

Procesador

El N150 funciona un 15 y un 25 por ciento más rápido que el N100 en cargas de trabajo monohilo y multihilo, respectivamente.

Cinebench R15 Multi Loop

055110165220275330385440495550605660715770825880935990Tooltip
BMAX B4 Turbo Intel Processor N150: Ø380 (363.55-401.51)
BMAX B7 Power G7A2 Intel Core i7-11390H: Ø695 (685.89-775.39)
Beelink EQ14 Intel Processor N150: Ø437 (433.6-454.68)
Asus NUC 14 Essential Intel Core 3 N355: Ø804 (728.77-884.19)
MSI Cubi NUC 1M Intel Core 7 150U: Ø971 (535.59-1039.66)
Newsmay AC8F-POE Intel Processor N100: Ø295 (290.65-304.47)
Acemagic S1 Intel Processor N97: Ø462 (454.89-465.38)
CPU Performance Rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 6.4: Multi-Core | Single-Core
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
CPU Performance Rating
HP Elite Mini 800 G9-5M9X6EA
Intel Core i5-14500
94.4 pt
MSI Cubi NUC 1M
Intel Core 7 150U
74.9 pt
BMAX B7 Power G7A2
Intel Core i7-11390H
56.5 pt
Asus NUC 14 Essential
Intel Core 3 N355
46.8 pt
Acemagic S1
Intel Processor N97
38.1 pt
Beelink EQ14
Intel Processor N150
36.3 pt
Medio Intel Processor N150

35.4 pt
BMAX B4 Turbo
Intel Processor N150
34.6 pt
Newsmay AC8F-POE
Intel Processor N100
29.3 pt
Asus ExpertCenter PN42-BBN200MV
Intel Processor N200
20.7 pt
Cinebench R23 / Multi Core
HP Elite Mini 800 G9-5M9X6EA
Intel Core i5-14500
15012 Points +518%
MSI Cubi NUC 1M
Intel Core 7 150U
7226 (6983.97min - 7226.42max) Points +198%
Asus NUC 14 Essential
Intel Core 3 N355
5262 Points +117%
BMAX B7 Power G7A2
Intel Core i7-11390H
4570 Points +88%
Acemagic S1
Intel Processor N97
2913 Points +20%
Beelink EQ14
Intel Processor N150
2753 (2705.91min - 2753.1max) Points +13%
Medio Intel Processor N150
  (2428 - 2753, n=2)
2591 Points +7%
BMAX B4 Turbo
Intel Processor N150
2428 (2385.1min - 2428.32max) Points
Newsmay AC8F-POE
Intel Processor N100
1946 Points -20%
Asus ExpertCenter PN42-BBN200MV
Intel Processor N200
1406 Points -42%
Cinebench R23 / Single Core
HP Elite Mini 800 G9-5M9X6EA
Intel Core i5-14500
1917 Points +102%
MSI Cubi NUC 1M
Intel Core 7 150U
1878 Points +98%
BMAX B7 Power G7A2
Intel Core i7-11390H
1407 Points +48%
Asus NUC 14 Essential
Intel Core 3 N355
1039 Points +9%
Acemagic S1
Intel Processor N97
973 Points +3%
BMAX B4 Turbo
Intel Processor N150
949 Points
Medio Intel Processor N150
  (943 - 949, n=2)
946 Points 0%
Beelink EQ14
Intel Processor N150
943 Points -1%
Newsmay AC8F-POE
Intel Processor N100
843 Points -11%
Asus ExpertCenter PN42-BBN200MV
Intel Processor N200
690 Points -27%
Cinebench R20 / CPU (Multi Core)
HP Elite Mini 800 G9-5M9X6EA
Intel Core i5-14500
5811 Points +523%
MSI Cubi NUC 1M
Intel Core 7 150U
2821 Points +202%
Asus NUC 14 Essential
Intel Core 3 N355
2015 Points +116%
BMAX B7 Power G7A2
Intel Core i7-11390H
1767 Points +89%
Acemagic S1
Intel Processor N97
1115 Points +20%
Beelink EQ14
Intel Processor N150
1051 Points +13%
Medio Intel Processor N150
  (933 - 1051, n=2)
992 Points +6%
BMAX B4 Turbo
Intel Processor N150
933 Points
Newsmay AC8F-POE
Intel Processor N100
748 Points -20%
Asus ExpertCenter PN42-BBN200MV
Intel Processor N200
542 Points -42%
Cinebench R20 / CPU (Single Core)
HP Elite Mini 800 G9-5M9X6EA
Intel Core i5-14500
736 Points +103%
MSI Cubi NUC 1M
Intel Core 7 150U
718 Points +98%
BMAX B7 Power G7A2
Intel Core i7-11390H
550 Points +52%
Asus NUC 14 Essential
Intel Core 3 N355
393 Points +9%
Acemagic S1
Intel Processor N97
371 Points +2%
BMAX B4 Turbo
Intel Processor N150
362 Points
Medio Intel Processor N150
  (359 - 362, n=2)
361 Points 0%
Beelink EQ14
Intel Processor N150
359 Points -1%
Newsmay AC8F-POE
Intel Processor N100
326 Points -10%
Asus ExpertCenter PN42-BBN200MV
Intel Processor N200
265 Points -27%
Cinebench R15 / CPU Multi 64Bit
HP Elite Mini 800 G9-5M9X6EA
Intel Core i5-14500
2435 Points +506%
MSI Cubi NUC 1M
Intel Core 7 150U
1040 (535.59min - 1039.66max) Points +159%
Asus NUC 14 Essential
Intel Core 3 N355
822 Points +104%
BMAX B7 Power G7A2
Intel Core i7-11390H
775 (685.89min - 775.39max) Points +93%
Acemagic S1
Intel Processor N97
479 Points +19%
Beelink EQ14
Intel Processor N150
455 (433.6min - 454.68max) Points +13%
Medio Intel Processor N150
  (402 - 455, n=2)
429 Points +7%
BMAX B4 Turbo
Intel Processor N150
402 (363.55min - 401.51max) Points
Newsmay AC8F-POE
Intel Processor N100
298 Points -26%
Asus ExpertCenter PN42-BBN200MV
Intel Processor N200
219 Points -46%
Cinebench R15 / CPU Single 64Bit
HP Elite Mini 800 G9-5M9X6EA
Intel Core i5-14500
273 Points +77%
MSI Cubi NUC 1M
Intel Core 7 150U
258 Points +67%
BMAX B7 Power G7A2
Intel Core i7-11390H
209 Points +35%
Asus NUC 14 Essential
Intel Core 3 N355
168 Points +9%
Acemagic S1
Intel Processor N97
161 Points +4%
Beelink EQ14
Intel Processor N150
156.4 Points +1%
Medio Intel Processor N150
  (154.3 - 156.4, n=2)
155.4 Points +1%
BMAX B4 Turbo
Intel Processor N150
154.3 Points
Newsmay AC8F-POE
Intel Processor N100
138 Points -11%
Asus ExpertCenter PN42-BBN200MV
Intel Processor N200
113 Points -27%
Blender / v2.79 BMW27 CPU
Asus ExpertCenter PN42-BBN200MV
Intel Processor N200
2150 Seconds * -74%
Newsmay AC8F-POE
Intel Processor N100
1522 Seconds * -23%
BMAX B4 Turbo
Intel Processor N150
1233 Seconds *
Medio Intel Processor N150
  (1094 - 1233, n=2)
1164 Seconds * +6%
Beelink EQ14
Intel Processor N150
1094 Seconds * +11%
Acemagic S1
Intel Processor N97
1020 Seconds * +17%
BMAX B7 Power G7A2
Intel Core i7-11390H
665 Seconds * +46%
Asus NUC 14 Essential
Intel Core 3 N355
574 Seconds * +53%
MSI Cubi NUC 1M
Intel Core 7 150U
451 Seconds * +63%
HP Elite Mini 800 G9-5M9X6EA
Intel Core i5-14500
223 Seconds * +82%
7-Zip 18.03 / 7z b 4
HP Elite Mini 800 G9-5M9X6EA
Intel Core i5-14500
54851 MIPS +391%
MSI Cubi NUC 1M
Intel Core 7 150U
31447 MIPS +182%
Asus NUC 14 Essential
Intel Core 3 N355
23225 MIPS +108%
BMAX B7 Power G7A2
Intel Core i7-11390H
20822 MIPS +86%
Acemagic S1
Intel Processor N97
13174 MIPS +18%
Beelink EQ14
Intel Processor N150
12321 MIPS +10%
Medio Intel Processor N150
  (11171 - 12321, n=2)
11746 MIPS +5%
BMAX B4 Turbo
Intel Processor N150
11171 MIPS
Newsmay AC8F-POE
Intel Processor N100
8725 MIPS -22%
Asus ExpertCenter PN42-BBN200MV
Intel Processor N200
7146 MIPS -36%
7-Zip 18.03 / 7z b 4 -mmt1
HP Elite Mini 800 G9-5M9X6EA
Intel Core i5-14500
6198 MIPS +61%
MSI Cubi NUC 1M
Intel Core 7 150U
5898 MIPS +53%
BMAX B7 Power G7A2
Intel Core i7-11390H
5539 MIPS +44%
Asus NUC 14 Essential
Intel Core 3 N355
4044 MIPS +5%
Acemagic S1
Intel Processor N97
4019 MIPS +4%
Beelink EQ14
Intel Processor N150
3906 MIPS +1%
Medio Intel Processor N150
  (3859 - 3906, n=2)
3883 MIPS +1%
BMAX B4 Turbo
Intel Processor N150
3859 MIPS
Newsmay AC8F-POE
Intel Processor N100
3583 MIPS -7%
Asus ExpertCenter PN42-BBN200MV
Intel Processor N200
3230 MIPS -16%
Geekbench 6.4 / Multi-Core
HP Elite Mini 800 G9-5M9X6EA
Intel Core i5-14500
10644 Points +257%
MSI Cubi NUC 1M
Intel Core 7 150U
8756 Points +194%
Asus NUC 14 Essential
Intel Core 3 N355
5088 Points +71%
BMAX B7 Power G7A2
Intel Core i7-11390H
5066 Points +70%
Acemagic S1
Intel Processor N97
3181 Points +7%
Beelink EQ14
Intel Processor N150
3093 Points +4%
Medio Intel Processor N150
  (2980 - 3093, n=2)
3037 Points +2%
BMAX B4 Turbo
Intel Processor N150
2980 Points
Newsmay AC8F-POE
Intel Processor N100
2780 Points -7%
Asus ExpertCenter PN42-BBN200MV
Intel Processor N200
1660 Points -44%
Geekbench 6.4 / Single-Core
MSI Cubi NUC 1M
Intel Core 7 150U
2646 Points +112%
HP Elite Mini 800 G9-5M9X6EA
Intel Core i5-14500
2583 Points +107%
BMAX B7 Power G7A2
Intel Core i7-11390H
2114 Points +69%
Asus NUC 14 Essential
Intel Core 3 N355
1344 Points +8%
Acemagic S1
Intel Processor N97
1300 Points +4%
Beelink EQ14
Intel Processor N150
1255 Points 0%
Medio Intel Processor N150
  (1249 - 1255, n=2)
1252 Points 0%
BMAX B4 Turbo
Intel Processor N150
1249 Points
Newsmay AC8F-POE
Intel Processor N100
1209 Points -3%
Asus ExpertCenter PN42-BBN200MV
Intel Processor N200
956 Points -23%
Geekbench 5.5 / Multi-Core
HP Elite Mini 800 G9-5M9X6EA
Intel Core i5-14500
10543 Points +309%
MSI Cubi NUC 1M
Intel Core 7 150U
7788 Points +202%
Asus NUC 14 Essential
Intel Core 3 N355
4903 Points +90%
BMAX B7 Power G7A2
Intel Core i7-11390H
4457 Points +73%
Acemagic S1
Intel Processor N97
2757 Points +7%
Beelink EQ14
Intel Processor N150
2667 Points +3%
Medio Intel Processor N150
  (2579 - 2667, n=2)
2623 Points +2%
BMAX B4 Turbo
Intel Processor N150
2579 Points
Newsmay AC8F-POE
Intel Processor N100
2332 Points -10%
Asus ExpertCenter PN42-BBN200MV
Intel Processor N200
1540 Points -40%
Geekbench 5.5 / Single-Core
MSI Cubi NUC 1M
Intel Core 7 150U
1910 Points +93%
HP Elite Mini 800 G9-5M9X6EA
Intel Core i5-14500
1898 Points +92%
BMAX B7 Power G7A2
Intel Core i7-11390H
1486 Points +50%
Asus NUC 14 Essential
Intel Core 3 N355
1082 Points +9%
Acemagic S1
Intel Processor N97
1060 Points +7%
Beelink EQ14
Intel Processor N150
1020 Points +3%
Medio Intel Processor N150
  (991 - 1020, n=2)
1006 Points +2%
BMAX B4 Turbo
Intel Processor N150
991 Points
Newsmay AC8F-POE
Intel Processor N100
975 Points -2%
Asus ExpertCenter PN42-BBN200MV
Intel Processor N200
928 Points -6%
HWBOT x265 Benchmark v2.2 / 4k Preset
HP Elite Mini 800 G9-5M9X6EA
Intel Core i5-14500
16.4 fps +484%
MSI Cubi NUC 1M
Intel Core 7 150U
8.57 fps +205%
Asus NUC 14 Essential
Intel Core 3 N355
5.85 fps +108%
BMAX B7 Power G7A2
Intel Core i7-11390H
5.84 fps +108%
Acemagic S1
Intel Processor N97
3.49 fps +24%
Beelink EQ14
Intel Processor N150
3.21 fps +14%
Medio Intel Processor N150
  (2.81 - 3.21, n=2)
3.01 fps +7%
BMAX B4 Turbo
Intel Processor N150
2.81 fps
Newsmay AC8F-POE
Intel Processor N100
2.12 fps -25%
Asus ExpertCenter PN42-BBN200MV
Intel Processor N200
1.52 fps -46%
LibreOffice / 20 Documents To PDF
Asus ExpertCenter PN42-BBN200MV
Intel Processor N200
120 s * -46%
Newsmay AC8F-POE
Intel Processor N100
100.2 s * -22%
Asus NUC 14 Essential
Intel Core 3 N355
86.4 s * -5%
BMAX B4 Turbo
Intel Processor N150
82.1 s *
Medio Intel Processor N150
  (79.3 - 82.1, n=2)
80.7 s * +2%
Beelink EQ14
Intel Processor N150
79.3 s * +3%
Acemagic S1
Intel Processor N97
75.7 s * +8%
BMAX B7 Power G7A2
Intel Core i7-11390H
52.6 s * +36%
HP Elite Mini 800 G9-5M9X6EA
Intel Core i5-14500
46 s * +44%
MSI Cubi NUC 1M
Intel Core 7 150U
37.9 s * +54%
R Benchmark 2.5 / Overall mean
Asus ExpertCenter PN42-BBN200MV
Intel Processor N200
1.149 sec * -31%
Newsmay AC8F-POE
Intel Processor N100
0.975 sec * -11%
BMAX B4 Turbo
Intel Processor N150
0.88 sec *
Medio Intel Processor N150
  (0.846 - 0.88, n=2)
0.863 sec * +2%
Beelink EQ14
Intel Processor N150
0.846 sec * +4%
Asus NUC 14 Essential
Intel Core 3 N355
0.801 sec * +9%
Acemagic S1
Intel Processor N97
0.789 sec * +10%
BMAX B7 Power G7A2
Intel Core i7-11390H
0.571 sec * +35%
MSI Cubi NUC 1M
Intel Core 7 150U
0.4438 sec * +50%
HP Elite Mini 800 G9-5M9X6EA
Intel Core i5-14500
0.4356 sec * +50%

* ... más pequeño es mejor

Cinebench R15 CPU Multi 64Bit
402 Points
Cinebench R15 OpenGL 64Bit
46.5 fps
Cinebench R15 Ref. Match 64Bit
97.8 %
Cinebench R15 CPU Single 64Bit
154.3 Points
Cinebench R20 CPU (Multi Core)
933 Points
Cinebench R20 CPU (Single Core)
362 Points
Cinebench R23 Single Core
949 Points
Cinebench R23 Multi Core
2428 Points
Cinebench 2024 CPU Single Core
60.4 Points
Cinebench 2024 CPU Multi Core
155.5 Points
ayuda
Performance Rating
MSI Cubi NUC 1M
Intel Core 7 150U, Iris Xe G7 96EUs
95.1 pt
BMAX B7 Power G7A2
Intel Core i7-11390H, Iris Xe G7 96EUs
83.4 pt
Asus NUC 14 Essential
Intel Core 3 N355, UHD Graphics 32EUs
66.7 pt
Acemagic S1
Intel Processor N97, UHD Graphics 24EUs (Alder Lake-N)
37 pt
Beelink EQ14
Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)
34.1 pt
Medio Intel Processor N150

32.5 pt
BMAX B4 Turbo
Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)
30.8 pt
Newsmay AC8F-POE
Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)
24.8 pt
AIDA64 / FP32 Ray-Trace
MSI Cubi NUC 1M
Intel Core 7 150U, Iris Xe G7 96EUs
6306 KRay/s +216%
BMAX B7 Power G7A2
Intel Core i7-11390H, Iris Xe G7 96EUs
5904 KRay/s +196%
Asus NUC 14 Essential
Intel Core 3 N355, UHD Graphics 32EUs
4535 KRay/s +127%
Acemagic S1
Intel Processor N97, UHD Graphics 24EUs (Alder Lake-N)
2204 KRay/s +10%
Beelink EQ14
Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)
2172 KRay/s +9%
Medio Intel Processor N150
  (1995 - 2172, n=2)
2084 KRay/s +4%
BMAX B4 Turbo
Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)
1995 KRay/s
Newsmay AC8F-POE
Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)
1449 KRay/s -27%
AIDA64 / FPU Julia
MSI Cubi NUC 1M
Intel Core 7 150U, Iris Xe G7 96EUs
32582 Points +232%
BMAX B7 Power G7A2
Intel Core i7-11390H, Iris Xe G7 96EUs
25054 Points +156%
Asus NUC 14 Essential
Intel Core 3 N355, UHD Graphics 32EUs
22322 Points +128%
Acemagic S1
Intel Processor N97, UHD Graphics 24EUs (Alder Lake-N)
11550 Points +18%
Beelink EQ14
Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)
11281 Points +15%
Medio Intel Processor N150
  (9804 - 11281, n=2)
10543 Points +8%
BMAX B4 Turbo
Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)
9804 Points
Newsmay AC8F-POE
Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)
7395 Points -25%
AIDA64 / CPU SHA3
BMAX B7 Power G7A2
Intel Core i7-11390H, Iris Xe G7 96EUs
1747 MB/s +178%
MSI Cubi NUC 1M
Intel Core 7 150U, Iris Xe G7 96EUs
1656 MB/s +163%
Asus NUC 14 Essential
Intel Core 3 N355, UHD Graphics 32EUs
1489 MB/s +137%
Acemagic S1
Intel Processor N97, UHD Graphics 24EUs (Alder Lake-N)
808 MB/s +28%
Beelink EQ14
Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)
751 MB/s +19%
Medio Intel Processor N150
  (629 - 751, n=2)
690 MB/s +10%
BMAX B4 Turbo
Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)
629 MB/s
Newsmay AC8F-POE
Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)
476 MB/s -24%
AIDA64 / CPU Queen
MSI Cubi NUC 1M
Intel Core 7 150U, Iris Xe G7 96EUs
62280 Points +180%
BMAX B7 Power G7A2
Intel Core i7-11390H, Iris Xe G7 96EUs
48368 Points +117%
Asus NUC 14 Essential
Intel Core 3 N355, UHD Graphics 32EUs
41583 Points +87%
Acemagic S1
Intel Processor N97, UHD Graphics 24EUs (Alder Lake-N)
22866 Points +3%
Newsmay AC8F-POE
Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)
22407 Points +1%
Beelink EQ14
Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)
22334 Points 0%
Medio Intel Processor N150
  (22243 - 22334, n=2)
22289 Points 0%
BMAX B4 Turbo
Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)
22243 Points
AIDA64 / FPU SinJulia
MSI Cubi NUC 1M
Intel Core 7 150U, Iris Xe G7 96EUs
4387 Points +293%
BMAX B7 Power G7A2
Intel Core i7-11390H, Iris Xe G7 96EUs
4106 Points +268%
Asus NUC 14 Essential
Intel Core 3 N355, UHD Graphics 32EUs
2359 Points +111%
Acemagic S1
Intel Processor N97, UHD Graphics 24EUs (Alder Lake-N)
1136 Points +2%
Beelink EQ14
Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)
1118 Points 0%
Medio Intel Processor N150
  (1116 - 1118, n=2)
1117 Points 0%
BMAX B4 Turbo
Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)
1116 Points
Newsmay AC8F-POE
Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)
1019 Points -9%
AIDA64 / FPU Mandel
MSI Cubi NUC 1M
Intel Core 7 150U, Iris Xe G7 96EUs
16042 Points +229%
BMAX B7 Power G7A2
Intel Core i7-11390H, Iris Xe G7 96EUs
15441 Points +216%
Asus NUC 14 Essential
Intel Core 3 N355, UHD Graphics 32EUs
10882 Points +123%
Acemagic S1
Intel Processor N97, UHD Graphics 24EUs (Alder Lake-N)
5834 Points +20%
Beelink EQ14
Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)
5448 Points +12%
Medio Intel Processor N150
  (4882 - 5448, n=2)
5165 Points +6%
BMAX B4 Turbo
Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)
4882 Points
Newsmay AC8F-POE
Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)
3732 Points -24%
AIDA64 / CPU AES
BMAX B7 Power G7A2
Intel Core i7-11390H, Iris Xe G7 96EUs
58575 MB/s +428%
MSI Cubi NUC 1M
Intel Core 7 150U, Iris Xe G7 96EUs
33007 MB/s +197%
Asus NUC 14 Essential
Intel Core 3 N355, UHD Graphics 32EUs
23724 MB/s +114%
Acemagic S1
Intel Processor N97, UHD Graphics 24EUs (Alder Lake-N)
22028 MB/s +98%
BMAX B4 Turbo
Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)
11103 MB/s
Medio Intel Processor N150
  (11025 - 11103, n=2)
11064 MB/s 0%
Beelink EQ14
Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)
11025 MB/s -1%
Newsmay AC8F-POE
Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)
9214 MB/s -17%
AIDA64 / CPU ZLib
MSI Cubi NUC 1M
Intel Core 7 150U, Iris Xe G7 96EUs
491 MB/s +167%
Asus NUC 14 Essential
Intel Core 3 N355, UHD Graphics 32EUs
447 MB/s +143%
BMAX B7 Power G7A2
Intel Core i7-11390H, Iris Xe G7 96EUs
362 MB/s +97%
Acemagic S1
Intel Processor N97, UHD Graphics 24EUs (Alder Lake-N)
220 MB/s +20%
Beelink EQ14
Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)
216 MB/s +17%
Medio Intel Processor N150
  (184 - 216, n=2)
200 MB/s +9%
BMAX B4 Turbo
Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)
184 MB/s
Newsmay AC8F-POE
Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)
140.8 MB/s -23%
AIDA64 / FP64 Ray-Trace
MSI Cubi NUC 1M
Intel Core 7 150U, Iris Xe G7 96EUs
3417 KRay/s +237%
BMAX B7 Power G7A2
Intel Core i7-11390H, Iris Xe G7 96EUs
3138 KRay/s +210%
Asus NUC 14 Essential
Intel Core 3 N355, UHD Graphics 32EUs
2263 KRay/s +123%
Acemagic S1
Intel Processor N97, UHD Graphics 24EUs (Alder Lake-N)
1190 KRay/s +17%
Beelink EQ14
Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)
1166 KRay/s +15%
Medio Intel Processor N150
  (1013 - 1166, n=2)
1090 KRay/s +8%
BMAX B4 Turbo
Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)
1013 KRay/s
Newsmay AC8F-POE
Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)
754 KRay/s -26%
AIDA64 / CPU PhotoWorxx
MSI Cubi NUC 1M
Intel Core 7 150U, Iris Xe G7 96EUs
37889 MPixel/s +203%
Asus NUC 14 Essential
Intel Core 3 N355, UHD Graphics 32EUs
20884 MPixel/s +67%
Acemagic S1
Intel Processor N97, UHD Graphics 24EUs (Alder Lake-N)
14155 MPixel/s +13%
Beelink EQ14
Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)
13876 MPixel/s +11%
Medio Intel Processor N150
  (12501 - 13876, n=2)
13189 MPixel/s +6%
BMAX B4 Turbo
Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)
12501 MPixel/s
BMAX B7 Power G7A2
Intel Core i7-11390H, Iris Xe G7 96EUs
11409 MPixel/s -9%
Newsmay AC8F-POE
Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)
9750 MPixel/s -22%

Rendimiento del sistema

PCMark 10 Estándar
PCMark 10 Estándar
PCMark 10 / Score
MSI Cubi NUC 1M
Iris Xe G7 96EUs, Core 7 150U, WD PC SN560 SDDPNQE-1T00
6080 Points +99%
BMAX B7 Power G7A2
Iris Xe G7 96EUs, i7-11390H, Kston K765-1TB
4598 Points +51%
Asus NUC 14 Essential
UHD Graphics 32EUs, Core 3 N355, Micron 2400 MTFDKBA512QF
3817 Points +25%
Acemagic S1
UHD Graphics 24EUs (Alder Lake-N), N97, Netac G938E
3435 Points +13%
BMAX B4 Turbo
UHD Graphics 24EUs (Alder Lake-N), Processor N150
3050 Points
Beelink EQ14
UHD Graphics 24EUs (Alder Lake-N), Processor N150
2789 Points -9%
Newsmay AC8F-POE
UHD Graphics 24EUs (Alder Lake-N), N100, AirDisk AFF 10-128G
2786 Points -9%
PCMark 10 / Essentials
MSI Cubi NUC 1M
Iris Xe G7 96EUs, Core 7 150U, WD PC SN560 SDDPNQE-1T00
10856 Points +86%
BMAX B7 Power G7A2
Iris Xe G7 96EUs, i7-11390H, Kston K765-1TB
9188 Points +57%
Acemagic S1
UHD Graphics 24EUs (Alder Lake-N), N97, Netac G938E
7416 Points +27%
Asus NUC 14 Essential
UHD Graphics 32EUs, Core 3 N355, Micron 2400 MTFDKBA512QF
7148 Points +22%
Newsmay AC8F-POE
UHD Graphics 24EUs (Alder Lake-N), N100, AirDisk AFF 10-128G
6068 Points +4%
Beelink EQ14
UHD Graphics 24EUs (Alder Lake-N), Processor N150
5895 Points +1%
BMAX B4 Turbo
UHD Graphics 24EUs (Alder Lake-N), Processor N150
5842 Points
PCMark 10 / Productivity
MSI Cubi NUC 1M
Iris Xe G7 96EUs, Core 7 150U, WD PC SN560 SDDPNQE-1T00
8387 Points +72%
BMAX B7 Power G7A2
Iris Xe G7 96EUs, i7-11390H, Kston K765-1TB
6442 Points +32%
Asus NUC 14 Essential
UHD Graphics 32EUs, Core 3 N355, Micron 2400 MTFDKBA512QF
5122 Points +5%
Acemagic S1
UHD Graphics 24EUs (Alder Lake-N), N97, Netac G938E
4952 Points +2%
BMAX B4 Turbo
UHD Graphics 24EUs (Alder Lake-N), Processor N150
4867 Points
Newsmay AC8F-POE
UHD Graphics 24EUs (Alder Lake-N), N100, AirDisk AFF 10-128G
4479 Points -8%
Beelink EQ14
UHD Graphics 24EUs (Alder Lake-N), Processor N150
4245 Points -13%
PCMark 10 / Digital Content Creation
MSI Cubi NUC 1M
Iris Xe G7 96EUs, Core 7 150U, WD PC SN560 SDDPNQE-1T00
6701 Points +147%
BMAX B7 Power G7A2
Iris Xe G7 96EUs, i7-11390H, Kston K765-1TB
4459 Points +65%
Asus NUC 14 Essential
UHD Graphics 32EUs, Core 3 N355, Micron 2400 MTFDKBA512QF
4124 Points +52%
Acemagic S1
UHD Graphics 24EUs (Alder Lake-N), N97, Netac G938E
2996 Points +11%
BMAX B4 Turbo
UHD Graphics 24EUs (Alder Lake-N), Processor N150
2708 Points
Beelink EQ14
UHD Graphics 24EUs (Alder Lake-N), Processor N150
2355 Points -13%
Newsmay AC8F-POE
UHD Graphics 24EUs (Alder Lake-N), N100, AirDisk AFF 10-128G
2161 Points -20%
CrossMark / Overall
MSI Cubi NUC 1M
Iris Xe G7 96EUs, Core 7 150U, WD PC SN560 SDDPNQE-1T00
1734 Points +143%
BMAX B7 Power G7A2
Iris Xe G7 96EUs, i7-11390H, Kston K765-1TB
1274 Points +78%
Asus NUC 14 Essential
UHD Graphics 32EUs, Core 3 N355, Micron 2400 MTFDKBA512QF
907 Points +27%
Acemagic S1
UHD Graphics 24EUs (Alder Lake-N), N97, Netac G938E
844 Points +18%
Beelink EQ14
UHD Graphics 24EUs (Alder Lake-N), Processor N150
756 Points +6%
BMAX B4 Turbo
UHD Graphics 24EUs (Alder Lake-N), Processor N150
715 Points
Newsmay AC8F-POE
UHD Graphics 24EUs (Alder Lake-N), N100, AirDisk AFF 10-128G
706 Points -1%
CrossMark / Productivity
MSI Cubi NUC 1M
Iris Xe G7 96EUs, Core 7 150U, WD PC SN560 SDDPNQE-1T00
1778 Points +124%
BMAX B7 Power G7A2
Iris Xe G7 96EUs, i7-11390H, Kston K765-1TB
1399 Points +76%
Asus NUC 14 Essential
UHD Graphics 32EUs, Core 3 N355, Micron 2400 MTFDKBA512QF
933 Points +18%
Acemagic S1
UHD Graphics 24EUs (Alder Lake-N), N97, Netac G938E
930 Points +17%
Beelink EQ14
UHD Graphics 24EUs (Alder Lake-N), Processor N150
827 Points +4%
BMAX B4 Turbo
UHD Graphics 24EUs (Alder Lake-N), Processor N150
794 Points
Newsmay AC8F-POE
UHD Graphics 24EUs (Alder Lake-N), N100, AirDisk AFF 10-128G
779 Points -2%
CrossMark / Creativity
MSI Cubi NUC 1M
Iris Xe G7 96EUs, Core 7 150U, WD PC SN560 SDDPNQE-1T00
1708 Points +151%
BMAX B7 Power G7A2
Iris Xe G7 96EUs, i7-11390H, Kston K765-1TB
1198 Points +76%
Asus NUC 14 Essential
UHD Graphics 32EUs, Core 3 N355, Micron 2400 MTFDKBA512QF
918 Points +35%
Acemagic S1
UHD Graphics 24EUs (Alder Lake-N), N97, Netac G938E
751 Points +10%
Beelink EQ14
UHD Graphics 24EUs (Alder Lake-N), Processor N150
719 Points +6%
BMAX B4 Turbo
UHD Graphics 24EUs (Alder Lake-N), Processor N150
681 Points
Newsmay AC8F-POE
UHD Graphics 24EUs (Alder Lake-N), N100, AirDisk AFF 10-128G
672 Points -1%
CrossMark / Responsiveness
MSI Cubi NUC 1M
Iris Xe G7 96EUs, Core 7 150U, WD PC SN560 SDDPNQE-1T00
1685 Points +179%
BMAX B7 Power G7A2
Iris Xe G7 96EUs, i7-11390H, Kston K765-1TB
1159 Points +92%
Acemagic S1
UHD Graphics 24EUs (Alder Lake-N), N97, Netac G938E
896 Points +49%
Asus NUC 14 Essential
UHD Graphics 32EUs, Core 3 N355, Micron 2400 MTFDKBA512QF
805 Points +33%
Beelink EQ14
UHD Graphics 24EUs (Alder Lake-N), Processor N150
671 Points +11%
Newsmay AC8F-POE
UHD Graphics 24EUs (Alder Lake-N), N100, AirDisk AFF 10-128G
608 Points +1%
BMAX B4 Turbo
UHD Graphics 24EUs (Alder Lake-N), Processor N150
603 Points
WebXPRT 3 / Overall
MSI Cubi NUC 1M
Iris Xe G7 96EUs, Core 7 150U, WD PC SN560 SDDPNQE-1T00
311 Points +80%
Acemagic S1
UHD Graphics 24EUs (Alder Lake-N), N97, Netac G938E
191.4 Points +11%
Asus NUC 14 Essential
UHD Graphics 32EUs, Core 3 N355, Micron 2400 MTFDKBA512QF
182.4 Points +6%
Beelink EQ14
UHD Graphics 24EUs (Alder Lake-N), Processor N150
174.3 Points +1%
BMAX B4 Turbo
UHD Graphics 24EUs (Alder Lake-N), Processor N150
172.3 Points
Newsmay AC8F-POE
UHD Graphics 24EUs (Alder Lake-N), N100, AirDisk AFF 10-128G
163.3 Points -5%
WebXPRT 4 / Overall
MSI Cubi NUC 1M
Iris Xe G7 96EUs, Core 7 150U, WD PC SN560 SDDPNQE-1T00
271 Points +100%
Asus NUC 14 Essential
UHD Graphics 32EUs, Core 3 N355, Micron 2400 MTFDKBA512QF
149.3 Points +10%
Acemagic S1
UHD Graphics 24EUs (Alder Lake-N), N97, Netac G938E
145.3 Points +7%
BMAX B4 Turbo
UHD Graphics 24EUs (Alder Lake-N), Processor N150
135.3 Points
Newsmay AC8F-POE
UHD Graphics 24EUs (Alder Lake-N), N100, AirDisk AFF 10-128G
130.3 Points -4%
Mozilla Kraken 1.1 / Total
Newsmay AC8F-POE
UHD Graphics 24EUs (Alder Lake-N), N100, AirDisk AFF 10-128G
1083 ms * -3%
BMAX B4 Turbo
UHD Graphics 24EUs (Alder Lake-N), Processor N150
1047 ms *
Beelink EQ14
UHD Graphics 24EUs (Alder Lake-N), Processor N150
1044 ms * -0%
Acemagic S1
UHD Graphics 24EUs (Alder Lake-N), N97, Netac G938E
975 ms * +7%
Asus NUC 14 Essential
UHD Graphics 32EUs, Core 3 N355, Micron 2400 MTFDKBA512QF
968 ms * +8%
BMAX B7 Power G7A2
Iris Xe G7 96EUs, i7-11390H, Kston K765-1TB
647 ms * +38%
BMAX B7 Power G7A2
Iris Xe G7 96EUs, i7-11390H, Kston K765-1TB
647 ms * +38%
MSI Cubi NUC 1M
Iris Xe G7 96EUs, Core 7 150U, WD PC SN560 SDDPNQE-1T00
489 ms * +53%

* ... más pequeño es mejor

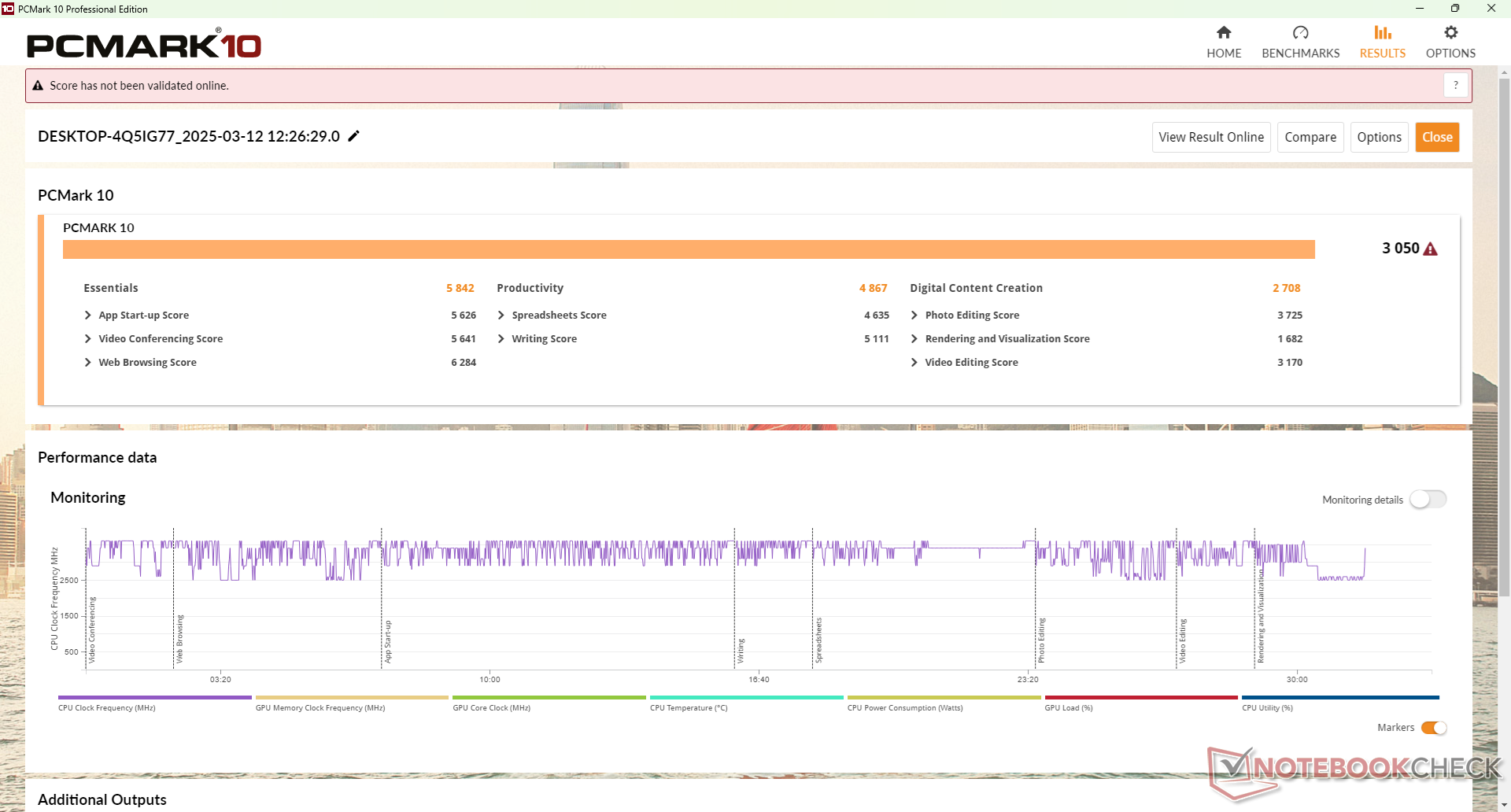

PCMark 10 Score
3050 puntos
ayuda
AIDA64 / Memory Copy
MSI Cubi NUC 1M
Intel Core 7 150U, Iris Xe G7 96EUs
59609 MB/s +222%
Asus NUC 14 Essential
Intel Core 3 N355, UHD Graphics 32EUs
29617 MB/s +60%
Beelink EQ14
Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)
22240 MB/s +20%
Acemagic S1
Intel Processor N97, UHD Graphics 24EUs (Alder Lake-N)
22018 MB/s +19%
Medio Intel Processor N150
  (18528 - 22240, n=2)
20384 MB/s +10%
BMAX B7 Power G7A2
Intel Core i7-11390H, Iris Xe G7 96EUs
19409 MB/s +5%
Newsmay AC8F-POE
Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)
18620 MB/s 0%
BMAX B4 Turbo
Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)
18528 MB/s
AIDA64 / Memory Read
MSI Cubi NUC 1M
Intel Core 7 150U, Iris Xe G7 96EUs
68780 MB/s +256%
Asus NUC 14 Essential
Intel Core 3 N355, UHD Graphics 32EUs
32903 MB/s +70%
Acemagic S1
Intel Processor N97, UHD Graphics 24EUs (Alder Lake-N)
23505 MB/s +22%
Beelink EQ14
Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)
23165 MB/s +20%
BMAX B7 Power G7A2
Intel Core i7-11390H, Iris Xe G7 96EUs
21253 MB/s +10%
Medio Intel Processor N150
  (19320 - 23165, n=2)
21243 MB/s +10%
Newsmay AC8F-POE
Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)
19509 MB/s +1%
BMAX B4 Turbo
Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)
19320 MB/s
AIDA64 / Memory Write
MSI Cubi NUC 1M
Intel Core 7 150U, Iris Xe G7 96EUs
60626 MB/s +210%
Asus NUC 14 Essential
Intel Core 3 N355, UHD Graphics 32EUs
30579 MB/s +56%
Beelink EQ14
Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)
23191 MB/s +19%
Acemagic S1
Intel Processor N97, UHD Graphics 24EUs (Alder Lake-N)
23127 MB/s +18%
Medio Intel Processor N150
  (19560 - 23191, n=2)
21376 MB/s +9%
BMAX B7 Power G7A2
Intel Core i7-11390H, Iris Xe G7 96EUs
19684 MB/s +1%
BMAX B4 Turbo
Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)
19560 MB/s
Newsmay AC8F-POE
Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)
19528 MB/s 0%
AIDA64 / Memory Latency
MSI Cubi NUC 1M
Intel Core 7 150U, Iris Xe G7 96EUs
74.5 ns * -44%
BMAX B7 Power G7A2
Intel Core i7-11390H, Iris Xe G7 96EUs
66.3 ns * -28%
Asus NUC 14 Essential
Intel Core 3 N355, UHD Graphics 32EUs
52.2 ns * -1%
BMAX B4 Turbo
Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)
51.8 ns *
Newsmay AC8F-POE
Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)
49.5 ns * +4%
Medio Intel Processor N150
  (47.1 - 51.8, n=2)
49.5 ns * +4%
Beelink EQ14
Intel Processor N150, UHD Graphics 24EUs (Alder Lake-N)
47.1 ns * +9%
Acemagic S1
Intel Processor N97, UHD Graphics 24EUs (Alder Lake-N)
45 ns * +13%

* ... más pequeño es mejor

Latencia del CPD

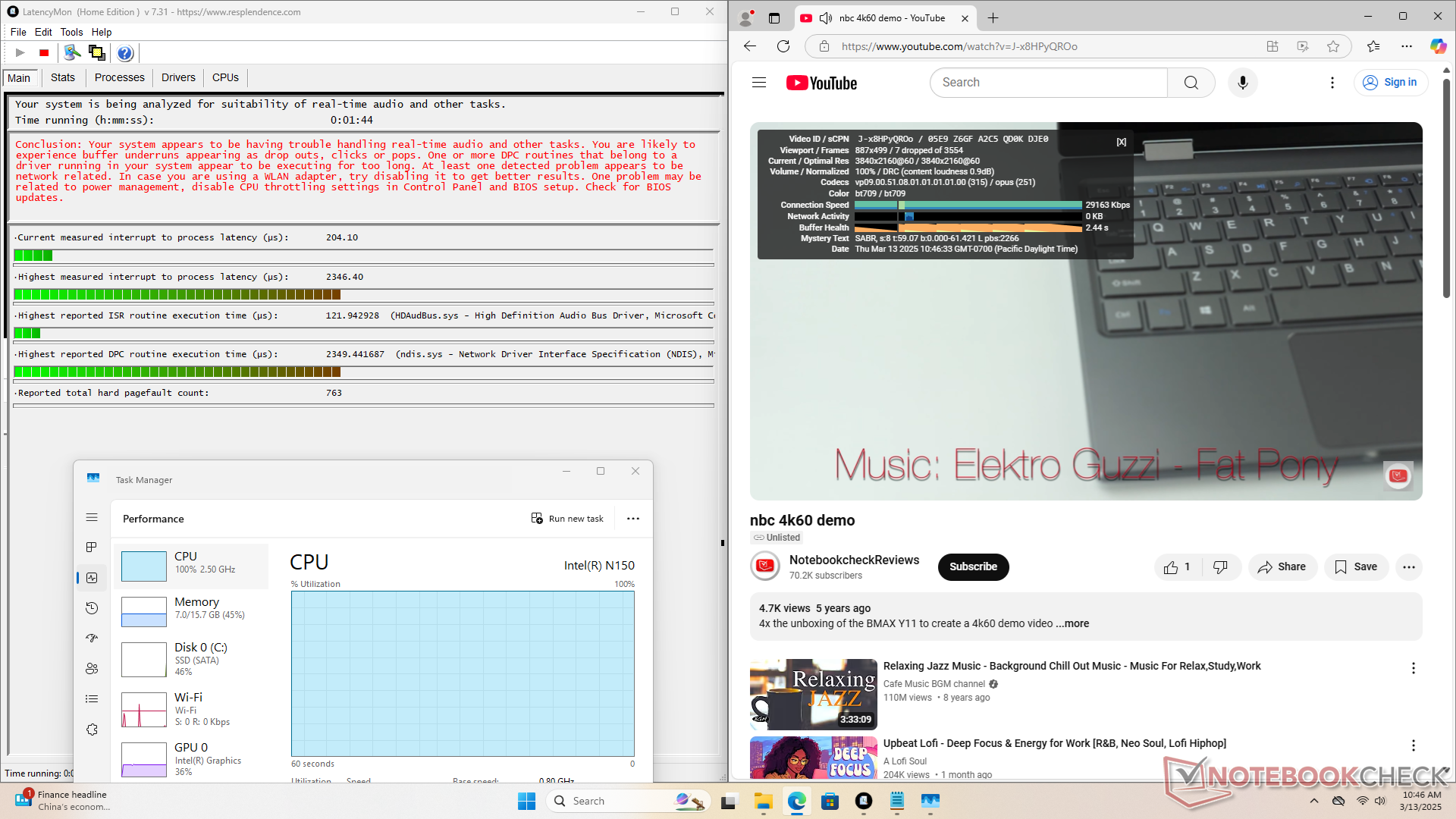

Hemos podido registrar 7 fotogramas perdidos durante una prueba de reproducción de vídeo 4k60 de un minuto, cuando lo ideal sería que no hubiera ningún fotograma perdido.

LatencyMon
LatencyMon

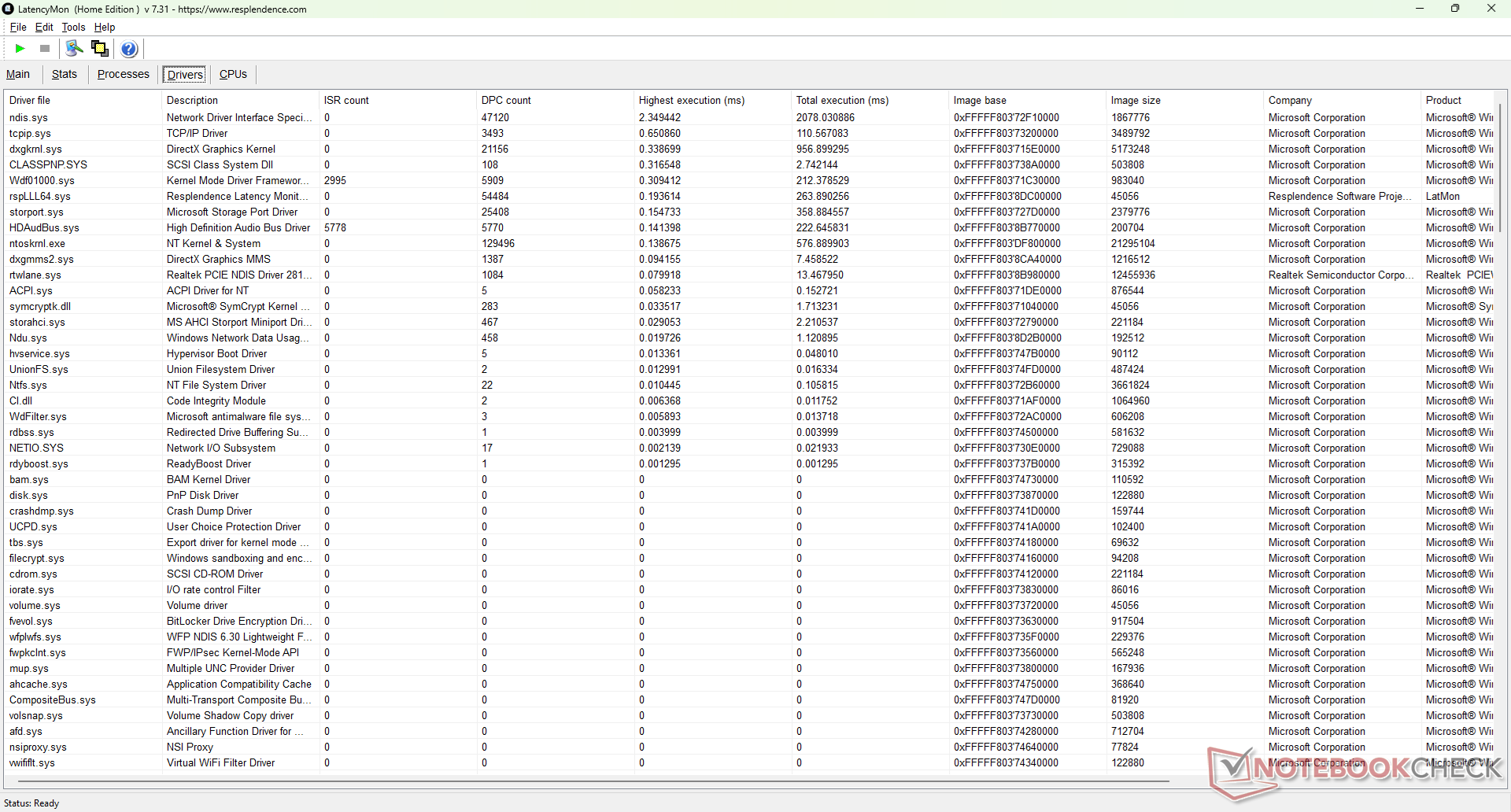

Lista de conductores
Lista de conductores
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
MSI Cubi NUC 1M
Iris Xe G7 96EUs, Core 7 150U, WD PC SN560 SDDPNQE-1T00
4103.1 μs * -75%
Asus NUC 14 Essential
UHD Graphics 32EUs, Core 3 N355, Micron 2400 MTFDKBA512QF
2705 μs * -15%
BMAX B4 Turbo
UHD Graphics 24EUs (Alder Lake-N), Processor N150
2346.4 μs *
Beelink EQ14
UHD Graphics 24EUs (Alder Lake-N), Processor N150
1925.1 μs * +18%
Newsmay AC8F-POE
UHD Graphics 24EUs (Alder Lake-N), N100, AirDisk AFF 10-128G
639 μs * +73%
BMAX B7 Power G7A2
Iris Xe G7 96EUs, i7-11390H, Kston K765-1TB
584.8 μs * +75%
Acemagic S1
UHD Graphics 24EUs (Alder Lake-N), N97, Netac G938E
449.2 μs * +81%

* ... más pequeño es mejor

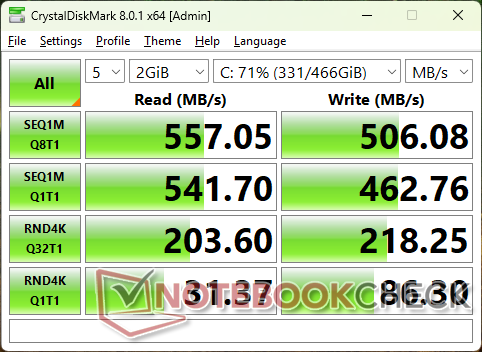

Dispositivos de almacenamiento

La SSD M.2 2280 alcanza un máximo de sólo ~500 MB/s en comparación con los >2000 MB/s de la mayoría de las SSD PCIe.

MDL 8
MDL 8
AS SSD
AS SSD
CDM 5/6 Read Seq Q32T1: 555.5 MB/s
CDM 5/6 Write Seq Q32T1: 505.4 MB/s
CDM 5/6 Read 4K Q32T1: 186.8 MB/s
CDM 5/6 Write 4K Q32T1: 217.7 MB/s
CDM 5 Read Seq: 541.4 MB/s
CDM 5 Write Seq: 486.2 MB/s
CDM 5/6 Read 4K: 29.11 MB/s
CDM 5/6 Write 4K: 82.35 MB/s
Drive Performance Rating - Percent
MSI Cubi NUC 1M
WD PC SN560 SDDPNQE-1T00
90.5 pt
BMAX B7 Power G7A2
Kston K765-1TB
73.2 pt
Acemagic S1
Netac G938E
63.7 pt
Asus NUC 14 Essential
Micron 2400 MTFDKBA512QF
49.9 pt
Beelink EQ14

22.7 pt
Newsmay AC8F-POE
AirDisk AFF 10-128G
19.5 pt
BMAX B4 Turbo

18.7 pt
DiskSpd
seq read
MSI Cubi NUC 1M
WD PC SN560 SDDPNQE-1T00
4128 (4092.8min - 4128.38max) MB/s +673%
BMAX B7 Power G7A2
Kston K765-1TB
2237 (2110.76min - 2237.45max) MB/s +319%
Asus NUC 14 Essential
Micron 2400 MTFDKBA512QF
1794 (1777.13min - 1793.93max) MB/s +236%
Acemagic S1
Netac G938E
1529 (1518.34min - 1529.45max) MB/s +186%
BMAX B4 Turbo

534 (532.64min - 533.92max) MB/s
Beelink EQ14

496 (484.73min - 495.71max) MB/s -7%
Newsmay AC8F-POE
AirDisk AFF 10-128G
413 (410.18min - 412.9max) MB/s -23%
seq write
MSI Cubi NUC 1M
WD PC SN560 SDDPNQE-1T00
3215 (3133.8min - 3214.8max) MB/s +570%
BMAX B7 Power G7A2
Kston K765-1TB
1849 (1825.24min - 1848.98max) MB/s +285%
Acemagic S1
Netac G938E
1392 (1353.52min - 1392.3max) MB/s +190%
Asus NUC 14 Essential
Micron 2400 MTFDKBA512QF
1199 (1171.01min - 1198.64max) MB/s +150%
Beelink EQ14

506 (491.99min - 506.01max) MB/s +5%
BMAX B4 Turbo

480 (477.94min - 479.5max) MB/s
Newsmay AC8F-POE
AirDisk AFF 10-128G
417 (409.15min - 416.7max) MB/s -13%
seq q8 t1 read
MSI Cubi NUC 1M
WD PC SN560 SDDPNQE-1T00
4987 (4558.37min - 4987.33max) MB/s +808%
Asus NUC 14 Essential
Micron 2400 MTFDKBA512QF
3148 (2674.18min - 3147.62max) MB/s +473%
BMAX B7 Power G7A2
Kston K765-1TB
3045 (2569.64min - 3045.06max) MB/s +455%
Acemagic S1
Netac G938E
1788 (1591.28min - 1787.61max) MB/s +226%
Beelink EQ14

556 (429.92min - 556.16max) MB/s +1%
BMAX B4 Turbo

549 (424.25min - 549.08max) MB/s
Newsmay AC8F-POE
AirDisk AFF 10-128G
397 (395.52min - 396.69max) MB/s -28%
seq q8 t1 write
MSI Cubi NUC 1M
WD PC SN560 SDDPNQE-1T00
3308 (3211.45min - 3307.84max) MB/s +564%
BMAX B7 Power G7A2
Kston K765-1TB
1981 MB/s +298%
Acemagic S1
Netac G938E
1710 (1487.72min - 1710.37max) MB/s +243%
Asus NUC 14 Essential
Micron 2400 MTFDKBA512QF
1628 (1551.73min - 1628.02max) MB/s +227%
Beelink EQ14

526 (462.09min - 525.96max) MB/s +6%
BMAX B4 Turbo

498 (494.99min - 498.07max) MB/s
Newsmay AC8F-POE
AirDisk AFF 10-128G
453 (445.02min - 453.26max) MB/s -9%
4k q1 t1 read
MSI Cubi NUC 1M
WD PC SN560 SDDPNQE-1T00
73.3 (72.01min - 73.31max) MB/s +241%
BMAX B7 Power G7A2
Kston K765-1TB
54.6 (54.21min - 54.55max) MB/s +154%
Acemagic S1
Netac G938E
48.9 (48.33min - 48.93max) MB/s +127%
Asus NUC 14 Essential
Micron 2400 MTFDKBA512QF
37.4 (36.24min - 37.36max) MB/s +74%
Newsmay AC8F-POE
AirDisk AFF 10-128G
28.4 (28.01min - 28.38max) MB/s +32%
Beelink EQ14

23.8 (23.34min - 23.81max) MB/s +11%
BMAX B4 Turbo

21.5 (14.08min - 21.46max) MB/s
4k q1 t1 write
MSI Cubi NUC 1M
WD PC SN560 SDDPNQE-1T00
282 (265.11min - 281.58max) MB/s +281%
BMAX B7 Power G7A2
Kston K765-1TB
184.7 (180.75min - 184.67max) MB/s +150%
Acemagic S1
Netac G938E
131.7 (130.58min - 131.74max) MB/s +78%
Beelink EQ14

81.4 (76.92min - 81.38max) MB/s +10%
BMAX B4 Turbo

74 (72.47min - 74.04max) MB/s
Asus NUC 14 Essential
Micron 2400 MTFDKBA512QF
69.2 (65.75min - 69.23max) MB/s -6%
Newsmay AC8F-POE
AirDisk AFF 10-128G
40.4 (39.84min - 40.4max) MB/s -45%
4k q32 t16 read
MSI Cubi NUC 1M
WD PC SN560 SDDPNQE-1T00
1533 (1419.74min - 1533.25max) MB/s +763%
BMAX B7 Power G7A2
Kston K765-1TB
883 (872.66min - 882.98max) MB/s +397%
Acemagic S1
Netac G938E
737 (736.82min - 737.34max) MB/s +315%
Asus NUC 14 Essential
Micron 2400 MTFDKBA512QF
463 (452.09min - 462.84max) MB/s +161%
Beelink EQ14

341 (335.23min - 341.31max) MB/s +92%
BMAX B4 Turbo

177.7 (177.33min - 177.69max) MB/s
Newsmay AC8F-POE
AirDisk AFF 10-128G
161.3 (160.59min - 161.32max) MB/s -9%
4k q32 t16 write
MSI Cubi NUC 1M
WD PC SN560 SDDPNQE-1T00
2010 (1622.95min - 2010.14max) MB/s +563%
BMAX B7 Power G7A2
Kston K765-1TB
1106 (1001.62min - 1105.76max) MB/s +265%
Acemagic S1
Netac G938E
830 (808.45min - 829.56max) MB/s +174%
BMAX B4 Turbo

303 (60.99min - 302.92max) MB/s
Beelink EQ14

275 (207.31min - 275.22max) MB/s -9%
Asus NUC 14 Essential
Micron 2400 MTFDKBA512QF
176.4 (166.69min - 176.44max) MB/s -42%
Newsmay AC8F-POE
AirDisk AFF 10-128G
165 (159.56min - 165.01max) MB/s -46%
AS SSD
Score Total
MSI Cubi NUC 1M
WD PC SN560 SDDPNQE-1T00
2750 Points +442%
BMAX B7 Power G7A2
Kston K765-1TB
2745 Points +441%
Acemagic S1
Netac G938E
2656 Points +424%
Asus NUC 14 Essential
Micron 2400 MTFDKBA512QF
2017 Points +298%
Beelink EQ14

698 Points +38%
Newsmay AC8F-POE
AirDisk AFF 10-128G
550 Points +8%
BMAX B4 Turbo

507 Points
Score Read
MSI Cubi NUC 1M
WD PC SN560 SDDPNQE-1T00
1443 Points +652%
Acemagic S1
Netac G938E
1111 Points +479%
BMAX B7 Power G7A2
Kston K765-1TB
1062 Points +453%
Asus NUC 14 Essential
Micron 2400 MTFDKBA512QF
779 Points +306%
Beelink EQ14

238 Points +24%
BMAX B4 Turbo

192 Points
Newsmay AC8F-POE
AirDisk AFF 10-128G
172 Points -10%
Score Write
BMAX B7 Power G7A2
Kston K765-1TB
1151 Points +448%
Acemagic S1
Netac G938E
978 Points +366%
Asus NUC 14 Essential
Micron 2400 MTFDKBA512QF
917 Points +337%
MSI Cubi NUC 1M
WD PC SN560 SDDPNQE-1T00
651 Points +210%
Beelink EQ14

333 Points +59%
Newsmay AC8F-POE
AirDisk AFF 10-128G
284 Points +35%
BMAX B4 Turbo

210 Points
Seq Read
MSI Cubi NUC 1M
WD PC SN560 SDDPNQE-1T00
4327.67 MB/s +732%
Asus NUC 14 Essential
Micron 2400 MTFDKBA512QF
2547 MB/s +390%
BMAX B7 Power G7A2
Kston K765-1TB
2329 MB/s +348%
Acemagic S1
Netac G938E
1556 MB/s +199%
BMAX B4 Turbo

520.31 MB/s
Beelink EQ14

500.85 MB/s -4%
Newsmay AC8F-POE
AirDisk AFF 10-128G
483 MB/s -7%
Seq Write
MSI Cubi NUC 1M
WD PC SN560 SDDPNQE-1T00
2606.84 MB/s +456%
BMAX B7 Power G7A2
Kston K765-1TB
1816 MB/s +287%
Acemagic S1
Netac G938E
1326 MB/s +183%
Asus NUC 14 Essential
Micron 2400 MTFDKBA512QF
838 MB/s +79%
Beelink EQ14

482.1 MB/s +3%
BMAX B4 Turbo

468.86 MB/s
Newsmay AC8F-POE
AirDisk AFF 10-128G
346 MB/s -26%
4K Read
BMAX B7 Power G7A2
Kston K765-1TB
53.1 MB/s +145%
Acemagic S1
Netac G938E
44.6 MB/s +106%
MSI Cubi NUC 1M
WD PC SN560 SDDPNQE-1T00
42.24 MB/s +95%
Asus NUC 14 Essential
Micron 2400 MTFDKBA512QF
35 MB/s +62%
Newsmay AC8F-POE
AirDisk AFF 10-128G
29.6 MB/s +37%
BMAX B4 Turbo

21.64 MB/s
Beelink EQ14

18.15 MB/s -16%
4K Write
MSI Cubi NUC 1M
WD PC SN560 SDDPNQE-1T00
217.48 MB/s +223%
BMAX B7 Power G7A2
Kston K765-1TB
152.2 MB/s +126%
Acemagic S1
Netac G938E
110.7 MB/s +65%
Asus NUC 14 Essential
Micron 2400 MTFDKBA512QF
80.7 MB/s +20%
Beelink EQ14

69.81 MB/s +4%
BMAX B4 Turbo

67.27 MB/s
Newsmay AC8F-POE
AirDisk AFF 10-128G
65.5 MB/s -3%
4K-64 Read
MSI Cubi NUC 1M
WD PC SN560 SDDPNQE-1T00
967.82 MB/s +717%
Acemagic S1
Netac G938E
911 MB/s +669%
BMAX B7 Power G7A2
Kston K765-1TB
776 MB/s +555%
Asus NUC 14 Essential
Micron 2400 MTFDKBA512QF
489 MB/s +313%
Beelink EQ14

169.66 MB/s +43%
BMAX B4 Turbo

118.47 MB/s
Newsmay AC8F-POE
AirDisk AFF 10-128G
94.3 MB/s -20%
4K-64 Write
BMAX B7 Power G7A2
Kston K765-1TB
817 MB/s +748%
Asus NUC 14 Essential
Micron 2400 MTFDKBA512QF
752 MB/s +681%
Acemagic S1
Netac G938E
735 MB/s +663%
Beelink EQ14

215.18 MB/s +123%
Newsmay AC8F-POE
AirDisk AFF 10-128G
183.9 MB/s +91%
MSI Cubi NUC 1M
WD PC SN560 SDDPNQE-1T00
172.85 MB/s +79%
BMAX B4 Turbo

96.33 MB/s
Access Time Read
Newsmay AC8F-POE
AirDisk AFF 10-128G
0.288 ms * -76%
Asus NUC 14 Essential
Micron 2400 MTFDKBA512QF
0.24 ms * -46%
Beelink EQ14

0.169 ms * -3%
BMAX B4 Turbo

0.164 ms *
BMAX B7 Power G7A2
Kston K765-1TB
0.097 ms * +41%
MSI Cubi NUC 1M
WD PC SN560 SDDPNQE-1T00
0.072 ms * +56%
Acemagic S1
Netac G938E
0.055 ms * +66%
Access Time Write
BMAX B4 Turbo

0.706 ms *
Beelink EQ14

0.518 ms * +27%
Newsmay AC8F-POE
AirDisk AFF 10-128G
0.316 ms * +55%
Asus NUC 14 Essential
Micron 2400 MTFDKBA512QF
0.14 ms * +80%
MSI Cubi NUC 1M
WD PC SN560 SDDPNQE-1T00
0.088 ms * +88%
BMAX B7 Power G7A2
Kston K765-1TB
0.049 ms * +93%
Acemagic S1
Netac G938E
0.034 ms * +95%

* ... más pequeño es mejor

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

0306090120150180210240270300330360390420450480510540Tooltip
BMAX B4 Turbo; diskspd 2.0.17 f: Ø546 (420.06-550.87)

Rendimiento de la GPU

El N150 lleva integrado el mismo UHD Graphics 24EU que en el N100. Sin embargo, el rendimiento gráfico sigue siendo más rápido que el del sistema medio con la misma iGPU de nuestra base de datos, entre un 15 y un 20 por ciento.

3DMark 11
3DMark 11
Cloud Gate
Cloud Gate
Fire Strike
Fire Strike
Time Spy
Time Spy
3DMark Performance Rating - Percent
MSI Cubi NUC 1M
Intel Iris Xe Graphics G7 96EUs, Intel Core 7 150U
100 pt
BMAX B7 Power G7A2
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H
65.1 pt
HP Elite Mini 800 G9-5M9X6EA
Intel UHD Graphics 770, Intel Core i5-14500
54.1 pt
Asus NUC 14 Essential
Intel UHD Graphics 32EUs (Alder Lake), Intel Core 3 N355
45.5 pt
Acemagic S1
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N97
35.4 pt
BMAX B4 Turbo
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N150
30.3 pt
Medio Intel UHD Graphics 24EUs (Alder Lake-N)

25.6 pt
Beelink EQ14
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N150
24.8 pt
Newsmay AC8F-POE
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100
23.7 pt
Asus ExpertCenter PN42-BBN200MV
Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200
23.7 pt
3DMark 11 - 1280x720 Performance GPU
MSI Cubi NUC 1M
Intel Iris Xe Graphics G7 96EUs, Intel Core 7 150U
6282 Points +236%
BMAX B7 Power G7A2
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H
4770 Points +155%
HP Elite Mini 800 G9-5M9X6EA
Intel UHD Graphics 770, Intel Core i5-14500
3428 Points +83%
Asus NUC 14 Essential
Intel UHD Graphics 32EUs (Alder Lake), Intel Core 3 N355
2901 Points +55%
Acemagic S1
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N97
2233 Points +19%
BMAX B4 Turbo
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N150
1872 Points
Medio Intel UHD Graphics 24EUs (Alder Lake-N)
  (1458 - 2233, n=15)
1559 Points -17%
Beelink EQ14
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N150
1470 Points -21%
Newsmay AC8F-POE
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100
1458 Points -22%
Asus ExpertCenter PN42-BBN200MV
Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200
1349 Points -28%
3DMark
1280x720 Cloud Gate Standard Graphics
MSI Cubi NUC 1M
Intel Iris Xe Graphics G7 96EUs, Intel Core 7 150U
29301 Points +183%
BMAX B7 Power G7A2
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H
16589 Points +60%
HP Elite Mini 800 G9-5M9X6EA
Intel UHD Graphics 770, Intel Core i5-14500
16443 Points +59%
Asus NUC 14 Essential
Intel UHD Graphics 32EUs (Alder Lake), Intel Core 3 N355
14227 Points +37%
Acemagic S1
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N97
11498 Points +11%
BMAX B4 Turbo
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N150
10356 Points
Beelink EQ14
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N150
8740 Points -16%
Medio Intel UHD Graphics 24EUs (Alder Lake-N)
  (7218 - 11498, n=15)
8624 Points -17%
Newsmay AC8F-POE
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100
7970 Points -23%
Asus ExpertCenter PN42-BBN200MV
Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200
7604 Points -27%
1920x1080 Fire Strike Graphics
MSI Cubi NUC 1M
Intel Iris Xe Graphics G7 96EUs, Intel Core 7 150U
4899 Points +258%
BMAX B7 Power G7A2
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H
2886 Points +111%
HP Elite Mini 800 G9-5M9X6EA
Intel UHD Graphics 770, Intel Core i5-14500
2655 Points +94%
Asus NUC 14 Essential
Intel UHD Graphics 32EUs (Alder Lake), Intel Core 3 N355
2139 Points +56%
Acemagic S1
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N97
1646 Points +20%
BMAX B4 Turbo
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N150
1367 Points
Medio Intel UHD Graphics 24EUs (Alder Lake-N)
  (1080 - 1646, n=14)
1215 Points -11%
Beelink EQ14
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N150
1154 Points -16%
Asus ExpertCenter PN42-BBN200MV
Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200
1144 Points -16%
Newsmay AC8F-POE
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100
1122 Points -18%
2560x1440 Time Spy Graphics
MSI Cubi NUC 1M
Intel Iris Xe Graphics G7 96EUs, Intel Core 7 150U
1428 Points +256%
BMAX B7 Power G7A2
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H
986 Points +146%
HP Elite Mini 800 G9-5M9X6EA
Intel UHD Graphics 770, Intel Core i5-14500
737 Points +84%
Asus NUC 14 Essential
Intel UHD Graphics 32EUs (Alder Lake), Intel Core 3 N355
625 Points +56%
Acemagic S1
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N97
473 Points +18%
BMAX B4 Turbo
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N150
401 Points
Asus ExpertCenter PN42-BBN200MV
Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200
342 Points -15%
Medio Intel UHD Graphics 24EUs (Alder Lake-N)
  (304 - 473, n=15)
335 Points -16%
Beelink EQ14
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N150
321 Points -20%
Newsmay AC8F-POE
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100
304 Points -24%
3DMark 11 Performance
2095 puntos
3DMark Cloud Gate Standard Score
7731 puntos
3DMark Fire Strike Score
1271 puntos
3DMark Time Spy Score
454 puntos
ayuda
Blender - v3.3 Classroom CPU
Asus ExpertCenter PN42-BBN200MV
Intel UHD Graphics Xe 750 32EUs (Rocket Lake), Intel Processor N200
4297 Seconds * -77%
Newsmay AC8F-POE
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100
3015 Seconds * -24%
BMAX B4 Turbo
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N150
2429 Seconds *
Medio Intel UHD Graphics 24EUs (Alder Lake-N)
  (1992 - 3964, n=13)
2386 Seconds * +2%
Beelink EQ14
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N150
2125 Seconds * +13%
Acemagic S1
Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N97
2014 Seconds * +17%
BMAX B7 Power G7A2
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-11390H
1259 Seconds * +48%
Asus NUC 14 Essential
Intel UHD Graphics 32EUs (Alder Lake), Intel Core 3 N355
1121 Seconds * +54%
MSI Cubi NUC 1M
Intel Iris Xe Graphics G7 96EUs, Intel Core 7 150U
829 Seconds * +66%
HP Elite Mini 800 G9-5M9X6EA
Intel UHD Graphics 770, Intel Core i5-14500
396 Seconds * +84%

* ... más pequeño es mejor

GTA V - 1024x768 Lowest Settings possible
HP Elite Mini 800 G9-5M9X6EA
Intel Core i5-14500, Intel UHD Graphics 770
102.4 (25.3min, 71.4P1) fps +98%
MSI Cubi NUC 1M
Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs
100.3 (39.9min, 62.5P1) fps +94%
Asus NUC 14 Essential
Intel Core 3 N355, Intel UHD Graphics 32EUs (Alder Lake)
69.6 (9.06min, 41.7P1) fps +35%
Acemagic S1
Intel Processor N97, Intel UHD Graphics 24EUs (Alder Lake-N)
58.2 (7.46min, 37P1) fps +13%
BMAX B7 Power G7A2
Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs
56.4 (18min, 34.5P1) fps +9%
Beelink EQ14
Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N)
54.4 (1.684min, 34.5P1) fps +5%
Medio Intel UHD Graphics 24EUs (Alder Lake-N)
  (44.7 - 59, n=10)
54.2 fps +5%
BMAX B4 Turbo
Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N)
51.6 (0.815min, 26.3P1) fps
Asus ExpertCenter PN42-BBN200MV
Intel Processor N200, Intel UHD Graphics Xe 750 32EUs (Rocket Lake)
36.8 (1.484min, 19.2P1) fps -29%
Dota 2 Reborn
1280x720 min (0/3) fastest
HP Elite Mini 800 G9-5M9X6EA
Intel Core i5-14500, Intel UHD Graphics 770
105.8 (73.2min) fps +81%
MSI Cubi NUC 1M
Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs
97.7 (57.3min) fps +68%
BMAX B7 Power G7A2
Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs
92.3 (83.6min) fps +58%
Acemagic S1
Intel Processor N97, Intel UHD Graphics 24EUs (Alder Lake-N)
72.7 (53.4min) fps +25%
Asus NUC 14 Essential
Intel Core 3 N355, Intel UHD Graphics 32EUs (Alder Lake)
70.4 (52.2min) fps +21%
Medio Intel UHD Graphics 24EUs (Alder Lake-N)
  (44.7 - 80.8, n=14)
67.1 fps +15%
BMAX B4 Turbo
Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N)
58.3 (44.4min) fps
Beelink EQ14
Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N)
58.2 (36.9min) fps 0%
Asus ExpertCenter PN42-BBN200MV
Intel Processor N200, Intel UHD Graphics Xe 750 32EUs (Rocket Lake)
35.1 (22.9min) fps -40%
1366x768 med (1/3)
HP Elite Mini 800 G9-5M9X6EA
Intel Core i5-14500, Intel UHD Graphics 770
78.4 (32.1min) fps +143%
BMAX B7 Power G7A2
Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs
64.9 (55.9min) fps +102%
MSI Cubi NUC 1M
Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs
61.9 (45.9min) fps +92%
Acemagic S1
Intel Processor N97, Intel UHD Graphics 24EUs (Alder Lake-N)
52 (39.9min) fps +61%
Medio Intel UHD Graphics 24EUs (Alder Lake-N)
  (27.6 - 52, n=14)
43 fps +34%
Asus NUC 14 Essential
Intel Core 3 N355, Intel UHD Graphics 32EUs (Alder Lake)
39.7 (26.3min) fps +23%
BMAX B4 Turbo
Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N)
32.2 (20.1min) fps
Beelink EQ14
Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N)
28.8 (15.9min) fps -11%
Asus ExpertCenter PN42-BBN200MV
Intel Processor N200, Intel UHD Graphics Xe 750 32EUs (Rocket Lake)
20.6 (14.9min) fps -36%
1920x1080 high (2/3)
MSI Cubi NUC 1M
Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs
62.5 (42.1min) fps +373%
HP Elite Mini 800 G9-5M9X6EA
Intel Core i5-14500, Intel UHD Graphics 770
43.9 (24.2min) fps +233%
Asus NUC 14 Essential
Intel Core 3 N355, Intel UHD Graphics 32EUs (Alder Lake)
34.9 (23.4min) fps +164%
BMAX B7 Power G7A2
Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs
32.9 (30.6min) fps +149%
Acemagic S1
Intel Processor N97, Intel UHD Graphics 24EUs (Alder Lake-N)
26.8 (25.1min) fps +103%
Beelink EQ14
Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N)
21.8 (1.7min) fps +65%
Medio Intel UHD Graphics 24EUs (Alder Lake-N)
  (13.2 - 26.8, n=14)
19.4 fps +47%
BMAX B4 Turbo
Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N)
13.2 (4.8min) fps
Asus ExpertCenter PN42-BBN200MV
Intel Processor N200, Intel UHD Graphics Xe 750 32EUs (Rocket Lake)
10.9 (9.8min) fps -17%
1920x1080 ultra (3/3) best looking
MSI Cubi NUC 1M
Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs
57.8 (39.9min) fps +152%
HP Elite Mini 800 G9-5M9X6EA
Intel Core i5-14500, Intel UHD Graphics 770
40.7 (22.6min) fps +78%
Asus NUC 14 Essential
Intel Core 3 N355, Intel UHD Graphics 32EUs (Alder Lake)
32.1 (21.7min) fps +40%
BMAX B7 Power G7A2
Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs
29.6 (27.2min) fps +29%
Acemagic S1
Intel Processor N97, Intel UHD Graphics 24EUs (Alder Lake-N)
24.9 (23.1min) fps +9%
BMAX B4 Turbo
Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N)
22.9 (14.8min) fps
Beelink EQ14
Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N)
20.1 (11.2min) fps -12%
Medio Intel UHD Graphics 24EUs (Alder Lake-N)
  (13.4 - 24.9, n=14)
18.8 fps -18%
Asus ExpertCenter PN42-BBN200MV
Intel Processor N200, Intel UHD Graphics Xe 750 32EUs (Rocket Lake)
9.9 (8.5min) fps -57%
Final Fantasy XV Benchmark
1280x720 Lite Quality
MSI Cubi NUC 1M
Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs
40.9 fps +173%
HP Elite Mini 800 G9-5M9X6EA
Intel Core i5-14500, Intel UHD Graphics 770
26.2 fps +75%
BMAX B7 Power G7A2
Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs
22.1 fps +47%
Asus NUC 14 Essential
Intel Core 3 N355, Intel UHD Graphics 32EUs (Alder Lake)
21.6 fps +44%
Acemagic S1
Intel Processor N97, Intel UHD Graphics 24EUs (Alder Lake-N)
17.8 fps +19%
Beelink EQ14
Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N)
17.2 fps +15%
BMAX B4 Turbo
Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N)
15 fps
Medio Intel UHD Graphics 24EUs (Alder Lake-N)
  (12 - 17.8, n=12)
13.7 fps -9%
Asus ExpertCenter PN42-BBN200MV
Intel Processor N200, Intel UHD Graphics Xe 750 32EUs (Rocket Lake)
5.91 fps -61%
1920x1080 Standard Quality
MSI Cubi NUC 1M
Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs
23 fps +207%
HP Elite Mini 800 G9-5M9X6EA
Intel Core i5-14500, Intel UHD Graphics 770
14.3 fps +91%
Asus NUC 14 Essential
Intel Core 3 N355, Intel UHD Graphics 32EUs (Alder Lake)
11.6 fps +55%
BMAX B7 Power G7A2
Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs
10.5 fps +40%
Acemagic S1
Intel Processor N97, Intel UHD Graphics 24EUs (Alder Lake-N)
8.69 fps +16%
BMAX B4 Turbo
Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N)
7.5 fps
Medio Intel UHD Graphics 24EUs (Alder Lake-N)
  (5.63 - 8.69, n=10)
6.52 fps -13%
Asus ExpertCenter PN42-BBN200MV
Intel Processor N200, Intel UHD Graphics Xe 750 32EUs (Rocket Lake)
3.48 fps -54%
1920x1080 High Quality
MSI Cubi NUC 1M
Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs
16.6 fps +213%
HP Elite Mini 800 G9-5M9X6EA
Intel Core i5-14500, Intel UHD Graphics 770
9.38 fps +77%
BMAX B7 Power G7A2
Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs
8.15 fps +54%
Asus NUC 14 Essential
Intel Core 3 N355, Intel UHD Graphics 32EUs (Alder Lake)
7.81 fps +47%
Acemagic S1
Intel Processor N97, Intel UHD Graphics 24EUs (Alder Lake-N)
6.26 fps +18%
BMAX B4 Turbo
Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N)
5.3 fps
Medio Intel UHD Graphics 24EUs (Alder Lake-N)
  (4.22 - 6.26, n=9)
4.72 fps -11%
Asus ExpertCenter PN42-BBN200MV
Intel Processor N200, Intel UHD Graphics Xe 750 32EUs (Rocket Lake)
2.5 fps -53%
Strange Brigade - 1280x720 lowest AF:1
MSI Cubi NUC 1M
Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs
88.2 (20min, 29.9P1) fps +185%
BMAX B7 Power G7A2
Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs
49 (12.2min, 15P1) fps +58%
BMAX B7 Power G7A2
Intel Core i7-11390H, Intel Iris Xe Graphics G7 96EUs
48.5 (12.4min, 14.7P1) fps +56%
Acemagic S1
Intel Processor N97, Intel UHD Graphics 24EUs (Alder Lake-N)
37.7 (8.6min, 10.3P1) fps +22%
BMAX B4 Turbo
Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N)
31 (6.8min, 8.12P1) fps
Medio Intel UHD Graphics 24EUs (Alder Lake-N)
  (23.2 - 37.7, n=11)
28.4 fps -8%
Beelink EQ14
Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N)
26.6 (6min, 6.91P1) fps -14%
Asus ExpertCenter PN42-BBN200MV
Intel Processor N200, Intel UHD Graphics Xe 750 32EUs (Rocket Lake)
25.2 (6.6min, 8.91P1) fps -19%
F1 22 - 1280x720 Ultra Low Preset AA:T AF:16x
MSI Cubi NUC 1M
Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs
71.8 (51min, 58P1) fps +183%
BMAX B4 Turbo
Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N)
25.4 (22min, 21P1) fps
Medio Intel UHD Graphics 24EUs (Alder Lake-N)
  (20.3 - 25.4, n=2)
22.9 fps -10%
Beelink EQ14
Intel Processor N150, Intel UHD Graphics 24EUs (Alder Lake-N)
20.3 (17min, 16P1) fps -20%
Cyberpunk 2077 2.2 Phantom Liberty - 1280x720 Low Preset (FSR off)
MSI Cubi NUC 1M
Intel Core 7 150U, Intel Iris Xe Graphics G7 96EUs
25.5 (19.8min) fps
HP Elite Mini 800 G9-5M9X6EA
Intel Core i5-14500, Intel UHD Graphics 770
15.1 (4.01min) fps
Asus NUC 14 Essential
Intel Core 3 N355, Intel UHD Graphics 32EUs (Alder Lake)
13.8 (10.8min) fps
Acemagic S1
Intel Processor N97, Intel UHD Graphics 24EUs (Alder Lake-N)
11.1 (8.45min) fps
Medio Intel UHD Graphics 24EUs (Alder Lake-N)
  (n=1)
11.1 fps

Cyberpunk 2077 ultra FPS Chart

00.20.30.50.60.80.91.11.21.41.51.71.822.12.32.42.62.72.9Tooltip
BMAX B4 Turbo Processor N150, UHD Graphics 24EUs (Alder Lake-N): Ø2.97 (2.81-3.02)
bajomedioaltoultra
GTA V (2015) 51.6
Dota 2 Reborn (2015) 58.3 32.2 13.2 22.9
Final Fantasy XV Benchmark (2018) 15 7.5 5.3
Strange Brigade (2018) 31
F1 22 (2022)
Cyberpunk 2077 2.2 Phantom Liberty (2023)

Emisiones

Ruido del sistema

El ventilador está siempre activo pero es silencioso cuando está en ralentí. Sin embargo, se pone en marcha con bastante rapidez cuando se introducen cargas más elevadas, como al iniciar navegadores o al realizar varias tareas a la vez. El comportamiento de pulsación podría mejorarse.

Perfil de ruido del ventilador (Blanco: Fondo, Rojo: Sistema en reposo, Azul: 3DMark 06, Naranja: Cyberpunk 2077, Verde: Prime95 estrés)
Perfil de ruido del ventilador (Blanco: Fondo, Rojo: Sistema en reposo, Azul: 3DMark 06, Naranja: Cyberpunk 2077, Verde: Prime95 estrés)

Ruido

Ocioso
23.8 / 23.8 / 39.9 dB(A)
Carga
40 / 40.8 dB(A)
  red to green bar


30 dB
silencioso
40 dB(A)
audible
50 dB(A)
ruidosamente alto

min: dark, med: mid, max: light   Earthworks M23R, Arta (15 cm de distancia)   ruido ambiental: 23.8 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2034.434.734.33339.2253029.729.227.730.83127.52528.624.427.24024.824.624.221.624.15025.625.92522.325.96329.329.528.925.129.18028.926.126.724.927.910025.92423.323.224.21251918.218.717.318.216019.118.418.916.218.820033.133.331.115.533.925025.528.621.616.327.331520.923.824.419.720.540020.42323.41719.650021.120.621.113.520.463036.131.432.712.530.280025.125.3251026.1100023.924.125.4925125024.22424.29.624.6160029.129.529.99.730.7200027.828.527.89.529.2250028.428.628.410.129.6315031.131.13110.631.9400032.832.431.811.133.9500018.919.318.511.520630020.120.218.311.520.1800018.619.118.211.520.11000014.316.314.211.714.31250013.715.113.211.814.11600012.914.612.211.112.8SPL40.64039.923.840.8N3.33.23.10.53.4median 23.9median 24median 23.4median 11.5median 24.2Delta4.44.94.835.2hearing rangehide median Fan NoiseBMAX B4 Turbo
BMAX B4 Turbo
UHD Graphics 24EUs (Alder Lake-N), Processor N150
BMAX B7 Power G7A2
Iris Xe G7 96EUs, i7-11390H, Kston K765-1TB
Beelink EQ14
UHD Graphics 24EUs (Alder Lake-N), Processor N150
Asus NUC 14 Essential
UHD Graphics 32EUs, Core 3 N355, Micron 2400 MTFDKBA512QF
MSI Cubi NUC 1M
Iris Xe G7 96EUs, Core 7 150U, WD PC SN560 SDDPNQE-1T00
Newsmay AC8F-POE
UHD Graphics 24EUs (Alder Lake-N), N100, AirDisk AFF 10-128G
Acemagic S1
UHD Graphics 24EUs (Alder Lake-N), N97, Netac G938E
Noise
17%
24%
11%
-1%
17%
6%
apagado / medio ambiente *
23.8
23
3%
22.5
5%
24.9
-5%
23.5
1%
24.8
-4%
24.9
-5%
Idle Minimum *
23.8
23
3%
23.5
1%
25
-5%
29.9
-26%
24.8
-4%
25.8
-8%
Idle Average *
23.8
25.12
-6%
23.5
1%
25
-5%
29.9
-26%
24.8
-4%
25.9
-9%
Idle Maximum *
39.9
25.12
37%
23.8
40%
25
37%
32
20%
24.8
38%
26
35%
Load Average *
40
27.15
32%
24
40%
30.2
24%
33.5
16%
24.9
38%
34.5
14%
Cyberpunk 2077 ultra *
40.6
23.8
41%
39.1
4%
Load Maximum *
40.8
27.15
33%
24.4
40%
32.3
21%
40.5
1%
25
39%
38.2
6%
Witcher 3 ultra *
27.15

* ... más pequeño es mejor

Temperatura

Adaptador de CA
Adaptador de CA

Las temperaturas superficiales son relativamente frescas y no suponen ningún problema gracias al procesador de bajo consumo.

Sistema inactivo (frontal)
Sistema inactivo (frontal)
Sistema inactivo (trasero)
Sistema inactivo (trasero)
Prime95+Tensión FurMark (frente)
Prime95+Tensión FurMark (frente)
Prime95+Tensión FurMark (trasera)
Prime95+Tensión FurMark (trasera)

Prueba de estrés

La CPU se dispararía a 2,6 GHz y 20 W al iniciar el estrés Prime95. Después de unos 30 segundos, sin embargo, caería a 2 GHz y 15 W. La temperatura del núcleo se mantendría relativamente fría en el rango bajo de 50 C.

Sistema inactivo
Sistema inactivo
La tensión de Cyberpunk 2077
La tensión de Cyberpunk 2077
Prime95 estrés
Prime95 estrés
Prime95+Tensión FurMark
Prime95+Tensión FurMark
Reloj medio de la CPU (GHz) Reloj de la GPU (MHz) Temperatura media de la CPU (°C)
Sistema en reposo -- -- 31
Prime95 Stress 2.2 -- 55
Prime95 + FurMark Stress 1.3 850 54
Cyberpunk 2077 Estrés 1.4 950 51

Gestión de la energía

Consumo de energía

El consumo máximo es de algo menos de 30 W cuando funciona con cargas exigentes, a pesar de que el pequeño adaptador de CA (~6,8 x 4,2 x 3,2 cm) tiene una potencia nominal de sólo 26 W. Tenga en cuenta que el cable del adaptador de CA es relativamente corto, de sólo 1,2 m.

consumo 3DMark 06
consumo 3DMark 06
Cyberpunk 2077 1080p Ultra consumo
Cyberpunk 2077 1080p Ultra consumo
El consumo se dispararía a 27 W al iniciar el estrés Prime95 antes de caer a 21 W después de 30 segundos debido a las limitaciones térmicas
El consumo se dispararía a 27 W al iniciar el estrés Prime95 antes de caer a 21 W después de 30 segundos debido a las limitaciones térmicas
Prime95+FurMark tensión iniciada en la marca 10s
Prime95+FurMark tensión iniciada en la marca 10s
Consumo de corriente
Off / Standbydarklight 0.88 / 1.3 Watt
Ociosodarkmidlight 6.3 / 7.4 / 16.2 Watt
Carga midlight 22 / 29.8 Watt
 color bar
Clave: min: dark, med: mid, max: light        Metrahit Energy
BMAX B4 Turbo
Processor N150, UHD Graphics 24EUs (Alder Lake-N), , , x,
BMAX B7 Power G7A2
i7-11390H, Iris Xe G7 96EUs, Kston K765-1TB, , x,
Beelink EQ14
Processor N150, UHD Graphics 24EUs (Alder Lake-N), , , x,
Asus NUC 14 Essential
Core 3 N355, UHD Graphics 32EUs, Micron 2400 MTFDKBA512QF, , x,
MSI Cubi NUC 1M
Core 7 150U, Iris Xe G7 96EUs, WD PC SN560 SDDPNQE-1T00, , x,
Newsmay AC8F-POE
N100, UHD Graphics 24EUs (Alder Lake-N), AirDisk AFF 10-128G, , x,
Acemagic S1
N97, UHD Graphics 24EUs (Alder Lake-N), Netac G938E, , x,
Power Consumption
-13%
-2%
-4%
-34%
-2%
-36%
Idle Minimum *
6.3
9.1
-44%
7.9
-25%
4.1
35%
6.4
-2%
7.9
-25%
9.8
-56%
Idle Average *
7.4
9.5
-28%
8.9
-20%
5.4
27%
8.3
-12%
10.1
-36%
12
-62%
Idle Maximum *
16.2
10
38%
9.1
44%
6.5
60%
10.4
36%
10.3
36%
13.5
17%
Load Average *
22
27.1
-23%
21.2
4%
29.2
-33%
38.5
-75%
17.3
21%
27.6
-25%
Cyberpunk 2077 ultra external monitor *
20.7
22.3
-8%
30.1
-45%
36.1
-74%
Load Maximum *
29.8
32.3
-8%
31.6
-6%
50.5
-69%
52.5
-76%
31.6
-6%
46.2
-55%
Witcher 3 ultra *
29.1

* ... más pequeño es mejor

Power Consumption Cyberpunk / Stress Test

05101520253035404550Tooltip
BMAX B4 Turbo Processor N150, UHD Graphics 24EUs (Alder Lake-N): Ø23.9 (22.2-29.7)
Asus NUC 14 Essential Core 3 N355, UHD Graphics 32EUs: Ø33 (31.5-50.5)

Power Consumption external Monitor

051015202530354045Tooltip
BMAX B4 Turbo Processor N150, UHD Graphics 24EUs (Alder Lake-N); Prime95 V2810 Stress (external Monitor): Ø21.6 (19.8-27.2)
Asus NUC 14 Essential Core 3 N355, UHD Graphics 32EUs; Prime95 V2810 Stress (external Monitor): Ø31.9 (29.8-45.1)
BMAX B4 Turbo Processor N150, UHD Graphics 24EUs (Alder Lake-N); Cinebench R15 Multi (external Monitor): Ø20.1 (18.1-24.5)
Asus NUC 14 Essential Core 3 N355, UHD Graphics 32EUs; Cinebench R15 Multi (external Monitor): Ø35.6 (29.2-38.1)
BMAX B4 Turbo Processor N150, UHD Graphics 24EUs (Alder Lake-N); 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø18.3 (17.8-23.6)
Asus NUC 14 Essential Core 3 N355, UHD Graphics 32EUs; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø24.2 (23.7-25.5)
BMAX B4 Turbo Processor N150, UHD Graphics 24EUs (Alder Lake-N); Idle 1min (external Monitor): Ø7.51 (6.32-16.2)
Asus NUC 14 Essential Core 3 N355, UHD Graphics 32EUs; Idle 1min (external Monitor): Ø5.41 (4.99-6.52)
BMAX B4 Turbo Processor N150, UHD Graphics 24EUs (Alder Lake-N); Cyberpunk 2077 FHD ultra no FSR (external Monitor): Ø20.7 (18.9-21.8)
Asus NUC 14 Essential Core 3 N355, UHD Graphics 32EUs; Cyberpunk 2077 FHD ultra no FSR (external Monitor): Ø30.1 (25.6-36.9)

Valoración de Notebookcheck

BMAX B4 Turbo - 03/27/2025 v8
Allen Ngo

Acabado
73 / 98 → 75%
Conectividad
49 / 81 → 60%
Peso
86%
Rendimiento de juegos
8 / 80 → 10%
Rendimiento de la Aplicación
59 / 92 → 64%
Temperatura
90%
Ruido
75%
Médio
51%
58%
Mini PC - media ponderada
CO2 Emissions
No Data
Materials
50%
Packaging
50%
Power Use
72.9%
Repairability
40%
Software Updates
22.3%
Recycle Logo Total Sustainability Score: 39.2%

Potential Competitors in Comparison

Imagen
Modelo
Precio
Peso
Altura
Pantalla
1.
58.3%
BMAX B4 Turbo
BMAX B4 Turbo
Intel Processor N150 ⎘
Intel UHD Graphics 24EUs (Alder Lake-N) ⎘
16 GB Memoría
Amazon:
1. $179.00
Bmax N150 Mini PC,B4 Turbo W...
2. $12.99
PWR+ 12V Power Supply for Bm...
3. $14.99
PowerHOOD 12V AC/DC Adapter ...
Precio de catálogo: 175 EUR
315 g44 mmx
2.
78.4% v7 (old)
BMAX B7 Power G7A2
BMAX B7 Power G7A2
Intel Core i7-11390H ⎘
Intel Iris Xe Graphics G7 96EUs ⎘
16 GB Memoría, 1024 GB SSD
Precio de catálogo: 399 US-Dollar363 g44 mmx
3.
61.3%
Beelink EQ14
Beelink EQ14
Intel Processor N150 ⎘
Intel UHD Graphics 24EUs (Alder Lake-N) ⎘
16 GB Memoría
Amazon: $199.00
Precio de catálogo: 200 USD
432 g39 mmx
4.
68%
Asus NUC 14 Essential
Asus NUC 14 Essential
Intel Core 3 N355 ⎘
Intel UHD Graphics 32EUs (Alder Lake) ⎘
16 GB Memoría, 512 GB SSD
Amazon:
1. $581.81
ASUS NUC 14 Pro Slim Barebon...
2. $526.55
ASUS NUC 14 Pro+ Barebone In...
3. $18.99
TAIFU 19V 65W Power Supply f...
Precio de catálogo: 295 EUR
465 g36 mmx
5.
66.1%
MSI Cubi NUC 1M
MSI Cubi NUC 1M
Intel Core 7 150U ⎘
Intel Iris Xe Graphics G7 96EUs ⎘
16 GB Memoría, 1024 GB SSD
Amazon: $699.00
Precio de catálogo: 950 USD
660 g50.1 mmx
6.
61.3%
Newsmay AC8F-POE
Newsmay AC8F-POE
Intel Processor N100 ⎘
Intel UHD Graphics 24EUs (Alder Lake-N) ⎘
8 GB Memoría, 128 GB SSD
Amazon:
1. $21.99
PowerHOOD AC/DC Adapter Comp...
Precio de catálogo: 295 EUR
1.2 kg62 mmx
7.
75.8% v7 (old)
Acemagic S1
Acemagic S1
Intel Processor N97 ⎘
Intel UHD Graphics 24EUs (Alder Lake-N) ⎘
16 GB Memoría, 512 GB SSD
Amazon:
1. $159.00
ACEMAGIC Vista V1 N97 Mini P...
2. $22.99
PowerHOOD 12V AC Adapter Com...
3. $9.99
Portable Charger Adapter for...
Precio de catálogo: 249 EUR
450 g42 mmx

Transparencia

La selección de los dispositivos que se van a reseñar corre a cargo de nuestro equipo editorial. La muestra de prueba fue proporcionada al autor en calidad de préstamo por el fabricante o el minorista a los efectos de esta reseña. El prestamista no tuvo ninguna influencia en esta reseña, ni el fabricante recibió una copia de la misma antes de su publicación. No había ninguna obligación de publicar esta reseña. Nunca aceptamos compensaciones o pagos a cambio de nuestras reseñas. Como empresa de medios independiente, Notebookcheck no está sujeta a la autoridad de fabricantes, minoristas o editores.

Así es como prueba Notebookcheck

Cada año, Notebookcheck revisa de forma independiente cientos de portátiles y smartphones utilizando procedimientos estandarizados para asegurar que todos los resultados son comparables. Hemos desarrollado continuamente nuestros métodos de prueba durante unos 20 años y hemos establecido los estándares de la industria en el proceso. En nuestros laboratorios de pruebas, técnicos y editores experimentados utilizan equipos de medición de alta calidad. Estas pruebas implican un proceso de validación en varias fases. Nuestro complejo sistema de clasificación se basa en cientos de mediciones y puntos de referencia bien fundamentados, lo que mantiene la objetividad.
Please share our article, every link counts!
Mail Logo
> Análisis y pruebas de ordenadores portátiles y móviles teléfonos > Análisis > Reseña del BMAX B4 Turbo: Mini PC económico con Intel N150
Allen Ngo, 2025-03-28 (Update: 2025-03-28)
